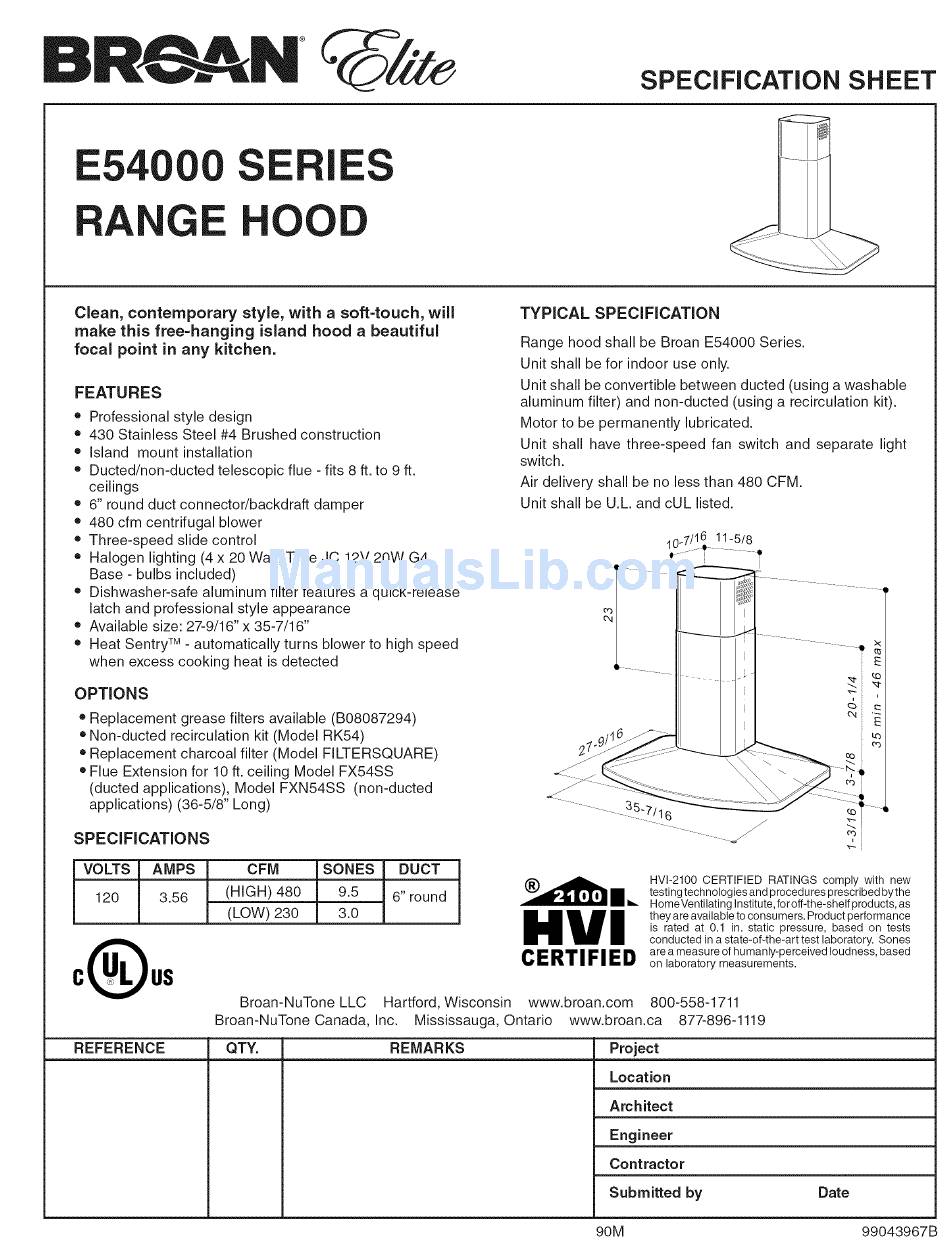

BmeAm +
SPECiFiCATiON
SHEET
GE
E IES
OO
Clean, contemporary style, with a soft-touch, will
make this free=hanging
island hood a beautiful
focal point in any kitchen.
FEATURES
* Professional style design
* 430 Stainless Steel #4 Brushed construction
* Island mount installation
* Ducted/non-ducted
telescopic flue - fits 8 ft. to 9 ft.
ceilings
* 6" round duct connector/backdraft
damper
* 480 cfm centrifugal blower
* Three-speed
slide control
* Halogen lighting (4 x 20 Watt, Type JC 12V 20W G4
Base - bulbs included)
* Dishwasher-safe
aluminum filter features a quick-release
latch and professional style appearance
* Available size: 27-9/16"x 35-7/16"
* Heat Sentry
TM
- automatically turns blower to high speed
when excess cooking heat is detected
OPTIONS
* Replacement grease filters available (B08087294)
* Non-ducted recirculation kit (Model RK54)
* Replacement charcoal filter (Model FILTERSQUARE)
* Flue Extension for 10 ft. ceiling Model FX54SS
(ducted applications),
Model FXN54SS
(non-ducted
applications)
(36-5/8" Long)
SPECiFiCATiONS
TYPICAL SPECiFiCATiON
Range hood shall be Broan E54000 Series.
Unit shall be for indoor use only.
Unit shall be convertible between ducted (using a washable
aluminum filter) and non-ducted (using a recirculation kit).
Motor to be permanently lubricated.
Unit shall have three-speed
fan switch and separate light
switch.
Air delivery shall be no less than 480 CFM.
Unit shall be U.L and cUL listed.
ln7/16
11-5/8
u"
•
VOLTS
AMPS
CFM
SONES
DUCT
120
3.56
(HIGH) 480
9.5
6" round
(LOW) 230
3.0
CERTIFIED
E
REFERENCE
Broan-NuTone LLC
Broan-NuTone Canada, Inc.
Mississauga, Ontario
QTY.
REMARKS
HVl-2100 CERTIFIED
RATINGS
comply with new
testing technologies and procedures prescribed bythe
HomeVentilating Institute, foroff-the-shelf
products, as
they are available to consumers. Product performance
is rated at 0.1 in. static pressure,
based on tests
conducted in a state-of-the-art
test laboratory. Sones
are a measure of humanly-perceived
loudness, based
on laboratory measurements.
Hartford, Wisconsin
www.broan.com
800-558-1711
www.broan.ca
877-896-1119
Project
Location
Architect
Engineer
Contractor
Submitted
by
Date
90M
99043967B
