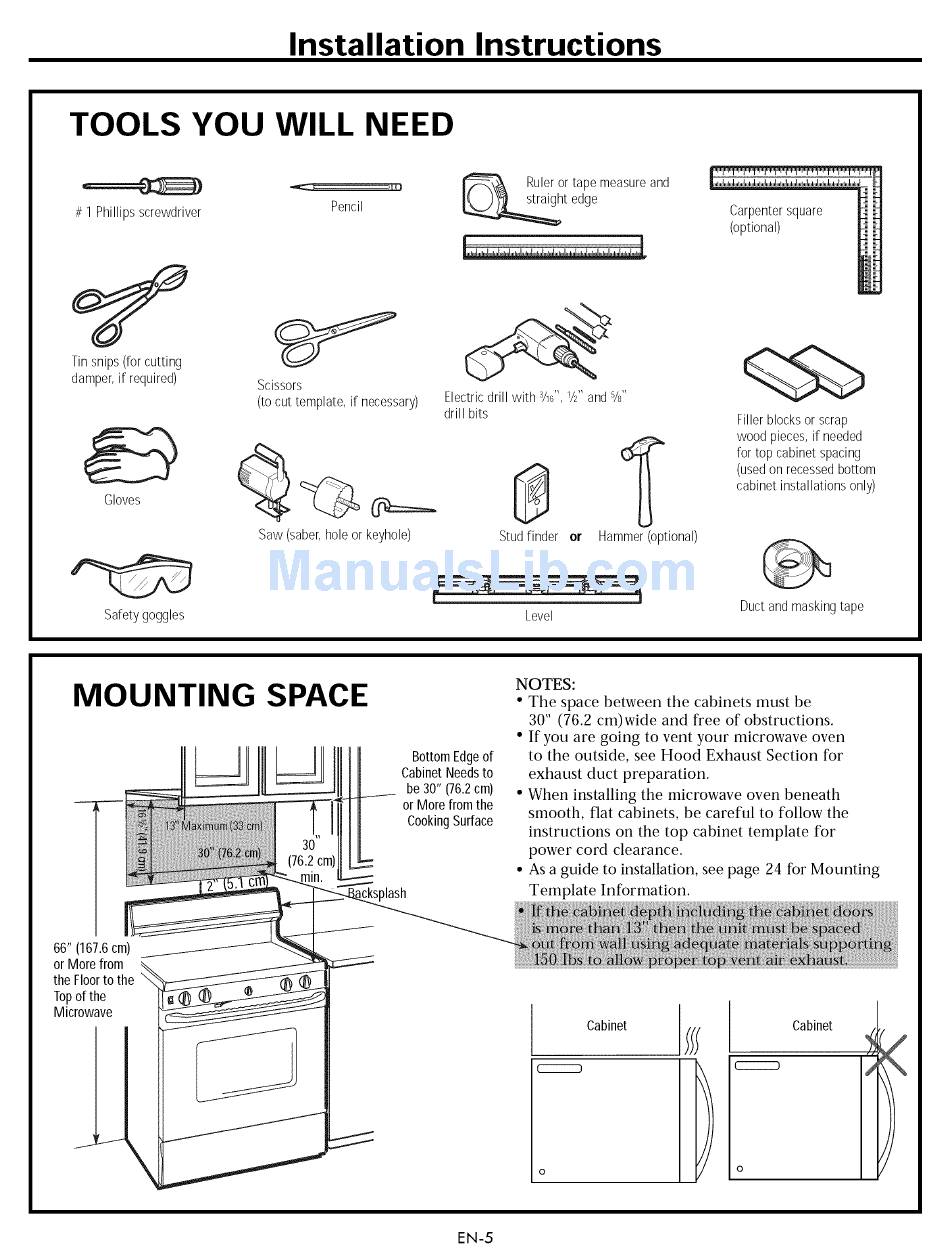

Installation Instructions
TOOLS YOU WILL NEED
# 1 Phillipsscrewdriver
Tin snips(for cutting
damper,if required)
Gloves
Safetygoggles
Pencil
Scissors
(to cut template, if necessary)
din:=
Saw (saber, h ole or keyhole)
Ruleror tapemeasureand
t edge
Electricdrill with s/16", 1/2"and%"
drill bits
Studfinder or Hammer (optional)
Level
Carpentersquare
(optional)
Fillerblocksor scrap
wood pieces,if needed
for top cabinetspacing
(usedon recessedbottom
cabinet installationsonly)
Ductandmaskingtape
MOUNTING SPACE
BottomEdge of
CabinetNeedsto
be 30" (76.2cm)
or Morefromthe
Cooking Surface
)lash
NOTES:
• The space between the cabinets must be
30" (76.2 cm)wide and free of obstructions.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
• As a guide to installation, see page 24 for Mounting
Template Information.
66" (167.6 cm)
or Morefrom
the Floorto the
Topof the
Microwave
