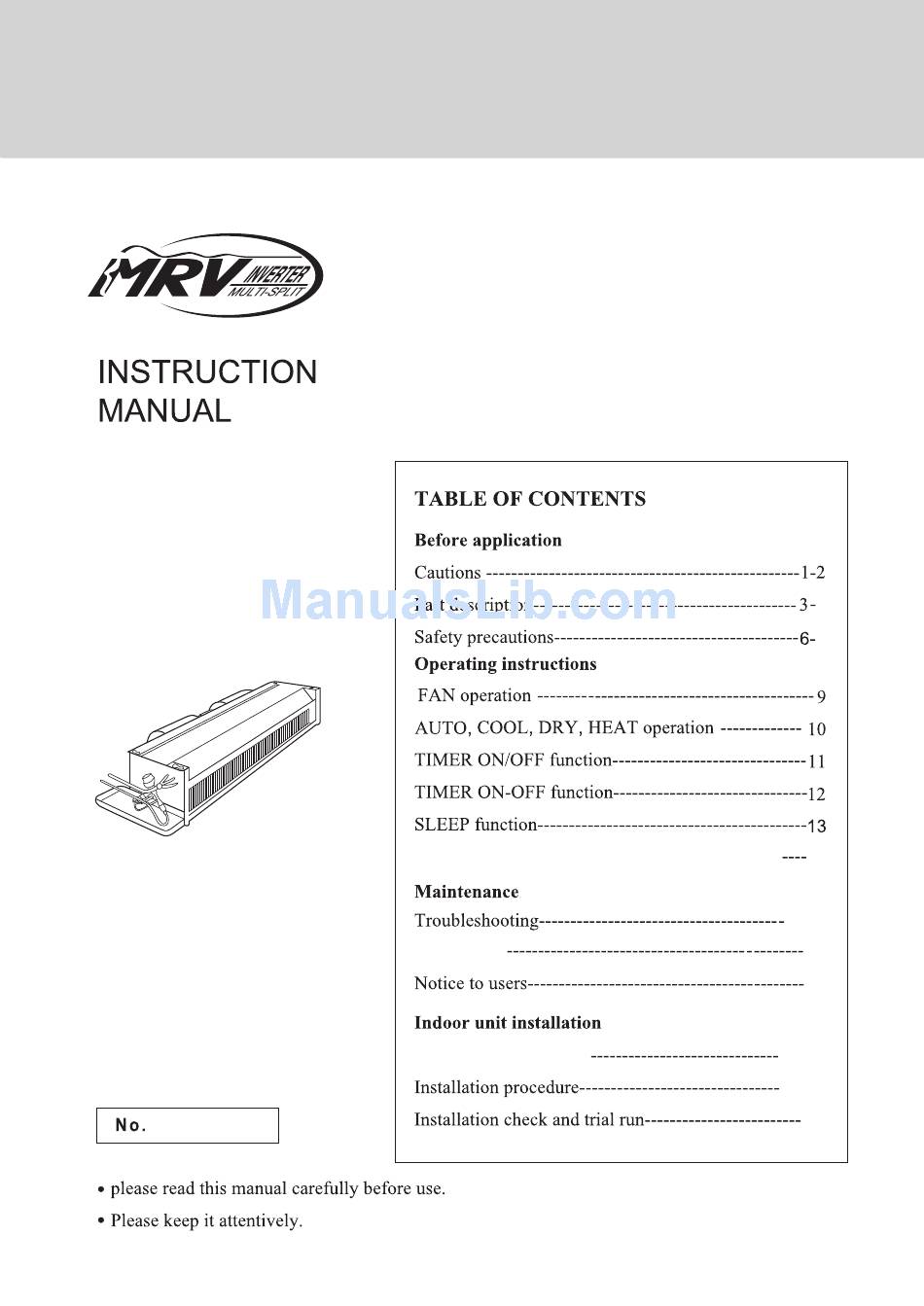

- Page 1 CEILING CONCEALED TYPE AIR CONDITIONER INDOOR UNIT 0010572352 Household MRV Ceiling Concealed Type Room Air Conditioner AE092FCAJA AE182FCBJA AE182FCAJA AE182FCBJA Health and power failure compensation function Fault occurs Installation precautions 15-16 19-20 21-33...
- Page 3 AE092FCAJA,AE182FCAJA 21*/18* AE092FCBJA,AE182FCBJA 21*/15.5*...
- Page 4 Used to set correct time. Note: 1. In outdoor unit without oxygen bar function or non-negative ion air conditioner, there is no health function mentioned in the third item function. 2.The "Swing" function are not available on the models mentioned in this manual;...
-
Page 5: Clock Set
Operation Display of the wire controller and remote controller. M O D E C L O C T I M R O O O N / O 8.TIMER ON 1.AUTO 9.TIMER OFF 2.COOL 10.CLOCK 3.DRY 11.OPERATING LAMP 4.HEAT 12.TEMP. 5.FAN OPERATION 13.LOCK. - Page 6 Make sure that the remote controller is used within 7 meters from receiver window of the wire controller and there are no obstructions in between. The remote controller or wire controller should be handled with care. When operating the remote controller in an area where electronically controlled lights are installed or wireless handsets are used, move closer to the indoor unit as the function of the remote controller might be affected by signals from this equipment.
-
Page 7: Important Points Of Safety
Important Points of Safety The following four important points of safety and suggestions should be paid great attention: Warning: Misuse may cause fatal result such as death or serious injury etc. Attention: Misuse may cause human injury or damage of machine, in some case fatal results. - Page 8 Important Points of Safety l Avoid your body being blown directly by cold wind for long period, otherwise your health may be affected. l Donít extend your fingers or any other article into the inlet or outlet during operation of the machine for touching re- volving fans may cause human injury or damage of machine.
- Page 9 Important Points of Safety * Ensure ventilation of the room if the machine is used with burning facilities. Deficient ventilation can cause oxygen shortage. * Check whether installation bench of the machine is damaged after a long period of use. Machine on damaged bench may fall down and cause human injury or other damage.
-
Page 10: Fan Operation
Operating instructions The air conditioner has the function of POWER FAILURE RESUME. M O D E F A N T E M P H E A L T H C L O C K S E T T I M E R... - Page 11 Operating instructions AUTO RUN, COOL,HEAT and DRY operation Recommendations Use COOL in summer. Use HEAT in winter. Use DRY in spring,autumn and in damp climate. M O D E T E M P C L O C K S E T T I M E R FILTER RESET O N / O F F...
-
Page 12: Timer Operation
Operating instructions F A N MODE T E M P H E A L T H C L O C K S E T T I M E R FILTER RESET ON/OFF TIMER operation Set Clock correctly before starting Timer operation. You can let unit start or stop automatically at following time: Before you wake up in the morning, or get back from outside or after you fall asleep at night. -
Page 13: Timer On/Off
Operating instructions MODE F A N TEMP HEALTH CLOCK S E T T I M E R FILTER RESET ON/OFF TIMER ON-OFF (1)After unit start, select your desired operation mode Operation mode will be displayed on LCD. Power indicator lights up. (2) Press TIMER button to change TIMER mode Every time the button is pressed, display changes as follows:... - Page 14 Operating instructions Comfortable Sleep At night, before going to bed you can press down the SLEEP button on the controller and the air- conditioner will run by the comfortable sleeping mode to make you sleep more comfortable. In cooling, dehumidifying mode One hour after sleeping operation start, the temp.
- Page 15 Notes: When a power failure suddenly occurs during the air conditioner is working after the power failure compensation is set, if the air conditioner will not be used for a long time, please cut off the power supply to prevent its operation from being resumed after the power is supplied again, or press the "Switch On/Off"...
-
Page 16: Troubleshooting
FAN mode. The system couldnt be re-started immediately after turning off.The unit can't start? During operation, the air conditioner may sometimes exhibit a sound of "clatter" or "rumble". This is the common sound of refrigerant flow but not a trouble. - Page 17 Troubleshooting During DRY operation, there is no air sent out or fan speed cant be changed. In HEAT mode, the outdoor unit generates water or steam. In HEAT mode, the indoor fan still keeps running even the unit operation stops. Before asking for after-service to an authorized service center, please check your a conditioner for the following items Is power on/off switched on?
-
Page 18: When Fault Occurs
Is there any other heat source in the room? When the air conditioner does not operate properly after you have checked the above mentioned items o following phenomenon is observed, stop the operation of the air conditioner and contact your sales de The fuse or breaker often shuts down. -
Page 19: Notice To Users
To ensure proper operation of the system, the user shall follow this instruction manual to install the unit. l When handling the air conditioner, please be care not to scratch the case surface. l This instruction manual describes the installation method aided with the installation tools specified by manufacturer . -
Page 20: Installation Precautions
Install the air conditioner to a place where can definitely stand its weight. Places not firm enoug will cause drop down of unit resulting in body hurt. - Page 21 This description does not address to all possible cases. For new requirement and query, please consult the regional sales center of Haier Air Conditioner General Co., Ltd. This instruction manual must be read carefully before beginning of installation, improper ins- tallation may cause accidents and thus bring about machine damage and personal casualty.
-
Page 22: Installation Procedure
Installation procedure Electrical requirements l The power supply shall be connected from the outdoor side. (For models with electric-aided heating function, the power supply to the indoor unit shall be connected at the indoor side The power cord size is 3 G(1.0-1.5)mm l A separate power circuit shall be supplied and connected by a qualified electrician according to the wiring rules specified in the corresponding national standard. - Page 23 Installation procedure Please do not install the unit in places where flammable gases may be leaked. In case that gas is leaked and accumulated around the unit, it may cause dangers of fire etc. The indoor unit shall be installed at locations where cold and hot air could evenly circulated. The following locations should be avoided: l Places with rich saline matters (seaside regions).
-
Page 24: Installation Of Indoor Unit
Installation procedure l The unit shall be installed at locations enough to support the unit. If not, the air conditioner may fall down and cause personal injury. After selecting the unit installation location, proceed the following steps: 1. Drill a hole in the wall and insert the connecting pipe and wire through a PVC wall-through tube purchased locally. - Page 25 (terminal color is write), the distance between air duct outlet and air conditioner outlet is no more than 0.5m; when connect to long air duct, using high static terminal (terminal color is red), the distance between air duct outlet and air conditioner outlet could be within 5m at this point.
- Page 26 It should be also connected to its respective air diffuser separately. See Fig.1. Adjust the wind speed of each air diffuser outlet to keep in line on the whole, so as to meet a demand of the air conditioner in the room. flexible joint...
- Page 27 Use M8 or M10 suspension screws (4, prepared in the field) (when the suspension screw height exceeds 0.9 m, M10 size is the only choice). These screws shall be installed as follows with space adapting to air conditioner overall dimensions according to the original building structures.
- Page 28 Installation procedure 1. Remove upper part of wire controller Remove upper part of wire controller by press. PCB is mounted on lower part of wire controller, be careful not to damage it. 2. Install wire controller (1) For exposed installation, use 2 wood screws (accessory).
-
Page 29: Drain Pipe
Installation procedure l In order to drain water normally, the drain pipe shall be processed as specified in the installation manual and shall be thermal insulated to avoid dew generation. Improper hose connection may cause indoor water leakage. Requirements l The indoor drain pipe shall be thermal insulated. l The connection part between the drain pipe and the indoor unit shall be insulated so as to prevent dew generation. - Page 30 49.0 (5.0 kgf-m) ÿ12.70 78.4 (8.0 kgf-m) ÿ15.88 ! Caution AE092FCAJA AE092FCBJA ÿ9.52 ÿ6.35 Increased installing torque (N-m) 13.7 (1.4 kgf-m) 29.4 (3.0 kgf-m) 53.9 (5.5 kgf-m) 98.0 (10.0 kgf-m) efrigerant piping ) for air conditioner AE182FCAJA AE182FCBJA ÿ15.88 ÿ9.52 Double-spanner operation...
-
Page 31: Refrigerant Piping
Installation procedure Vacuum pumping With a vacuum pump, create vacuum from the stop valve of the outdoor unit. l Emptying with refrigerant sealed in the outdoor unit is absolutely forbidden. Open all valves Open all the valves on the outdoor unit. Gas leakage detection Check with a leakage detector or soap water that if there is gas leakage at the pipe connections and bonnets. -
Page 32: Electric Wiring
Installation procedure l The electric wiring work shall be conducted by qualified electricians according to the install- ation instructions. A separate power circuit shall be used. Insufficient power cord amperage or improper wiring will cause danger of electric shock or fire. l During wiring connection, the power cord shall be of the specified cable and reliably fastened so that external forces applied to the cable wouldnt transfer to the terminals. - Page 33 Connect the terminals with the same color and number with a wire. l Wrong connection would damage the controller of the air conditioner or the machine cou- ldnt operate. l Do not connect the connection wire and signal wire with the same cable. They shall be co- nnected respectively to ensure system normal operation.
-
Page 34: Field Setting
Installation procedure Field setting Field setting the unit number In order to realize central control of the MRV air conditioning system, its necessary to set the indoor unit number (control address). Indoor unit number setting Indoor unit number setting switch and confirmation of the settings. There is a 4-position dial switch for setting the indoor unit number on the computer board of the indoor unit. - Page 35 Wrap the connection pipe, the drain pipe and the connection wire together with PVC tape.
