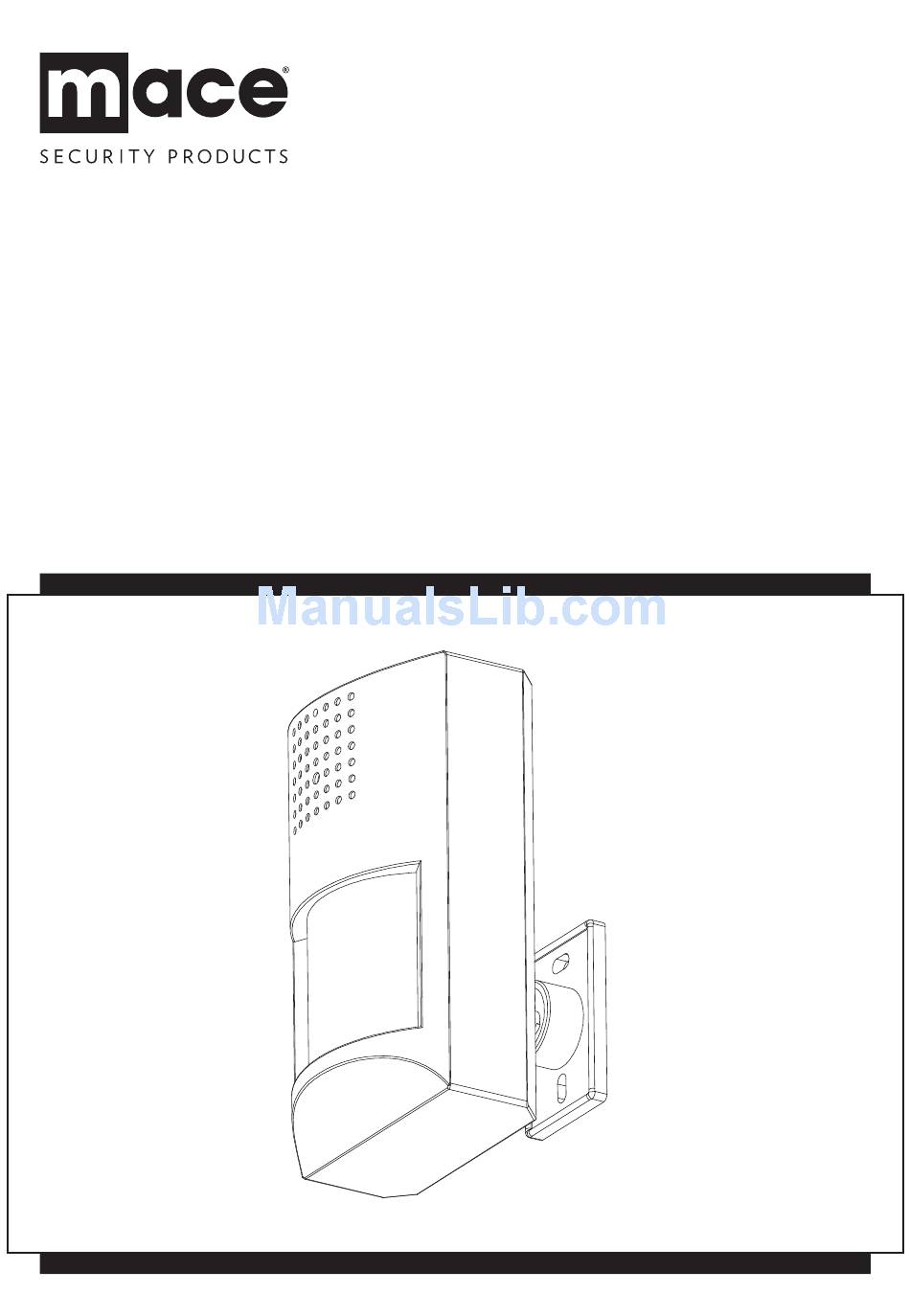

User Guide MaceView Covert Series ™ Motion Detector Camera Thank you for purchasing a MaceView™ Covert Series Camera. Please read the instructions completely before installation. Please consult a legal expert on the proper use of this equipment in accordance with the law. *Not a functioning motion detector.
FCC STATEMENT WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. * Federal Communications Commission (FCC) Statement WARNING This Equipment has been tested and found to comply with the limits for a Class B digital device,...
Page 4
FUNCTIONS The camera includes an auto white balance mode (AWB) and color temperature. The range is 2400°K~9600°K COVERT PIR OUTLINE COVERT PIR OUTLINE 32.0 HIDDEN CAMERA 70.0 47.0 28.9 32.0 MICROPHONE 70.0 47.0 28.9 32.0...
INSTALLATION 1. Secure the camera on the bracket. 2. Connect the 75Ω coaxial cable to device video input. 3. Connect the power cable. 4. Adjust the camera position and angle to cover the desired field of view. Note: The camera is supplied with the focus pre-set, however, lens focus may be adjusted if needed.
Page 6
SPECIFICATIONS | MVC-PIR 1. 1/3" Covert PIR type camera 2. Built-in Lens 3.7 mm 3. DC12V voltage 4. Audio Microphone (HS-CH0121) Image Sensor 1/3" SONY CCD Effective Pixels NTSC: 768(H) x 494(V) ; PAL: 752(H) x 582(V) Resolution 550 TV lines (Color) S/N Ratio More than 48dB Electronic Shutter...
