- Page 1 IEEE 802.3at Gigabit High Power over Ethernet Adapter POE-161 / POE-161S User’s Manual...
- Page 2 Trademarks Copyright © PLANET Technology Corp. 2010. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will...
-
Page 3: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 WEEE separately. Revision PLANET IEEE 802.3at Gigabit High Power over Ethernet Adapter User’s Manual For Models: IEEE 802.3at Gigabit High Power over Ethernet Injector: POE-161 IEEE 802.3at Gigabit High Power over Ethernet Splitter: POE-161S Revision: 1.0 (January, 2010) Part No.: 2350-AF0280-000...
-
Page 5: Table Of Contents
Table Of Contents 1. Package Content ............... 6 2. Product Features............... 7 3. Product Specification ............10 4. Product Outlook .............. 14 5. Hardware Installation ............16 5-1 POE-161 ..............16 5-2 POE-161S ............... 19 Customer Support ............. 23... -
Page 6: Package Content
Ethernet Adapter, POE-161 and POE-161S. Terms of “802.3at PoE Injector” in following section of this User’s Manual means the POE-161, Terms of “802.3at PoE Splitter” in following section of this User’s Manual means the POE-161S. Upon open the box of the IEEE 802.3at High Power over Ethernet Adapter and carefully unpack it. -
Page 7: Product Features
2. Product Features POE-161: Interface 2-Port RJ-45 interfaces 1-Port Data + Power output ≤ 1-Port Data input ≤ 1 DC 56V input power socket Gigabit High Power over Ethernet Mid-Span PSE Pre-IEEE 802.3at compliant IEEE 802.3af splitter devices compatible Support PoE Power up to 30 Watts for PoE port Up to 1 IEEE 802.3at devices powered... - Page 8 POE-161S: Interface 2-Port RJ-45 interfaces 1-Port PoE Power+ Data input ≤ 1-Port Data output ≤ 1 DC out plug connector Complies with IEEE 802.3at Power over Ethernet pre-stan- dard, PD Splits the 56V DC power over RJ-45 Ethernet cable into DC 5V/12V output Up to 1 non-IEEE 802.3at devices powered Auto-detect of PoE IEEE 802.3at equipment, protect devices...
- Page 9 PSE (Power Sourcing Equipment) is a device (switch, or hub for instance) that will provide power in a PoE setup. Maximum allowed contin- uous output power per such device in IEEE 802.3af is 15.4W, 30W in IEEE 802.3at pre-standard. Note PD (Powered Device) is a PoE-enabled terminal by PSE and thus consumes energy, such as IP Phones, network cameras and Wireless access...
-
Page 10: Product Specification
3. Product Specification POE-161: Product POE-161 Hardware Specification “Data” Input Port 1 x RJ-45 STP “PoE (Data+Power)” 1 x RJ-45 STP Output Port Interface DC 56V Input power socket System: Power x 1 (Green) LED Indicator PoE Port: PoE in Use x 1 (Green) 10Base-T: 2-Pair UTP Cat. - Page 11 Power over Ethernet IEEE 802.3at High Power over Ethernet PoE Standard pre-standard / Mid-Span PSE PoE Power Output DC 56V / 30 Watts PoE Power supply Type Mid-Span Power Pin Assignment 4/5(+), 7/8(-) Standards Conformance IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Standards Compliance Ethernet...
- Page 12 POE-161S: Product POE-161S Hardware Specification “Data” Out Port 1 x RJ-45 STP “PoE (Power+Data)” 1 x RJ-45 STP Input Port Interface DC Out Plug Connector LED Indicator System: PoE In x 1 (Green) 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat.
- Page 13 Standards Conformance IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Standards Compliance Ethernet IEEE 802.3at Power over Ethernet pre- standard Regulation Compliance FCC Part 15 Class A, CE...
-
Page 14: Product Outlook

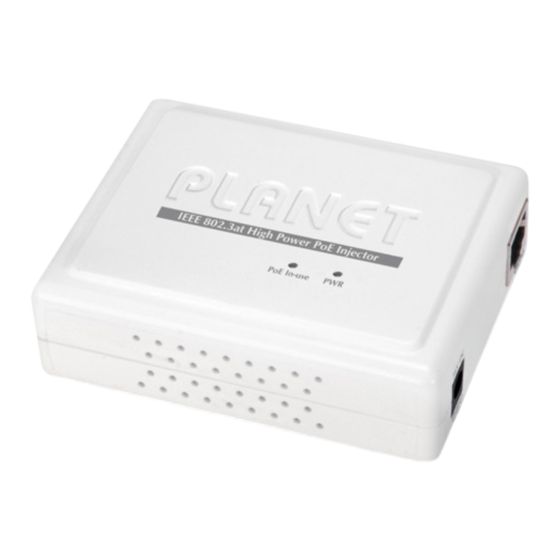

4. Product Outlook Figure 1 shows a front panel of 802.3at PoE Injector. Figure 1: POE-161 Outlook LED Indicators Color Function Lights to indicate that the POE-161 has Green power. Lights to indicate the port is providing PoE In-use Green... - Page 15 Figure 2 shows a front panel of 802.3at PoE Splitter. Figure 2: POE-161S Outlook LED Indicators Color Function Lights to indicate the port is providing PoE In Green 56V DC in-line power.
-
Page 16: Hardware Installation
Before your installation, it is recommended to check your network environment. If there is any IEEE 802.3at devices need higher power to power on and work normally, the POE-161 can provide you a way to supply power for this Ethernet device conveniently and easily. - Page 17 POE-161, the Injector Installation 1. Connect the AC adapter to “DC 56V” of POE-161. The power LED will be steady on. 2. Connect a standard network cable from Switch/workstation to “Ethernet” port of POE-161. 3. Connect the long cable that will be used to connect to the remote device to the port “Ethernet + DC”.
- Page 18 POE-161 and POE-161S, the IEEE 802.3at Injector Splitter Installation 1. Connect the AC adapter to “DC 56V” of POE-161. The power LED will be steady on. 2. Connect a standard network cable from “Ethernet+DC” port of POE-161 to “PoE In”...
-
Page 19: Poe-161S
Power Line (AC) Power Line (DC) Figure 4: Connection architecture over POE-161/POE-161S 1. According to IEEE 802.3at Power over Ethernet pre-standard, the POE-161 will not inject power to the cable if not connecting to IEEE 802.3at devices. Note 2. Please ensure the output voltage is correct before applying power to remote device. - Page 20 Hint POE-161S itself. Thus, it will shutdown your device as well. POE-161 and POE-161S can be installed in pair. However, use of third-party device is allowed if the device complied with IEEE 802.3at Power over Ethernet pre-standard.
- Page 21 POE-161S, the Splitter Installation 1. Connect a standard network cable from “Ethernet+DC” port of POE-161 to “PoE In” port of POE-161S. The POE LED of POE-161S / POE-161 will light on continuance. 100 meters Switch Data Data Power Data Power...
- Page 22 Connect with 802.3at devices The POE-161S also provide the alternative to make the non IEEE 802.3at devices the possibility to connect with an IEEE 802.3at in-line power device like Power over Ethernet Injector or Power over Ethernet Switch, the figure is as below. 100 meters 802.3at in-line power Switch Data...
-
Page 23: Customer Support
PLANET online FAQ : http://www.planet.com.tw/en/support/faq.php?type=2 Switch support team mail address : support_switch@planet.com.tw Copyright © PLANET Technology Corp. 2010. Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. - Page 24 This page is intentionally left blank...
