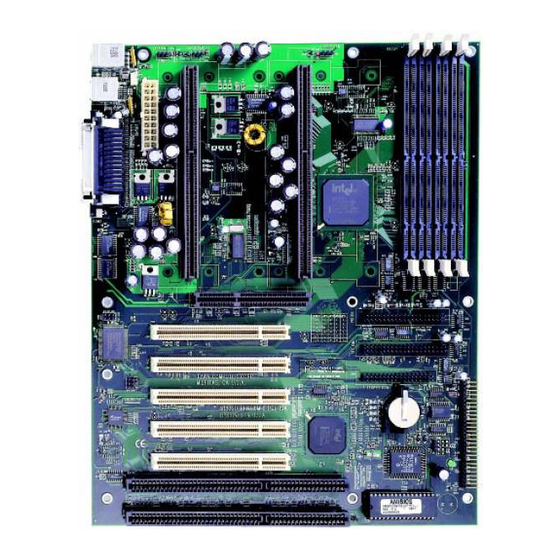

Tyan s1832dl tiger 100 motherboard
Hide thumbs Also See for S1832DL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
Tyan
S1832DL
Tiger 100
Motherboard User's Manual
Revision 2.20
Copyright © Tyan Computer Corporation, 1999. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are property of their respective companies including, but not limited to the
following.
AMI BIOS is a trademark of American Megatrend Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Pentium III, Celeron, Xeon are trademarks of Intel Corporation.
S1832 Tiger 100 is a trademark of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTED IN USA.
