English 1- UNDERSTANDING YOUR STEAM GENERATOR 2-part protective hood Steam control button Temperature control slide for the iron Thermostat light Iron-base steam cord Illuminated on / off switch Power cord reel button (depending on the model) Orange “boiler rinse” light...
Page 3

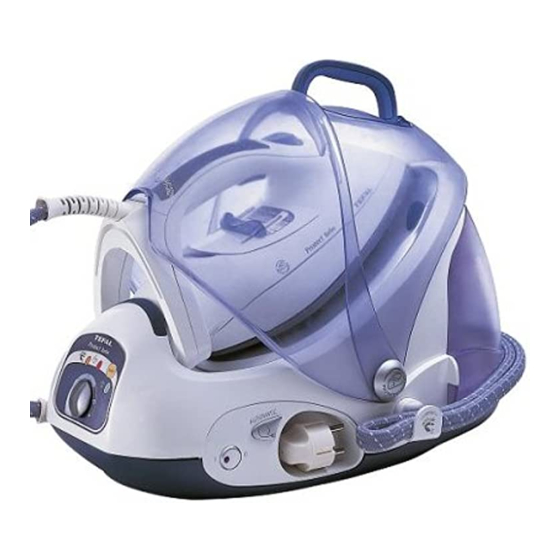

Your generator is equipped with the “Protect Concept” system. • Double protective flaps. • Flap locking system engages automatically when flaps are closed over the iron, opened by pressing release button. • Automatic heat shut-off when flaps are closed. • Carrying handle.
1.To carry your steam generator: - place the iron on the iron rest of the generator and raise the hood over the iron until it locks into place (audible click) (1). - grasp the handle of the protective hood to carry your steam generator (2).
Recommendations: • To prime the steam circuit, either before using the iron for the first time, or if you have not used the steam function for a few minutes, press the steam control button several times in a row, holding the iron away from your clothes.
There is no more steam.The removable water tank is empty (12). 1. Raise the 2 parts of the hood over the iron until the protection system locks into place (audible click) (13). 2. Grasp the handles of the removable tank and pull horizontally to remove it; fill with water.
Page 7
2. The protective hood must be folded down over the tank. 3. Place your steam generator on the edge of your sink, with the iron to one side, standing on its heel. 4. Unscrew the cord clip by turning a quarter turn to the left.
Page 8
- An earthed socket. If you are using a mains extension lead, ensure that it is correctly rated (10A) with an earth, and is fully extended. • Should the power cord or the boiler cord linking the iron to the base unit become damaged, it must be replaced by a TEFAL approved service centre to avoid the risk of danger or injury.
• Steam escapes under the appliance. • The power cord does not fully retract. (depending on the model) Never dismantle your iron : always take it to an Approved Service Centre Possible causes • The appliance is not switched on.
