The Brinkmann Corporation warrants to the original purchaser that the Brinkmann ProSeries™ 6668 is free from defects
due to workmanship or materials for:
Die cast and stainless steel parts - Lifetime
Electronic ignition and burners - 1 Year
Remaining parts - 1 Year
The Brinkmann Corporation's obligations under this warranty are limited to the following guidelines:
• This warranty does not cover grills that have been altered or damaged due to: normal wear, rust, abuse,
improper maintenance, improper use, disassembly of parts and/or attempted repair by anyone other than an
authorized employee of The Brinkmann Corporation.
• This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal
wear.
• The Brinkmann Corporation may elect to repair or replace damaged units covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent
purchasers.
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain
your sales receipt or invoice. To obtain replacement parts for your Brinkmann ProSeries™ 6668 under the terms of this
warranty, please call Customer Service Department at 800-527-0717. A receipt will be required. The Brinkmann
Corporation will not be responsible for any grills forwarded to us without prior authorization.
EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
LIMITED IN DURATION TO THOSE LISTED ABOVE FROM THE DATE OF PURCHASE. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF
THE BRINKMANN PROSERIES™ 6668 TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS
EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE
LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
140-6668-0
10/05
©2005 The Brinkmann Corporation
Dallas, Texas 75244 U.S.A.
www.brinkmann.net
WARRANTY

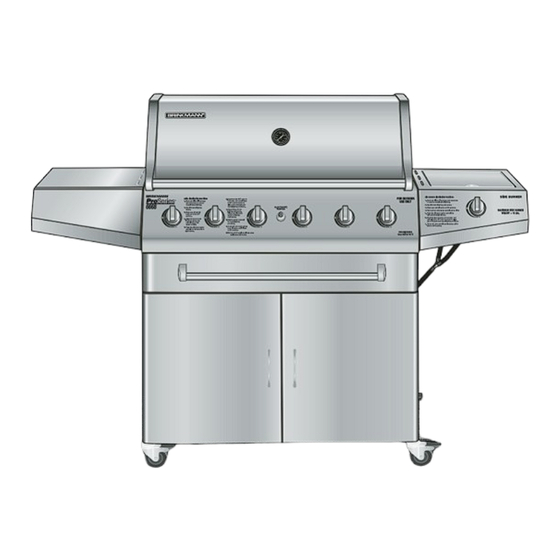

Owner's Manual for Model
810-6668-0
Advertisement
Table of Contents
Related Manuals for Brinkmann Pro Series 668
Summary of Contents for Brinkmann Pro Series 668
- Page 1 ©2005 The Brinkmann Corporation Dallas, Texas 75244 U.S.A. www.brinkmann.net WARRANTY The Brinkmann Corporation warrants to the original purchaser that the Brinkmann ProSeries™ 6668 is free from defects due to workmanship or materials for: Die cast and stainless steel parts - Lifetime Electronic ignition and burners - 1 Year Remaining parts - 1 Year The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines:...
- Page 2 6668 Outdoor Grill OWNER’S MANUAL / OWNER’S MANUAL ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE WARNING NOTICE TO INSTALLER: LEAVE THESE INSTRUCTIONS HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND FOLLOW ALL WARNINGS AND WITH THE GRILL OWNER FOR FUTURE REFERENCE.
- Page 3 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL. WHEN YOU SEE THE SAFETY ALERT SYMBOL PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
-
Page 4: Table Of Contents
TABLE OF CONTENTS General Warnings ..........3 Installation and LP Cylinder Specifications and Safe Use. -
Page 5: General Warnings
GENERAL WARNINGS WARNING • Never use natural gas in a unit designed for liquid propane gas. • Never use charcoal briquets or lighter fluid in a gas grill. • Leak test all connections before first use, even if grill was purchased fully assembled and after each tank refill. -
Page 6: Installation And Lp Cylinder Specifications And Safe Use
WARNING • FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage, shed or breezeway. • Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill be situated at least 10 feet (3.1 m) from buildings. - Page 7 CYLINDER SPECIFICATIONS: When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
-
Page 8: Connecting Lp Cylinder And Hose / Regulator To Grill
WARNING FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank. •... -
Page 9: Connecting Hose And Regulator To An Lp Gas Cylinder
WARNING • Never use your grill without leak testing all gas connections and hoses. See the section on "Leak Testing" in this manual for proper procedures. WARNING The pressure regulator and hose assembly supplied with your gas grill must be used. •... -
Page 10: Leak Testing
DANGER LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources in the area while conducting a leak test. • Perform test OUTDOORS only in a well ventilated area. • Never perform a leak test with a match or open flame. •... -
Page 11: Pre-Start Check List
6. Check each place listed (A– K) for growing bubbles which indicates a leak. 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure in hose. 9. Turn control knobs to "OFF" position. 10. -
Page 12: Connecting Lp Cylinder And Hose / Regulator To Grill
WARNING Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip any of the warnings and instructions contained in the preceding sections of this manual. WARNING LIGHTING INSTRUCTIONS: Follow the instructions exactly. 1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside the grill. -
Page 13: Lighting The Side Burner
LIGHTING THE SIDE BURNER: 1. Open lid before lighting side burner. 2. Make sure control knob is in the "OFF" position. 3. Push and turn side burner control knob to the "HIGH" position. 4. Press the electronic igniter on the main control panel and hold for 3 –... - Page 14 MATCH LIGHTING THE SIDE BURNER: 1. Open the lid to the side burner before lighting. 2. Make sure control knob is in the "OFF" position. 3. Strike and carefully place a match approximately 1/2" (1 to 2 cm) from the burner. 4.
-
Page 15: Operating Grill And Helpful Hints
WARNING OPERATING THE GRILL: Never use Charcoal or Lighter Fluid inside your Gas Grill. Read and follow all warnings and instructions contained in the preceding sections of this manual. BREAKING IN YOUR GRILL: • In manufacturing and preserving the components of your grill, oil residue may be present on the burner and cooking surfaces of your grill. -
Page 16: Using Other Features Of The Grill
USING OTHER FEATURES OF THE GRILL: THE SIDE BURNER: • The side burner can be used to prepare side dishes such as beans, potatoes, corn, or to warm sauces. • The burner valve can be adjusted from high to low depending upon your cooking demands. WARNING •... -
Page 17: Proper Care And Maintenance
GRILL COOKING TIPS CLEANLINESS • Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw meat, uncooked poultry or seafood. • When using a platter to carry raw meat, uncooked poultry or seafood to the grill, make sure to wash the platter thoroughly with soap and hot water before placing cooked foods back on the platter or use different platters for raw and cooked foods. -
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors and liquids. • Keep the ventilation openings of the cylinder enclosure free and clear of debris. • Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under Proper Care and Maintenance). -
Page 19: Transporting And Storage
COOKING GRILLS • Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills. -
Page 20: Trouble Shooting
TROUBLE SHOOTING Problem: Possible Causes: 1. Check LP cylinder fuel level. 2. Bad electrode spark. Check to see if the grill will match light. Electrode or collector may need adjustment. • Burner will not light 3. Burner may not be properly seated. 4. -
Page 21: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Your grill's serial number and model number, and the contact information for Brinkmann Customer Service, are listed on a silver label found on the back of the grill or on the grill body side, under the side shelf. These questions and answers are for your general knowledge, and may not be applicable to your model grill. -
Page 22: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Cleaning Stainless Steel Cooking Grills: Wash grills with a mild detergent and rinse with hot water before initial use and as needed. DO NOT use a commercial oven cleaner. For stubborn food residue, use a degreaser and fiber or brass cleaning brush. -
Page 23: Parts List And Assembly Instructions
ASSEMBLY INSTRUCTIONS READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT. The following provided tools are required to assemble this ProSeries 6668 Stainless Steel Gas Grill: •... - Page 24 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
- Page 25 PARTS BAG CONTENTS Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before you begin the installation process. Your Parts Bag will include: Qty. Qty. 12 M6 X 50mm Bolts 10 Star Washers AA /1.5V Alkaline Battery 22 M6 X 15mm Bolts 12 M4 X 10mm Bolts Screwdriver...
- Page 26 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary. Step 1 Attach cart base to side panels.
- Page 27 NOTE: With the help of a friend, turn the cart to its upright position. Step 4 Attach loop strap bracket onto bottom cart shelf by using two M6 X 15mm bolts Step 5 Install door bracket using four M6 X 50mm bolts and two M6 x 15mm bolts .
- Page 28 NOTE: When performing Step 7, Lift grill body from front and rear panels to avoid injury to hands and fingers. Step 7 With the help of a friend, place grill body assembly on cart frame. Grill body will rest on the side bars of cart frame assembly.
- Page 29 Step 9 Attach right side door bracket to right front cart panel using two M4 X 10mm bolts. The right side door bracket is stamped with an 'R.' Step 10 Attach left side door bracket to left front cart panel using two M4 X 10mm bolts.
- Page 30 Step 13 Attach the door handles using two M4 X 40mm bolts. Step 14 Insert hinge pin in bottom of right Spring Pin side door into hole at the bottom right front cart leg then align door with right side door bracket. Depress spring pin located on top edge of door and slide door toward right side door bracket until spring...
- Page 31 Step 16 Attach side table front panel to side table with three M6 X 15mm bolts with star washers. Step 17 Attach side burner front panel to side burner with three M6 X 15 bolts with star washers. Step 18 Attach side table to left side of grill body.
- Page 32 Step 19 Attach side burner assembly to right side of grill body. Insert four M6 X 15mm bolts halfway to the right side grill body panel. Place side burner assembly over bolts and slide down, then tighten securely. Fasten side burner front panel to grill body with one M4 X 10mm bolt.
- Page 33 Step 21 Burner Venturi Remove two bolts and washers from the side burner valve. Insert the side burner valve assembly through the hole in the side burner Side table base, then firmly seat the Burner valve nozzle into the burner venturi. Valve Hold in place while you perform Step 22.
- Page 34 Step 25 Insert grease tray into opening on backside of grill. Make sure to slide tray onto tracks as illustrated. Grease Tray Step 26 Slide grease cup into grease cup bracket located under grill bottom on backside of grill.
- Page 35 Warming Rack Cooking Grills Step 27 Place the heat distribution plates on lower level of grill body assembly directly above burners. Heat Distribution Plates Step 28 Place cooking grills on support ribs directly above heat distribution plates. Grooves Step 29 Place warming rack on grooves so that it sits above the cooking grills.
- Page 36 ProSeries 6668 (Assembled)
