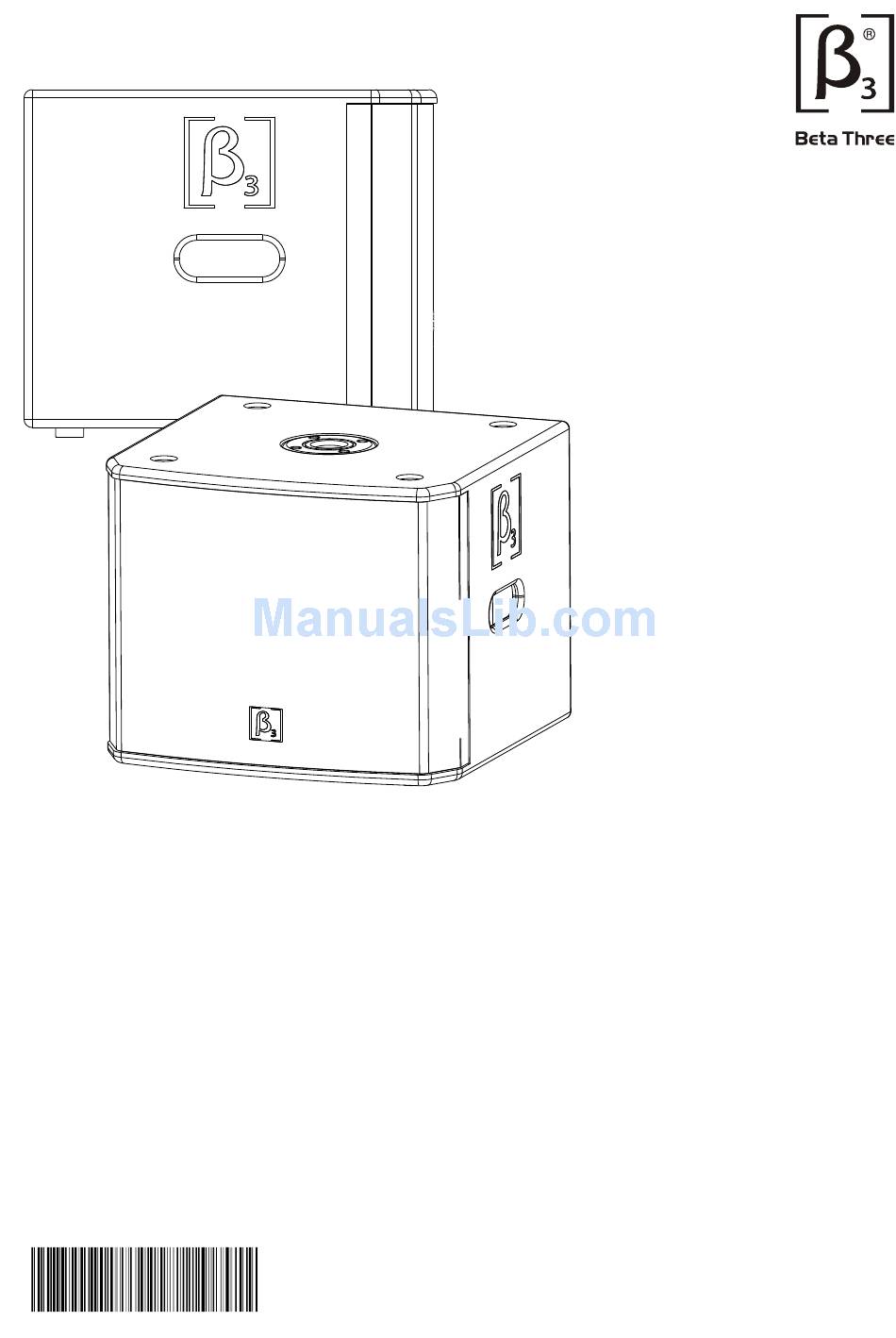

MU12Ba 12" Active Subwoofer MU Series Pro Loudspeaker System User Manual UM- MU1 2 B a - 2 0 0 9 0 8 0 1 v e r A... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thanks for buying products. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using the hanging and rigging parts that are not appointed, please ensure the intensity of the structure comply with the local safety criterion. -
Page 3: Table Of Contents
MU12Ba CONTENT MU series professional loudspeaker system CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Rear Panel INSTALLATION Installation Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information may be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
The sound is very clean, powerful and stretchy. Description Applications 3 MU12Ba is a brand new design subwoofer in MU family. Conference Room It adopts one 12" LF woofer, built-in crossover and single Small Auditorium channel amplifier. -
Page 5: Amplifier Module
MU12Ba AMPLIFIER MODULE MU series professional loudspeaker system Introduction Of Amplifier Module HIGH CUT USE ONLY WITH A 250V FUSE OUTPUT LIMIT MU12Ba ACTIVE HE M AX. CONSUMPTION P OWER 4 50W ACTIVE SUB WOOFER VOLUME No.: ELDER AUDIO MANUFACTURE Co.,Ltd. -
Page 6: Installation
MU12Ba INSTALLATION MU series professional loudspeaker system Installation Accessories Installation Reference The support flange in the top of MU12Ba is for the pole 1. Stack mounting application with MU8a. 1. Speaker stand MU8a MU12Ba Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during installation . -
Page 7: Technical Specification
MU12Ba TECHNICAL SPECIFICATION MU series professional loudspeaker system Specification 40Hz-250Hz Frequency response(-3dB): Max.SPL(1m): 118dB/124dB(PEAK) Transducer: 1X 12" Neodymium woofer, 8ohm, 300W Input: one channel balanced input(6.35/XLR) Connector: 6.35/XLR for input, XLR for output Input impedance(line): 20Kohm balanced input Input level: 0 dBV (1 V rms, 1.4 V peak)Line-100Hz... -
Page 8: 2D Dimension
