The Model H6472 Shop Fox Classic Fence is made
exclusively for Grizzly Industrial by Woodstock
International to fit the Model G7209/G7210 14"
Table Saw. The Model H6472 is exactly the same
as the regular Shop Fox Classic fence, except
that the fence body, fence facing, and rails are
different.
How to Use this Sheet
This instruction sheet was designed to be used in
conjunction with the instruction manual provided
by Woodstock International, which is intended
for the regular Shop Fox Classic Fence (Model
W2005/W2006/W2007).
Because this is fence is produced only for Grizzly
Industrial, replacement parts exclusive to the
Model H6472 (shown to the right) are only avail-
able through Grizzly Industrial.
All other parts common to the Model W2005/
W2006/W2007 can be ordered through the
instruction manual included with your fence by
Woodstock International.
All instructions for the Model H6472 are the same
as the instructions for the Model W2005/W2006/
W2007, which are found in the instruction manual
included with your fence.
If you need additional help with assembly or
set up, we will be glad to help! Call our service
department at: (570) 546-9663.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE
COPYRIGHT © OCTOBER, 2004 BY GRIZZLY INDUSTRIAL, INC.
WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL.
#TR6708 PRINTED IN TAIWAN

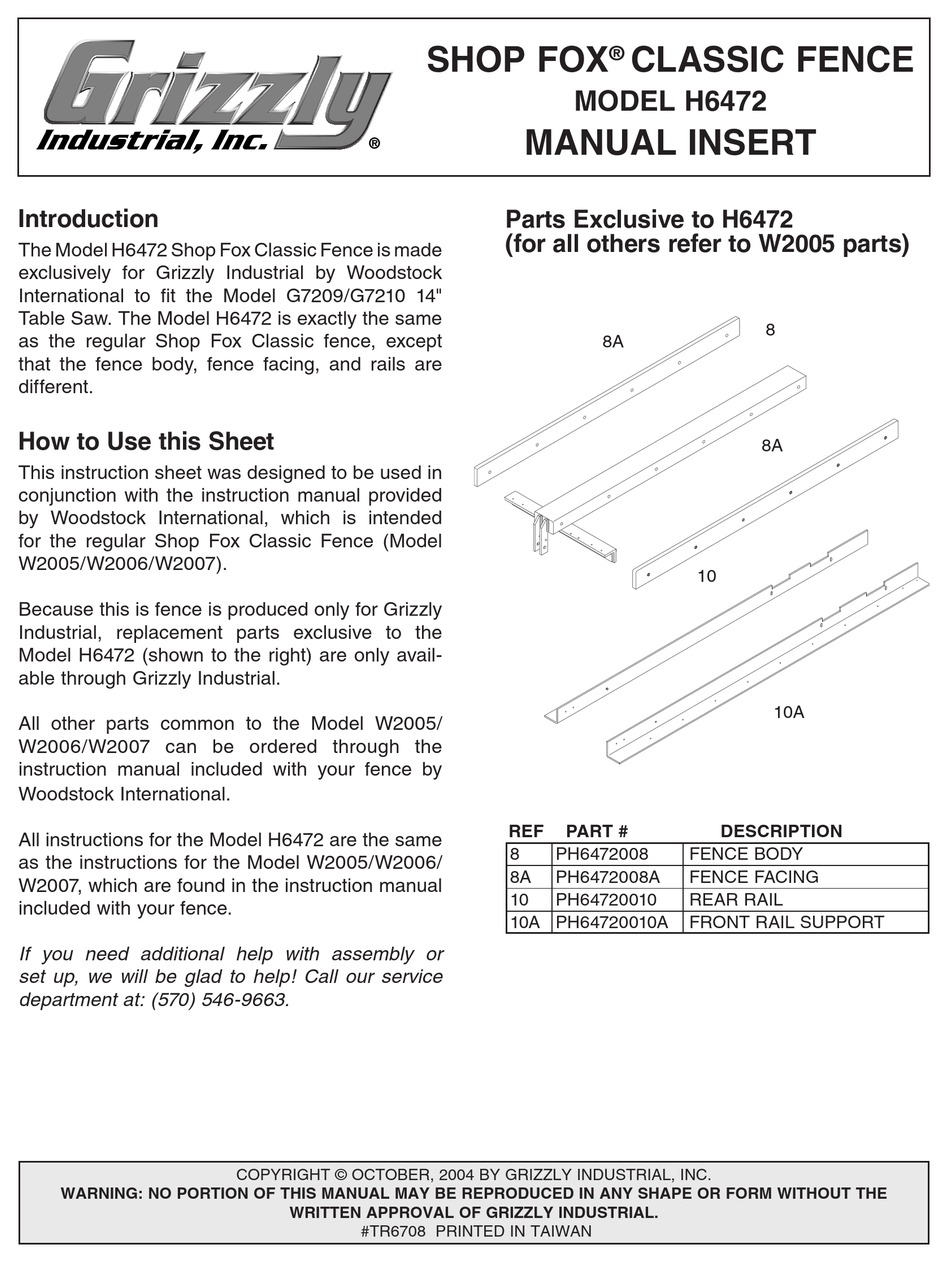

SHOP FOX
MODEL H6472
MANUAL INSERT
Parts Exclusive to H6472
(for all others refer to W2005 parts)
��
REF
PART #
8
PH6472008
8A
PH6472008A
10
PH64720010
10A PH64720010A
CLASSIC FENCE
®
�
��
��
���
DESCRIPTION
FENCE BODY
FENCE FACING
REAR RAIL
FRONT RAIL SUPPORT
