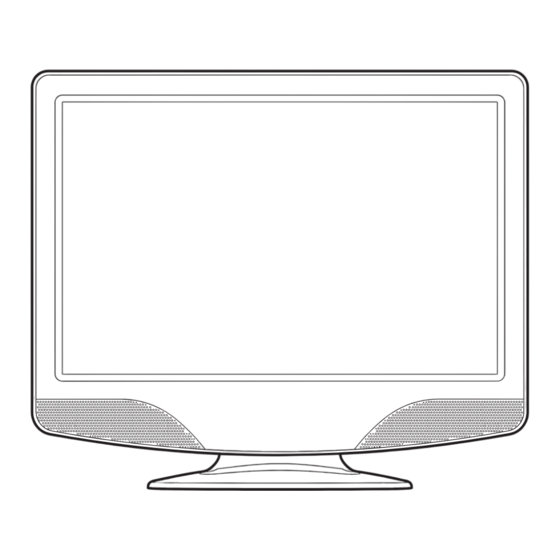

- Page 1 PLV76198 19” LCD TELEVISION OWNER’S MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS PLACEMENT INFORMATION caution • Do not use this unit in places that are extremely hot, RISK OF ELECTRIC SHOCK cold, dusty or humid. DO NOT OPEN • Do not restrict the airflow of this unit by placing it somewhere with poor air flow, by covering it with a DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE AVIS... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat. -
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS..... 2 INSTALLATION......12 INSTALLING / REMOVING THE BASE IMPORTANT SAFETY STAND............12 INSTRUCTIONS......3 MOUNTING ON THE WALL ......12 USING HEADPHONES ....12 TABLE OF CONTENTS....4 TV SETUP ......13-17 QUICK INSTALLATION ....5 TURNING THE UNIT ON ......13 TURNING ON THE UNIT FOR THE FIRST TIME..............5 PICTURE MENU .........13... -
Page 5: Quick Installation
QUICK INSTALLATION When you turn on your television set for the first time, be 3/8” sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear and be sure to leave sufficient gaps around the unit as shown. -
Page 6: Accessories
ACCESSORIES PLEASE CHECK AND IDENTIFY THE SUPPLIED ACCESSORIES. Remote control (with batteries) ....................... x 1 GETTING STARTED USING THE REMOTE CONTROL • Point the remote control at the remote sensor located on the unit. • When there is a strong ambient light source, the performance of the infrared remote sensor may be degraded, causing unreliable operation. -
Page 7: Control Reference Guide
CONTROL REFERENCE GUIDE REMOTE CONTROL • [dot] button Use to enter digital sub-channels. (i.e. 11.3 or 12.7) MENU button Press to display the on-screen TV menu. VOLUME (- / +) buttons Press to adjust the volume level. CURSOR ( , , , ) buttons Press to highlight selections on a menu screen and adjust certain settings. -
Page 8: Guide
CONTROL REFERENCE GUIDE / I button Turns the unit on and off. 2) MENU button Press to display the on-screen TV menu. 3) FUNCTION button Select between TV / AV in / YUV in or PC in. 4) CH ( , ) buttons Press to change the TV channels and highlight selections (Up &... -
Page 9: Connections
CONNECTIONS CONNECTING A TV ANTENNA / CABLE / SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. -
Page 10: Connecting Devices With Acomposite (Yellow Rca-Type) Video Input
CONNECTIONS CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO INPUT To connect A/V devices such as a VCR, PVR or camcorder. Connecting to a VCR / PVR / Camcorder Connect the AUDIO / VIDEO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO VIDEO IN) to this unit (AUDIO and To AUDIO /... -
Page 11: Connecting A Pc
CONNECTIONS CONNECTING A PC Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable and an audio cable (not included) as shown. Make sure you connect the cable from the computer (PC Connector and AUDIO - PC OUT) to this unit (MONITOR / VGA and AUDIO - PC IN). -
Page 12: Installation
INSTALLATION INSTALLING / REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 13: Tv Setup
TV SETUP TURNING THE UNIT ON When the AC power cord is connected, press the / I button on the unit to turn it on. Press the FUNCTION button to select the desired mode (TV / AV in / YUV in or PC in). Note: When the unit is not going to be used for a long time, disconnect the AC power cord from AC power outlet. -
Page 14: Tv Setup
TV SETUP TIME MENU 1. Press the MENU button. button to select TIME, then press the 2. Use the button to enter the TIME settings. 3. Use the button to select the options (OSD Duration, Sleep Timer, Time Zone or Day Saving Time). Adjust them using the button. -
Page 15: Pc Setup (In Pc Mode Only)
TV SETUP PC SETUP (IN PC MODE ONLY) - Resolution : 1,440 x 900 - Refresh Frequency : 60Hz H - Pos : Center the image by moving it left or right. V - Pos : Center the image by moving it up or down. Clock : Adjusts the display clock to change width of the image. - Page 16 TV SETUP Parental 1. Use the button to select various Parental settings. Adjust them using the button, or press the button to go into the detailed settings. 2. Press the MENU button to return to the previous menu. 3. Repeat steps 1 - 2 to adjust other options. 4.
-
Page 17: Tv Menu (For Tv Mode Only)
TV SETUP TV MENU (FOR TV MODE ONLY) 1. Press the MENU button. button to select TV, then press the 2. Use the button to enter the TV settings. CATV 3. Use the button to select the options (Antenna, Auto Scan, Auto Scan Add CH, Channel Skip, Channel No., Channel Label or DTV Signal). -
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC power cord is connected. • The unit is not turned on. The remote does not • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. •... -
Page 19: Limited Warranty
YOUR UNIT TO VENTURER WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by VENTURER at its designated Service Center for ninety (90) days from the effective warranty date. Such replacement parts or products are warranted for an additional ninety (90) days from the date of repair or replacement. -
Page 20: Digital Television Transition Notice
Digital Television Transition Notice: This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States on February 17, 2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital programming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting...
