Venturer PLV76176 Instruction Manual

Venturer flat panel television user manual.

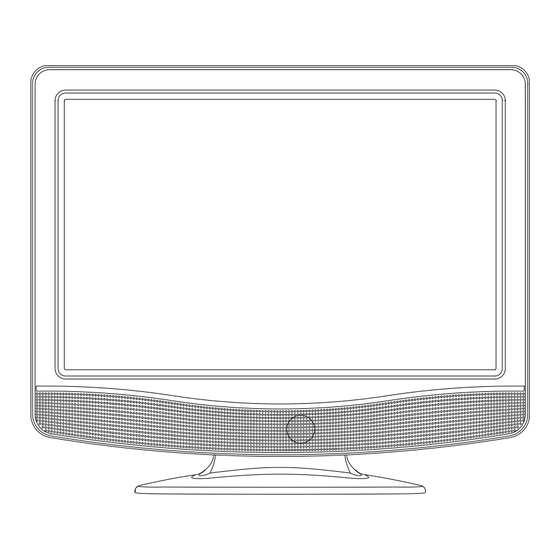

PLV76176
17" LCD TV
INSTRUCTION MANUAL
Need More Help?
DO NOT RETURN THIS PRODUCT TO THE STORE
Please visit online help at
http://www.venturer.com
E - 20

   Related Manuals for Venturer PLV76176

   Summary of Contents for Venturer PLV76176

  • Page 1

    PLV76176 17” LCD TV INSTRUCTION MANUAL Need More Help? DO NOT RETURN THIS PRODUCT TO THE STORE Please visit online help at http://www.venturer.com E - 20...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3

    Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat.

  • Page 4: Quick Installation

    QUICK INSTALLATION Before turning on your television set for the first time, be sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear and be sure to leave sufficient gaps around the unit as shown. 2 3/8" 1. Connect a TV antenna or a CATV cable to the Antenna Terminal on rear of TV. 2. Connect the power cord. 3. Press the / ON button to turn on the unit. 4. Press the or button to select “Yes” or “No”, then press the ENTER button to confirm. 5. The unit will enter TV setting screen. Press the button to highlight Auto Scan, then press the ENTER button to confirm.

  • Page 5: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ... 1 IMPORTANT SAFETY INSTRUCTIONS ... 2 QUICK INSTALLATION ... 3 CONTENTS ... 4 ACCESSORIES ... 5 GETTING STARTED ... 5 CONTROL REFERENCE GUIDE ... 6 - 7 CONNECTIONS ... 8 - 9 Connecting a TV Antenna ... 8 Connecting to other Equipment with Video Output (VCR, Camcorder, Video Game System, Cable, Satellite system, etc.) ... 8 Connecting the Power Cord ... 9 Connecting a PC... 9 USING hEADPhONES ...

  • Page 6: Accessories, Getting Started

    ACCESSORIES Please check and identify the supplied accessories. Remote Control (with batteries) ... x 1 GETTING STARTED USING ThE REMOTE CONTROL • Point the remote control at the remote sensor located on the unit. • When there is a strong ambient light source, the performance of the infrared remote sensor may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). TO INSTALL BATTERIES 1. Open the battery door. 2. Insert 2 “AAA” batteries. BATTERY REPLACEMENT When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace the batteries. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

  • Page 7: Control Reference Guide

    CONTROL REFERENCE GUIDE REMOTE CONTROL MUTE Button Press to turn off the sound. MENU Button Press to display the on-screen menu or switch back to the previous menu screen. CURSOR ( , ) Buttons Use to highlight selections on a menu screen and adjust certain settings. ENTER Button Confirm selection on a menu screen. DISPLAY Button Press to display information on the current channel. VOL + / VOL - Button Press to increase/decrease the volume.

  • Page 8

    CONTROL REFERENCE GUIDE FRONT & SIDE VIEWS 1. AUDIO IN (Left/Right) / VIDEO IN jacks / ON button Turns the unit on and off. 3. MENU button Enters the on-screen TV menu. 4. FUNCTION button Selects TV / AV / PC. 5. CH / CH buttons Press to confirm selections on the TV menu screen and / to change TV channels.

  • Page 9: Connections, Connecting A Tv Antenna

    CONNECTIONS CONNECTING A TV ANTENNA To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system NOTE For optimal reception of over-the-air TV broadcasts, we recommend that you use an external fixed antenna. If using an indoor antenna, please ensure that you purchase an antenna with sufficient ability to receive signals in your home. Orientation and location of the antenna is typically critical for best results – you may find that placement of the antenna near a window, or in an elevated location, improves performance. CONNECTING TO A VCR / CAMCORDER / VIDEO GAME SYSTEM / CABLE / SATELLITE SYSTEM Connect an AUDIO / VIDEO cable (not included) as shown: Make sure you connect the cable from the AUDIO/VIDEO OUT jack of the other equipment to AUDIO/ VIDEO IN jack of this unit. NOTE Please refer to the connected equipment’s user manual for more information. To TV Antenna terminal TV ANTENNA E - 8 To Home Antenna terminal Cable without a CATV...

  • Page 10

    CONNECTIONS CONNECT ThE POWER CORD • Connect the AC power cord into a wall outlet. • Press the / I button on the unit or remote control to turn on the unit. NOTE • Be sure the AC power cord is disconnected and all functions are off before making connections. • Make sure that all the components are connected correctly. • To prevent electrical shock, match wide blade of plug to wide slot of wall outlet, then fully insert. • When you are not going to use the unit for a long period of time, disconnect the power cord. To AC outlet CONNECT A PC Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/ VGA input on this unit using a monitor cable and audio cable (not included) as shown.

  • Page 11: Using Headphones

    USING hEADPhONES / EARPhONES • Turn down the volume before connecting headphones / earphones to the unit, then adjust the volume to your desired level. • When headphones / earphones are connected, no sound will come from the front speakers. NOTE Excessive sound pressure from earphones / headphones can cause hearing loss. E - 10...

  • Page 12: Installation

    INSTALLATION INSTALLING / REMOVING ThE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. Do NOT exert pressure on the front of the unit at any time because the screen could crack. 1. Disconnect all cables or cords connected to the unit. 2. Lay the unit down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. 3. To install the base stand, place the base stand on the mounting slot, push the stand till it locks. 4. To remove the base stand, keep pressing the locking area of the base stand and pull downwards to release the base stand. MOUNTING ON ThE WALL This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 3” x 3” (75mm x 75mm) mounting kit designed for flat-panel TVs (sold separately). Mount this unit according to the instructions included in the mounting kit.

  • Page 13: Tv Setup, Picture Menu, Audio Menu

    TV SETUP Note: Some setting items on the menu screen may not activate depending on what mode the unit is currently in (TV, AV and PC). PICTURE MENU 1. Press the MENU button. 2. Use the or button to select the options (Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, or Color Mode). Adjust them using the or button (Screen will change to your desired...

  • Page 14: Time Menu, Setup Menu, Setup Menu

    TV SETUP TIME MENU 1. Press the MENU button. 2. Use the or button to select TIME, then press the button to enter the TIME settings. 3. Use the or button to select the options (Sleep Timer, Time Zone, Daylight Saving Time or Clock). Adjust them using the or button. 4. Repeat step 3 to adjust other options. 5. To exit the MAIN MENU and return to the normal screen, press the MENU button repeatedly.

  • Page 15: Parental Menu, Parental Menu

    TV SETUP PC Setup (in PC mode only) - Resolution : 1,440 x 900 - Refresh Frequency : 60Hz H - Pos : Center the image by moving it left or right. V - Pos : Center the image by moving it up or down. Clock : Adjusts the display clock to change width of the image. Phase : Adjusts the image if there is flicker of screen letters, color misalignment, or blurring. Auto Adjust : Adjust the image automatically. Closed Caption NOTE This function only works on ATSC programs broadcast with captions.

  • Page 16

    TV SETUP Parental 1. Use the or button to select various Parental settings. Adjust them using the or button, or press the button to go into the detailed settings. 2. Press the MENU button to return to the previous menu. 3. Repeat steps 1 - 2 to adjust other options. 4. To exit the MAIN MENU and return to the normal screen, press the MENU button repeatedly.

  • Page 17

    TV SETUP TV MENU (For TV Mode Only) 1. Press the MENU button. 2. Use the or button to select TV, then press the button to enter the TV settings. 3. Use the or button to select the options (Antenna, Auto Scan, Auto Scan Add CH, Channel Skip, Channel No., Channel Label or DTV Signal). Adjust them using the or button, or press the button to go into the detailed settings. 4. Press the MENU button to return to the previous menu.

  • Page 18: Troubleshooting Guide

    TROUBLEShOOTING GUIDE SYMPTOM No power. The remote does not function. Bad Picture (snow, multiple images, distortion, blurry) Black and white picture. No picture or sound. Colored patches of picture. Specifications and appearance are subject to change without notice. CAUSE (AND REMEDY) Ensure the AC power cord is connected. • • The unit is not turned on. • Remove any obstacles between the remote and the unit. • Use the remote near the unit. • Point the remote at the remote sensor on the unit. • Replace the batteries in the remote with new ones. • Check the location of the antenna and adjust it if necessary. • Make sure the antenna cable is firmly connected. • Make sure all input cables are firmly connected. • Check the PICTURE SETTING within the TV SETUP MENU. • Check to make sure the program you are watching is broadcast in Color and not Black & White.

  • Page 19

    Ninety (90) Day Parts & Labor Warranty VENTURER products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of ninety (90) days from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product using new or refurbished parts and products, at VENTURER’s...

  • Page 20

    UNIT INCH 3 5/8 16 3/4 Printed in China 811-761791W010 E - 19...
