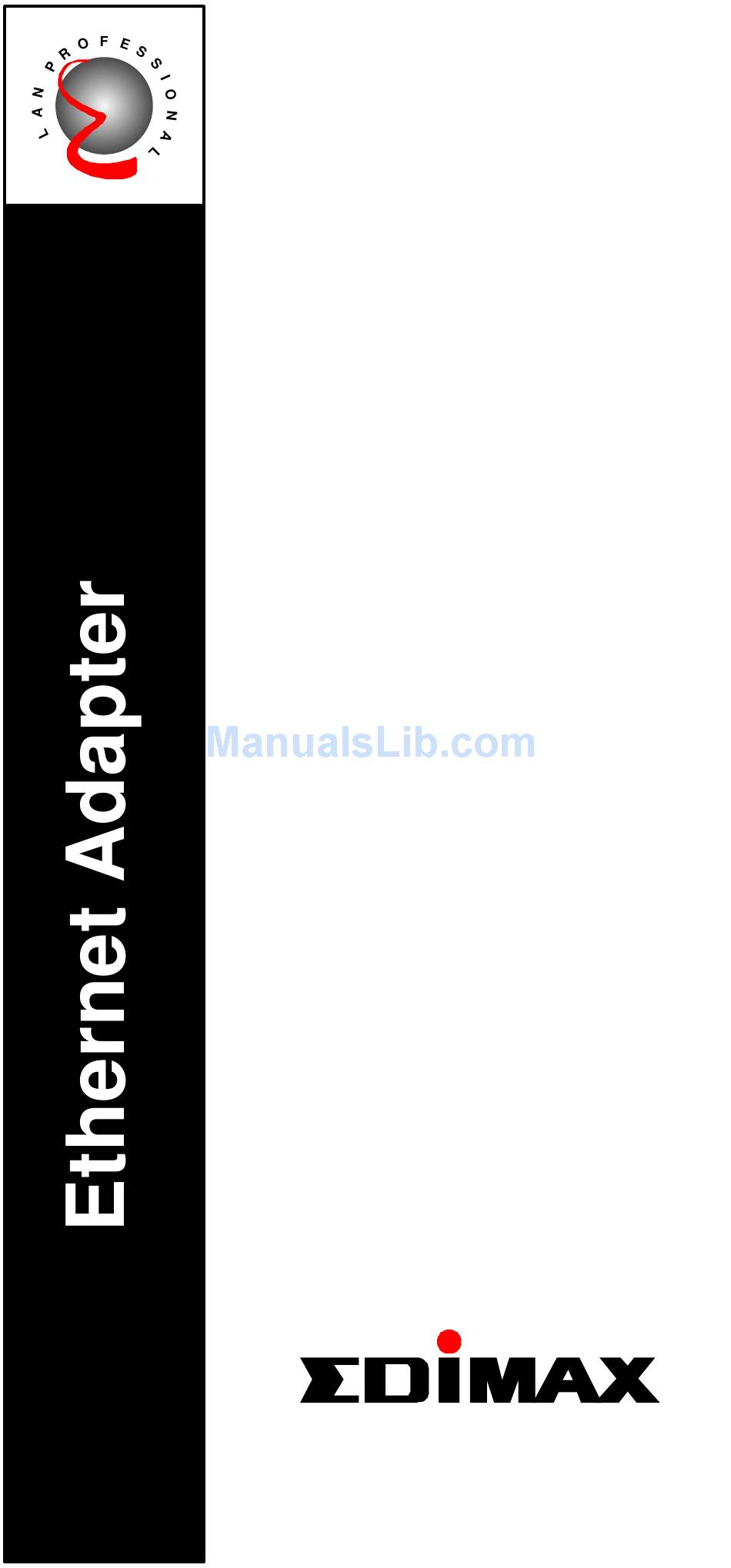

- Page 1 10Mbps PCI Ethernet Adapter EN-5200PXA EN-5200PLT User ’ s Manual...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits of a Class B computing devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful... - Page 3 Introduction Thanks you for purchasing our 10Mbps PCI Ethernet Adapter. This guide is to provide the installation and usage of this adapter for network installers and users. This 10Mbps Ethernet network adapter complies to PCI 2.1 specification and supports half/full duplex feature which can double network speed.
- Page 4 EN-5200PLT - 10BaseT Ÿ Full duplex design to double the performance to 20Mbps. Ÿ Provides the standard connectors : EN-5200PXA - RJ-45 and BNC EN-5200PLT - RJ-45 Ÿ Built-in data prefetch function to improve performance. Ÿ Support auto-polarity correction for 10BaseT.
- Page 5 (2) Technical Specification Ÿ Topology : Bus(EN-5200PXA) and Star(EN-5200PXA/EN5200PLT) Ÿ Connector : EN-5200PXA - RJ45 and BNC EN-5200PLT - RJ-45 Ÿ Standard : IEEE 802.3 10Base2 (EN-5200PXA) IEEE 802.3 10BaseT (EN-5200PXA/ EN-5200PLT) Ÿ Transmission Rate : 10Mbps or 20Mbps Ÿ Hardware Required...
- Page 6 3. Secure this adapter to the rear of the computer chassis and put back the computer cover. 4. Connect the adapter to the network using twisted- pair cable or RG-58 coaxial cable(EN-5200PXA only). (2) Driver Installation Use the drivers supplied by the diskette included in this product.
- Page 7 Trouble-shooting Most common factors that cause an adapter to fail are configuration conflicts and cabling problems. PCI card shouldn’t have any conflict problem due the plug and play specification. If you experience any problems with the adapter, first make sure the appropriate driver is loaded, the proper cable is connected to the adapter port and the hub complies with the adapter specification, such as 10Mbps 10BaseT, then check the LED.
- Page 8 TRADEMARKS Copyright 1998 by Edimax Technology Co., Ltd. No part of this manual may be reproduced, transcribed, stored in a retrieval system, translated into any language or computer language without the prior written consent of Edimax. All brand and product names are trademarks and/or...
