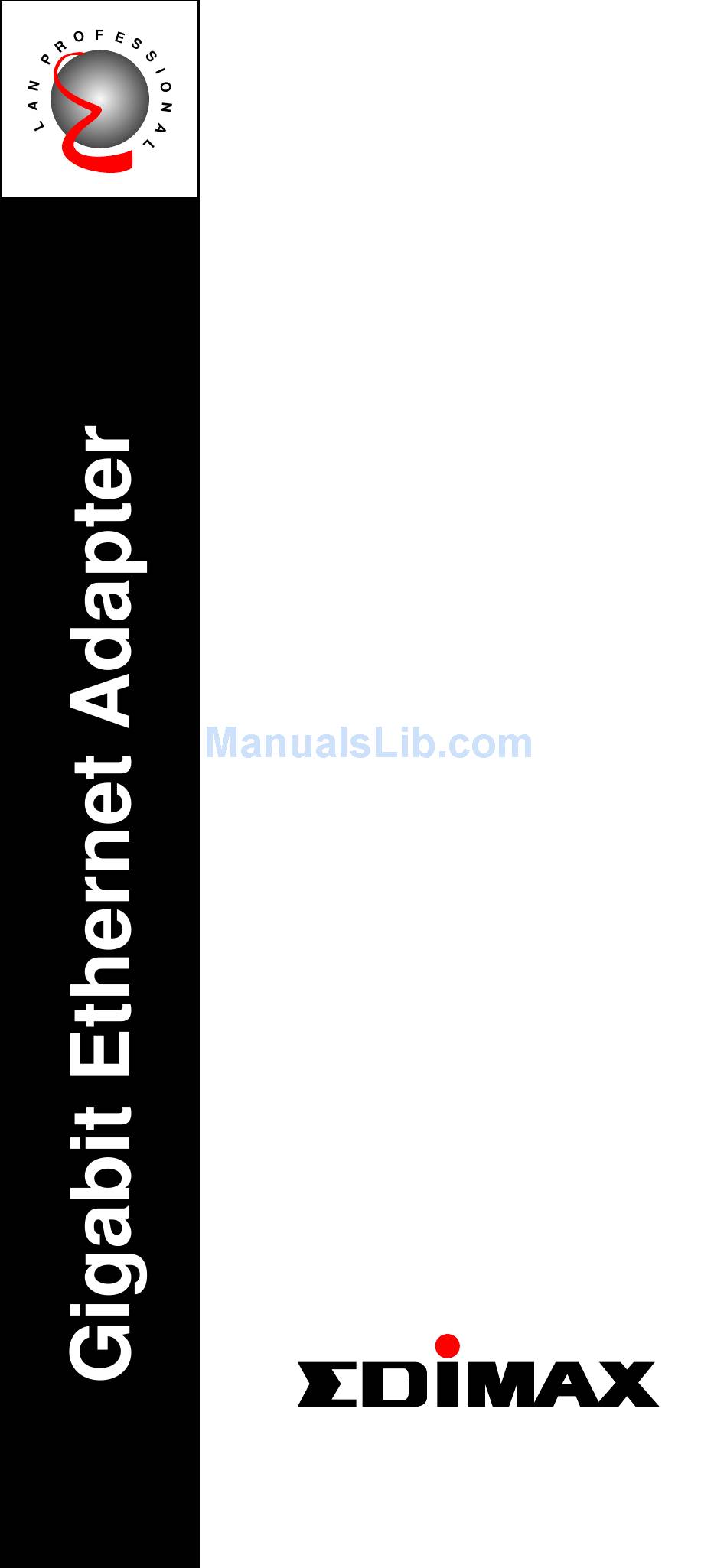

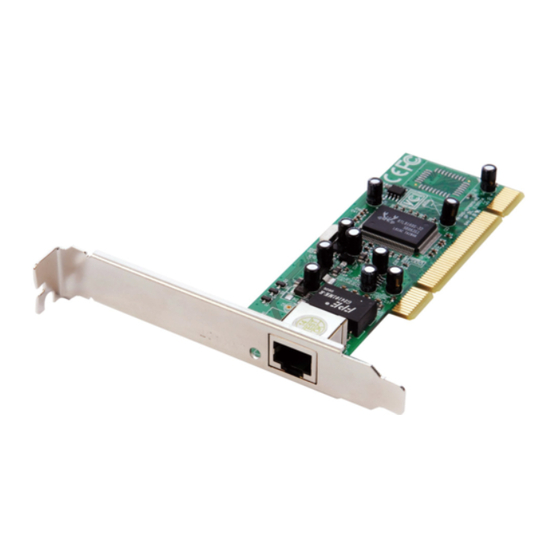

- Page 1 10/100/1000Mbps PCI Gigabit Ethernet Adapter EN-9230TX-64/32 User’s Manual...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits of a Class B computing devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful... - Page 3 This guide is to provide the installation and usage of this adapter for network installers and users. The Gigabit network adapter complies to 64-/32-bit (EN-9230TX-32 supports 32-bit only) PCI specification and supports half- /full- duplex feature which can double network speed.
-
Page 4: Features And Specifications
Features & Specifications (1) Features & Benefits Supports 64-/32-bit (EN-9230TX-32 supports 32-bit only), 66/33MHz PCI Local Bus Master Version 2.2/2.1. Comply with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x. Supports IEEE 802.3x full duplex flow control. Supports IEEE 802.1Q VLAN tagging. - Page 5 Netware ODI for DOS, Linux, Unix : Speed, Link/Activity (for EN- 9230TX-64) Link/Activity (for EN-9230TX- : 163 x 45 mm (EN-9230TX-64) 120 x 40 mm (EN-9230TX-32) : 32-131°F (0-55° C) : 10% to 95% (Non-condensing) : FCC Class B, CE Mark, C-tick, VCCI...
- Page 6 Installation (1) Hardware Installation To insert the network adapter into your PC, follow the steps as below : 1. Turn off the computer and remove its cover. 2. Insert the adapter into a PCI slot. 3. Secure this adapter to the rear of the computer chassis and put back the computer cover.
- Page 7 Trouble-shooting If you experience any problems with the adapter, please make sure the appropriate driver is loaded, the proper cable is connected to the adapter port and the hub/switch complies with the adapter specification, such as 10Mbps 10BaseT, 100Mbps 100BaseTX and 1000Mbps 1000BaseT, then check the LED.
- Page 8 TRADEMARKS Copyright 2004/2005 by the manufacturer of this product. No part of this manual may be reproduced, transcribed, stored in a retrieval system, translated into any language or computer language without the prior written consent of the manufacturer. All brand and product names are trademarks and/or registered trademarks of their respective companies.
