Summary of Contents for Chauvet ARENA 2100 FLEX

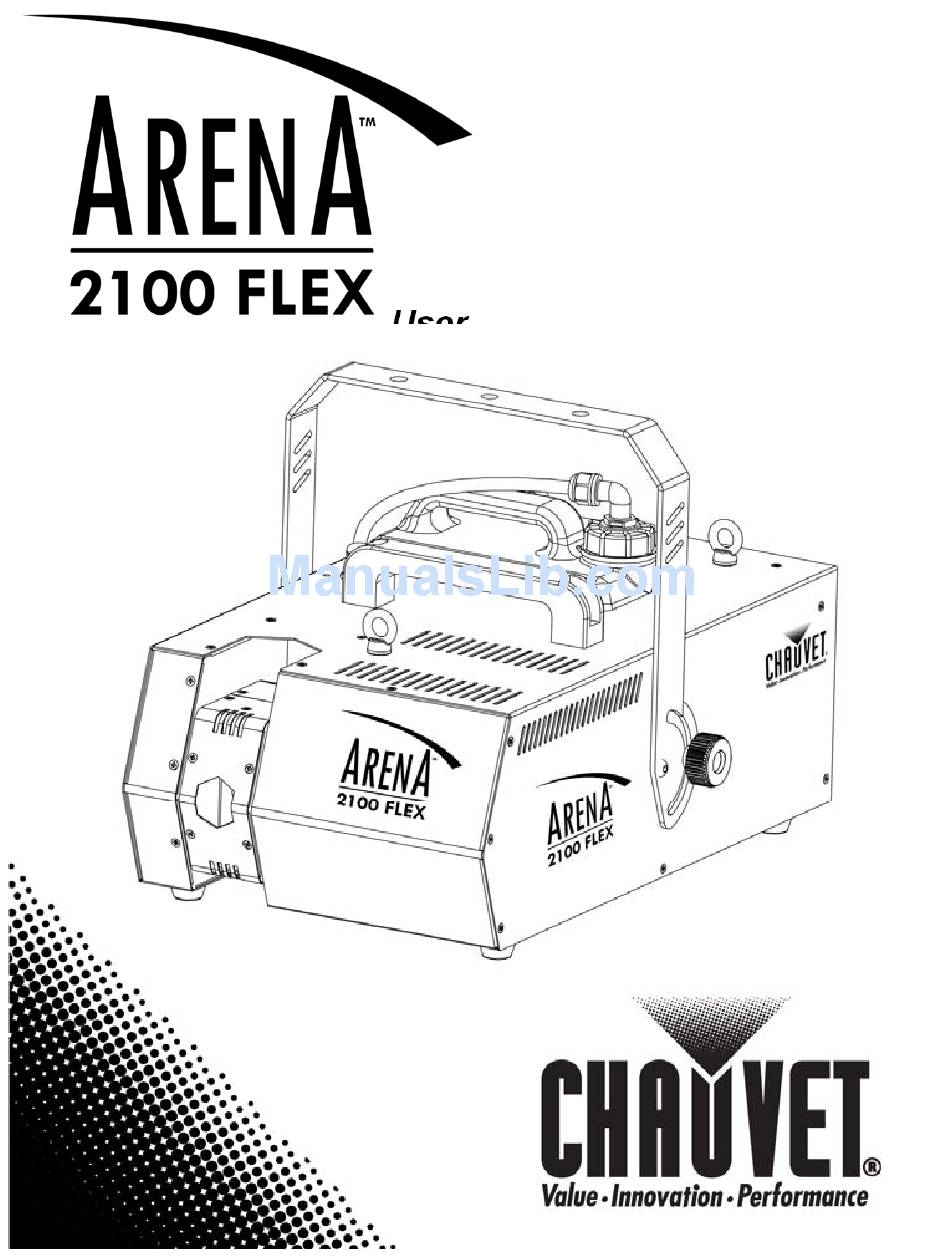

- Page 1 User Manual...
-
Page 2: Table Of Contents
Storage ......................12 General Troubleshooting ................13 Contact Procedure ..................14 CHAUVET® Contact Information ..............14 Returning Products to CHAUVET® ..............14 DMX Primer ..................... 15 Introduction ......................15 DMX Configuration ....................16 ... -
Page 3: Before You Begin
For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving the merchandise. Convention... -
Page 4: Product At A Glance
Use only CHAUVET® water-based fog fluid. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ 2100 Flex. Make sure you use FCQ regularly to increase the life of your fogger. Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. -
Page 5: Introduction
2. I NTRODUCTION Product Overview 3‐pin DMX In Safety Loop (x3) Power Switch Breaker Bracket Adjustment Knob Power In Onboard Remote (Removable) 3‐pin DMX Out Wireless Remote Receiver 5‐pin DMX Out 5‐pin DMX In Arena™ 2100 Flex User Manual (Rev. 05) Page 5 of 19... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 19 Arena™ 2100 Flex User Manual (Rev. 05) -
Page 7: Setup
4. Plug the product’s power cord into the power outlet and continue using as recommended. If the breaker does not reset (the breaker button will not remain inserted), contact CHAUVET® immediately, as this indicates a possible internal malfunction. Arena™ 2100 Flex User Manual (Rev. 05) Page 7 of 19... -
Page 8: Mounting
Before mounting this product, read and follow the safety recommendations indicated in Mounting the Safety Notes section (page 2 of this manual). Orientation The Arena™ 2100 Flex may be mounted in any position; however, make sure adequate ventilation is provided around the product. ... -
Page 9: Operation
4. O PERATION To access the control panel functions, use the four buttons located underneath the Control display. Please refer to the Product Overview (page 5) to see the button locations on Panel the control panel. Operation Button Function Press to find an operation mode or to back out of the current menu <FUNCTION>... -
Page 10: Configuration (Standalone)
Set this product in one of the standalone modes to control without a DMX controller. Configuration 1. Connect this product to a suitable power outlet. (Standalone) 2. Turn this product on. Never connect a product that is operating in any standalone mode, whether Static, Automatic, or Sound to a DMX string connected to a DMX controller. -
Page 11: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single Arena™ 2100 Flex unit (the “master”) to control the actions of one or more Arena™ 2100 Flex units (the “slaves”) without the need of a Mode DMX controller. The master unit will be set to operate in Timer, Volume, or Manual mode, while the slave units will be set to operate in DMX Mode. -
Page 12: Technical Information
It is strongly recommended to test-run the machine on a monthly basis in order to achieve its best fogging condition. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ 2100 Flex. Make sure you use FCQ regularly to increase the life of your fogger. -
Page 13: General Troubleshooting
Terminator not connected Install a terminator, as indicated in the DMX Primer section. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Arena™ 2100 Flex User Manual (Rev. 05) Page 13 of 19... -
Page 14: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 15: Dmx Primer
DMX Primer Introduction The DMX protocol (USITT DMX512-A) is a networking protocol that enables a universal DMX controller device to control the features of multiple DMX compatible fixtures, whether PAR cans, wash lights, moving heads, followspots, foggers, or proprietary fixture controllers, etc. As any other networking protocol, the USITT DMX512-A describes the physical medium, the signals, and the functions they control. -
Page 16: Dmx Configuration
DMX Configuration The DMX fixture configuration consists in determining how many channels each fixture will need as well as assigning the corresponding DMX channels to each fixture in order to size correctly the DMX controller. Personalities A DMX personality describes what channel or channels control which fixture parameters. - Page 17 DMX Data Cabling You must use DMX compliant data cables to link two or more DMX compatible fixtures. You may purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. USITT recommends limiting the total length of the DMX cable (from the first fixture/controller to the last fixture) to 300~455 m (985~1,500 ft).
- Page 18 (DMX Connectivity cont.) Test all DMX cables with an ohmmeter to verify their correct polarity and to make sure that there are no short-circuits between any of the pins, or between any pin and ground. If the common wire (shield) touches the chassis ground, a ground loop could form, which may cause the fixture to perform erratically.
-
Page 19: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 21 in (542 mm) 15.4 in (390 mm) 14.5 in (368 mm) 35 lbs (15.8 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Magnetic (internal)
