JUMP STARTER/COMPRESSOR
MODEL H6310

INSTRUCTION MANUAL

COPYRIGHT © SEPTEMBER, 2004 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR6648 PRINTED IN CHINA

Advertisement

Table of Contents
loading

Related Manuals for Grizzly H6310

Summary of Contents for Grizzly H6310

  • Page 1: Instruction Manual

    JUMP STARTER/COMPRESSOR MODEL H6310 INSTRUCTION MANUAL COPYRIGHT © SEPTEMBER, 2004 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #TR6648 PRINTED IN CHINA...

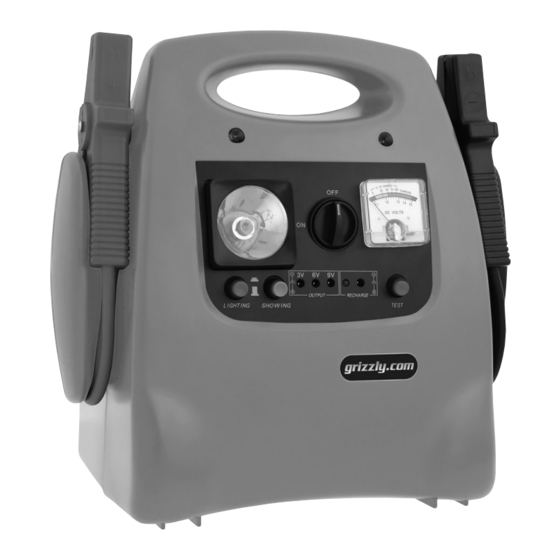

  • Page 3 Terminal Clamp Flashlight Flashlight Switch Securing Strap 12V DC Cord Model H6310 Jump Starter/Compressor Hazard Lights Hazard Light Switch Output Sockets Storage Compartment Pump Switch Charging Adapter Black Terminal Clamp Voltage Meter Main Power Switch Voltage Meter Switch Charging Socket...

  • Page 4: Safety Instructions For Machinery

    Wear protective hair covering to contain long hair and wear non-slip foot- wear. NEVER OPERATE MACHINERY WHEN TIRED, OR UNDER THE NEVER INFLUENCE ALCOHOL. Be mentally alert at all times when running machinery. WHEN Model H6310 Jump Starter/Compressor DRUGS...
  • Page 5 Undersized cords overheat and reduce voltage. Replace exten- sion cords if they become dam- aged. DO NOT use extension cords for 220V machinery. Model H6310 Jump Starter/Compressor ALWAYS DISCONNECT FROM POWER OPERATE SERVICING MACHINERY. Make sure switch is in OFF position before reconnecting.
  • Page 6 Failure to do so could result in serious personal injury, damage to equipment or poor results. Starter/Compressor Model H6310 Jump Starter/Compressor SECURING STRAP: The securing strap is provided to help you keep the jump starter/compressor away from fans and drive belts. Con-...

  • Page 7: Contact Info

    Foreword We are proud to offer the Grizzly Model H6310 Jump Starter/Compressor. This model is part of a growing Grizzly family of fine power tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commit-...
  • Page 8 C. 12V Output Cord ... 1 D. Securing Strap ... 1 SET UP Charging The Model H6310 is shipped with a charg- ing adapter that fits neatly into the storage compartment. To charge the Model H6310: 1. Remove the charging adapter from the storage compartment, and plug it into a 110V electrical outlet.

  • Page 9: Jump Starter

    Never touch red and black terminal clamps together! Model H6310 Jump Starter/Compressor OPERATIONS The air nozzle is tucked inside the stor- age compartment that is located near the black terminal clamp.

  • Page 10: Hazard Lights

    Securing Strap The securing strap is included to hang the Model H6310 from the hood of a car. Hanging the Model H6310 will keep it out of the way of moving parts like drive belts and fans.

  • Page 11: Troubleshooting

    2. Needle stuck on the face not work. plate. 3. Switch damaged. Model H6310 Jump Starter/Compressor Possible Solution 1. Clean battery posts, or rotate terminal clamps on post with firm pressure to establish contact. 2. Recharge car battery.

  • Page 12: Parts Breakdown

    Parts Breakdown Model H6310 Jump Starter/Compressor...
  • Page 13 PH6310042 PH6310043 PH6310044 PH6310045 PH6310046 PH6310047 PH6310048 PH6310049 PH6310050 PH6310051 PH6310052 Model H6310 Jump Starter/Compressor DESCRIPTION VOLTMETER FLAT WASHER 3MM HEX NUT M3-.5 LAMPSHADE ON/OFF DIAL TRANSPARENT PLATE ILLUMINATING LAMP 12V/6W REFLECTOR TAP SCREW M2.9 X 10 RED BUTTON, FLASHLIGHT...

  • Page 14: Warranty And Returns

    WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.

  • Page 15: Warranty Card

    ___Yes 15. Would you recommend Grizzly to a friend? ___Yes 16. Would you allow us to use your name as a refer- ence for Grizzly customers in your area? Note: We never use names more than three times. ___Yes 17.Comments:________________________________...
  • Page 16 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
