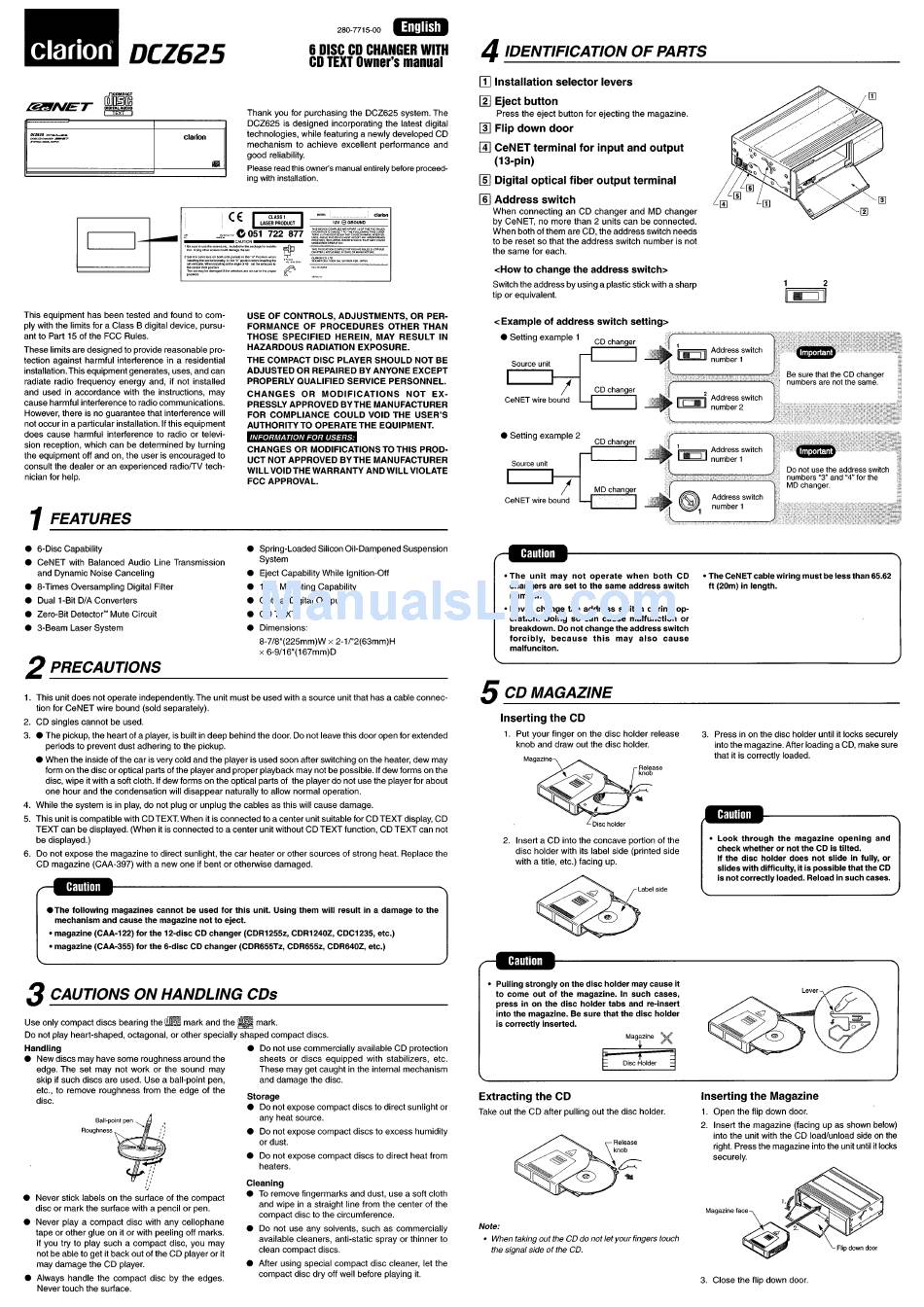

Clarion DCZ625 Owner's Manual

clarion'
DCZ6ZS
280-7715-00
mm
6 DISC CD CHANGER WITH
CD TEXT Owner's manual
4
IDENTIFICATION
OF
PARTS
clarion
Thank you for purchasing the DCZ625 system. The
DCZ625 is designed incorporating the latest digital
technologies, while featuring a newly developed CD
mechanism to achieve excellent performance and
good reliability.
Please read this owner's manual entirely before proceed-
ing with installation.
1 2
<How to change the address switch>
Switch the address by using a plastic stick with a sharp
tip or equivalent.
[I] Installation selector levers
[l] Eject button
Press the eject button for ejecting the magazine.
[]] Flip down door
@] CeNET terminal for input and output
(13-pin)
[§]
Digital optical fiber output terminal
[§] Address switch
When connecting an CD changer and MD changer
by CeNET, no more than 2 units can be connected.
When both of them are CD, the address switch needs
to be reset so that the address switch number is not
the same for each.
~".
~'
2SetlMeselecto,sonbothsldepanelstotho"H"PosiMnwhen
inslallngtl>esalMnz(Mllally.lotheVpositiOnwheninstamnglhe
se1v&rbcatty,Wh!ln ..stallingal'h<!an!l'eol45-S\lIlh....10<''''.1O
t~eC<lnterclic~ position
TMselm'ybe<lamagedllll1ese1 eclorsa,enol ...tlotheprope,
(>M'hons
1 BeSUlelooselheSCI8Ws.elo"include<lioltiepadcagefo,joslaila
l;onUs",gOltl$fsc",mcould(lan\llgetheset
-
EXT
DU6Z5 ..............._
""""a>""""""'~
''''''''''''''''''''''0UII"Jl
~NET
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pursu-
ant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable pro-
tection against harmful interference in a residential
installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
consult the dealer or an experienced radiorrV tech-
nician for help.
1
FEATURES
USE OF CONTROLS, ADJUSTMENTS, OR PER-
FORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE
ADJUSTED OR REPAIRED BY ANYONE EXCEPT
PROPERLY QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BYTHE MANUFACTURER
FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS PROD-
UCT NOT APPROVED BYTHE MANUFACTURER
WILLVOIDTHEWARRANTY AND WILL VIOLATE
FCC APPROVAL.
< Example of address switch setting>
• Setting example 1
Source unit
• Setting example 2
Address switch
number 1
• The following magazines cannot be used for this unit. Using them will result in a damage to the
mechanism and cause the magazine not to eject.
• magazine (CAA-122) for the 12-disc CD changer (CDR1255z, CDR1240Z, CDC1235, etc.)
• magazine (CAA-355) for the 6-disc CD changer (CDR655Tz, CDR655z, CDR640Z, etc.)
• Look through the magazine opening and
check whether or not the CD is tilted.
If the disc holder does not slide in fully, or
slides with difficulty, it is possible that the CD
is not correctly loaded. Reload in such cases.
• The CeNET cable wiring must be less than 65.62
ft (20m) in length.
3. Press in on the disc holder until it locks securely
into the magazine. After loading a CD, make sure
that it is correctly loaded.
2. Insert a CD into the concave portion of the
disc holder with its label side (printed side
with a title, etc.) facing up.
Inserting the CD
1. Put your finger on the disc holder release
knob and draw out the disc holder.
• The unit may not operate when both CD
changers are set to the same address switch
number.
• Never change the address switch during op-
eration. Doing so can cause malfunction or
breakdown. Do not change the address switch
forcibly, because this may also cause
malfunciton.
5
CD MAGAZINE
• Spring-Loaded Silicon Oil-Dampened Suspension
System
• Eject Capability While Ignition-Off
• 120' Mounting Capability
• Optical Digital Output
• CDTEXT
• Dimensions:
8-7/8"(225mm)W x 2-11"2(63mm)H
x 6-9/16"(167mm)D
• 6-Disc Capability
• CeNET with Balanced Audio Line Transmission
and Dynamic Noise Canceling
• 8-Times Oversampling Digital Filter
• Dual1-Bit D/A Converters
• Zero-Bit Detector'" Mute Circuit
• 3-Beam Laser System
2
PRECAUTIONS
1. This unit does not operate independently. The unit must be used with a source unit that has a cable connec-
tion for CeNET wire bound (sold separately).
2. CD singles cannot be used.
3. • The pickup, the heart of a player, is built in deep behind the door. Do not leave this door open for extended
periods to prevent dust adhering to the pickup.
• When the inside of the car is very cold and the player is used soon after switching on the heater, dew may
form on the disc or optical parts of the player and proper playback may not be possible. If dew forms on the
disc, wipe it with a soft cloth. If dew forms on the optical parts of the player do not use the player for about
one hour and the condensation will disappear naturally to allow normal operation.
4. While the system is in play, do not plug or unplug the cables as this will cause damage.
5. This unit is compatible with CD TEXT. When it is connected to a center unit suitable for CD TEXT display, CD
TEXT can be displayed. (When it is connected to a center unit without CD TEXT function, CD TEXT can not
be displayed.)
6. Do not expose the magazine to direct sunlight, the car heater or other sources of strong heat. Replace the
CD magazine (CAA-397) with a new one if bent or otherwise damaged.
3
CAUTIONS ON HANDLING CDs
Inserting the Magazine
1. Open the flip down door.
2. Insert the magazine (facing up as shown below)
into the unit with the CD load/unload side on the
right. Press the magazine into the unit until it locks
securely.
3. Close the flip down door.
• Pulling strongly on the disc holder may cause it
to come out of the magazine. In such cases,
press in on the disc holder tabs and re-insert
into the magazine. Be sure that the disc holder
is correctly inserted.
Note:
• When taking out the CD do not let your fingers touch
the signal side of the CD.
Extracting the CD
Take out the CD after pulling out the disc holder.
Storage
• Do not expose compact discs to direct sunlight or
any heat source.
• Do not expose compact discs to excess humidity
or dust.
• Do not expose compact discs to direct heat from
heaters.
Cleaning
• To remove fingermarks and dust, use a soft cloth
and wipe in a straight line from the center of the
compact disc to the circumference.
• Do not use any solvents, such as commercially
available cleaners, anti-static spray or thinner to
clean compact discs.
• After using special compact disc cleaner, let the
compact disc dry off well before playing it.
Ball-point pen ~
Roughness
Use only compact discs bearing the
\I.ID.~
mark and the
g
mark.
Do not play heart-shaped, octagonal, or other specially shaped compact discs.
Handling • Do not use commercially available CD protection
• New discs may have some roughness around the sheets or discs equipped with stabilizers, etc.
edge. The set may not work or the sound may These may get caught in the internal mechanism
skip if such discs are used. Use a ball-point pen, and damage the disc.
etc., to remove roughness from the edge of the
disc.
• Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
• Never playa compact disc with any cellophane
tape or other glue on it or with peeling off marks.
If you try to play such a compact disc, you may
not be able to get it back out of the CD player or it
may damage the CD player.
• Always handle the compact disc by the edges.
Never touch the surface.
