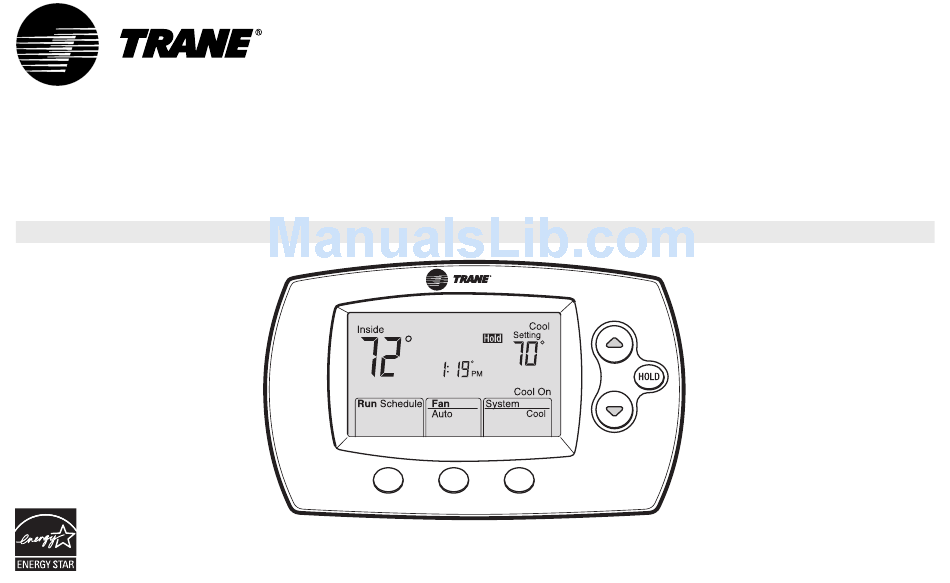

Programmable Comfort Control
OWNER'S GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Trane TCONT600AF11MA

Summary of Contents for Trane TCONT600AF11MA

  • Page 1 TCONT600AF11MA / TCONT602AF22MA Programmable Comfort Control OWNER’S GUIDE...
  • Page 2 CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not operate cooling system when outdoor temperature is below 50°F (10°C). Need Help? For assistance with this product please visit www.trane.com or call the Customer Assistance Helpline toll-free at 1-800-500-2041. Read and save these instructions...

  • Page 3: Table Of Contents

    Table of contents About your new Comfort Control Appendices Control features ......2 Battery installation ......17 Programming at a glance ....3 In case of difficulty ......18 Quick reference to controls....4 Customer assistance......20 Quick reference to display....5 Accessories/replacement parts ..20 Limited warranty ......21 Programming &...

  • Page 4: About Your New Comfort Control

    About your new Comfort Control Congratulations on the purchase of your new Comfort Control. It has been designed to give you many years of reliable service and easy-to-use, push-button climate control. Features • Separately programmable weekday/weekend schedules. • One-touch temp control overrides program schedule at any time. ®...

  • Page 5: Programming At A Glance

    This Comfort Control is ready to go! Your new Comfort Control is pre-programmed and ready to go.All you have to do is set the time and day. Then check the settings below and change if needed: 1 Set time and day (required for proper operation)........See page 6 2 Select fan setting (Auto/On): Preset to Auto ......To change, see page 7 3 Select system setting (Heat/Cool): Preset to Heat ....To change, see page 8 4 Program schedules: Preset to energy-saving levels...

  • Page 6: Quick Reference To Controls

    Quick reference to controls Digital display (see page 5) Battery holder (see page 17) Temperature buttons Press to adjust temperature settings (see page 11-13) Hold button Press to override programmed temperature control (see page 13) Function buttons Press to select the function displayed just above each button. (Functions change depending on the task.)

  • Page 7: Quick Reference To Display

    Quick reference to display screen Current inside temperature Low battery warning Current time/day (see page 17) (see page 6) In Recovery Temperature setting (see page 16) (see pages 11-13) Auxiliary heat In Recovery (Only for heat pumps with Current program period Auxillary auxiliary heat) Wake/Leave/Return/Sleep...

  • Page 8: Programming & Operation Set Time And Day

    Set the time and day Press , then adjust time 1 Press the SET CLOCK SCHEDULE SET CLOCK SCHEDULE button, then press to set the clock time. 2 Press the button, then SET DAY press to select the day of the week. 3 Press to save &...

  • Page 9: Select Fan Setting (Auto/On)

    Select the fan setting Press the button to select Auto or On. Heat In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on. If set to “On,” the fan runs continuously. Use this Heat setting for improved air circulation, or for more efficient air cleaning.

  • Page 10: Select System Setting (Heat/Cool)

    Select the system setting Press the button to select: SYSTEM Heat • Heat: Controls only the heating system. • Cool: Controls only the cooling system. • Off: Heating and cooling systems are off. • Auto: Automatically selects heating Cool or cooling depending on the indoor temperature.

  • Page 11: Using Program Schedules

    Save money by setting program schedules It’s easy to program your system for maximum energy savings.You can program four time periods each day, with different settings for weekdays and weekends. WAKE Set to the time you awaken and the temperature you want 8:00 am during the morning, until you leave for the day.
  • Page 12 Energy Star settings for maximum cost savings ® This Comfort Control is pre-set to use Energy Star ® program settings.We recom- mend these settings, since they can reduce your heating/cooling expenses by as much as 33%. (See next page to adjust times and temperatures of each time period.) Heat (Mon-Fri) Cool (Mon-Fri) Heat (Sat-Sun)

  • Page 13: To Adjust Program Schedules

    To adjust program schedules 1 Press , then SET CLOCK SCHEDULE SET SCHEDULE Cool 2 Press to set your weekday Wake time (Mon-Fri), then press NEXT 3 Press to set the temperature for this time period, then press NEXT Done 4 Set time and temperature for the next Set Day Set Schedule...

  • Page 14: Program Schedule Overrides

    Program schedule override (temporary) Press to temporarily adjust temperature Press to immediately adjust the temperature.This will temporarily override Temporary the temperature setting for the current time period. The new temperature will be maintained Run Schedule only until the next programmed time period begins (see page 10).
  • Page 15 Program schedule override (permanent) Press to permanently adjust temperature Press to permanently adjust the HOLD temperature.This will override the temperature settings for all time periods. Hold The “Hold” feature turns off the program schedule and allows you to adjust the Run Schedule Comfort Control manually, as needed.

  • Page 16: Auto-Changeover (Heat/Cool)

    Auto Changeover (heat/cool) Auto Changeover is a feature used in climates where both air conditioning and heating are used on the same day.When the system is set to Auto, the Comfort Control automatically selects heating or cooling depending on the indoor temperature. Press until screen Heat and cool settings must be at least displays “Auto”...

  • Page 17: Compressor Protection

    Built-in compressor protection This feature helps prevent damage to the compressor in your air conditioning or heat pump system. Damage can occur if the compressor is re-started too soon after shutdown.This feature forces the compressor to wait for Set Clock/Day/ Schedule a few minutes before restarting.

  • Page 18: Adaptive Intelligent Recovery

    Adaptive Intelligent Recovery (AIR) ™ Adaptive Intelligent Recovery eliminates guesswork when setting your schedule. It allows the Comfort Control to “learn” how long your furnace and air conditioner take to reach the temperature you want. Just set your program schedule to the time you want the house to reach your desired temperature.The Comfort Control then turns on the heating or cooling at just the right time to reach your scheduled temperature at your scheduled time.

  • Page 19: Appendices Battery Installation

    Battery replacement Press and pull to remove Batteries are optional (to provide backup power) because your Comfort Control was wired to run on AC power when installed. Install fresh batteries immediately when the Replace Battery warning begins flashing.The REPLACE BATTERY warning flashes about two months before the batteries are depleted.

  • Page 20: In Case Of Difficulty

    In case of difficulty If you have difficulty with your Comfort Control, please try the suggestions below. Most problems can be corrected quickly and easily. Display is blank • Check circuit breaker and reset if necessary. • Make sure power switch at heating & cooling system is on. •...
  • Page 21 In case of difficulty Heating or • Press button to set system to Heat. Make sure the temperature is SYSTEM cooling system set higher than the Inside temperature. does not respond • Press button to set system to Cool. Make sure the temperature is SYSTEM set lower than the Inside temperature.

  • Page 22: Customer Assistance

    Customer assistance For assistance with this product, call your HVAC Contractor or visit www.trane.com. Or call the Customer Assistance Helpline toll-free at 1-800-500-2041. To save time, please remove the battery Model number Date code holder and note your model number and date code before calling.

  • Page 23: Limited Warranty

    Limited 5-year warranty Low Voltage Room Comfort Controls This limited warranty is extended by Trane, to the original purchaser and to any succeeding owner of the real property to which the Comfort Control is originally affixed, and applies to products purchased and retained for use within the U.S.A.
  • Page 24 Limited 5-year warranty THE LIMITED WARRANTY AND LIABILITY SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES AND LIABILITIES,WHETHER IN CONTRACT OR IN NEGLIGENCE, EXPRESS OR IMPLIED, IN LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR USE, AND IN NO EVENT SHALL WARRANTOR BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.
  • Page 25 Parts will be provided by our factory organization through an authorized service organization in your area listed in the yellow pages. If you wish further help or information concerning this limited warranty, contact: The Trane Company Troup Highway Tyler,TX 75711-9010...
  • Page 26 6200 Troup Highway Tyler, TX 75711-9010 www.trane.com ® U.S. Registered Trademark • Patents Pending. Pub. No. 00-0000-01 05/05 © 2005 American Standard All rights reserved...
