Trane XR103
Non-Programmable
Heat Pump Thermostat
TCONT103
Installation and User Guide
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit.
These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with
the installation. Should further information be desired or should particular problems arise which are not covered sufficiently
for the purchaser's purposes, the matter should be referred to your installing dealer or local distributor.
Pub No. 18-HD55D1-1C-EN
Part No. 37-7790003
September 2020
Advertisement
Table of Contents
Related Manuals for Trane XR103
Summary of Contents for Trane XR103
- Page 1 Trane XR103 Non-Programmable Heat Pump Thermostat TCONT103 Installation and User Guide ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES IMPORTANT — This Document is customer property and is to remain with this unit. These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with the installation.
-
Page 2: Table Of Contents
Installation and User Guide Contents Safety ................2 Cooling with SV92 Furnace Heat Pump with S9V2 Furnace Product Specifications ........... 3 Heat Pump with Variable Speed Gas Furnace General Information ............3 Heat/Cool Package with Variable Speed Blower Overview .............. 3 Heat Pump Package with Variable Speed Blower Contents ............... -
Page 3: Product Specifications

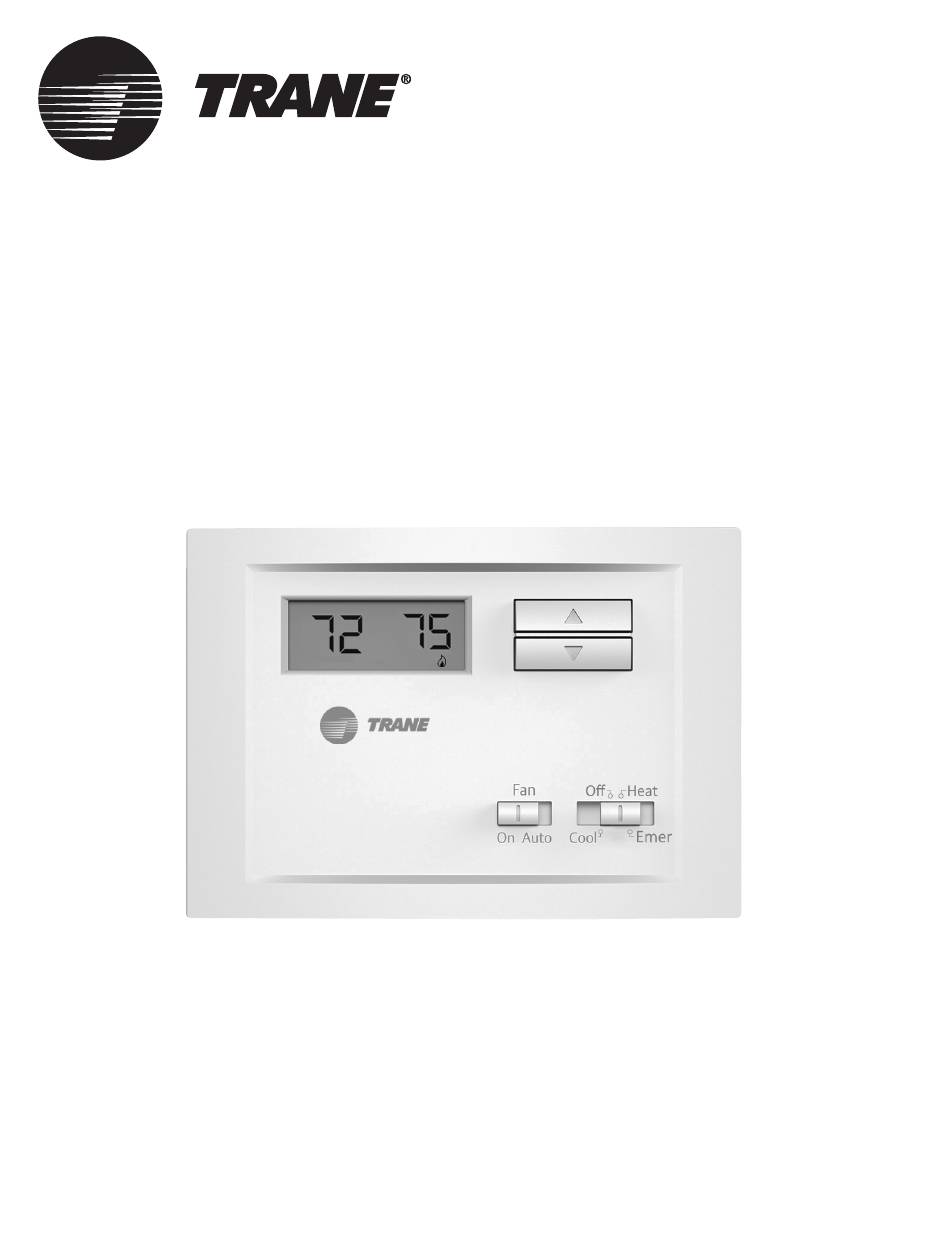

Trane XR103 Non-Programmable Thermostat Product Specifications SPECIFICATION DESCRIPTION Product Models TCONT103 Product XR 103 Size 3-7/8” x 5-1/2” x 1-3/16” (HxWxD) Configurations Heat Pump Maximum Number of Stages 2H/1C Operating Temperature 32°F to 105°F (0 to +41°C) / 90% RH Non Condensing Shipping Temperature Range -40 to 150°F (-40 to +65°C) -
Page 4: Mounting
Installation and User Guide Pull the cover off the thermostat body. Forcing or prying on Connect wires to terminal block on base using appropriate the thermostat will cause damage to the unit. wiring diagram. Move base over hole in wall and mark mounting hole Push excess wire into wall and plug hole with a fire resistant locations on wall using base as template. -
Page 5: Wiring Diagrams
Trane XR103 Non-Programmable Thermostat Wiring Diagrams Heat Pump with TAM Series 24V Thermostat Indoor Unit Outdoor Unit Y/Y1 NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board... -
Page 6: Heat Pump With Variable Speed Gas Furnace
Installation and User Guide Heat Pump with Variable Speed Gas Furnace Thermostat Indoor Unit Outdoor Unit NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board 2) X2 is required to energize aux heat during defrost Heat/Cool Package with Heat Pump Package with... -
Page 7: Heat Pump With Gat2, Gam2, Tem3, Tem4
Trane XR103 Non-Programmable Thermostat Heat Pump with GAT2, GAM2, TEM3, TEM4 Thermostat Indoor Unit Outdoor Unit Y/Y1 NOTES: 1) Wire third party condensate over ow switches between Y of the thermostat and Y1 of the air ow control board 2) X2 is required to energize aux heat... -
Page 8: Thermostat Overview
Installation and User Guide THERMOSTAT OVERVIEW The Display Indicates a malfunction with the system. Before you begin using your thermostat, you should be familiar with Flame icon ( ) is displayed when the SYSTEM switch is in the its features, display and the location/operation of the thermostat HEAT position. -
Page 9: Operating Features
Trane XR103 Non-Programmable Thermostat OPERATING FEATURES Cooling System Move SYSTEM switch to COOL position. Press to adjust thermostat setting below room NOTE temperature. The blower should come on immediately on To prevent static discharge problems, touch side of high speed, followed by cold air circulation. -
Page 10: Troubleshooting
Installation and User Guide Troubleshooting Reset Operation If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation you can reset the thermostat by pressing at the same time when system is switched from “OFF” to “HEAT” position. This also resets the factory defaults. If the thermostat has power, has been reset and still does not function correctly contact your heating/cooling service person or place of purchase. - Page 11 NOTES Pub. No. 18HD55D1-1C-EN 09/2020 Part No. 37-7790003...
