Grandstream Networks GXV3175 User Manual
  1. Manuals
  2. Brands
  3. Grandstream Networks Manuals
  4. IP Phone
  5. GXV3175
  6. User manual
Grandstream Networks GXV3175 User Manual

Grandstream Networks GXV3175 User Manual

Ip multimedia phone
Hide thumbs Also See for GXV3175:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual
Gran
ndstre
eam N
GXV3
3175
IP Mu
ultimedia
a Phone
Grandstr
ream Networ
ks, Inc.
Netwo
rks, In
e

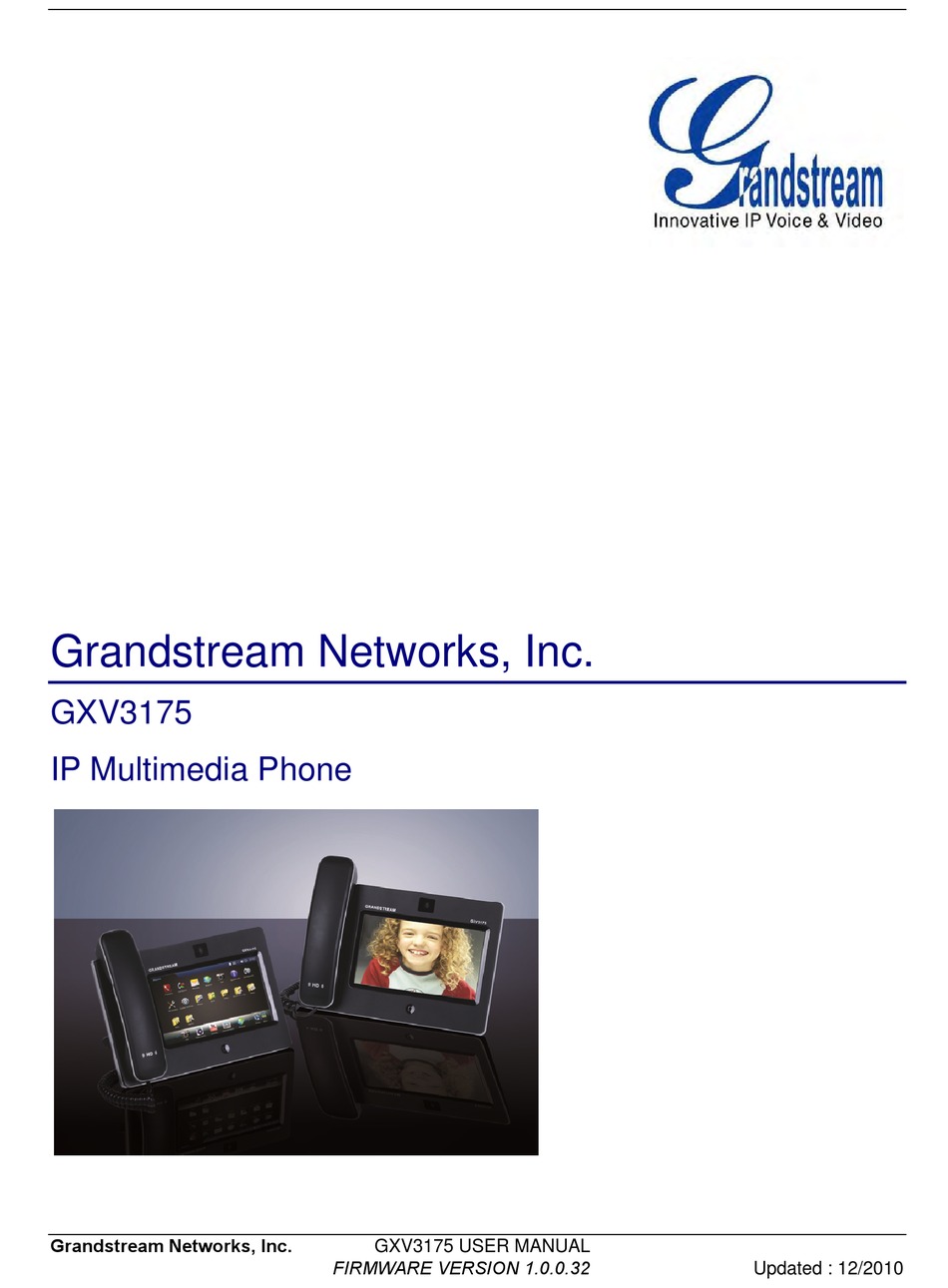

GXV317
75 USER MAN
FIRMWARE V
F
VERSION 1.0
nc.
NUAL
0.0.32
Updated : 12 /2010
