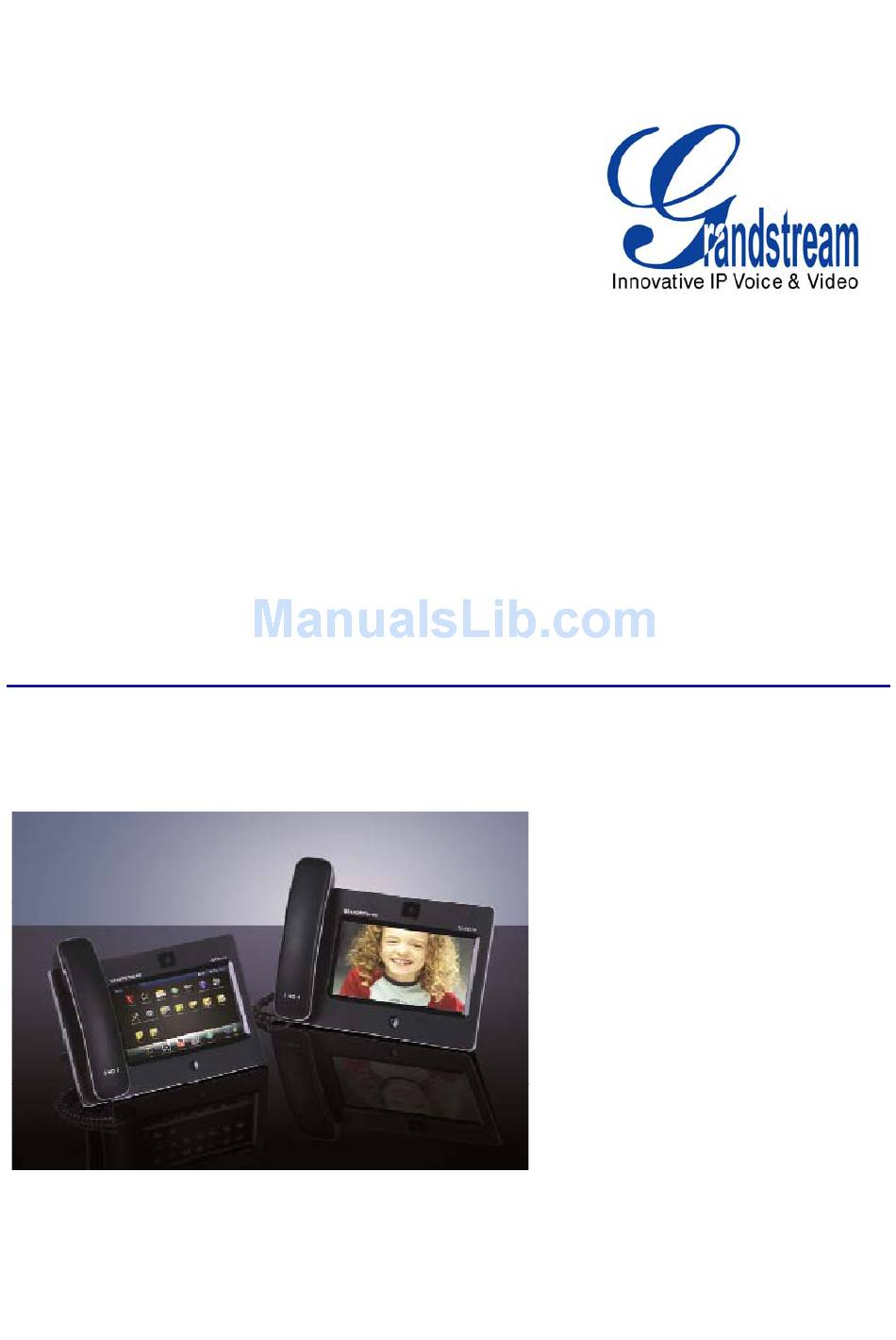

- Page 1 Grandstream Networks, Inc. GXV3175 IP Multimedia Phone XML Based Downloadable Phonebook...
- Page 2 VERVIEW The Grandstream GXV3175 IP Multimedia phone enables the users to share and maintain a phonebook through the web easily. Besides importing/exporting the phonebook via local devices, it offers a user-friendly download method through the GXV3175 IP Multimedia phone’s LCD interface.
- Page 3 Or users can press button “Download Now” right next to download interval to download the phonebook file immediately. Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 3 of 12 Last Updated: 12/2010 ...
- Page 4 “Phonebook”. In the Phonebook page, select/enter the required information in box “Download” which is similar to the settings in phone’s touch screen. Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 4 of 12 Last Updated: 12/2010 ...
- Page 5 See Figure 5. Figure 5: Phonebook Download Successful via Web Configuration Interface Now users could press “OK” and check the downloaded phonebook on the phone. Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 5 of 12 Last Updated: 12/2010 ...
- Page 6 “Browse” button to export the file to USB disk or SD card. Press “Import/Export” button. After the phonebook file is exported, users will see the xml file named “export.xml” shown in the external storage device. Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 6 of 12 Last Updated: 12/2010 ...
- Page 7 5 seconds for the phone to process the file and then the users will see “Import succeed” message in the screen of the PC if the format of the file is correct. Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 7 of 12 Last Updated: 12/2010 ...
-
Page 8: Xml Syntax
<xsd:element name="RingtoneUrl" minOccurs="0" maxOccurs="1" type="xsd:string"/> <xsd:element name="RingtoneIndex" minOccurs="0" maxOccurs="1" type="RingIndex"/> </xsd:sequence> </xsd:complexType> </xsd:element> <xsd:element name="Phone"> <xsd:complexType> <xsd:sequence> <xsd:element name="phonenumber" type="xsd:string"/> <xsd:element name="accountindex" type="AccountIndex"/> </xsd:sequence> Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 8 of 12 Last Updated: 12/2010 ... - Page 9 <xsd:enumeration value="Fax"/> </xsd:restriction> </xsd:simpleType> </xsd:attribute> </xsd:schema> XAMPLE PHONEBOOK FILE Phonebook.xml <?xml version="1.0" encoding="UTF-8"?> <AddressBook> <version>1</version> <pbgroup> <id>1</id> <name>Default</name> <photos>Default</photos> <ringtones></ringtones> <RingtoneIndex>0</RingtoneIndex> </pbgroup> <pbgroup> Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 9 of 12 Last Updated: 12/2010 ...
- Page 10 <RingtoneUrl></RingtoneUrl> <RingtoneIndex>0</RingtoneIndex> </Contact> <Contact> <FirstName>Bob</FirstName> <LastName>Coven</LastName> <Primary>0</Primary> <Frequent>0</Frequent> <Phone type="Work"> <phonenumber>555</phonenumber> <accountindex>0</accountindex> </Phone> <Phone type="Home"> <phonenumber>666</phonenumber> <accountindex>2</accountindex> </Phone> <Phone type="Mobile"> <phonenumber>777</phonenumber> <accountindex>1</accountindex> </Phone> Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 10 of 12 Last Updated: 12/2010 ...
- Page 11 /PhotoUrl> <RingtoneUrl>/app/ringtone/pipa.mp3</RingtoneUrl> <RingtoneIndex>11</RingtoneIndex> </Contact> <Contact> <FirstName>Cindy</FirstName> <LastName>Tsai</LastName> <Primary>0</Primary> <Frequent>0</Frequent> <Phone type="Work"> <phonenumber>4444</phonenumber> <accountindex>0</accountindex> </Phone> <Phone type="Home"> <phonenumber></phonenumber> <accountindex>0</accountindex> </Phone> <Phone type="Mobile"> <phonenumber></phonenumber> <accountindex>0</accountindex> Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 11 of 12 Last Updated: 12/2010 ...
- Page 12 </Phone> <Phone type="Fax"> <phonenumber></phonenumber> <accountindex>0</accountindex> </Phone> <Mail>cinday_T@hotmail.com</Mail> <Group>0</Group> <PhotoUrl>Default</PhotoUrl> <RingtoneUrl></RingtoneUrl> <RingtoneIndex>1</RingtoneIndex> </Contact> </AddressBook> Grandstream Networks, Inc. GXV3175 XML Based Downloadable Phonebook Page 12 of 12 Last Updated: 12/2010 ...
