1 Cylinder
349 cc
»
Certification
EPA TIER 2
ECE R 24
Features
4-Stroke Air-Cooled Diesel Engine
SAE J609a Crankshaft
Counter-Clockwise Rotation
Direct Injection
Full-Pressure Lubrication with Oil Pump
Centrifugal Mass Governor
Built-In Full Flow Oil Filter
Oil Breathing Blow-By with Safety Device
Automatic Extra Fuel Starting Device
Self-Bleeding Fuel System
Torque Regulator
Automatic Compression Release
Die-Cast Aluminum Crankcase with Integral Cast-Iron Cylinder Liner
Aluminum Alloy Cylinder Head
Mounting Feet
Applications
Two-Wheel Tractor
Agricultural Mower
Agricultural Pump
High-Pressure Cleaner
Generator
Vibrating Plate
Hydraulic Power Pack
Arrowboard
Relentless Power.
Legendary Performance.

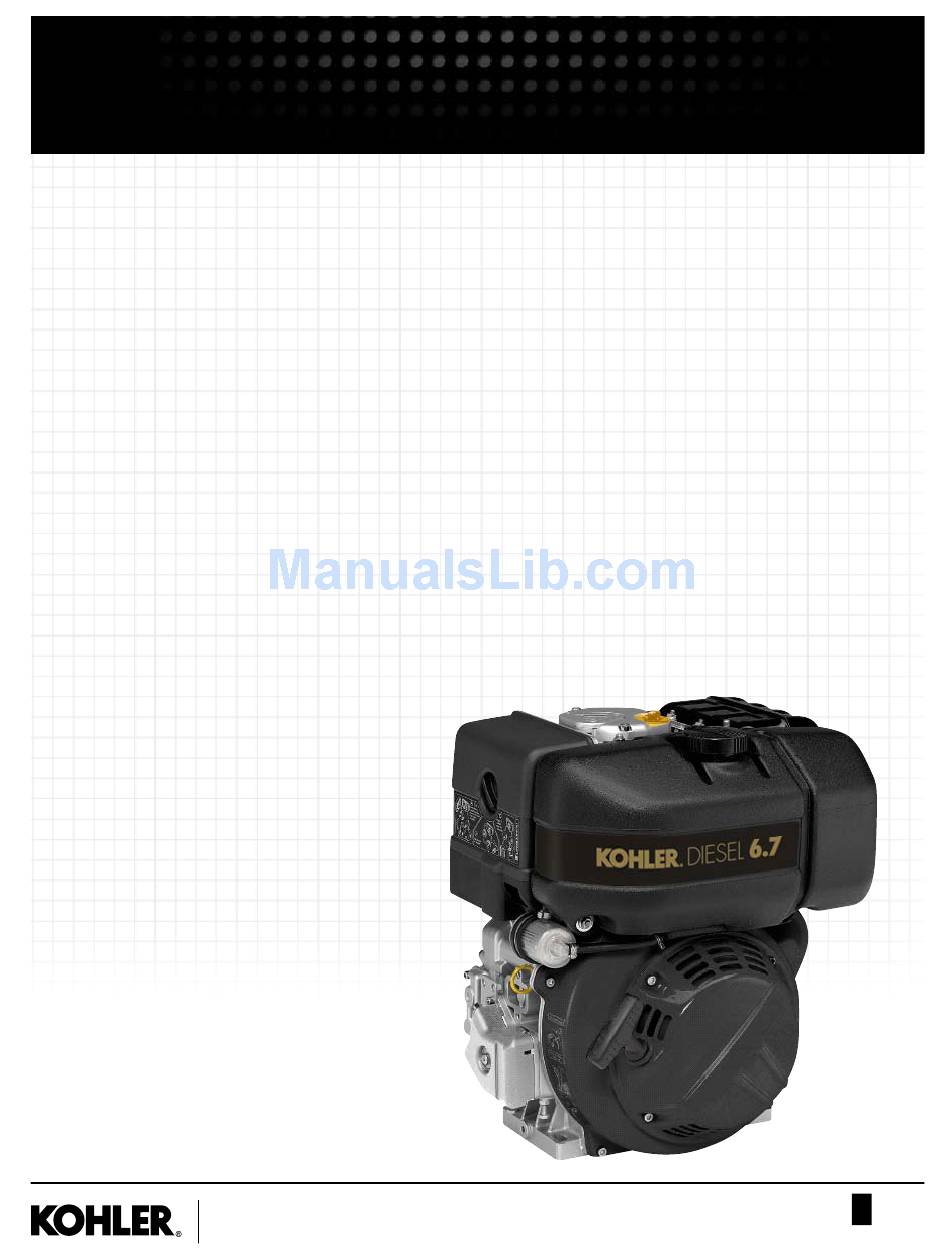

Kohler ® Diesel
Model KD350D
5.0 kW/6.7 HP
3600 RPM
»
»
12.2 ft. lbs@2400 RPM
»
PAGE:
1
OF 4
© 2008 by Kohler Co.
Advertisement
Related Manuals for Kohler KD350D
Summary of Contents for Kohler KD350D
- Page 1 Die-Cast Aluminum Crankcase with Integral Cast-Iron Cylinder Liner Aluminum Alloy Cylinder Head Mounting Feet Applications Two-Wheel Tractor Agricultural Mower Agricultural Pump High-Pressure Cleaner Generator Vibrating Plate Hydraulic Power Pack Arrowboard Relentless Power. PAGE: OF 4 Legendary Performance. © 2008 by Kohler Co.
-
Page 2: Specifications
N/n] N (kW) n (RPM) (mm) ≥ 860 [60+L (mm)] N (kW) n (RPM) Max. Allowable Axial Load in Both Directions A-B = 200 kg/441 lb 1000 RPM 2000 RPM 3000 RPM 3600 RPM PAGE: OF 4 © 2008 by Kohler Co. - Page 3 NB Power curve - ISO 3046/1 - IFN - NA Power curve - ISO 3046/1 - ICXN - Torque curve - (N curve) MB (B curve - MA (A curve) Specific fuel consumption - (NB curve) PAGE: OF 4 © 2008 by Kohler Co. KohlerEngines.com...
- Page 4 Fuel Valve Safety Shutdown for Low Oil Pressure with Type A & B Mounting Flanges PAGE: OF 4 KOHLER Co., Kohler, Wisconsin 53044 • Tel: 920-457-4441 800-544-2441 • Fax: 920-459-1570 • KohlerEngines.com Form TP-2610 5/08 © 2008 by Kohler Co. Printed in U.S.A.
