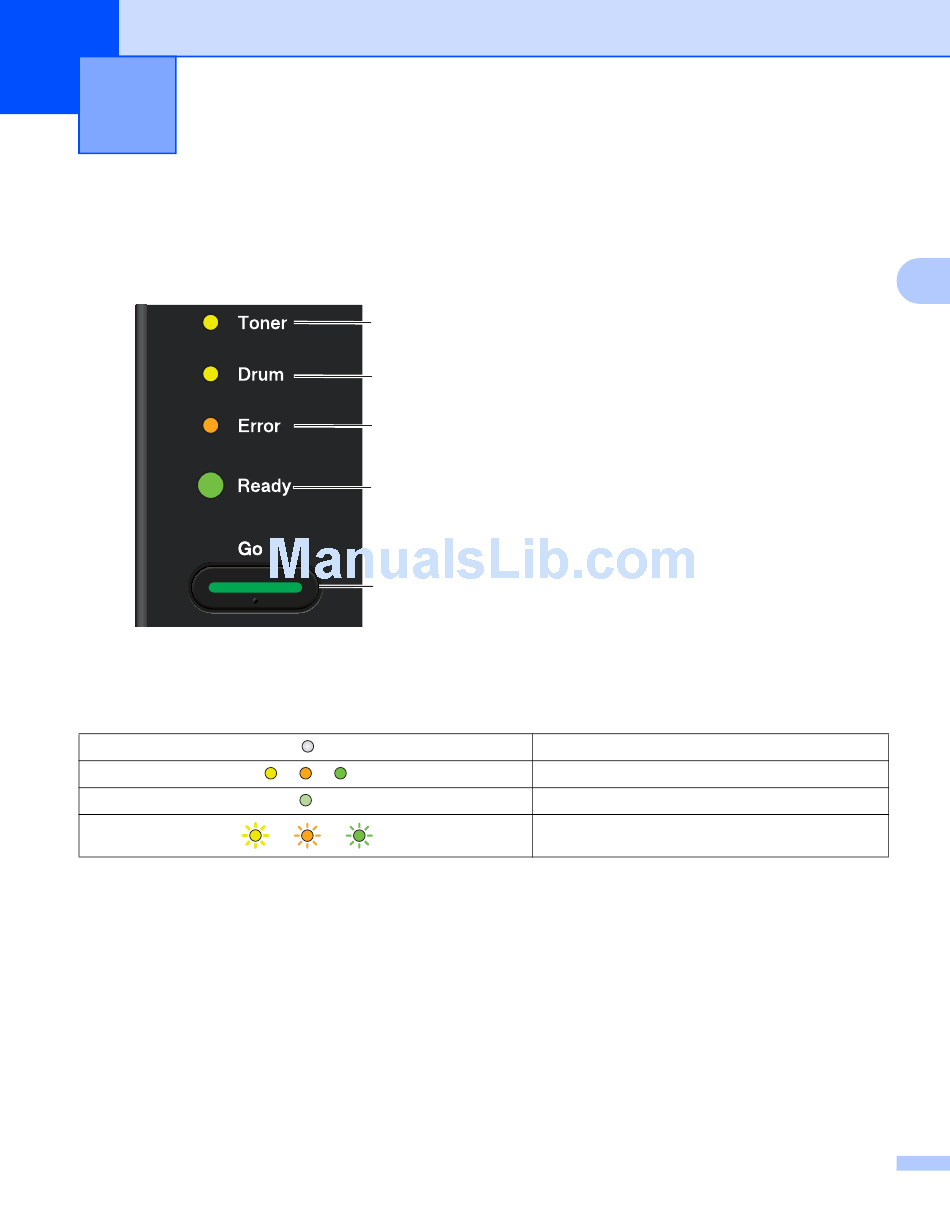

Control Panel

LEDs (Light Emitting Diodes)

This section refers to four LEDs Toner, Drum, Error, Ready and Go button on the control panel.
The LED indications shown in the table below are used in the illustrations in this chapter.
1 Toner LED
1
2 Drum LED
2
3 Error LED
3
4
4 Ready LED
5
5 Go button
or or
or or
The Toner LED indicates that the Toner is low.
The Drum LED indicates that the Drum will need to be
replaced soon.
The Error LED indicates when the machine is in one of
the following states:
No paper / Paper jam / Cover open
The Ready LED will flash depending on the machine
status.
Wake-up / Error recovery / Form feed / Job Cancel /
Reprint / Enable or Disable the wireless network
(HL-2270DW only)
LED is off.
LED is on.
The LED is dimmed.
LED is flashing.
