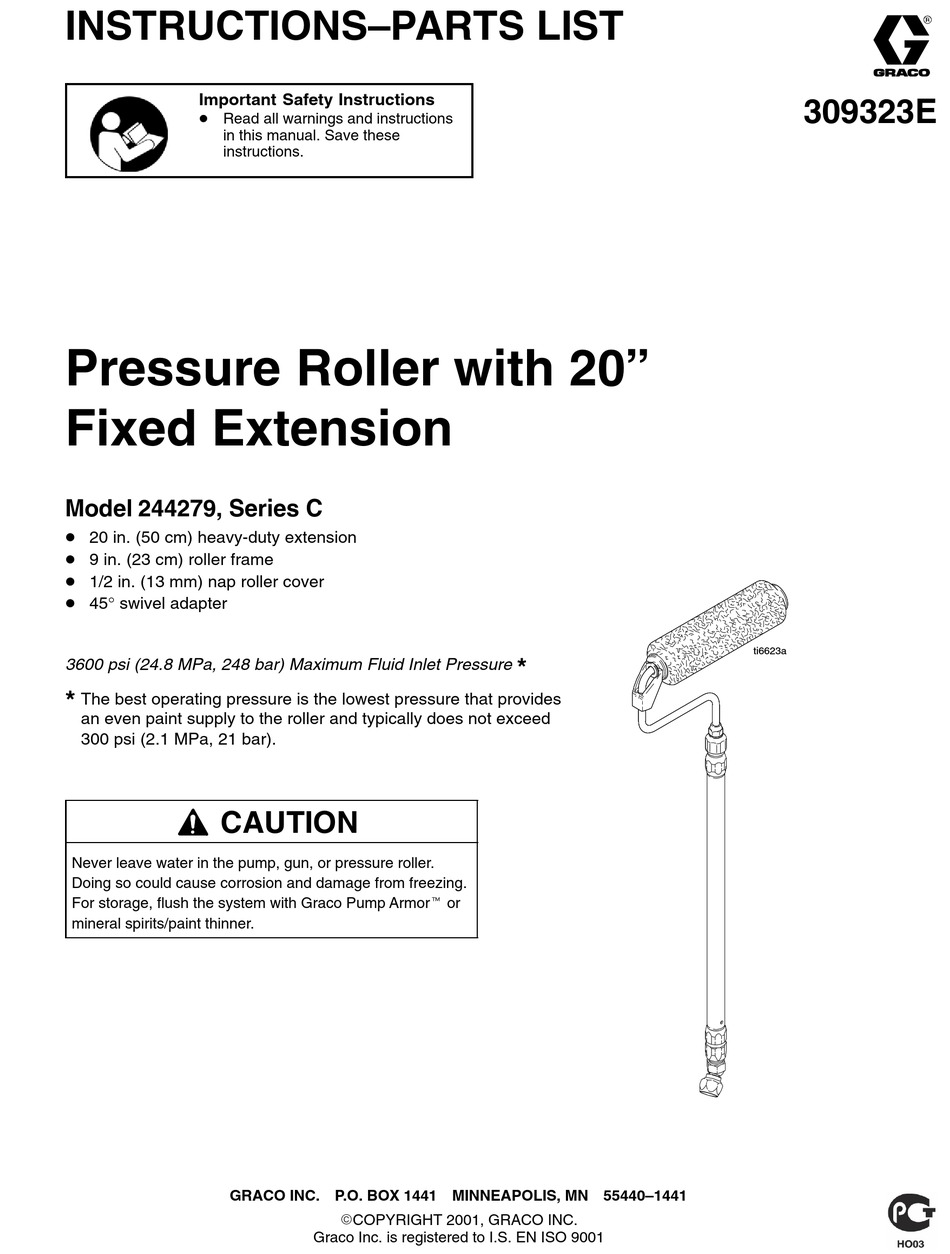

Graco 244279 Instructions And Parts List

Series c pressure roller with 20” fixed extension 3600 psi (24.8 mpa, 248 bar) maximum fluid inlet pressure

Download this manual

INSTRUCTIONS–PARTS LIST

Important Safety Instructions

D Read all warnings and instructions

in this manual. Save these

instructions.

Pressure Roller with 20"

Fixed Extension

Model 244279, Series C

D 20 in. (50 cm) heavy-duty extension

D 9 in. (23 cm) roller frame

D 1/2 in. (13 mm) nap roller cover

D 45° swivel adapter

3600 psi (24.8 MPa, 248 bar) Maximum Fluid Inlet Pressure

The best operating pressure is the lowest pressure that provides

an even paint supply to the roller and typically does not exceed

300 psi (2.1 MPa, 21 bar).

CAUTION

Never leave water in the pump, gun, or pressure roller.

Doing so could cause corrosion and damage from freezing.

For storage, flush the system with Graco Pump Armort or

mineral spirits/paint thinner.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Graco Inc. is registered to I.S. EN ISO 9001

309323E

ti6623a

Page 1 Save these instructions. Pressure Roller with 20” Fixed Extension Model 244279, Series C D 20 in. (50 cm) heavy-duty extension D 9 in. (23 cm) roller frame D 1/2 in. (13 mm) nap roller cover D 45° swivel adapter 3600 psi (24.8 MPa, 248 bar) Maximum Fluid Inlet Pressure...
Page 2 Warnings and Cautions WARNING EQUIPMENT MISUSE HAZARD Misuse can cause the equipment to rupture or malfunction and result in serious injury. To help prevent injury D Do not modify the extension tube or roller frame or use parts not designed for this equipment.
Page 3: Parts List
Graco Pump Armor or mineral spirits/paint thinner. Leave the fluid in the system during storage. Pressure Roller, Model 244279, Series C ti10641a Parts List Ref. Part No. Description...
Page 4 Graco Standard Warranty Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

309323e
