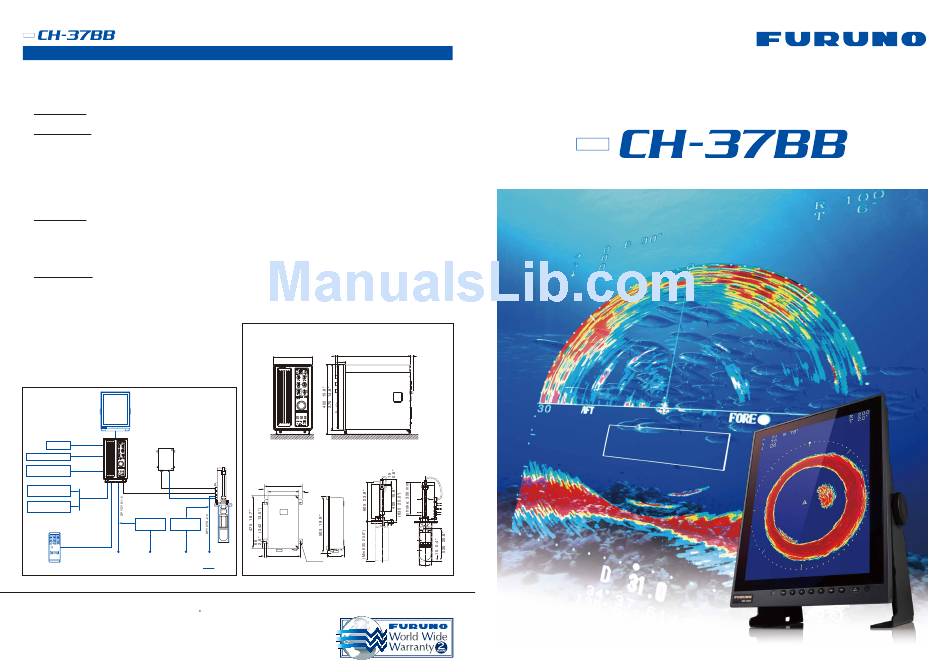

Furuno CH-37BB Quick Manual

COLOR SECTOR SCANNING SONAR
Model
SPECIFICATIONS OF CH-37BB
1. Display Colors
8 or 16 colors
2. Display Modes Full-circle, Vertical-fan, 1.5x Zoom,
3D graphics, Dual
3. Range Scales
Full-circle mode
12 ranges from 30 to 1600 m (100 to 6000 ft, 20 to 1000 fa)
Vertical-fan mode
12 ranges from 10 to 1000 m (30 to 3000 ft, 10 to 500 fa)
4. Frequency 60, 113 or 162 kHz
(Specify when ordering.)
5. Output Power (Nominal)
60 kHz: 0.8 kW, 113 kHz: 1.3 kW, 162 kHz: 1.5 kW
6. Pulse length
0.2 to 10.6 ms interlocked with range in use
7. Transducer Control
Full-circle mode
Training: 45° or 6° steps through 360°
(Scanning sector 45°, 90°, 135°, 180° or
225°. Sector center can be set in any
direction in 15° steps.)
Tilt angle: +5° to -90° in 1° steps manually
Vertical-fan mode
Vertical scan: 6° or 3° steps (Scanning sector selectable
from 36°, 60°, 96°, 120°, 156° and 180°.
Sector center can be set between 0° and 180°
in 6° steps.)
Training: 6° steps manually or 15° steps automatically
8. Ship Speed for Hull Unit
15 knots max.
9. Ambient Temperature
0°C to 50°C
Display unit
MJ-A6SPF0012
GPS
5/10 m, ø6
Processor
CO-0.2x5P
Current Indicator Unit Transceiver Unit
5/10/15/20 m
CH-371 CH-341
Loudspeaker
5 m
Hull Unit
SC-05WR
CH-342
06S4061, 5m, ø22
Motion Sensor
06S4076
MS-100
06S4037 15/30/50 m
10 m, ø9
DPYCYS-1.5
Clinometer
(For DC main)
BS-704
Rectifier Rectifier
RU-3423 RU-1746B-2
7 m
Remote Control 24 VDC 100/110/220/230/240 VAC 24 VDC
CH-343 50/60 Hz, 1ø
All brand and product names are registered trademarks, trademarks or service marks of their respective holders
FURUNO ELECTRIC CO., LTD. FURUNO ESPAÑA S.A. FURUNO FINLAND OY
Nishinomiya, Hyogo, Japan Madrid, Spain Espoo, Finland
www.furuno.com www.furuno.es www.furuno.
FURUNO U.S.A., INC. FURUNO DANMARK AS FURUNO POLSKA Sp. Z o.o.
Camas, Washington, U.S.A. Hvidovre, Denmark Gdynia, Poland
www.furunousa.com www.furuno.dk www.furuno.pl
FURUNO (UK) LIMITED
FURUNO NORGE A/S FURUNO EURUS LLC
Havant, Hampshire, U.K. Ålesund, Norway St. Petersburg, Russian Federation
www.furuno.co.uk www.furuno.no www.furuno.com.ru
FURUNO FRANCE S.A.S. FURUNO SVERIGE AB
Bordeaux-Mérignac, France Västra Frölunda, Sweden
www.furuno.fr www.furuno.se
10. Input/Output Data
Input: NMEA0183 $--GLL, $--DBT, $--RMB, $--RMC
Output: RGB video in XGA/SXGA format
11. Power Supply
24 VDC: 16.5 A
(340 W when lowering or raising transducer)
100/110/115/200/220/240 VAC, 50-60 Hz with 2 x Rectifier
EQUIPMENT LIST
Standard
1. Processor unit CH-371
2. Transceiver unit CH-341
(Specify 60, 113 or 162 kHz.)
3. Hull unit CH-342
(Specify shaft length: 1.17, 2.2 or 3.8 m.)
4. Installation materials and standard spare parts
Option
1. Marine display MU-190V
2. Motion sensor MS-100
3. Clinometer BS-704
4. Remote control CH-343
5. Rectifier RU-1746B-2 and RU-3423 for 110/220 VAC mains
6. Loudspeaker SC-05WR
7. Steel or FRP transducer tank (Specify 1, 1.8 or 3.5 m)
PROCESSOR UNIT
18 kg 39.7 lb
10 0.4" 421 16.6"
220 8.7"
50 2.0"
TRANSCEIVER UNIT HULL UNIT
8.5 kg 18.7 lb 55 kg 121.2 lb
350 13.8"
32
282 11.1"
36
1.2"
1.4"
20
4- ø12
(310 12.2") 165 6.5"
0.8"
Option
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
1201PDF Printed in Japan
FURUNO DEUTSCHLAND GmbH
Rellingen, Germany Catalogue No. E-411
www.furuno.de
FURUNO HELLAS S.A.
Piraeus, Greece
RICO (PTE) LTD
Singapore
www.rico.com.sg
COLOR SECTOR SCANNING SONAR
Model
1 unit
1 unit
Full-circle and vertical-fan scanning
Full-circle and vertical-fan scanning
1 unit
1 set
with 3D bottom imaging
with 3D bottom imaging
Available in 60, 113 or 162 kHz
Available in 60, 113 or 162 kHz
20 0.8"
ø42
ø190
Photo: 19" Vertical marine display
MU-190V (Option)
