TP-Link TL-WR1042ND User Manual page 19

After a moment, a login window will appear, similar to the Figure 3-4. Enter admin for the User
Name and Password, both in lower case letters. Then click the OK button or press the Enter key.
Note:
If the above screen does not pop up, it means that your Web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
2. After successful login, you can click the Quick Setup to quickly configure your router.
3. Click Next, and then WAN Connection Type page will appear as shown in Figure 3-6.
TL-WR1042ND

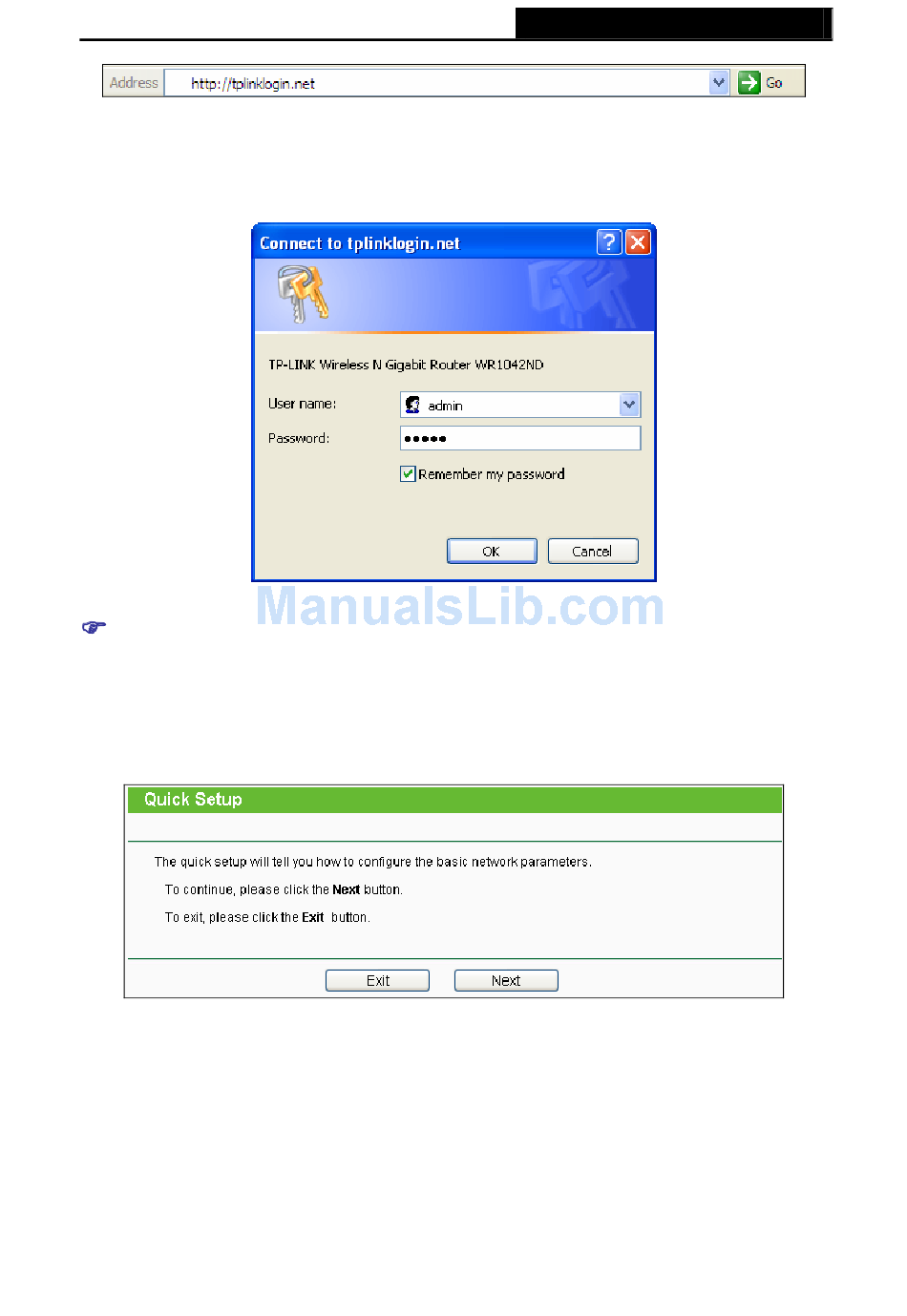

Figure 3-3 Login the Router
Figure 3-4 Login Windows
Figure 3-5 Quick Setup
-10-
300Mbps Wireless N Gigabit Router
