Chapter 11. Configuring Remote Access

11.7.2 Aggressive Mode Remote Access

Aggressive Mode remote access with Xauth is a mechanism where the remote access client is prompted for
an additional login (the Xauth login). This form of remote access is more secure since an intruder cannot
access the corporate resources through a connected Laptop, which belongs to a valid employee. In addition,
normal HTTP login by the remote user is used to instantiate appropriate Firewall policies on the Internet
Security Router. Once these policies are instantiated, the remote user is allowed secure access through the
Internet Security Router. Again, the example, see Figure 11.10, used to illustrate the main mode remote
access is used here. Follow the instructions below to configure for aggressive mode remote access.
1. Create remote access user for Richard and Gloria. For details on how to do this, please refer to
section 11.2 Manage User Groups and Users. Figure 11.11 shows the settings for adding Gloria
into RoadWarrior user group.

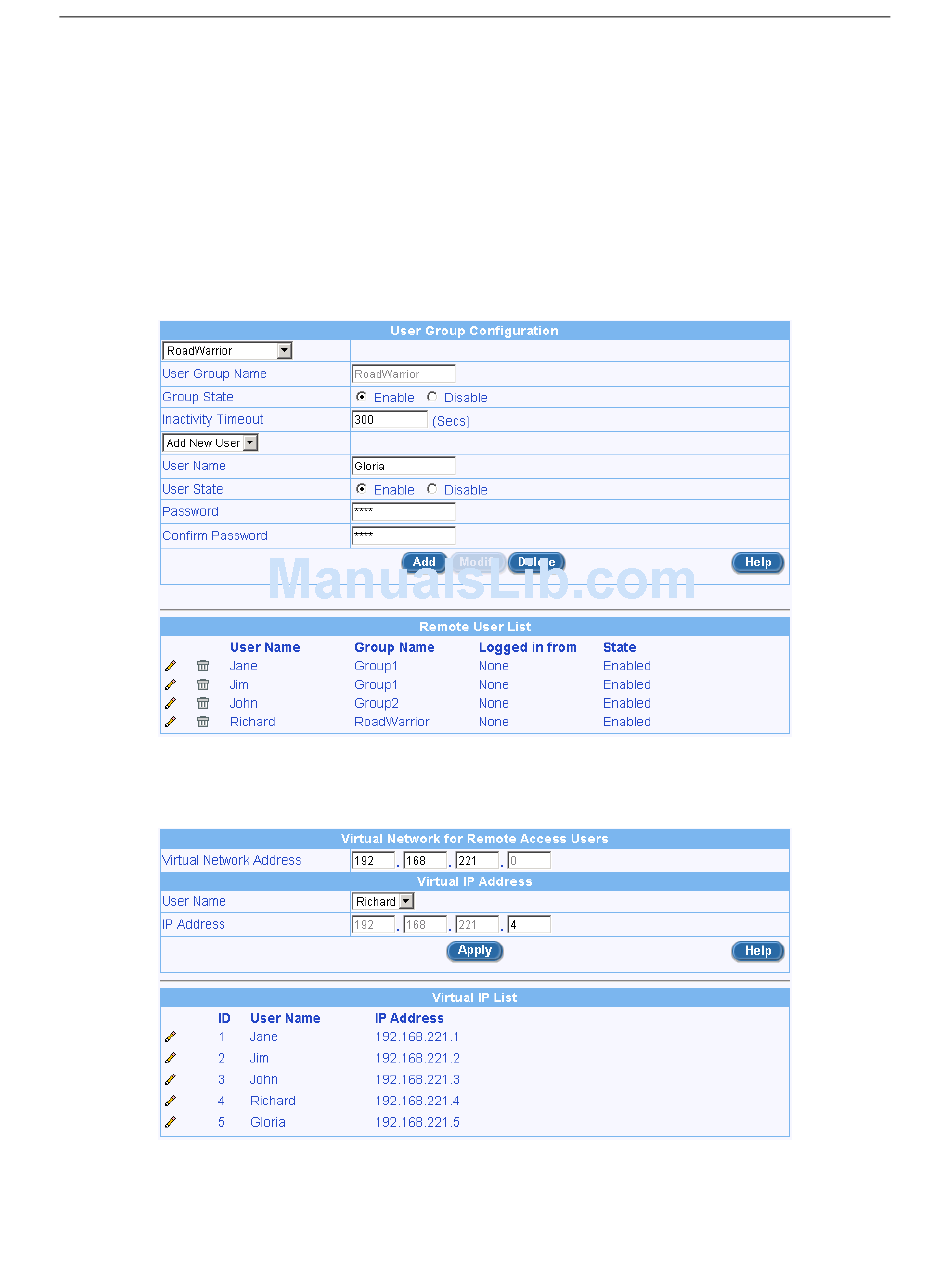

Figure 11.14. Aggressive Mode Remote Access Example – Create a User Group and Add Two Users
2. Set the Virtual Network Address to 192.168.221.0 as shown in Figure 11.15.
Figure 11.15. Aggressive Mode Remote Access Example – Configure the Virtual IP address
120
into the Group
Internet Security Router User's Manual
