- Page 1 MICRO SYSTEM CDM 800...
- Page 2 ___________________________________________________________________ 4 Sicherheit und Informationen 13 CD-Betrieb DEUTSCH 5 Auf einen Blick 16 Cassetten-Betrieb 9 Stromversorgung 18 Timer-Betrieb 10 Lautsprecher 20 Informationen 11 Lautstärke/Klang 185 Service 11 Radio-Betrieb 22 Safety and information 32 CD mode ENGLISH 23 Overview 35 Tape mode 27 Power supply 37 Timer mode 29 Loudspeakers...
- Page 3 __________________________________________________________________ 95 Seguridad e información 104 Modo CD ESPAÑOL 96 Vista general 107 Modo casete 100 Alimentación de corriente 109 Modo timer 101 Altavoces 111 Información 102 Volumen/sonido 185 Servicio 102 Modo radio 113 Veiligheid en informatie 122 CD-mode NEDERLANDS 114 In een oogopslag 125 Cassette-mode 118 Stroomtoevoer...
-
Page 4: Safety Information

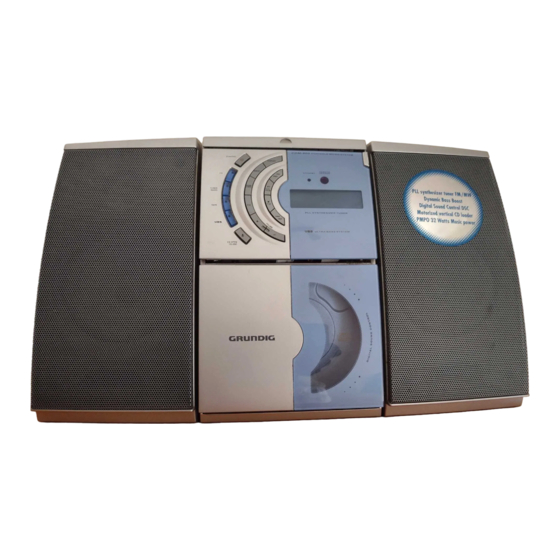

SAFETY, INFORMATION _____________________ ENGLISH Safety To ensure that this device provides you with long-term satisfaction and CDM-800 PORTABLE MICRO SYSTEM STANDBY enjoyment, please observe the following instructions: DISPLAY MEMORY REMOTE STANDBY SENSOR MODE/ TUNER /BAND TIMER PLAY/ PAUSE TAPE STOP PLL SYNTHESIZER TUNER ULTRA BASS SYSTEM CD OPEN... - Page 5 OVERVIEW ___________________________________________ The device CDM-800 PORTABLE MICRO SYSTEM STANDBY DISPLAY MEMORY REMOTE STANDBY SENSOR MODE/ TUNER TIMER /BAND PLAY/ PAUSE TAPE STOP PLL SYNTHESIZER TUNER ULTRA BASS SYSTEM CD OPEN /CLOSE General functions STANDBY Switches the device on and off. The red »...
- Page 6 OVERVIEW ____________________________________________ CD mode functions CD OPEN/CLOSE Opens and closes the CD compartment. CDM-800 PORTABLE MICRO SYST STANDBY DISPLAY DISPLAY Switches from the elapsed track playing time to MEMORY REMOTE STANDBY SENSOR the remaining track playing time. MODE/ TUNER TIMER /BAND PLAY/ PAUSE...
- Page 7 OVERVIEW ____________________________________________ Connections and controls on the back of the device (behind the cover panel) ANTENNA PHONES IMPEDANCE : 3.2 Ohm [ ] BEAT CUT STEREO = MONO = OFF = OPTICAL R L + – Connections for loudspeakers supplied. = right channel, = left channel.
-
Page 8: The Remote Control
OVERVIEW ____________________________________________ The remote control The remote control has a magnet with which it can be attached to the top of the device. STANDBY However, please note that the magnet can damage data on PLAYPAUSE PAUSE disks, tape recordings etc. STANDBY Switches the device on and off. -
Page 9: Power Supply
POWER SUPPLY ___________________________________ Mains operation Note: Check if the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. The only way to disconnect the device from the mains supply is to pull out the plug. -
Page 10: Important Notes For Users In The U.k
POWER SUPPLY ______________________________________ Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. -
Page 11: Connecting The Loudspeakers
LOUDSPEAKERS ___________________________________ Attaching the loudspeakers to the device Place the loudspeaker in the guide from behind and slide it on to the device casing. To take off the loudspeaker push out the locking mechanism and slide back the loudspeaker. ANTENNA PHONES Connecting the loudspeakers Connect the loudspeakers to the... -
Page 12: Radio Mode
VOLUME/TONE ____________________________________ Switching on/off Use the » STANDBY « button to switch the device on or off. – The red » STANDBY« indicator lights up in mains mode when the device is switched off. Adjusting the volume Adjust the volume using the » –... -
Page 13: Tuning To Radio Stations
RADIO MODE _________________________________________ Tuning to radio stations You can store up to 30 radio stations (FM and MW). Press » STANDBY « to switch on the device. – The red » STANDBY« indicator goes out. Select TUNER as the input source using the » TUNER/BAND« button. ¶... -
Page 14: Selecting A Different Track
CD MODE ______________________________________________ The device is suitable for music CDs displaying the logo shown here or for CD-Rs with audio data. Always keep the CD compartment closed to prevent dust from collecting on the laser optics. Do not attach adhesive labels to CDs. Keep the surfaces of CDs clean. -
Page 15: Repeating A Track
CD MODE _____________________________________________ Repeating a track During playback, press »MODE/TIMER« once. REPEAT – Display: »REPEAT I« and the track is repeated. FLAT 0:0 I To end this function, press »MODE/TIMER« twice. Repeating the whole CD ( REPEAT During playback, press »MODE/TIMER« twice. REPEAT DISC –... -
Page 16: Playing Back Tracks In A Selected Order - Creating A Track Memory
CD MODE _____________________________________________ Playing back tracks in a selected order – creating a track memory This function enables you to store up to 20 tracks on the current CD in a certain order and then play them back in that sequence. The same track may be stored more than once. -
Page 17: Tape Mode
TAPE MODE __________________________________________ Note: You can only play tapes using the buttons on the device. Preparation Press » STANDBY « to switch on the device. TAPE Select TAPE as the input source using the » TAPE« button. FLAT I 4 : 3 0 –... -
Page 18: Recording From The Radio
TAPE MODE ___________________________________________ ecording from the radio Put a cassette with the protection tabs intact in the cassette compartment, and press the » « and » « buttons to find the right position on the tape. Select TUNER as the input source using the » TUNER/BAND« button. –... -
Page 19: Timer Mode
TIMER MODE ________________________________________ Setting the time Press » STANDBY « to switch off the device. Note: You can light up the display if you want by pressing » DISPLAY«. Press »MEMORY« on the device. 0 : 00 – Display: »0:00«, the hours display flashes. Set the hours by pressing »... - Page 20 TIMER MODE _________________________________________ Press »MODE/TIMER«. TIMER – Display: » TIMER« and »0:00«, » ON« flashes. 0:00 Press »MEMORY« and enter the hours for the ON time by pressing » 5 a a a « or » s s s 6 «.
-
Page 21: Technical Data
INFORMATION _____________________________________ Tape unit Protect your cassettes from humidity, dust, heat and cold. Do not store your cassettes near devices with strong magnetic fields such as television sets or stereo speakers. After using a cassette, put it back in its protective case. To guarantee good recording and playback quality, clean the parts shown (1, 2, 3) after every 50 hours of use, or once a month. -
Page 22: Troubleshooting
INFORMATION _______________________________________ Troubleshooting If a problem occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the device yourself, as this would invalidate the guarantee. -
Page 23: Grundig Kundenberatungszentrum
Unser Kundenberatungszentrum steht Ihnen werktags stets von 8.00 – 19.00 Uhr zur Verfügung. Montags bis Freitags Haben Sie Fragen zur Umweltverträglichkeit unserer von 8.00 bis 19.00 Uhr Geräte, wenden Sie sich an die GRUNDIG Deutschland: 0180 / 530 21 22* Öko-Technologie, Fax: 0911/703-9213. Österreich: 0800 / 700 600* *gebührenpflichtig... - Page 24 Grundig AG • Beuthener Str. 41 • D-90471 Nürnberg • http://www.grundig.com 72010 770 0000...
