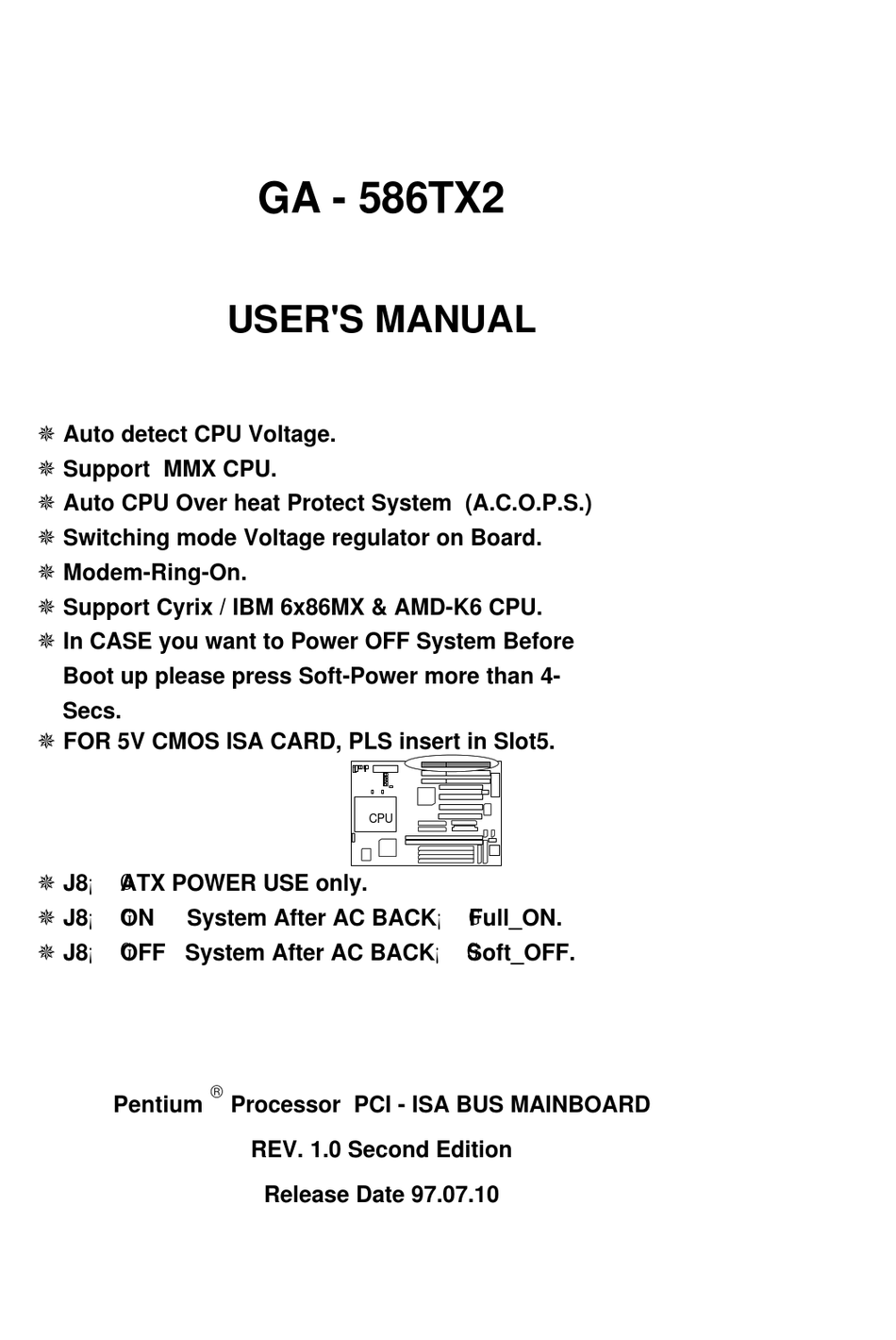

GA - 586TX2
USER'S MANUAL
¯ Auto detect CPU Voltage.
¯ Support MMX CPU.
¯ Auto CPU Over heat Protect System (A.C.O.P.S.)
¯ Switching mode Voltage regulator on Board.
¯ Modem-Ring-On.
¯ Support Cyrix / IBM 6x86MX & AMD-K6 CPU.
¯ In CASE you want to Power OFF System Before
Boot up please press Soft-Power more than 4-
Secs.
¯ FOR 5V CMOS ISA CARD, PLS insert in Slot5.
¯ J8 ¡ G A TX POWER USE only.
¯ J8 ¡ G O N
System After AC BACK ¡ G F ull_ON.
¯ J8 ¡ G O FF System After AC BACK ¡ G S oft_OFF.
Pentium
Processor PCI - ISA BUS MAINBOARD
REV. 1.0 Second Edition
Release Date 97.07.10
+
CPU
