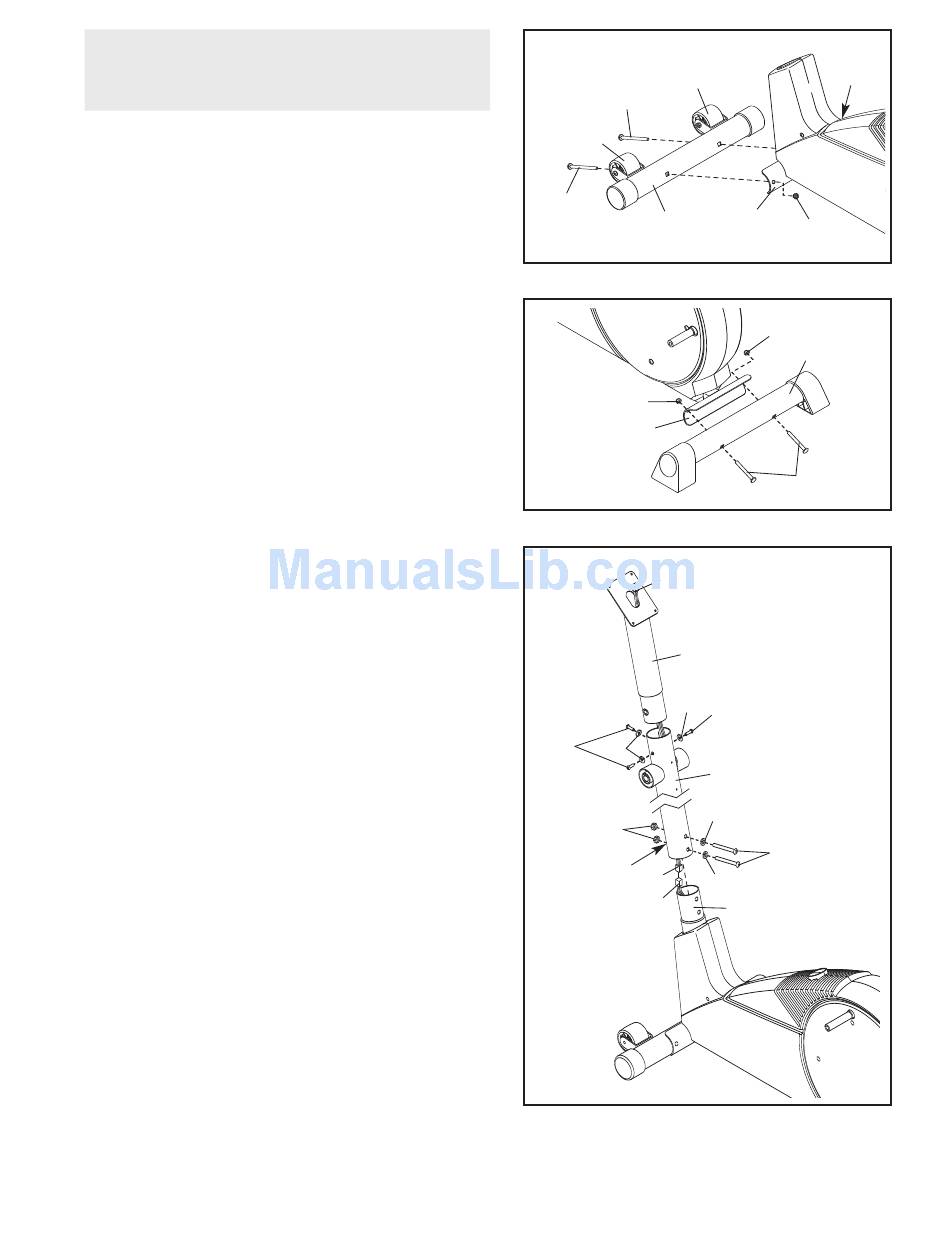

1.
To make assembly easier, read the information
on page 5 before you begin assembling the ellip-
tical exerciser.
Identify the Front Stabilizer (10), which has Wheels
(22) attached. Make sure that the Front Stabilizer is
turned so the Wheels are not touching the floor.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
3. While another person holds the Upright (2) near the
Frame (1), connect the Extension Wire Harness (44)
to the Wire Harness (79). Carefully pull the upper
end of the Extension Wire Harness to remove any
slack, and slide the Upright onto the Frame. Attach
the Upright with two M10 x 74mm Button Bolts (28),
two M10 Split Washers (59), and two M10 Nylon
Locknuts (33). Be careful avoid pinching the Wire
Harnesses.
While another person holds the Upright Extension (73)
near the Upright (2), insert the upper end of the
Extension Wire Harness (44) through the Upright
Extension (73).
Hold the upper end of the Extension Wire Harness
(44) and insert the Upright Extension (73) into the
Upright (2). Attach the Upright Extension with three
M10 x 25mm Button Screws (67) and three M10 Split
Washers (59). Be careful avoid pinching the
Extension Wire Harness. Make sure that the Nylon
Locknuts are inside the hexagonal holes.
1
34
22
34
2
33
1
3
67
59
33
Hexagonal
44
Holes
79
6
22
1
10
33
33
9
34
44
Avoid pinching the
wire harnesses
during this step.
73
59
67
2
59
28
59
1
33
