PROBLEM: The chest pulse sensor does not function properly
SOLUTION: a. If the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROU-
BLESHOOTING on page 9.

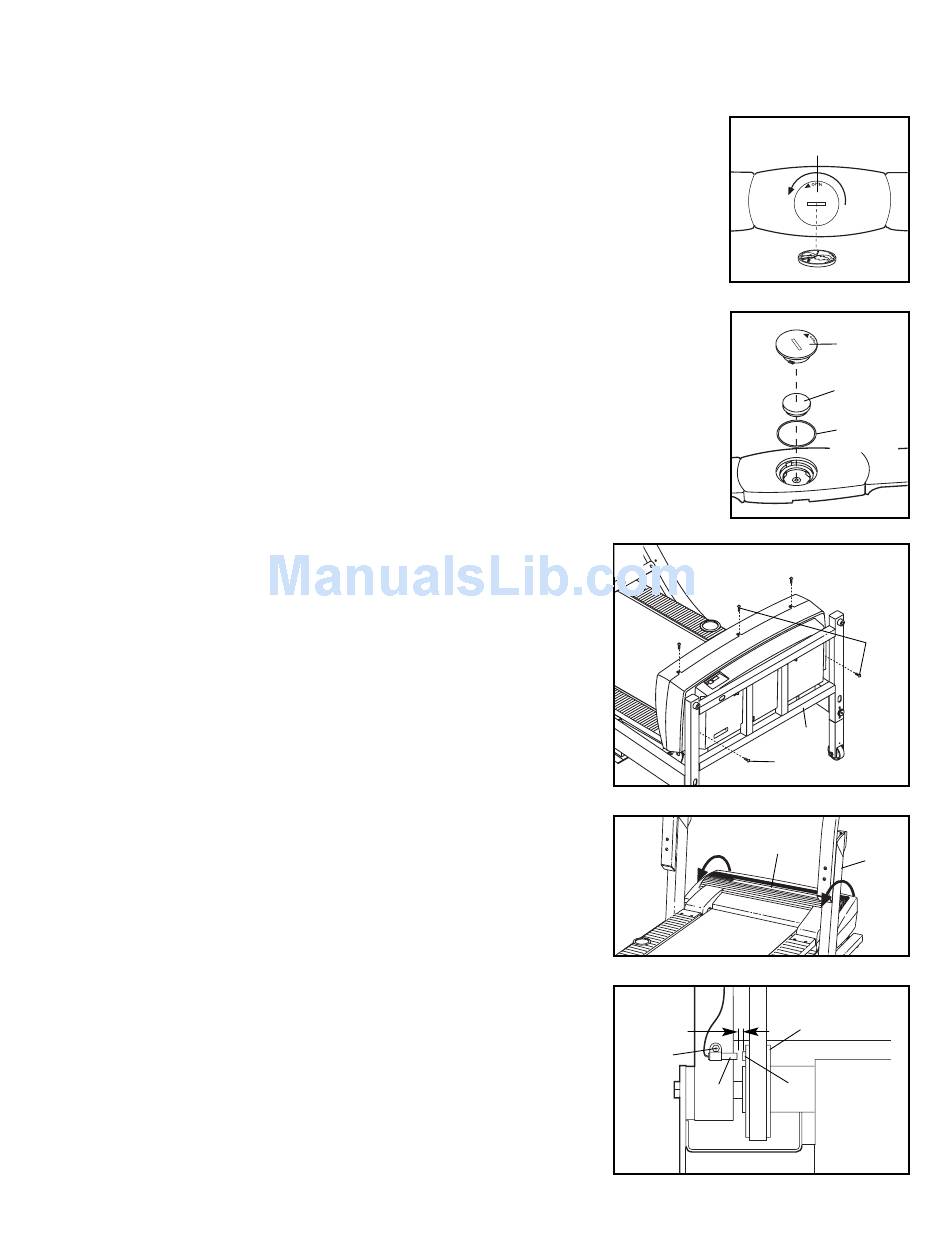

b. If the chest pulse sensor still does not function properly, the battery
should be changed. To replace the battery, locate the battery cover
on the back of the sensor unit. Insert a coin into the slot in the cover
and turn the cover counterclockwise to the "open" position. Remove
the cover.
Remove the old battery from the sensor unit. Insert a new CR 2032
battery, making sure that the writing is on top. In addition, make sure
that the rubber gasket is in place in the sensor unit. Replace the bat-
tery cover and turn it to the closed position.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Upright Base (97) down as shown.
Remove the three Hood Screws (44). Note: A phillips
screwdriver with at least a 5" shaft is required.
With the help of a second person, carefully raise the
Upright Base (97) as shown. Carefully pivot the Hood
(123) off.
Locate the Reed Switch (22) and the Magnet (19) on
the left side of the Pulley (18). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 3 mm (1/8 in.). If necessary, loosen
the Screw (23) and move the Reed Switch slightly.
Retighten the Screw. Reattach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
a
3 mm
Top
View
31
b
Battery Cover
97
44
123
18
23
19
22
Battery
Cover
Battery
Rubber
Gasket
44
97
