Summary of Contents for GMC AG125MAG

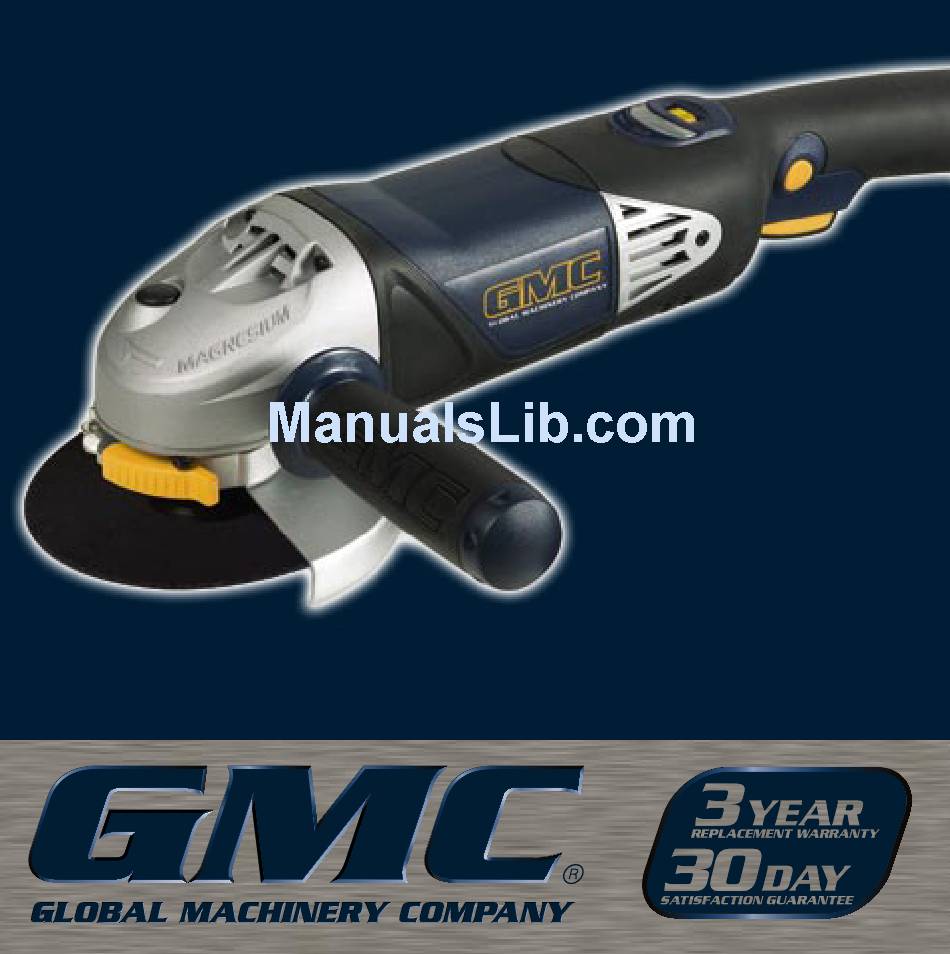

- Page 1 INSTRUCTION MANUAL 1200W 125MM (5”) ANGLE GRINDER AG125MAG INSTRUCTION MANUAL 050922 ED4 JJ...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications Safety instructions Additional safety rules for angle grinders Contents of carton Unpacking Know your product Disc assembly showing flange requirements Setting up Operation Switching on and off Led overload protection Variable speed Variable speed with soft start Replacing a disc Lubrication... -
Page 3: Introduction
Dear Customer If you require any help with your product, whether it � is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone � 1300 880 001 in Australia or 0800 445 721 in New Zealand. Introduction Your new GMC power tool will more than satisfy your expectations. -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 5: Additional Safety Rules For Angle Grinders
Never try to operate the angle grinder without the guard in place. • Do not secure the angle grinder in a vice or work bench and use it as a static grinder. It can lead to serious injury. • Never apply excessive pressure to the disc. It might shatter causing personal injury. -
Page 6: Contents Of Carton
ALWAYS WEAR EYE PROTECTION Wear goggles Wear hearing protection Wear a breathing mask Contents of carton The GMC AG125MAG Angle Grinder is supplied with the following accessories as standard: • Pin wrench • Side handle •... -
Page 7: Know Your Product
Know your product Before using the angle grinder, familiarise yourself with all the operating features and safety requirements. Use the tool and accessories only for the applications intended. All other applications are expressly ruled out. 1. On/off switch 2. Power lock-on button 3. -
Page 8: Setting Up
Take the time to find the best combination of front handle and slimline handle positions to suit the task on hand. -
Page 9: Led Overload Protection
CAUTION. power point. 1. Turn the angle grinder on to its back and press the spindle lock button (3) and rotate the spindle until it locks. 2. Insert the pins of the wrench (9) into the holes in the outer flange (10) and remove it and the old disc. -
Page 10: Lubrication
5. Place the disc onto the spindle with the label facing the angle grinder. The hole in the disc should locate onto the spindle and fit firmly into the spigot section of the inner flange. - Page 12 Carefully read the entire Instruction Manual before using this product. Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: GMC Product Type GMC Product Code A GMC Service Engineer will take your call and, in most cases, will be able to solve your problem over the phone.
