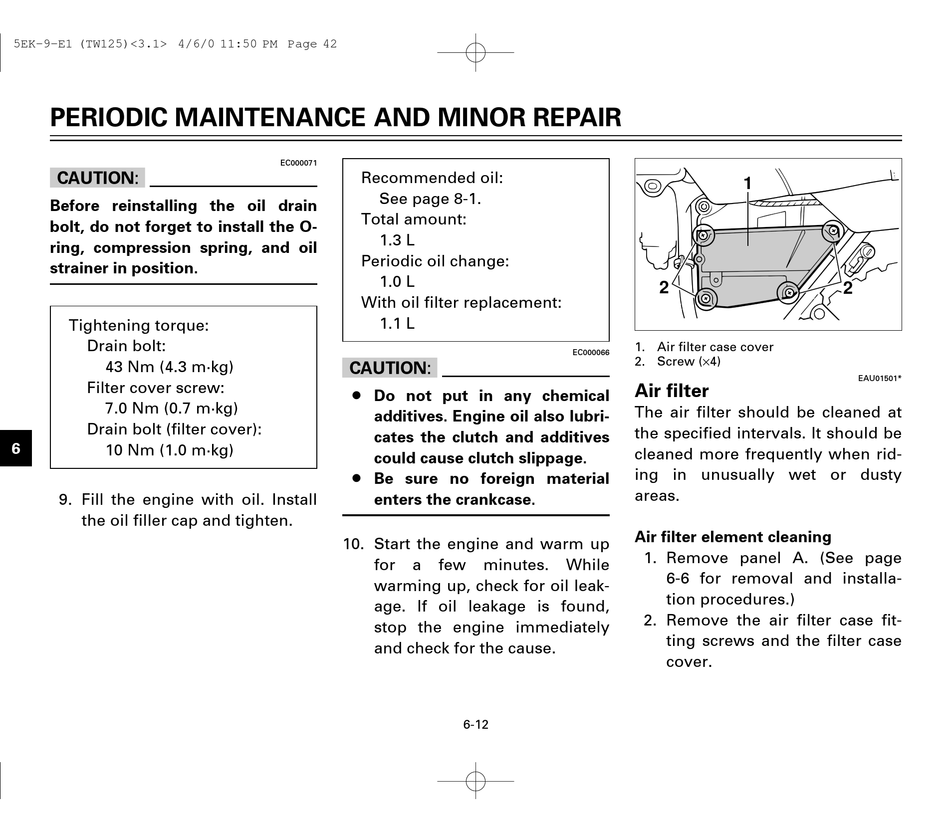

PERIODIC MAINTENANCE AND MINOR REPAIR
cC
Before reinstalling the oil drain
1
bolt, do not forget to install the O-
ring, compression spring, and oil
2 strainer in position.
3
Tightening torque:
Drain bolt:
4
43 Nm (4.3 m·kg)
Filter cover screw:
5
7.0 Nm (0.7 m·kg)
Drain bolt (filter cover):
6
10 Nm (1.0 m·kg)
7
9. Fill the engine with oil. Install
the oil filler cap and tighten.
8
9
EC000071
Recommended oil:
See page 8-1.
Total amount:
1.3 L
Periodic oil change:
1.0 L
With oil filter replacement:
1.1 L
cC
8 Do not put in any chemical
additives. Engine oil also lubri-
cates the clutch and additives
could cause clutch slippage.
8 Be sure no foreign material
enters the crankcase.
10. Start the engine and warm up
for a few
warming up, check for oil leak-
age. If oil leakage is found,
stop the engine immediately
and check for the cause.
1. Air filter case cover
EC000066
2. Screw ( 4)

Air filter

The air filter should be cleaned at
the specified intervals. It should be
cleaned more frequently when rid-
ing in unusually wet or dusty
areas.
Air filter element cleaning
minutes. While
6-12
1
2
1. Remove panel A. (See page
6-6 for removal and installa-
tion procedures.)
2. Remove the air filter case fit-
ting screws and the filter case
cover.
2
