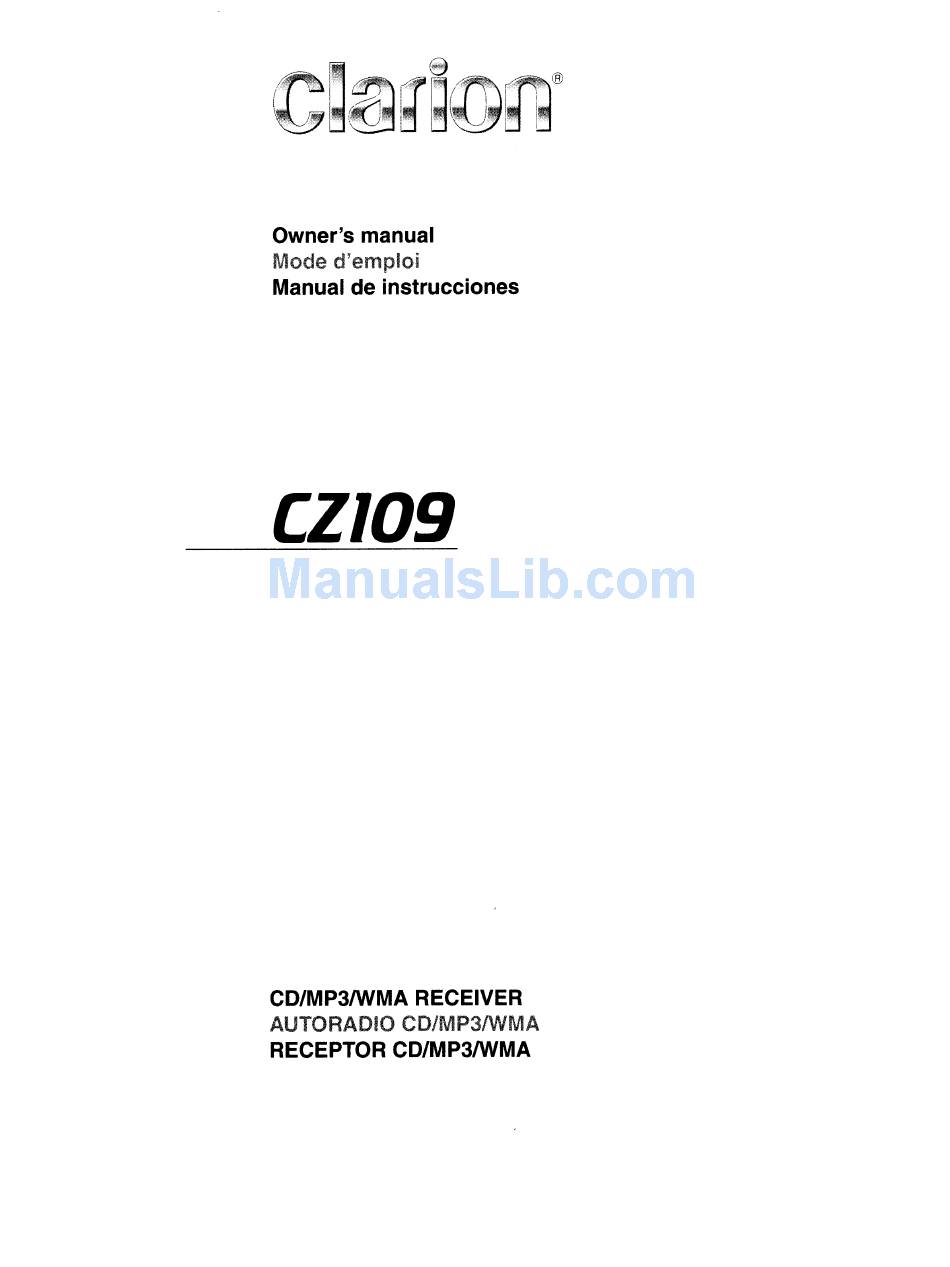

- Page 1 Owner's manual Mode d'emploi Manual de instrucciones CZI09 CD/MP3IWMA RECEIVER AUTORADIO CD/MP3IWMA RECEPTOR CD/MP3IWMA...
- Page 2 Once you're registered, we can keep you informed of important product information. Register at www.clarion.com - it's easy to keep your Clarion product up to date. INFORMATIONS DE L'ENREGISTREMENT DE PRODUITS CLARION Pour les Etas Unis et Ie Canada seulement www.clarion.com...
-
Page 3: Table Of Contents
Thank you for purchasing this Clarion product. Please fully read this owner's manual before operating this equipment. Check the contents of the enclosed warranty card and store it in a safe place with this manual. Contents 1. FEATURES 2. PRECAUTIONS 3. -
Page 4: Precautions
• Compared to ordinary music CDs, CD-R and OPERATION. THIS PRODUCTION COMPLIES WITH DHHS RULES CD-RW discs are easily affected by high SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CLARION CO.• L TO temperatures and humidity, potentially 7-2. SHINTOSHIN,CHUO-KU,SAITAMA-i¥iI.SAITAMA 330-0081.JAPAN making them unplayable. Therefore, do not to... -
Page 5: Controls
3. CONTROLS Names the Buttons and Their Main Functions [IR RECEIVER] (EJECT) -..;-...c:..,::.. [~], [~]--=-..:.:..-... [ISR]---J [ROTARY] [RELEASE] button [ROM] button • Perform random play while in CO/MP3IWMA • Press to unlock OCP. mode. [~~I~] button [RPn button • Perform preset scan while in the radio mode. •... -
Page 6: Dcp (Detachable Control Panel)
4. DCP (DETACHABLE CONTROL PANEL) Removing the DCP [SRC] 1. Press and hold the button (1 sec.) to • After removal, be careful not to drop the switch off power. DCP or subject it to strong impacts, to 2. Press the [RELEASE] button. -
Page 7: Remote Control
[RPT] "'A' ' \ .-..;.;;TV,.;.;;;.VTR----H_ _ • In MP3IWMA mode, press and hold (1 sec.) for folder repeat play. Clarion [ROM] button • Press for random play. • In MP3IWMA mode, press and hold (1 sec.) for folder random play. -
Page 8: Inserting The Battery
Inserting the Battery 6. OPERATIONS Slide remote control unit's rear cover in the direction shown. Note: ® • Refer to the diagrams in "3. CONTROLS" Insert battery (CR2025) into insertion guides (page 5) when reading this chapter. with printed side (+) up. ®... - Page 9 [ENT] 3 -4 Press the button to return to the Sound Adjustment ~/II previous mode. Sound effects and tone can be adjusted as When set to "CUSTOM": desired. [;~I~] 3-2. Press and hold the button (1 sec.). Bass/treble characteristics become flat and To change sound settings "FLAT' is show in the display.
-
Page 10: Radio Operations
Radio Operations • Adjusting the balance 2-1. Select "BALANCE". 3-1. Turn the [ROTARY] knob to adjust balance Listening to broadcasts between right and left speakers. 1. Press the [SRC] button and select radio The factory default setting is "CENTER". mode. (Adjustment range: RIGHT12 to LEFT12) •... -
Page 11: Co/Mp3Iwma Operations
Manual memory CDIMP31WMA Operations 1. Use seek tuning or manual tuning to select the desired station. MP3/WMA [DIRECT] 2. Press and hold one of the buttons This unit supports to play MP3IWMA files. (2 sec.) to store the current station in preset memory. - Page 12 • Number of files or folders Loading 1. Up to 256 files can be recognized per folder. 1. Insert a CD into the centre of the CD SLOT Up to 578 files can be played. with label facing up. "LOADING" appears in 2.
- Page 13 Selecting track • Folder repeat play Repeatedly plays all tracks of the current folder • Track advance on an MP3IWMA disc. 1. Press the button to move to the 1. Press and hold the [RPT] button (1 sec.) for beginning of the next track. folder repeat play.
-
Page 14: Operations Common To Each Mode
Operations Common • Turning the screen saver onloff This unit has a screen saver function in which Each Mode various patterns and random characters can be displayed on the operation status indication area. This function can be turned on/off. If a change settings button is pressed while the screen saver is on, the corresponding operation display is shown... - Page 15 • Cell phone interrupt setting If you connect this unit and your cell phone with an optional cable, you can listen to your calls on your car speakers. When the AUX input jack is used to connect an AUX BLUETOOTH BB (BLT370) (sold separately): The factory default setting is "OFF".
-
Page 16: Troubleshooting
7. TROUBLESHOOTING Power does not Replace with a fuse of the same amperage. If the fuse turn on. blows again, consult your dealer. (No sound) Incorrect wiring. Consult your dealer. No sound when Power antenna lead is short 1. Turn the unit off. operating the unit circuited, or excessive 2. -
Page 17: Error Displays
8. ERROR DISPLAYS If an error occurs, one of the following messages is displayed. Take the measures described below to eliminate the problem. A CD is caught inside the CD This is a failure of the CD deck mechanism. Consult your dealer. -
Page 18: Specifications
9. SPECIFICATIONS FM Tuner General Frequency Range: 87.9 MHz to 107.9 MHz Power Supply Voltage: Usable Sensitivity: 9 dBf 14.4 V DC (10.8 to 15.6 V allowable), negative ground 50dB Quieting Sensitivity: 15 dBf Current Consumption: Less than 15 A Alternate Channel Selectivity: 70 dB Speaker Impedance: 4 to 8... - Page 19 Clarion Co., Ltd. PE-31598 All Rights Reserved. Copyright © 2008: Clarion Co" Ltd. 280-8722-00 2008/10 Printed in China / irnprirne en Chine / Impreso en China...
- Page 20 • Certains modeles de voiture necessitent un kit montage special pour une • Algunos modelos de automdviles requieren juegos de montaje especiales correcte. Ie revendeur Clarion pour les details. para reaJizar la instalaci6n apropiada. Solicite los detaf/es su proveedor Consult your Clarion dealer for details. Ins/al/ation Consulter Clarion.
- Page 21 CCA-520 (2,5 m [8 pieds)l ou CCA·521 (0.6m [2 piedsj), ou CCA-519 (vendidos aparte). • Use the CeNET extension cable made by Clarion, I'adaptateur Y CCA-519 (ces cables sont vendus separement) • Utilice un cable prolongador CeNET fabricado por Clarion.
- Page 22 IDiI . . . GIllllD WIRE CONNECTIONS CONNECTIQUE CONEXION DE CABLES To external amplifier short caps • To eliminate audio drcuits, remove of unused RCA cables. CAUTION: Please make sure when connecting external power amplifier. that you property. to the car chassis. ground the amplifier. If this Is not done, severe <D damage the source unit may happen.
- Page 23 CLARION service center. rinstallation, consulter vOlre ravendeur au un service apres-vente agree proveedor a un centro de servicio autorizado por CLARION. CLARION. Use a soft, dry cloth to clean the case. Never use hard cloth, thinner. Para limpiar la caja, utilice un pano suave y seco. no use nunca un pano benzen, alcohol, etc.
- Page 24 Pour Ie Canada et les Etats-Unis seulement Ce produit Clarion vendu par marchand autorise Clarion est garanti contre tous defauts de materiel et de mise en ceuvre pour une duree de un (1) an compter de la date de vente initiale quand I'achat ET I'installation ont ete effectues chez un marchand autorise Clarion.
- Page 25 11. Should you have any difficulties with the performance of this product during the warranty period, please call Clarion or visit our web site for a listing of Authorized Warranty Service Centers in your area. You may also contact Clarion Customer Service at the address listed below for any service help you may need with Clarion products.
