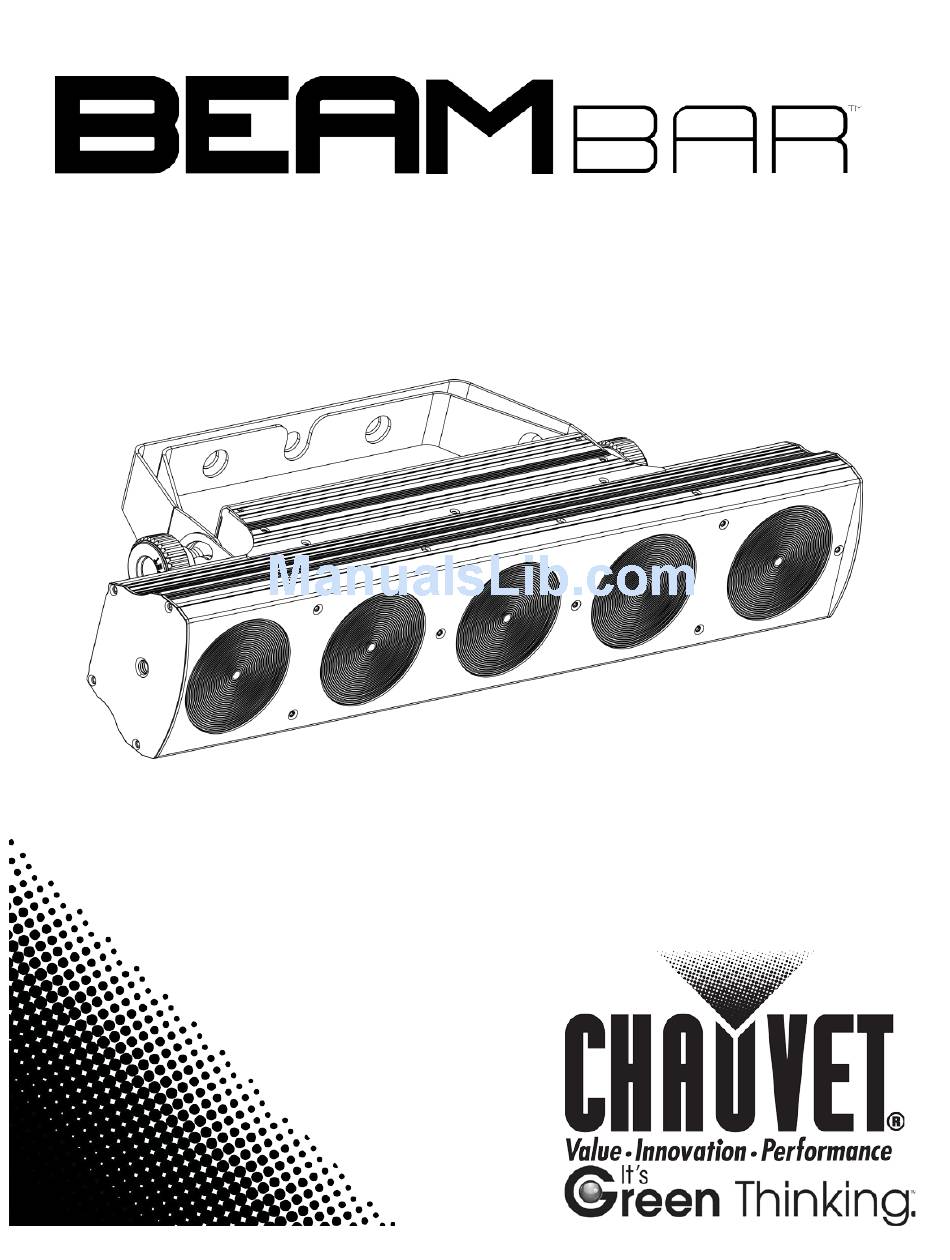

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Master/Slave Runway Effect........................14 Dimmer Speed ............................15 Display Background Light ........................15 Information............................... 15 5. Technical Information ....................16 Product Maintenance ........................16 6. Technical Specifications ....................17 Returns ............................18 Contact Us ............................18 Page 2 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 3: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1–512...

  • Page 4: Product At A Glance

    This product is not intended for permanent installation. · Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 5: Introduction

    2. I NTRODUCTION Overview Display and Fuse Holder Control Buttons Power Out DMX In Back Panel View Safety Loop Power In DMX Out Microphone BEAMbar™ User Manual (Rev. 1) Page 5 of 18...

  • Page 6: Dimensions

    Dimensions Page 6 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 7: Setup

    3. S ETUP AC Power The BEAMbar™ has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 8: Power Linking

    Product Product Additional Products You can power link up to 21 BEAMbar™ units on 120 VAC or up to 39 BEAMbar™ units on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET®...

  • Page 9: Mounting

    Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The BEAMbar™ may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.

  • Page 10: Operation

    LCD background light off after 20 seconds LCD background light off after 10 seconds LCD background light always on test Runs a self-test InFo Shows currently installed software version FhrS Fixture running time in hours Page 10 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 11: Configuration (Dmx)

    DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The BEAMbar™ uses up to 5 DMX channels in its 5-channel DMX mode, which defines the highest configurable address to 508.

  • Page 12: Dmx Channel Modes, Assignments, And Values

    171 ó 190 Chase 9 191 ó 210 Chase 10 211 ó 230 Chase 11 231 ó 250 Chase 12 251 ó 255 Sound-Active mode 000 ó 255 Speed, slow to fast Speed Page 12 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 13: Configuration (Standalone)

    Use <UP> or <DOWN> to select the desired automatic program. Press <ENTER> and S 0–S100 (slow to fast) shows on the display. Use <UP> or <DOWN> to select the desired automatic program speed. Press <ENTER>. BEAMbar™ User Manual (Rev. 1) Page 13 of 18...

  • Page 14: Master/Slave Mode

    Master/Slave The Master/Slave mode allows a single BEAMbar™ unit (the “master”) to control the actions of one or more BEAMbar™ units (the “slaves”) without the need of a DMX Mode controller. The master unit will be set to operate in either Automatic or Sound-Active mode, while the slave units will be set to operate in Slave mode 1.

  • Page 15: Dimmer Speed

    10S (off after 10 seconds), or on (remains on). Press <ENTER>. Information With the BEAMbar™ you can access information on the product’s use. To access this information, do the following: Press <MENU> repeatedly until InFo shows on the display.

  • Page 16: Technical Information

    · Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint. Always dry the external optics and glass/transparent surfaces carefully after cleaning them. Page 16 of 18 BEAMbar™ User Manual (Rev. 1)

  • Page 17: Technical Specifications

    Maximum External Temp. Cooling System 104° F (40° C) Convection I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 4, 5 Ordering Product Name Item Code UPC Number BEAMbar™ 03050654 781462210021 BEAMbar™ User Manual (Rev. 1) Page 17 of 18...

  • Page 18: Returns

    You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
