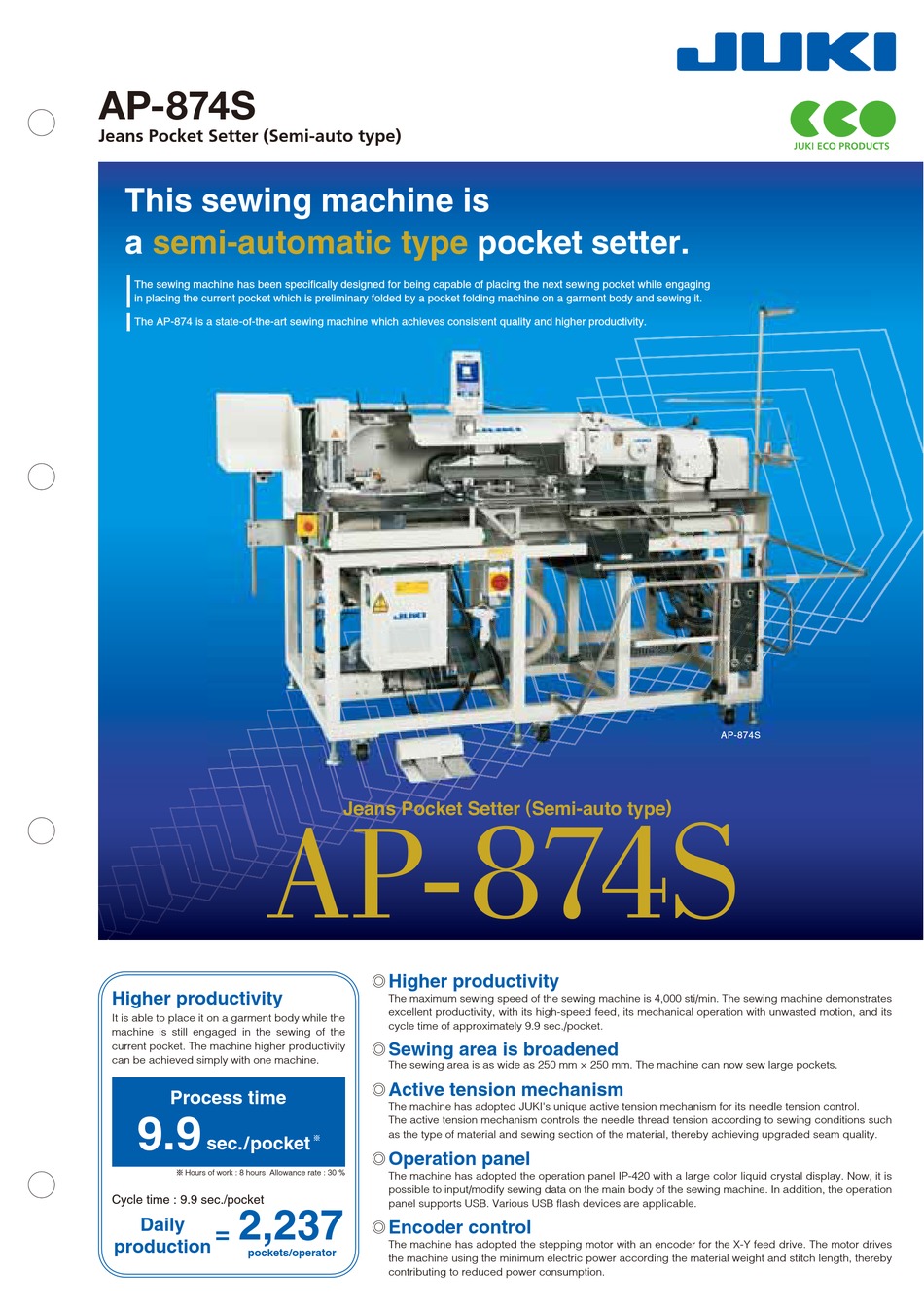

JUKI AP-874S Specifications

AP-874S
Jeans Pocket Setter (Semi-auto type)
This sewing machine is
a semi-automatic type
The sewing machine has been specifically designed for being capable of placing the next sewing pocket while engaging
in placing the current pocket which is preliminary folded by a pocket folding machine on a garment body and sewing it.
The AP-874 is a state-of-the-art sewing machine which achieves consistent quality and higher productivity.
AP
Higher productivity
It is able to place it on a garment body while the
machine is still engaged in the sewing of the
current pocket. The machine higher productivity
can be achieved simply with one machine.
Process time
9.9
sec./pocket
Hours of work : 8 hours Allowance rate : 30 %
Cycle time : 9.9 sec./pocket
2,237
Daily
=
production
pockets/operator
pocket setter.
Jeans Pocket Setter ( Semi-auto type )
-874S
Higher productivity
The maximum sewing speed of the sewing machine is 4,000 sti/min. The sewing machine demonstrates
excellent productivity, with its high-speed feed, its mechanical operation with unwasted motion, and its
cycle time of approximately 9.9 sec./pocket.
Sewing area is broadened
The sewing area is as wide as 250 mm × 250 mm. The machine can now sew large pockets.
Active tension mechanism
The machine has adopted JUKI's unique active tension mechanism for its needle tension control.
The active tension mechanism controls the needle thread tension according to sewing conditions such
as the type of material and sewing section of the material, thereby achieving upgraded seam quality.

Operation panel

The machine has adopted the operation panel IP-420 with a large color liquid crystal display. Now, it is
possible to input/modify sewing data on the main body of the sewing machine. In addition, the operation
panel supports USB. Various USB flash devices are applicable.
Encoder control
The machine has adopted the stepping motor with an encoder for the X-Y feed drive. The motor drives
the machine using the minimum electric power according the material weight and stitch length, thereby
contributing to reduced power consumption.
AP-874S
