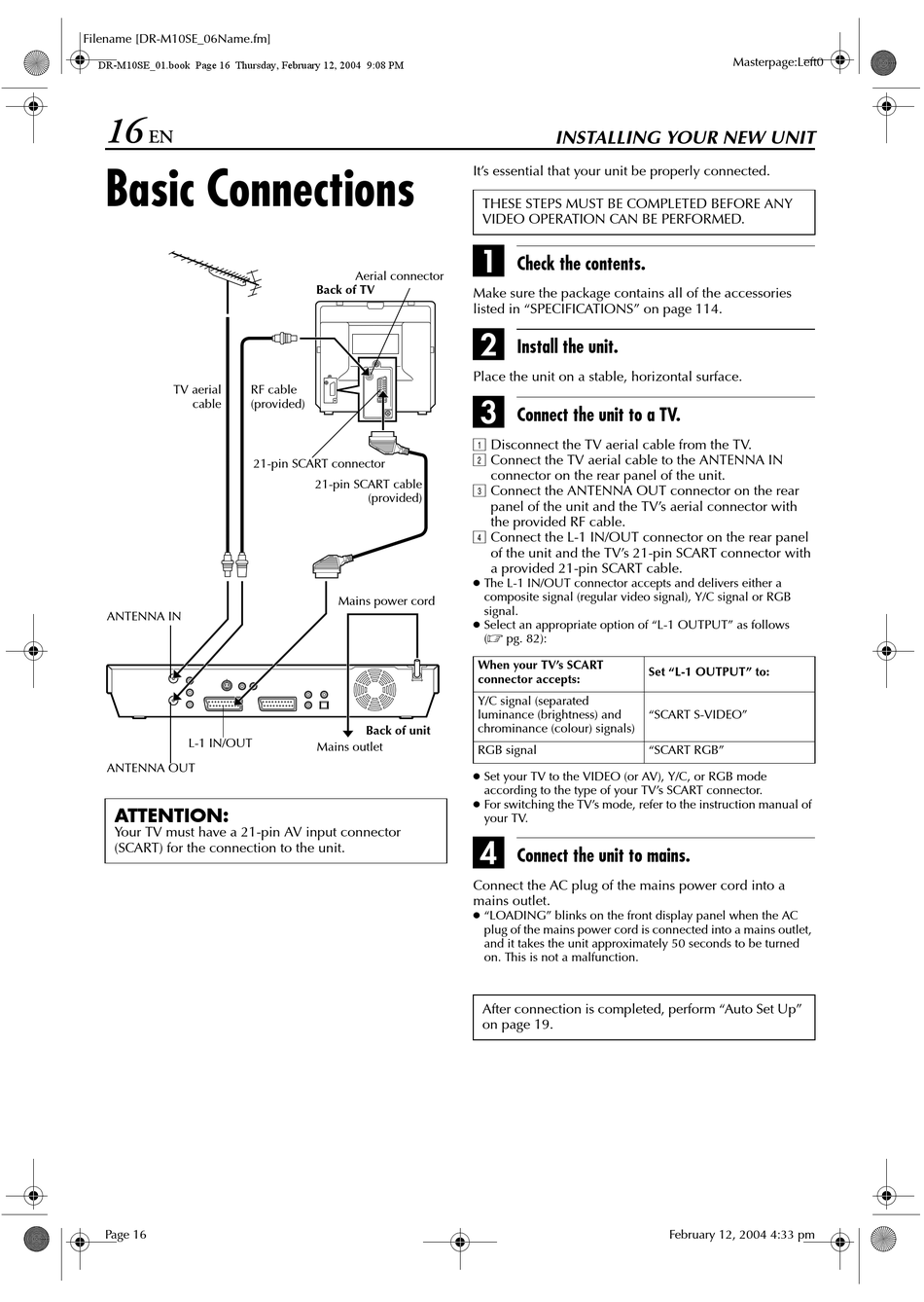

Basic Connections

TV aerial RF cable
cable (provided)
21-pin SCART connector
ANTENNA IN
L-1 IN/OUT
ANTENNA OUT
ATTENTION:
Your TV must have a 21-pin AV input connector
(SCART) for the connection to the unit.
Page 16
It's essential that your unit be properly connected.
THESE STEPS MUST BE COMPLETED BEFORE ANY
VIDEO OPERATION CAN BE PERFORMED.
A
Aerial connector
Back of TV
Make sure the package contains all of the accessories
listed in "SPECIFICATIONS" on page 114.
B
Place the unit on a stable, horizontal surface.
C
A Disconnect the TV aerial cable from the TV.
B Connect the TV aerial cable to the ANTENNA IN
21-pin SCART cable
C Connect the ANTENNA OUT connector on the rear
(provided)
D Connect the L-1 IN/OUT connector on the rear panel
The L-1 IN/OUT connector accepts and delivers either a
composite signal (regular video signal), Y/C signal or RGB
Mains power cord
signal.
Select an appropriate option of "L-1 OUTPUT" as follows
(
When your TV's SCART
connector accepts:
Y/C signal (separated
luminance (brightness) and
chrominance (colour) signals)
Back of unit
Mains outlet
RGB signal
Set your TV to the VIDEO (or AV), Y/C, or RGB mode
according to the type of your TV's SCART connector.
For switching the TV's mode, refer to the instruction manual of
your TV.
D
Connect the AC plug of the mains power cord into a
mains outlet.
"LOADING" blinks on the front display panel when the AC
plug of the mains power cord is connected into a mains outlet,
and it takes the unit approximately 50 seconds to be turned
on. This is not a malfunction.
After connection is completed, perform "Auto Set Up"
on page 19.

INSTALLING YOUR NEW UNIT

Check the contents.
Install the unit.
Connect the unit to a TV.
connector on the rear panel of the unit.
panel of the unit and the TV's aerial connector with
the provided RF cable.
of the unit and the TV's 21-pin SCART connector with
a provided 21-pin SCART cable.
pg. 82):
Set "L-1 OUTPUT" to:
"SCART S-VIDEO"
"SCART RGB"
Connect the unit to mains.
