Table of Contents

Advertisement

Quick Links

Magellan

Product Reference Guide

®
8100/8100
8200/8200

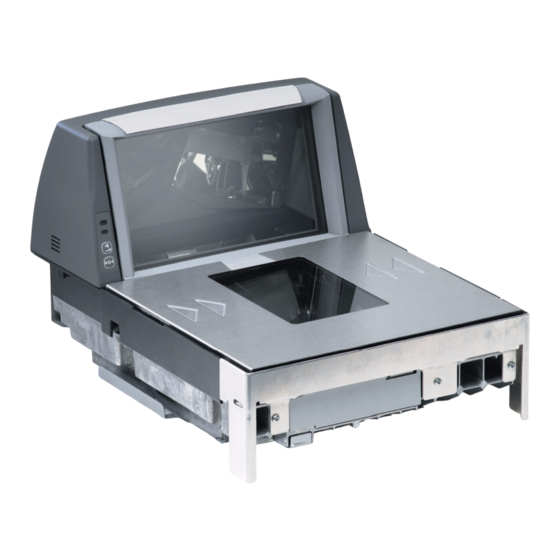

Model 8204 shown
Ω
Ω

Advertisement

Table of Contents
loading

Related Manuals for Datalogic MAGELLAN 8200

Summary of Contents for Datalogic MAGELLAN 8200

  • Page 1: Product Reference Guide

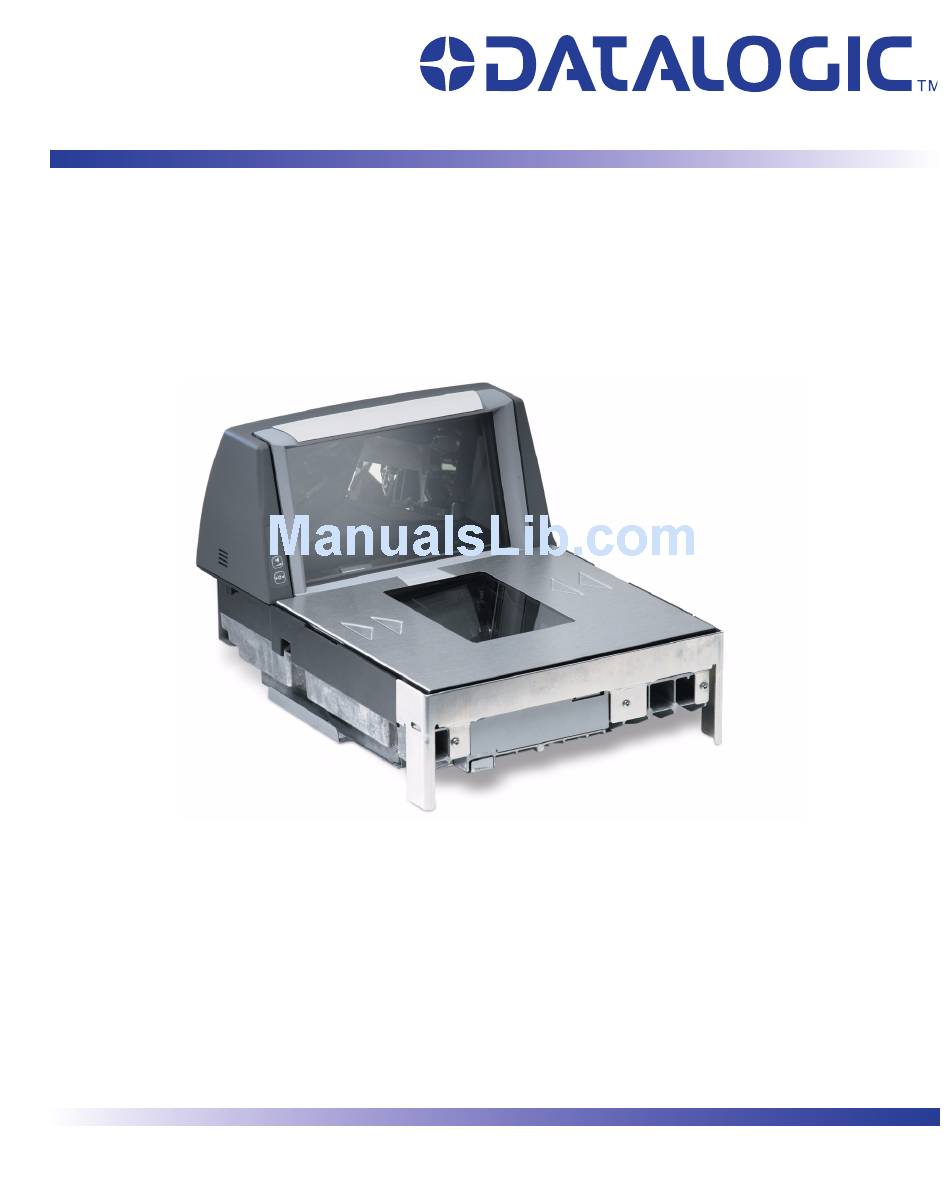

    Ω ® Magellan 8100/8100 Ω 8200/8200 Model 8204 shown Product Reference Guide...
  • Page 2 Datalogic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Dat- alogic"...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Manual Overview ........................1-2 How to Use This Manual ................... 1-3 Manual Conventions ................... 1-3 Scanner and Scanning-Scale Nomenclature ................1-4 Connectors ........................ 1-5 Physical Parameters ....................... 1-6 Scanning ........................1-6 Weighing ........................1-6 Rated Weight Capacity ..................1-6 Minimum Increment ....................
  • Page 4 Checkstand Mounting ....................2-17 Installation Overview ......................2-17 Unpacking ........................2-17 Operational Verification ....................2-19 Diagnostic Modes .....................2-21 Scanner Diagnostic Mode .................2-21 Scale Diagnostic Mode ..................2-22 Cables & Connections ....................2-22 Remote Scale Display Placement/Installation ...............2-24 Lighting Considerations ....................2-24 Viewing Angle ......................2-25 Placing and Installing the Remote Scale Display .............2-26 (Short Pedestal Base ONLY) ................2-26 Changing Weighing Modes ..................2-29 Set-Up &...
  • Page 5 Operational Maintenance ...................... 3-10 Vertical Scan Window Replacement ............... 3-11 Horizontal Scan Window Replacement (WRG) ............3-13 Power-Up Selftest ....................4-1 Operational Tests ....................4-1 Diagnostic Tests ....................4-2 Diagnostic Procedures ......................4-2 Error Codes ..........................4-3 Scale Error Reporting ......................4-6 Flowcharts ..........................
  • Page 6 Programming Session ....................6-5 Programming Sequence ..................6-7 LED and Beeper Indicators .....................6-9 If You Make a Mistake......................6-9 Return to Factory Settings ..................6-9 Test Mode ........................6-10 General Scanner and Scale Features ...................6-11 Double Read Timeout ....................6-11 Laser Timeout ......................6-13 Motor Timeout ......................6-15 Green LED Idle State ....................6-18 Scanner Button Options ...................6-19 Power-up Beep Control ....................6-21...
  • Page 7 Number of Host Transmission Buffers ..............6-56 Global Prefix ......................6-57 Global Suffix ......................6-59 IBM Features ........................6-61 IBM Interface Options ....................6-61 IBM Scale Address ....................6-62 IBM Transmit Labels in Code 39 Format ..............6-64 IBM USB Interface Options ..................6-65 IBM USB Scanner Device Type ................
  • Page 8 Single Cable RS-232 Use STX ................6-106 Set Single Cable RS-232 STX Character ..............6-107 Single Cable RS-232 Use ETX ................6-108 Set Single Cable RS-232 ETX Character ..............6-109 Single Cable RS-232 Datalogic Extensions ............6-110 Symbology Programming ....................6-111 UPC-A Enable ........................6-111 UPC-A Number System Character Transmission ..........6-112 UPC-A Check Character Transmission ..............6-113...
  • Page 9 Expand EAN-8 to EAN-13 ..................6-141 EAN 8 Label ID ...................... 6-142 EAN-8 2-Digit Supplemental Label ID ..............6-143 EAN-8 5-Digit Supplemental Label ID ..............6-144 EAN-8 128 Supplemental Label ID ................ 6-145 EAN-8 Decoding Levels ..................6-146 Other UPC/EAN Options ....................6-149 UPC/EAN Reconstruction ..................
  • Page 10 Code 39 Full ASCII ....................6-185 Code 39 AIM ID ......................6-186 Code 39 Label ID ....................6-187 Code 39 Length Control ..................6-188 Code 39 Maximum Label Length ................6-189 Code 39 Minimum Label Length ................6-190 Code 39 Fixed Length 1 ..................6-191 Code 39 Fixed Length 2 ..................6-192 Code 39 Stitching ....................6-193 Pharmacode 39 Enable .......................6-194 Pharmacode 39 Start Stop Character Transmission ..........6-195...
  • Page 11 I 2 of 5 Stitching ..................... 6-222 Codabar Enable ........................6-223 Codabar Start Stop Character Transmission ............6-224 Codabar Start Stop Character Set ................. 6-225 Codabar Start Stop Character Match ..............6-227 Codabar Check Character Calculation ..............6-228 Codabar Check Character Transmission .............. 6-229 Codabar AIM ID .....................
  • Page 12 Standard 2 of 5 Fixed Length 1 ................6-267 Standard 2 of 5 Fixed Length 2 ................6-268 Standard 2 of 5 Stitching ..................6-269 Handheld Data Format Requirements General ............F-1 Datalogic Handheld Data Format Requirements ............F-2 RSS-14 ........................F-2 RSS Expanded ....................F-2 UPC-A .........................F-2 UPC-A with 2-Digit Supplemental ................F-2...
  • Page 13 PDF417 ....................... F-9 AIM Formats ......................F-10 UPC-A ....................... F-10 UPC-E ....................... F-10 EAN-13 ......................F-10 EAN-8 ....................... F-10 2-Digit Supplemental ..................F-11 5-Digit Supplemental ..................F-11 Code 128 Supplemental ................... F-12 Bookland ......................F-12 Code 39 ......................F-12 Codabar ......................F-13 MSI/Plessey ......................
  • Page 14 NOTES ® Ω Ω Magellan 8100/8100 and 8200 8200 Scanner...
  • Page 15 Section 1 Introduction This Product Reference Guide contains comprehensive instructions on how to install the scanner or scanning-scale (either model may be termed “scanner” for the purpose of simplicity in this manual), how to program it using special programming feature bar code labels, and advanced user information as described in the following overview.

  • Page 16: Manual Overview

    Manual Overview Section 1, Introduction, presents the manual’s contents, describes features and specifications, provides regulatory and safety information, and lists the bar code symbologies the scanner will read. Section 2, Site Preparation and Installation, supplies physical dimensions for the scanner or scanning-scale and its most common accessories, and details counter preparation and installation.

  • Page 17: How To Use This Manual

    How to Use This Manual You’ll find it helpful to familiarize yourself with the first section of this manual, since it provides both a general description of the product’s fea- tures and an overview of the manual’s contents and organization. Refer- ence the other sections as required for information about scanner or scanning-scale installation, operation, maintenance, calibration and bar code programming.

  • Page 18: Scanner And Scanning-Scale Nomenclature

    Scanner and Scanning-Scale Nomenclature Controls, indicators and other nomenclature are shown in Figure 1-1. Figure 1-1. Scanning-Scale Nomenclature Weighing Surface — Lean Volume/Tone Push Button Oversize Produce Here Yellow LED Green LED Scale Zero Bonnet Push Button Horizontal Vertical Window Window All Weighs™...

  • Page 19: Connectors

    Connectors The appearance of the connector panel will vary depending upon the fac- tory options purchased with your model. Reference Figure 1-2. Figure 1-2. Connector Panel 0.00 Aux. Port Remote Display Power Scale Host POS Terminal EAS Interlock AUXILIARY PORT REMOTE DISPLAY POWER SCALE...

  • Page 20: Physical Parameters

    Physical Parameters This section provides specifications for performance, environmental and electrical parameters. Reference the second section of this manual, Site Preparation and Installation, for physical measurements of all models and some accessories. Scanning The scanner has a scan zone between the two windows where the scanner projects laser light in order to scan items.

  • Page 21: Automatic Zero Maintenance

    Automatic Zero Maintenance The scale’s software constantly monitors and adjusts the Zero point as long as the deviation is within acceptable limits , while compensating for any debris accumulation or removal. During power-up, the scale automat- ically re-zeros after verifying that all subsystems are functional. Addition- ally, the scale may be manually “zeroed”...
  • Page 22 0-200 Foot-candles Humidity Hot / Wet 40°C / 95% RH Spill Proof Hot / Dry 40°C / 5% RH (Datalogic MS-0006-13-0004) Cold / Dry 10°C / 5% RH Warm / Wet 25%C / 50% RH Storage +70 C +158 F...

  • Page 23: Electrical Specifications

    Electrical Specifications Before installation, always verify that the site’s electrical service meets the scanning-scale’s requirements. The scanner has been engineered for com- patibility with most international electrical systems operating in ranges from 100 to 240VAC at 50-60 Hz. Verify that the power source will sup- ply “clean”...

  • Page 24: Laser And Product Safety

    Laser and Product Safety Laser safety requirements are based on IEC Standard Publication 60825-1 (2001) and CDRH 21CFR, Chapter 1, Subchapter J and (CDRH) Laser Product Performance Standard, User information [1040.10(h)1]: • User Maintenance. No user maintenance of the system other than cleaning of the scan windows is required.
  • Page 25 Safety precautions to be taken: No adjustments or alteration of the scanner or scanning-scale housing are to be attempted by the user. The failure of the facet wheel motor while the unit is continuing to emit a laser beam causes the emission levels to exceed those for inherently safe operation. The unit has safeguards to prevent this occurrence.

  • Page 26: Labeling

    THIS LASER PRODUCT COMPLIES WITH 21CFR 1040 AS APPLICABLE AS A CLASS IIA PRODUCT 6-0945 PRODUCT SERVICE NRTL Use ONLY Datalogic AC/DC Power Supply ACN 073200496 Product of USA Output: Input: 50 - 60 Hz (0.5 - 0.25A) COVERED BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 4,709,369 4,749,879 4,792,666 4,798,943 4,799,164 4,861,972 4,861,973 +5V at 2.0A...
  • Page 27 Reg. 4, Reg. 4A Mexico NOM-019-SCFI-1994 New York New York Certificate Europe EN45501 10IML R76 NWML Contact Datalogic Marketing at (541) 683-5700, or your Datalogic repre- sentative for a complete listing of approvals for other countries. 1-13 Product Reference Guide...

  • Page 28: Bar Codes Supported

    Bar Codes Supported The scanner can read/decode the following bar code types (symbologies): • UPC Versions A & E • UPC Supplementals and Add-ons (2 & 5 digit supplimentals, Coupon code and Code 128) • Plural Stage Dual UPC Bar Codes for Japan ( 2 label read) •...
  • Page 29 Section 2 Site Preparation and Installation This section provides a reference for preparing most checkstands to receive the scanner or scanning-scale. Included are physical parameters and instructions for checkstand preparation, power and ventilation consider- ations, cable routing information and unit installation. Site Preparation lists all procedures necessary to prepare the checkstand.

  • Page 30: Pre-Installation Considerations

    Figure 2-1. The 810x/820x Scanner and Scanner/Scale Family Model 8100/8200 Model 8101/8201 Model 8102/8202 Model 8103/8203 Model 8104/8204 Pre-Installation Considerations It should be noted that the scope of this manual does not encompass all factors related to worker safety and checkstand design. It does, however, offer a list of considerations that may be helpful in ensuring greater safety and productivity.

  • Page 31: Checkstand Design

    Checkstand Design 1. Select a design which allows load-sharing by several muscle groups (for example designs which allow the cashier to use both hands for scanning and bagging). 2. Select checkstands which deliver products to the cashier on an input belt and do not require the unloading of items from a cart. These designs put less stress on the cashiers’...

  • Page 32: Scanner Installation

    Scanner Installation 1. Mount the horizontal surface of the scanner flush with the coun- tertop to encourage slide scanning rather than lifting. 2. Position the centerline of the scanner read area 8 - 10 inches (20.3 - 25.4 cm) from the edge of the checkstand (cashier side). Scanner Maintenance 1.

  • Page 33: Site Preparation Overview

    Since the scanner reads labels on all four sides plus the bot- tom, there is no need to turn a bar code toward either of the scanner windows. Develop efficient scanning motions, not necessarily faster hand movements. Simply slide the item across the scanner’s horizontal window with as little orientation motion as neces- sary.
  • Page 34 Counter Preparation. Since the majority of grocery checkout lanes are designed as “left-hand take away,” the counter drawings in this section focus on this counter design. Simply reverse the layout for a “right-hand take away” requirement. The unit scans equally well in either of these two configurations.

  • Page 35: Ventilation And Spacing

    Figure 2-2. Vertical Clearance DO NOT DO NOT Obstruct Obstruct L-Platter Scan Zone Removal (Keyboard Mount) Allow a minimum clearance of 1.5" (3.8cm) (Enclosure) Ventilation and Spacing The scanning-scale’s perimeter housing has been designed to provide ade- quate space for convective cooling and unrestricted movement of the weighing apparatus.

  • Page 36: Service Access

    If motors, conveyor belts, or other heat producing equipment are located near the scanner, forced air ventilation may be required. In most installa- tions, a 30 cfm (.84 cmm) axial fan should provide sufficient air move- ment. If a ventilation fan is installed, one with a removable filter that may be washed or replaced is recommended.

  • Page 37: Power Installation

    Power Installation Reference the wiring diagram in Figure 2-4 for the recommended fusing arrangement. Grounding The AC/DC Power Supply should have an AC outlet with a clean earth ground. If you are not sure how to verify the amount of electrical noise (interference) on the power line, ask a qualified electrician to measure the input line voltage.

  • Page 38: Checkstand Preparation

    Checkstand Preparation Reference Figure 2-5. When performing a first time installation into a new checkstand, verify before cutting that room will be allowed for cabling and the AC/DC Power Supply. When making the opening, take extra care to accurately cut to the correct dimensions. Mounting may require installation of support(s), countertop routing, or other such devices.

  • Page 39: Counter Cutout

    Counter Cutout The most important consideration when planning the counter opening for the scanner is the operator’s comfortable reaching distance. The ideal, ergonomically sound installation allows items to be directed within easy reach, and a scanning area requiring no lifting or special orientation of items.
  • Page 40 Cables should be easy to remove in the event that replace- ment is required. A little planning now will save a lot of frus- tration later. 4. Connect and verify all system operations. The scanner should be installed so that leading and trailing edges of the All Weighs™...
  • Page 41 Figure 2-6. Typical Checkstand Design & Cutout Location Remote Display Conveyor POS Terminal & Printer Optional Item Diverter Deadplate 6.3" (16.0cm) Scanner Keyboard Cash Drawer (Below Scanner) Scan & Bag Well (Optional) Check Writing Flush — Correct Stand Take-Away (Optional) Belt Bagging Above Flush —...
  • Page 42 Refer to the appropriate drawing (Figure 2-7, Figure 2-8, or Figure 2-9) for dimensional information concerning the model you’ll be installing. Figure 2-7. Model 8100/8200 (Short Scanner) Cutout Dimensions 5.3" Window Models 8100/8200 (13.46cm) Dimensions 4.375" (11.11cm) 5.1" (12.95cm) 9.1" (23.1cm) 4.125"...
  • Page 43 Figure 2-8. Model 8101, 8201, 8102 and 8202 (Medium Scanner or Scanner/Scale) Cutout Dimensions Models 8101/8201 Window & Models 8102/8202 5.1" 6.2" Dimensions (12.95cm) (15.75cm) 9.1" (23.1cm) 4.125" ± .062 (10.5cm) 15.7" (39.88cm) 13.2 lb. 18.0 lb. 11.5" (6.00kg) (8.16kg) 11.1"...
  • Page 44 Figure 2-9. Models 8103, 8203, 8104 and 8204 Long Scanner or Scanner/ Scale Cutout Dimensions 1.16" (2.95cm) 5.3" Models 8103/8203 0.375" (0.953cm) (13.46cm) Window & Models 8104/8204 9.35" Dimensions 5.1" (23.75cm) (12.95cm) 9.1" 0.375" (0.953cm) (23.1cm) 4.125" ± .062 (10.5cm) 1.0"...

  • Page 45: Checkstand Mounting

    Checkstand Mounting There are a number of things to take into account when installing the unit into a checkstand. Key factors are ergonomic/worker safety, loading capac- ity and stability. Consider the scanner or scanning-scale’s weight when cal- culating the robustness of construction needed to support it as well as maximum capacity of weighed and scanned items.
  • Page 46 • Lift out the accessory box containing the AC/DC Power Supply, optional Remote Scale Display and cable (if present), and the Quick Reference Guide. • Remove the Quick Reference Guide and familiarize yourself with the unit’s controls and features. Leave the guide at the checkstand when the installation is complete.

  • Page 47: Operational Verification

    Operational Verification Follow these steps to ensure that your unit has arrived undamaged and is fully functional before installing it in the counter and connecting it to your POS system. 1. If the unit is a scanning-scale, connect the Remote Scale Display to the proper connector on the unit’s connector panel (refer to Figure 2-17).
  • Page 48 4. Verify that the scanner or scanning-scale passes an operational test by observing the following: Scanner. Pass UPC/EAN bar code labels in front of the scanner’s win- dows. Since the interface cable is not yet connected to the POS terminal, the scanner may be limited to reading only one or two labels (see the note that follows).

  • Page 49: Diagnostic Modes

    Diagnostic Modes Two diagnostic modes are available which allow you to initiate scanner or scale diagnostic tests, as well as verify the scanner’s ability to read bar codes. Scanner Diagnostic Mode While in Scanner Diagnostic Mode, continuous scanning of labels is allowed, permitting the user to scan an unlimited number of bar codes while troubleshooting problems.

  • Page 50: Scale Diagnostic Mode

    Scale Diagnostic Mode To enter Scale Diagnostic Mode, press the Scale Zero Push Button for approximately four seconds. Six rapid tones will be sounded, indicating the unit is leaving normal operation and entering Scale Diagnostic Mode. The Remote Display will flash a ‘1’ across the display while the dignostic routine is being run.
  • Page 51 Do not plug the AC power cord into the outlet at this time. It is a good practice to always connect the power cable to the scanner first before plug- ging it into the AC receptacle. The procedures titled, Set-Up, provided later in this section will instruct you to connect the power cord at that time.

  • Page 52: Remote Scale Display Placement/Installation

    Figure 2-12 provides physical dimensions for the AC/DC Adapter (part number 8-0582). Figure 2-12. Maximum Physical Measurements: AC/DC Adapter 2.3" (5.8 cm) Remote Scale Display Placement/Installation When installing the optional Remote Scale Display, consider both the cus- tomer’s viewing angle and the amount of daily ambient light conditions anticipated at this installation site.

  • Page 53: Viewing Angle

    Viewing Angle The optimum viewing angle is directly facing the customer. To ensure that the display is easily readable for the majority of your customers, the dis- play should be approximately 48 to 60” (122 to 152 cm) from the floor. Check with local Weights and Measures authorities regarding proper posi- tioning of scale displays used in retail trade.

  • Page 54: Placing And Installing The Remote Scale Display

    The connector at the Remote Scale Display end is secured with a rubber band during shipping to prevent damage to the “locking tabs” (see Figure 2-15). After routing the cable, remove this rubber band before the cable end connecting to the Remote Scale Display head. Failure to remove the band will keep the connector from latching properly when it is connected NOTE to Remote Scale Display port.
  • Page 55 Figure 2-14. Physical Measurements: Remote Display (Short Base) 5.6" 14.2 cm 2.75" 0.00 7.0 cm CAPACITY / CAPACITE - 30 X .01 lb / 15 x .005 kg Minimum 5.3" (13.5 cm) Maximum 11.5" (29.2 cm) 3.375" 0.953 cm 4.5" 31.6 cm 6.
  • Page 56 Figure 2-15. Remote Scale Display Components. Mounting Display Head Example Cable end Display Stalk after rubberband is removed. Cable Connector Display Base (optional Interface cable Cable routing) Figure 2-16. Remote Scale Short Base Display Mounting Template 4 1/2" (11.4 cm) 3 3/8"...

  • Page 57: Changing Weighing Modes

    Changing Weighing Modes Your scanning-scale has been programmed for weighing in either pounds or kilograms depending upon the initial operating environment that was specified when you ordered your scanning-scale. If you need to change from pounds to kilograms or vice-versa, call technical support. You can verify that the scale is set correctly for your country’s requirements by observing that the Remote Scale Display shows the appropriate mea- surement symbol (lb or kg) when the power-up Selftest is completed.
  • Page 58 4. OPTIONAL — Route your EAS antenna cable down through the checkstand cutout. (Reference your EAS controller’s set-up instructions for proper EAS antenna installation.) Figure 2-17. Connecting Cables to the Scanner/Scale 0.00 Aux. Port Remote Display Power Scale Host POS Terminal EAS Interlock AUXILIARY PORT REMOTE DISPLAY...

  • Page 59: Installation

    Installation 1. Make sure that all cables are firmly attached (except that the AC/ DC power supply should not be connected to the AC outlet yet). 2. Remove the All-Weighs™ platter to gain access to the lift han- dles. Simply grasp the top edge of the platter, tilt slightly and lift off vertically (see Figure 2-19a).
  • Page 60 5. Re-install the All Weighs™ Platter and verify that it is flush or just below flush with the countertop. This is necessary to provide smooth scanning from either direction. Make adjustments as needed to align the platter with the counter by moving support rails up or down, or consider installing screws in positions that will allow their use in adjusting the unit’s position.

  • Page 61: System Power-Up Recap

    System Power-Up Recap The System Power-Up procedure may vary depending upon the require- ments of your POS system. It is generally a good practice to power-down (switch off ) all equipment prior to connecting cables. Check with your System Supervisor and/or refer to your POS terminal manual for proper power-down and power-up procedures and interface requirements when connecting any peripheral device.
  • Page 62 NOTES ® Ω Ω 2-34 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 63: Scanning Items

    Section 3 Operation and Maintenance The information contained in this section describes how to operate and maintain the scanner and scale. Topics include “how to’s” on scanning, weighing, re-zeroing the scale, removing the top cover and cleaning the upper and lower windows. Scanning Items To scan items using the scanner, slide or push them through the scan zone as shown on this page.

  • Page 64: Proper Scanning Technique

    Proper Scanning Technique The scanner was designed to provide the ultimate in ergonomic enhance- ments for Point-Of-Sale (POS) scanning. To take advantage of these advancements: Practice the techniques below to improve scanning efficiency: • Move the product across the horizontal window (See Figure 3-1). •...

  • Page 65: Proper Weighing Technique

    Proper Weighing Technique 1. The L-shaped All-Weighs™ platter allows you to place items anywhere on its surface, including leaning against its vertical sec- tion, to be weighed accurately. (Reference Figure 3-2.) It is important that items rest entirely on the platter for their full weight to be accurately recorded.

  • Page 66: Operational Controls

    Operational Controls The function of scanner and scale controls and indicators is listed in Appendix A, LED/Beeper Indications & Controls. Turn to that appendix for full details. Operational Modes The scanner or scanner/scale features a number of modes that are impor- tant to both the user and the system support personnel.

  • Page 67: Error Reporting

    Error Reporting If a fatal error is detected during Selftest or operation, the unit will not advance to Normal Operation Mode. Selftest diagnostics will cause the unit to sound a long, low tone and/or display an error message on the 7- segment display (see Figure 4-1) indicating where the failure occurred.

  • Page 68: Operating Mode

    • When the scanner or scanner/scale completes its Selftest success- fully, it emits a power-up tone (when configured to do so) and enters Operating Mode. Operating Mode Operating Mode includes Normal Operation (scanning and weighing) and Sleep Mode. These two modes are most commonly observed by the user/operator.

  • Page 69: Additional Functions

    Additional Functions Additional scanner and scale functions include programming, running scanner or scale diagnostics, initiating a reset, zeroing the scale, and cali- brating the scale. Programming When your scanner or scanner/scale is shipped from the factory it is con- figured to work with the POS system interface at your store and read the bar code symbologies you designated.

  • Page 70: Scale Adjustments

    Scale Adjustments The scale allows two user adjustments: zeroing and calibration. The first, and most frequently performed, is ‘zeroing’ the scale. This operation resets the scale’s “at rest” reading to zero which must be within the range of - 0.2 pounds (- 1.25 grams) to +0.6 pounds (0.27kg) since the last calibration.
  • Page 71 Normally, once the scale has been calibrated, the calibration must be veri- fied and/or approved by a local regulatory body. In many areas of the United States, the scale calibration switch must be sealed before being placed into service. Consult the agency responsible for regulating weigh- ing devices in your area to ensure that you are meeting all legal and regula- tory requirements.

  • Page 72: Operational Maintenance

    Operational Maintenance The scanner or scanner/scale will provide dependable service for many years. The following maintenance procedures will keep your scanner or scanner/scale operating at peak performance. Cleaning the Weigh Platter and Scan Windows Clean the exterior sur- faces of the horizontal and vertical scan windows at least twice daily with a nonabrasive, mild, water-based glass cleaner and paper towels or lint-free cleaning tissues.

  • Page 73: Vertical Scan Window Replacement

    Vertical Scan Window Replacement The Vertical Scan Window enclosed in the All Weighs™ Platter is a replaceable part. Follow these instructions to remove and replace the win- dow: To remove the Vertical Scan Window: 1. Grasp the top edge of the platter, tilt slightly and lift off vertically (see Figure 3-3a).
  • Page 74 2. The vertical bezel cover is held in place by tabs along its top and side edges. To remove it, carefully lift up on the top edge as shown in Figure 3-4a, tilt it out and snap it off. 3. Lift out the vertical window. Carefully dispose of any damaged glass.

  • Page 75: Horizontal Scan Window Replacement (Wrg)

    Horizontal Scan Window Replacement (WRG) Wear Resistant Glass (WRG) horizontal scan windows are replaceable and can be removed and replaced following the instructions below. Sapphire glass does not require replacement, so it is permanently fastened in place. Do not attempt to remove Sapphire glass from the platter. NOTE 1.
  • Page 76 Figure 3-5. Removing/Replacing the WRG Window Tilt Slide WRG Retainer Window Out ® Ω Ω 3-14 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 77: Power-Up Selftest

    Section 4 Problem Isolation In the event of a suspected functional problem, use the troubleshooting references provided in this section. This useful information will help you to identify and resolve the cause of the problem. The scanner/scale has a number of features that indicate when a scanner or scale problem occurs.

  • Page 78: Diagnostic Tests

    Diagnostic Tests See Section 2, Diagnostic Modes, for details about running diagnostic tests for the scanner and/or scale. If a problem is discovered during diagnostics, the scanner will provide feedback about the source of the problem. The remainder of this section describes these failure indications and includes troubleshooting flowcharts to help isolate the problem.

  • Page 79: Error Codes

    Error Codes If an error is detected, the scanner will sound a long low tone (for three seconds) and alternately flash its LEDs, indicating a failure. When this occurs, press the Volume/Tone Push button to display the error code on the 7-segment display (refer to Figure 4-1).
  • Page 80 Table 4-1. Error Codes and Corrective Action Error Probable Cause Corrective Action Code No POS interface has been selected (Null interface). See the topic, Configuration Interface Type, in Section 6 to select the required interface using Blinking programming bar codes. See Section 6, Programming, for details about configuring the scan- Configuration Error ner using programming bar codes.
  • Page 81 Figure 4-1. 7-Segment LED Display 7-Segment Display Product Reference Guide...

  • Page 82: Scale Error Reporting

    Scale Error Reporting Scale diagnostics uses the Remote Scale Display and the Zero Status lamp to communicate specific scale failures. The following chart shows the Remote Display messages, the Scale Status lamp indication, the problem that the scale is experiencing and what action should be taken. When troubleshooting, always remember to check all cable connections first before proceeding with other problem isolation steps.
  • Page 83 Table 4-2. Scale Error Reporting Remote Scale Status Problem Action Required Display Lamp Description Other Scale Reporting - Check debris chutes. Cannot zero at power- up or - Verify that the weigh platter moves weight remains on scale for freely. more than 4 minutes or - Remove item(s) from scale - 0 -...

  • Page 84: Flowcharts

    Flowcharts The problem isolation flowcharts on the following pages allow you to identify and troubleshoot problems with your system. Figure 4-2. Problem Isolation: Start For units using an AC/DC adapter, verify that... 1. AC power cord is connected to a functional AC outlet. 2.
  • Page 85 Figure 4-3. Problem Isolation: Selftest SELFTEST START Scan the Factory Does the Does the Does the Defaults bar code to 7-segment 7-segment 7-segment enable the default display show display show display show configuration file. Restart the unit. No interface selected (Null Interface).
  • Page 86 Figure 4-4. Problem Isolation: Poor/No Reading Have you verified that all scan windows are clean and scratch-free? POOR/NO READING Before proceeding, verify that START bar code samples presented to scanner are of good quality and a symbology the scanner Enter Scanner Diagnostic Mode by can read.
  • Page 87 Figure 4-5. Problem Isolation: No Transmit to POS NO TRANSMIT TO POS START Check the interface (I/F) Verify programmable cable connections. If parameters using the possible, retest the information and programming Does the system using a known- bar codes provided in Section scanner read DONE good I/F cable.
  • Page 88 Figure 4-6. Problem Isolation: Scale If this is a new installation, SCALE START make sure any foam packing pieces have been removed from the scale cavity before proceeding. Lift off the platter View the Remote to verify, then set the platter Call Tech Support Display and/or the back into position.
  • Page 89 Figure 4-7. Problem Isolation: Remote Display REMOTE DISPLAY Scanner-scale models that include a Remote Display when shipped START from the factory, are configured for use with the display. If you're unsure of the settings for your unit, contact Tech Support. Is the Use the programming bar unit configured...
  • Page 90 NOTES ® Ω Ω 4-14 Magellan 8100/8100 and 8200 8200 Scanner...
  • Page 91 Section 5 Calibration A number of situations require the scale to be calibrated. They are: • at initial installation of the scanner/scale • if the scale cannot be re-zeroed • if you change the weight measure from pounds to kilograms or vice-versa •...

  • Page 92: Description Of Calibration Sequence

    Description of Calibration Sequence The Calibration Sequence sets the scale to an accurate reference point for weighing. This process involves the use of a Field Standard Weight Set (31.5-pounds) for calibration in pounds, (18.5-kilograms) for Metric. Once calibration has been successfully completed, the scanner/scale uses the certified weight as a reference for subsequent weighing activities.

  • Page 93: Motion Test

    Motion Test This test verifies that the scale will not ‘zero’ when the weighing surface of the scanner/scale is in motion. 1. Verify that the Yellow LED is on and the Remote Display reads 0.00 pounds or 0.000 kilograms. 2. Press lightly on the weigh platter of the scanner/scale with one hand and at the same time press and release the Scale Zero Push Button on the operator’s panel.

  • Page 94: Preparing The Scanner/Scale For Calibration

    Preparing the Scanner/Scale for Calibration 1. Assure that the scanner/scale is stable, secure and properly installed. (Refer to Section 2, Site Preparation and Installation for instructions on the proper installation of the scanner/scale). 2. Power-up the scanner/scale. 3. Allow the unit to reach temperature equilibrium for at least one hour.
  • Page 95 6. Reinstall the weigh platter. 7. Press the Scale Zero Push Button. The Yellow LED will go out for approximately 10 seconds (or less) and the Remote Display will alternately display until the scale is ready to proceed. 8. When the scale is ready, the Yellow LED will begin blinking again and the display will show the message “Ad20 (add twenty pounds)”...
  • Page 96 You have completed the scale calibration procedure. You must now con- tinue with the calibration verification tests to complete the scale’s calibra- tion. If you are weighing in pounds, continue with the following procedures to verify that the scale was successfully calibrated and that it weighs properly.
  • Page 97 Figure 5-1. Calibration Control ZERO Switch Calibration Switch Debris Chutes Product Reference Guide...

  • Page 98: Calibration Verification (U.s. Pounds)

    Calibration Verification (U.S. Pounds) Once you have completed the calibration sequence, you may be required to perform these step-by-step verification procedures. These procedures follow the National Institute of Standards and Technology Handbook-44 guidelines for grocery scale installations. You may be required by state or local law to have these procedures performed by a certified technician or verified by a proper official.

  • Page 99: Increasing-Load Test (Phase 1)

    Increasing-Load Test (Phase 1) This test checks Scale operation with five, ten and fifteen pound weights. 1. Check that the display reads 0.00 lb. when at rest with nothing on the weighing surface. (The Yellow LED is steadily lit). 2. Place a five-pound weight on the center of the weighing surface and check that the display reads 5.00 lb.
  • Page 100 Figure 5-2. Shift Test ® Ω Ω 5-10 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 101: Increasing- Load Test (Phase 2)

    Increasing- Load Test (Phase 2) After completing the Shift Test, you must complete the Increasing Load Test using 20.0, 25.0 and 30.0 pounds of weight. The upper limit of the scale is configurable according to POS interface type and may not necessarily be set at 30 pounds, which is the standard setting. For this test, continue to place weights in five pound increments only up to the upper weight limit set for your scale.

  • Page 102: Decreasing-Load Test

    Decreasing-Load Test This test ensures that the scanner/scale responds properly when a heavy object is followed by a significantly smaller object. 1. Place a 30.0-pound load on the scale and verify that the display shows between 29.99 and 30.01 pounds. If the upper weight limit for your scale is not set at 30 pounds, begin by plac- ing weight equaling your upper limit setting.

  • Page 103: Calibration Verification (Kilograms)

    Calibration Verification (Kilograms) Once you have completed the calibration sequence, you may be required to perform these step-by-step verification procedures. These procedures follow the National Institute of Standards and Technology Handbook-44 guidelines for grocery scale installations. You may be required by state or local law to have these procedures performed by a certified technician or verified by a proper official.

  • Page 104: Shift Test (Metric)

    9. Increase the weight on the scale to 7.50 kg on the center of the weighing surface and check that the display reads between 7.495 and 7.505 kg. 10. Remove the weights and verify that the display reads 0.000 kg. You have completed the Increasing-Load Test (Phase 1).

  • Page 105: Increasing- Load Test (Phase 2)

    Figure 5-3. European Shift Test (Metric) CENTER Increasing- Load Test (Phase 2) After completing the Shift Test, you must complete the Increasing Load Test using 10.00, 12.50 and 15 kilograms of weight. The upper limit of the scale is configurable according to POS interface type and may not necessarily be set at 15 kilograms, which is the standard set- ting.

  • Page 106: Blanking Test

    3. Place an additional 2.50 kilograms in the center of the weighing surface and check that the display reads between 14.990 kg and 15.010 kg. 4. Remove the weights and verify that the display reads 0.000 kg. 5. You have completed phase two of the increasing load test. Blanking Test This test ensures that the scanner/scale will indicate its weighing capability has been exceeded if a weight greater than 0.82 over its maximum upper...

  • Page 107: Decreasing-Load Test

    Decreasing-Load Test This test ensures that the scanner/scale responds properly when a heavy object is followed by a significantly smaller object. 1. Place weights that total 15.8 kilograms. If the upper weight limit for your scale is not set at 15 kilograms, begin by placing weight equaling your upper limit setting plus 0.8 kilograms.
  • Page 108 NOTES ® Ω Ω 5-18 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 109: Introduction To Label Programming

    Section 6 Programming Introduction to Label Programming The programming bar code labels contained in this manual will allow you to customize and configure features and settings for your scanner (scan- ner/scale). To ensure full compatibility and proper function, use only the programming bar codes in this manual and other product-specific publi- cations to program scanner features.

  • Page 110: Customizing Your Scanner's Operation

    Once you know the scanner’s current settings, you can determine what changes will be required to allow communication with your host system and/or optional features you choose to modify to customize your installa- tion. After recording the modifications needed, finish reading this section, then turn to the appropriate page and follow the instructions to program the scanner.

  • Page 111: Programming Overview

    The scanner can also accept programming via its auxilliary port using a handheld scanning device. Eligible handheld devices must have the ability to transmit Code 128 function codes such as the programming bar codes ® presented in this manual. Datalogic models QuickScan 1000 and Quick- ® Scan 6000 support this functionality.

  • Page 112: What Is Programming Mode

    What Is Programming Mode? Programming Mode is a state in which the scanner must be placed in order to accept commands via programming bar code labels. When pro- gramming using the bar code labels in this manual, the scanner is typically placed in Programming Mode by scanning the SWITCH label.

  • Page 113: Programming Session

    Programming Session A typical programming session is conducted as follows: 1. Scan the SWITCH bar code to place the scanner in Programming Mode. Depending upon its current programming, the scanner may emit a beep or beeps, indicating it has read the bar code and the green LED will flash on and off slowly while the scanner remains in Programming Mode.
  • Page 114 It is recommended that programming sessions be limited to one feature at a time. Should you make a mistake in the programming sequence, it can be difficult to discover where an error has been made if several fea- tures are programmed at once. Additionally, it can be confusing to deter- mine which features may or may not have been successfully set following NOTE such a session.

  • Page 115: Programming Sequence

    Programming Sequence To modify a scanner feature (item), the programming bar codes contained in this manual must be scanned in a given sequence depending upon the feature being programmed (as shown in Table 6-1). There are three possi- ble programming sequences: If the scanner’s interface type must be changed, always be sure that inter- face configuration is the FIRST item scanned during a programming ses- sion.
  • Page 116 Table 6-1. Programming Sequence ITEM TAG ITEM VALUE END/RESET ENABLE NEW FEATURE SWITCH SWITCH 3 4 5 ENABLE NEW FEATURE USING THE FOLLOWING SETTINGS... SWITCH SWITCH ONE BAR CODE CONTAINS SWITCH + ITEM TAG + ITEM VALUE + SWITCH ® Ω...

  • Page 117: Led And Beeper Indicators

    LED and Beeper Indicators The scanner provides a set of indicators that verify/announce the various scanner functions. If You Make a Mistake... If, during a programming session, you find that you are unsure of the scanner’s settings or wish to reset the scanner’s configuration, use the Return to Factory Settings label below to return the scanner’s configura- tion to the factory settings.

  • Page 118: Test Mode

    Test Mode Use this feature to place the scanner into a testing, or “demo” mode. This special mode disables the scanner interface, meaning that bar code data is not sent out to the host via the scanner interface. This allows the bar code to be scanned continuously without requiring a response from the POS terminal.

  • Page 119: General Scanner And Scale Features

    General Scanner and Scale Features Double Read Timeout The Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same label again (e.g. two identi- cal items in succession). To set the Double Read Timeout: 1.
  • Page 120 Double Read Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. DOUBLE READ TIMEOUT = 800ms DOUBLE READ TIMEOUT = 1 SECOND ®...

  • Page 121: Laser Timeout

    Laser Timeout The laser timeout feature sets the time for switching the visible laser diodes (VLDs) off if the scanner is idle. Using this feature can prolong the life of the VLDs. To set the Laser Timeout: 1. Scan the SWITCH bar code. 2.
  • Page 122 Laser Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. LASER TIMEOUT = 10 MINUTES LASER TIMEOUT = 15 MINUTES ®...

  • Page 123: Motor Timeout

    Motor Timeout The Motor Timeout feature sets the time for automatically switching the motor off when the scanner is not in use. Laser safety requires that the laser switch off before the motor. If you set the motor timeout shorter than the laser timeout, the motor and the laser will both shut off when the motor timeout expires.
  • Page 124 Motor Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. MOTOR TIMEOUT = 10 MINUTES MOTOR TIMEOUT = 15 MINUTES ®...
  • Page 125 Motor Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. MOTOR TIMEOUT = 30 MINUTES MOTOR TIMEOUT = 60 MINUTES Product Reference Guide 6-17...

  • Page 126: Green Led Idle State

    Green LED Idle State This feature specifies the state of the green scanner LED when the scanner is idle and ready to read a label. Options are: • • On dim To set the LED Idle State: 1. Scan the SWITCH bar code. 2.

  • Page 127: Scanner Button Options

    Scanner Button Options Configure the scanner volume button to one of the following modes of operation: • Enable all functions: Volume, tone, diagnostics and reset. • Enable only volume, tone and reset. • Enable reset only. • Disable all button functions To set the desired Scanner Button Option: 1.
  • Page 128 Scanner Button Options — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCANNER BUTTON OPTION = ENABLE RESET ONLY SCANNER BUTTON OPTION = DISABLE ALL BUTTON FUNCTIONS ®...

  • Page 129: Power-Up Beep Control

    Power-up Beep Control Specifies the type of audible indication that is made when entering scan- ner-active mode on power-up. Choices are: • No beep • One beep • Three beeps To set the Power-up Beep: 1. Scan the SWITCH bar code. 2.
  • Page 130 Power-up Beep Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. POWER-UP BEEP = ONE BEEP POWER-UP BEEP = THREE BEEPS ®...

  • Page 131: Good Read Beep Control

    Good Read Beep Control This feature enables/disables scanner beep upon successfully decoding of a label. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the two bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 132: Good Read Beep Frequency

    Good Read Beep Frequency Adjusts the scanner’s good read beep to sound at low, medium, or high fre- quency (controls the beeper’s pitch/tone). • Low = 660 Hz • Medium = 860 Hz • High = 1050 Hz To set the Good Read Beep Frequency: 1.
  • Page 133 Good Read Beep Frequency — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP FREQUENCY = MEDIUM GOOD READ BEEP FREQUENCY = HIGH Product Reference Guide 6-25...

  • Page 134: Good Read Beep Length

    Good Read Beep Length Specifies the duration of a good read beep. To set the good read beep length: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET GOOD READ BEEP LENGTH. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 135: Good Read Beep Volume

    Good Read Beep Volume Selects the beeper volume upon a good read beep. There are five selectable volumes, with each volume increment adding approximately five decibels to the previous level: • 0 = Lowest Volume • 1 = Medium-Low Volume •...
  • Page 136 Good Read Beep Volume — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP VOLUME = MEDIUM LOW GOOD READ BEEP VOLUME = MEDIUM ®...
  • Page 137 Good Read Beep Volume — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP VOLUME = MEDIUM HIGH GOOD READ BEEP VOLUME = HIGHEST Product Reference Guide 6-29...

  • Page 138: Good Read When To Indicate

    Good Read When to Indicate This feature specifies when the scanner will provide indication (beep and/ or flash its green LED) upon successfully reading a bar code. • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
  • Page 139 Good Read When to Indicate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ = INDICATE AFTER TRANSMIT GOOD READ = INDICATE AFTER CTS GOES INACTIVE, THEN ACTIVE (RS-232 ONLY) Product Reference Guide...

  • Page 140: Scale Enable

    Scale Enable Use this feature to enable or disable scale operation. Recalibration/recertification may be required when adding scale functional- ity. Consult your local Weights and Measures authority. If this feature is enabled the scanner will expect that it is to function as a scanner-scale, and will indicate an error if it is not a scale-equipped unit.

  • Page 141: Scale Country Mode

    Scale Country Mode When a weight is presented, the scanner/scale will apply the country-spe- cific weighing rules specified via this feature. Scale Country Mode applies only when a scale is enabled. RS-232 SASI scale interface supports only U.S.A. mode. NOTE SCALE COUNTRY MODE = U.S.A.
  • Page 142 Scale Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCALE COUNTRY MODE = AUSTRALIA ® Ω Ω 6-34 Magellan 8100/8100...

  • Page 143: Scale Enforced Zero Return

    Scale Enforced Zero Return This feature enables/disables the enforced zero return of the scale. Three settings are available for this feature: • Disable • Scale Must Return to Zero Weight Within Four Minutes — Scale will require re-zeroing if a non-zero weight is left on for more than 4 minutes •...
  • Page 144 Scale Enforced Zero Return — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCALE ENFORCED ZERO RETURN = SCALE MUST RETURN TO ZERO WEIGHT WITHIN 4 MINUTES SCALE ENFORCED ZERO RETURN = SCALE MUST RETURN TO ZERO WEIGHT BETWEEN WEIGHT REQUESTS...

  • Page 145: Scale Interface Type

    Scale Interface Type Use this feature to select the scale interface type. Choices are: • No Scale Interface • RS-232 — SASI • RS-232 — ICL To set the Scale Interface Type: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 146 Scale Interface Type — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCALE INTERFACE TYPE = RS-232 — ICL ® Ω...

  • Page 147: Scale Motion Level Filter

    Scale Motion Level Filter In environments where checkstands generate excessive vibration, the scale can be set to filter a certain amount of the motion with regard to its oper- ation. This filter is generally used only in applications where scale error E_1 (too much motion at power-up) has occurred.
  • Page 148 Scale Motion Level Filter — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCALE MOTION LEVEL FILTER = MEDIUM HIGH SCALE MOTION LEVEL FILTER = HIGH ®...

  • Page 149: Scale Led Enable

    Scale LED Enable This feature enables/disables Scale LED (Yellow LED) operation. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the two bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 150: Remote Display - Enable/Disable

    Remote Display — Enable/Disable The scanner-scale can be configured to operate with or without a Remote Display. Recalibration/recertification may be required when adding a Remote Display. Consult your local Weights and Measures authority. If this feature is enabled the scanner-scale will expect that it is connected to a Remote Display, and will indicate an error if one is not.

  • Page 151: Eas Active State

    EAS Active State Specifies the active state polarity of EAS (Electronic Article Survellance); the inactive state is its opposite polarity. EAS output goes active during the good read of a bar code, allowing the EAS device to deactivate a tag on the product.

  • Page 152: Eas Timeout

    EAS Timeout Specifies the amount of time that an EAS (Electronic Article Survellance) signal is held in its active state for a good read. To set the EAS Timeout: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET EAS TIMEOUT below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 153: Aux Port Mode

    (only one option can be active at a time). • Disabled — Port is inactive • External Handheld Input — Supports Datalogic handheld scan- ners (QuickScan 1000, QuickScan 6000, PowerScan) as well as ® other models such as the Symbol HotShot. Call your dealer for more information about supported devices.
  • Page 154 Aux Port Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. AUX PORT MODE = EXTERNAL HANDHELD INPUT AUX PORT MODE = PIR ®...

  • Page 155: Productivity Index Reporting (Pir)

    Productivity Index Reporting (PIR) When PIR is enabled, label quality data is appended to decoded data before being presented to the POS. The PIR feature allows the scanner to provide information to an external computer indicating how easy the label was to read.

  • Page 156: Interface Related Features

    Interface Related Features Interface Type The 8100 scanner family supports only a single interface type defined at the factory. 8100 scanners that support either IBM USB or IBM Port 17 cannot have their interface type changed, and will reject programmining bar codes that attempt to change it.
  • Page 157 If the scanner’s interface type must be changed, always be sure that inter- face configuration is the FIRST item scanned during a programming ses- sion. (Selecting an interface type resets ALL other configuration items to the factory default for that interface type.) NOTE Interface Type —...

  • Page 158: Interface Selection

    RS-232 Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.

  • Page 159: Wincor-Nixdorf Interface Selection

    RS-232 Wincor-Nixdorf Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.

  • Page 160: Single Cable Interface Selection

    RS-232 Single Cable Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.

  • Page 161: Ibm Port 17 Interface Selection

    IBM Port 17 Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.

  • Page 162: Ibm Usb Interface Selection

    IBM USB Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.

  • Page 163: Maximum Host-Transmitted Message Length

    Maximum Host-Transmitted Message Length Specifies the maximum number of data characters allowed in messages transmitted to the host. To set the Maximum Host-Transmitted Message Length: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET MAXIMUM HOST-TRANSMITTED MESSAGE LENGTH below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 164: Number Of Host Transmission Buffers

    Number of Host Transmission Buffers Specifies the number of host transmission(s) that may be buffered. By buffering data from a bar code, the scanner can continue to read a new bar code while the old one is being transmitted to the host. Selecting BUFF- ERS = 1 means that the first bar code must be transmitted before a new one can be read.

  • Page 165: Global Prefix

    Global Prefix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the prefix that is added to beginning of label transmission. To specify the Global Prefix Character(s): 1. Scan the SWITCH bar code. 2. Scan the bar code, SET GLOBAL PREFIX below. You’ll need to cover any unused bar codes to ensure the scanner reads only the bar code you intend to scan.
  • Page 166 Global Prefix — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SET GLOBAL PREFIX TERMINATE SEQUENCE ® Ω Ω 6-58 Magellan 8100/8100 and 8200...

  • Page 167: Global Suffix

    Global Suffix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the suffix that is added to end of a label trans- mission. Three standard options are available below. Contact your dealer for other alternate settings for this feature. •...
  • Page 168 Global Suffix — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GLOBAL SUFFIX = CR GLOBAL SUFFIX = CR LF ®...

  • Page 169: Ibm Features

    IBM Features IBM Interface Options IBM interfaces offer specific control over interaction with certain devices. The IBM USB interface provides its own set of options. Refer to the feature, IBM USB Interface Options, in this chapter. NOTE Options for this feature are as follows: •...

  • Page 170: Ibm Scale Address

    IBM Scale Address This feature applies to IBM Port 17 ONLY. NOTE Specifies IBM scale address for IBM Port 17. The following three addresses are available: • • • To set the IBM Scale Address: 1. Scan the SWITCH bar code. 2.
  • Page 171 IBM Scale Address — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. IBM SCALE ADDRESS = 6B IBM SCALE ADDRESS = 6E Product Reference Guide 6-63...

  • Page 172: Ibm Transmit Labels In Code 39 Format

    IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Code 93 and Codabar for IBM Port 5B;...

  • Page 173: Ibm Usb Interface Options

    IBM USB Interface Options The IBM-USB interface offers specific control over interaction with cer- tain devices. Options for this feature are as follows: • FULL host interface support — Accepts scanner and scale config- uration host commands. • Compatible with Magellan SL host interface support — Uses Magellan SL host interface support.
  • Page 174 IBM USB Interface Options — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. IBM USB INTERFACE OPTION = COMPATIBLE W/MAGELLAN SL HOST I/F SUP- PORT IBM USB INTERFACE OPTION = IGNORE HOST I/F CONFIG OF SCANNER &...

  • Page 175: Ibm Usb Scanner Device Type

    IBM USB Scanner Device Type The IBM-USB protocol allows for the scanner to be identified as one of two different types of barcode scanners. Depending on what other scan- ners you may already have connected to a USB POS, you may need to change this setting to enable all scanners to communicate.

  • Page 176: Features

    RS-232 Features RS-232 Baud Rate This feature selects the baud rate required for sending and receiving data. Single cable interfaces are limited to Baud Rate selections up to 19200. They cannot communicate at Baud Rates of 38400 and up. NOTE To specify the RS-232 Baud Rate: 1.
  • Page 177 RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 4800 RS-232 BAUD RATE = 9600 Product Reference Guide 6-69...
  • Page 178 RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 19200 RS-232 BAUD RATE = 38400 ®...
  • Page 179 RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 57600 RS-232 BAUD RATE = 115200 Product Reference Guide 6-71...

  • Page 180: Number Of Data Bits

    RS-232 Number of Data Bits Specifies number of data bits required for sending and receiving data. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired Data Bit setting. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 181: Number Of Stop Bits

    RS-232 Number of Stop Bits Specifies number of stop bits required for sending and receiving data. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired Stop Bit setting. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 182: Parity

    RS-232 Parity Specifies parity required for sending and receiving data. Options for this setting are: • RS-232 PARITY = NONE • RS-232 PARITY = EVEN • RS-232 PARITY = ODD To set this feature: 1. Scan the SWITCH bar code. 2.
  • Page 183 RS-232 Parity — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 PARITY = EVEN RS-232 PARITY = ODD Product Reference Guide 6-75...

  • Page 184: Hardware Control

    RS-232 Hardware Control Enables/disables use of the RS-232 CTS signal for flow control and/or scan control. Options are: • Disable — The scanner transmits to the host regardless of any activity on the CTS line. • Enable CTS Flow Control — The CTS signal controls transmis- sion of data to the host.
  • Page 185 RS-232 Hardware Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 HARDWARE CONTROL = ENABLE CTS FLOW CONTROL RS-232 HARDWARE CONTROL = ENABLE CTS SCAN CONTROL Product Reference Guide 6-77...

  • Page 186: Intercharacter Delay

    RS-232 Intercharacter Delay Specifies delay between the end of one character and the beginning of the next in 10-millisecond increments. To set the RS-232 Intercharacter Delay: 1. Scan the SWITCH bar code. 2. Scan the bar code below, SET RS-232 INTERCHARACTER DELAY.

  • Page 187: Software Flow Control

    RS-232 Software Flow Control Enables/disables RS-232 Flow Control using XON/ XOFF characters. . This item will be ignored when the feature, RS-232 NAK Character, is enabled NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 188: Host Echo

    RS-232 Host Echo When enabled, this feature passes all data through the scanner to the host as it comes in. This feature is used for applications where “daisy chaining” of RS-232 devices onto the same cable is necessary. If, for example, one of the devices in the chain is a terminal where someone is entering data while another person is simultaneously scanning a bar code requiring transmis- sion to the host, the scanner will wait for the RS-232 channel to be quiet...

  • Page 189: Host Echo Quiet Interval

    RS-232 Host Echo Quiet Interval This setting specifies the time interval of RS-232 channel inactivity which must transpire before the scanner will break the host echo loop to transmit the bar code data that has just been scanned to the host. •...

  • Page 190: Ignore Host Commands

    RS-232 Ignore Host Commands When set to ignore host commands, the scanner will ignore all host com- mands except for the minimum set necessary to keep the interface active, transmit labels, and transmit scale information. For normal operation of the interface, disable this feature. To set this feature: 1.

  • Page 191: Ttl

    RS-232 TTL Specifies whether RS-232 interface provides TTL levels on the output pins TxD and RTS. Choices are: • Normal RS-232 levels • TTL levels To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below which represents the desired setting for this feature.

  • Page 192: Ttl Invert

    RS-232 TTL Invert Enables/disables inversion of TTL. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below which represents the desired setting for this feature. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 193: Beep On Ascii Bel

    RS-232 Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL (07 hex). • Disable • Enable To enable/disable this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 194: Beep After Weigh

    RS-232 Beep After Weigh Enables/disables the ability of the scanner to beep after weight data is transmitted to the host. Scale interfaces that support this item are: RS-232 ICL, RS-232 SASI, and RS-232 Single Cable. To enable/disable the Beep After Weigh feature: 1.

  • Page 195: Beep On Not On File

    RS-232 Beep on Not on File Select for the host to beep (or not) when a not-on-file condition is detected by the host. This feature is also applicable to single cable RS-232. RS-232 BEEP ON NOT ON FILE = DISABLE ENABLE Product Reference Guide 6-87...

  • Page 196: Ack Nak Enable

    RS-232 ACK NAK Enable This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...
  • Page 197 RS-232 ACK NAK Enable — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 ACK/NAK = HOST ACKNOWLEDGEMENT RS-232 ACK/NAK = LABEL & HOST Product Reference Guide 6-89...

  • Page 198: Ack Character

    RS-232 ACK Character This feature specifies which ASCII character will be used as an ACK char- acter. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.

  • Page 199: Nak Character

    RS-232 NAK Character This feature specifies which ASCII character will be used as a NAK char- acter. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.

  • Page 200: Retry On Ack Nak Timeout

    RS-232 Retry on ACK NAK Timeout This option specifies the action scanner performs on expiration of the RS- 232 ACK NAK Timeout Value. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 201: Ack Nak Timeout Value

    RS-232 ACK NAK Timeout Value This item specifies the time the scanner will wait for an ACK character from the host following a label transmission. • 0 = Infinite timeout • 1 - 75 = Timeout in 200-millisecond increments To set the ACK NAK Timeout Value: 1.

  • Page 202: Ack Nak Retry Count

    RS-232 ACK NAK Retry Count This feature sets the number of times for the scanner to retry a label trans- mission under a retry condition. To set the RS-232 ACK NAK Retry Count: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET RS-232 ACK NAK RETRY COUNT below.

  • Page 203: Ack Nak Error Handling

    RS-232 ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrecognized host commands and communication errors such as parity or framing errors. •...
  • Page 204 RS-232 ACK NAK Error Handling — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 ACK NAK ERROR HANDLING = ASSUME ACK RS-232 ACK NAK ERROR HANDLING = ASSUME NAK ®...

  • Page 205: Label Id Control

    RS-232 Label ID Control This feature specifies whether or not Label IDs are transmitted to the host and if so, whether to attach them as a prefix or suffix. RS-232 LABEL ID CONTROL = DISABLE RS-232 LABEL ID CONTROL = ENABLE AS PREFIX Product Reference Guide 6-97...
  • Page 206 RS-232 Label ID Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 LABEL ID CONTROL = ENABLE AS SUFFIX ®...

  • Page 207: Single Cable Rs-232 Options

    Single Cable RS-232 Options The RS-232 Single Cable interface shares some configuration options with other RS-232 interfaces. Rather than repeat them in this section as Single Cable options, please find them referenced as follows: • RS-232 Baud Rate on page 68 •...

  • Page 208: Single Cable Rs-232 Scanner Only Protocol

    Single Cable RS-232 Scanner Only Protocol This sets the type of interface protocol that will be used in Single Cable RS-232. Options are: • Scanner/scale RS-232 protocol • Scanner only RS-232 protocol To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 209: Single Cable Rs-232 Rts Cts Selection

    Single Cable RS-232 RTS CTS Selection Specifies how RTS and CTS are used to control the data flow. RTS is con- trolled by the Scanner and can be continuously held high/low, or can be asserted during label transmission. The scanner looks at CTS, as the con- figuration values state, to determine when to send label data.
  • Page 210 Single Cable RS-232 RTS CTS Selection — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RTS CTS SELECTION = OPTION 2 RTS CTS SELECTION = OPTION 3 ®...
  • Page 211 Single Cable RS-232 RTS CTS Selection — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RTS CTS SELECTION = OPTION 4 RTS CTS SELECTION = OPTION 5 Product Reference Guide 6-103...

  • Page 212: Single Cable Rs-232 Use Bcc

    Single Cable RS-232 Use BCC Enables/disables the ability of the scanner to use BCC. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 213: Single Cable Rs-232 Use Ack/Nak

    Single Cable RS-232 Use ACK/NAK Enables/disables the ability of the scanner to use ACK/NAK. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 214: Single Cable Rs-232 Use Stx

    Single Cable RS-232 Use STX Enables/disables the ability of the scanner to use STX. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 215: Set Single Cable Rs-232 Stx Character

    Set Single Cable RS-232 STX Character This feature selects the STX character. To specify the STX Character: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET SINGLE CABLE RS-232 STX CHARAC- TER below. You’ll need to cover any unused bar codes on this and the facing page to ensure the scanner reads only the bar code you intend to scan.

  • Page 216: Single Cable Rs-232 Use Etx

    Single Cable RS-232 Use ETX Enables/disables the ability of the scanner to use ETX. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 217: Set Single Cable Rs-232 Etx Character

    Set Single Cable RS-232 ETX Character Allows selection of the ETX character. To specify the ETX Character: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET SINGLE CABLE RS-232 ETX CHARAC- TER below. You’ll need to cover any unused bar codes on this and the facing page to ensure the scanner reads only the bar code you intend to scan.

  • Page 218: Single Cable Rs-232 Datalogic Extensions

    Single Cable RS-232 Datalogic Extensions When Datalogic extensions are enabled, scale calibration mode informa- tion is communicated to the host. Contact Customer Support for the for- mat of this information. Choices for this feature are: • Standard Protocol • Support Datalogic Extensions to Protocol To set this feature: 1.

  • Page 219: Symbology Programming

    Symbology Programming If the scanner’s interface type must be changed, always be sure that inter- face configuration is the FIRST item scanned during a programming ses- sion. (Selecting an interface type resets ALL other configuration items — including symbology programming — to the factory default for that inter- NOTE face type.) UPC-A Enable...

  • Page 220: Upc-A Number System Character Transmission

    UPC-A Number System Character Transmission Enables/disables transmission of a UPC-A number system character. This feature MUST be enabled for IBM interfaces for proper function. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.

  • Page 221: Upc-A Check Character Transmission

    UPC-A Check Character Transmission Enables/disables transmission of a UPC-A check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 222: Expand Upc-A To Ean-13

    Expand UPC-A to EAN-13 Enables/disables expansion of UPC-A labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 223: Upc/Ean Aim Id

    UPC/EAN AIM ID This feature enables/disables transmission of the UPC/EAN AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 224: Upc-A Label Id

    UPC-A Label ID This feature specifies a UPC-A label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 225: Upc-A 2-Digit Supplemental Label Id

    UPC-A 2-Digit Supplemental Label ID This feature specifies a UPC-A 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 226: Upc-A 5-Digit Supplemental Label Id

    UPC-A 5-Digit Supplemental Label ID This feature specifies a UPC-A 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 227: Upc-A 128 Supplemental Label Id

    UPC-A 128 Supplemental Label ID This feature specifies a UPC-A 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 228: Upc-E Enable

    UPC-E Enable Enables/disables the ability of the scanner to decode UPC-E labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 229: Upc-E Number System Character Transmission

    UPC-E Number System Character Transmission Enables/disables transmission of a UPC-E number system character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 230: Upc-E Check Character Transmission

    UPC-E Check Character Transmission Enables/disables transmission of a UPC-E check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 231: Expand Upc-E To Upc-A

    Expand UPC-E to UPC-A Enables/disables expansion of UPC-E labels to UPC-A. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 232: Expand Upc-E To Ean-13

    Expand UPC-E to EAN-13 Enables/disables expansion of UPC-E labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 233: Upc-E Label Id

    UPC-E Label ID This feature specifies a UPC-E label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 234: Upc-E 2-Digit Supplemental Label Id

    UPC-E 2-Digit Supplemental Label ID This feature specifies a UPC-E 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 235: Upc-E 5-Digit Supplemental Label Id

    UPC-E 5-Digit Supplemental Label ID This feature specifies a UPC-E 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 236: Upc-E 128 Supplemental Label Id

    UPC-E 128 Supplemental Label ID This feature specifies a UPC-E 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 237: Enable

    EAN-13 Enable Enables/disables the ability of the scanner to decode EAN/JAN-13 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 238: First Character Transmission

    EAN-13 First Character Transmission Enables/disables transmission of EAN/JAN-13 first character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 239: Check Character Transmission

    EAN-13 Check Character Transmission Enables/disables transmission of an EAN/JAN-13 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 240: Isbn Conversion Enable

    EAN-13 ISBN Conversion Enable Enables/disables conversion of EAN/JAN-13 labels starting with 978 to Bookland ISBN labels. If any add-on information is present on the label prior to the conversion to ISBN, the add-on data will be discarded. Only the base label will be con- verted.

  • Page 241: Ean 13 Label Id

    EAN 13 Label ID This feature specifies an EAN 13 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 242: 2-Digit Supplemental Label Id

    EAN-13 2-Digit Supplemental Label ID This feature specifies an EAN-13 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 243: 5-Digit Supplemental Label Id

    EAN-13 5-Digit Supplemental Label ID This feature specifies an EAN-13 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 244: 128 Supplemental Label Id

    EAN-13 128 Supplemental Label ID This feature specifies an EAN-13 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 245: Bookland Aim Id

    Bookland AIM ID This feature enables/disables transmission of the Bookland AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 246: Bookland Label Id

    Bookland Label ID This feature specifies a Bookland label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 247: Enable

    EAN-8 Enable Enables/disables the ability of the scanner to decode EAN/JAN-8 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 248: Check Character Transmission

    EAN-8 Check Character Transmission Enables/disables transmission of an EAN/JAN-8 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 249: Expand Ean-8 To Ean-13

    Expand EAN-8 to EAN-13 Enables/disables expansion of EAN/JAN-8 labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 250: Ean 8 Label Id

    EAN 8 Label ID This feature specifies an EAN 8 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 251: 2-Digit Supplemental Label Id

    EAN-8 2-Digit Supplemental Label ID This feature specifies an EAN-8 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 252: 5-Digit Supplemental Label Id

    EAN-8 5-Digit Supplemental Label ID This feature specifies an EAN-8 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 253: 128 Supplemental Label Id

    EAN-8 128 Supplemental Label ID This feature specifies an EAN-8 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 254: Decoding Levels

    EAN-8 Decoding Levels Decoding levels allow the decoder to be set to perform at one of four selectable levels: • Very Conservative — Slower scan time, however, allows few, if any, misreads. The most secure setting. • Slightly More Aggressive — Faster scanning, less security. •...
  • Page 255 EAN-8 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. EAN-8 DECODING LEVELS = VERY CONSERVATIVE EAN-8 DECODING LEVELS = SLIGHTLY MORE AGGRESSIVE Product Reference Guide 6-147...
  • Page 256 EAN-8 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. EAN-8 DECODING LEVELS = MODERATELY AGGRESSIVE EAN-8 DECODING LEVELS = VERY AGGRESSIVE ®...

  • Page 257: Other Upc/Ean Options

    Other UPC/EAN Options The following pages contain other selectable features for UPC/EAN sym- bologies: • UPC/EAN Reconstruction • Price Weight Check • Enable EAN Two Label • Addons • UPC-A and EAN-13 Decoding Levels Product Reference Guide 6-149...

  • Page 258: Upc/Ean Reconstruction

    UPC/EAN Reconstruction Enables/disables the ability of the scanner to decode a class of UPC/EAN labels with voids. The label voids may be caused by printing defects or physical damage. This feature may be helpful in environments with in- store printed labels. Enabling this feature increases the potential of misreads.

  • Page 259: Price Weight Check

    Price Weight Check Enables/disables calculation and verification of price/weight check digits. Applies to all UPC-A and EAN/JAN-13 labels with eligible Number Sys- tem/First Character digits. Options are: • Disable • 4-digit price/weight • 5-digit price/weight • 4-digit European price/weight • 5-digit European price/weight To set this feature: 1.
  • Page 260 Price Weight Check — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. PRICE WEIGHT CHECK = 4-DIGIT PRICE/WEIGHT PRICE WEIGHT CHECK = 5-DIGIT PRICE/WEIGHT ®...
  • Page 261 Price Weight Check — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. PRICE WEIGHT CHECK = 4-DIGIT EUROPEAN PRICE/WEIGHT PRICE WEIGHT CHECK = 5-DIGIT EUROPEAN PRICE/WEIGHT Product Reference Guide 6-153...

  • Page 262: Enable Ean Two Label

    Enable EAN Two Label Enables/disables the ability of the scanner to decode EAN two-label pairs. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 263: Addons

    Addons The scanner is capable of processing different types of addon codes, including: • 2-Digit Supplemental • 5-Digit Supplemental Options are provided on the following pages for your convenience: • Disable all addons — The scanner will not look for or read addons. •...
  • Page 264 Addons — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. ADDONS = OPTIONAL 2-DIGIT AND 5-DIGIT SUPPLEMENTAL ® Ω Ω 6-156 Magellan 8100/8100...

  • Page 265: Upc-A And Ean-13 Decoding Levels

    UPC-A and EAN-13 Decoding Levels Decoding levels allow the decoder to be set to perform at one of four selectable levels: • Very Conservative — Slower scan time, however, allows few, if any, misreads. The most secure setting. • Slightly More Aggressive — Faster scanning, less security. •...
  • Page 266 UPC-A and EAN-13 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. UPC-A/EAN-13 DECODING LEVELS = VERY CONSERVATIVE UPC-A/EAN-13 DECODING LEVELS = SLIGHTLY MORE AGGRESSIVE ®...
  • Page 267 UPC-A and EAN-13 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. UPC-A/EAN-13 DECODING LEVELS = MODERATELY AGGRESSIVE UPC-A/EAN-13 DECODING LEVELS = VERY AGGRESSIVE Product Reference Guide 6-159...

  • Page 268: Gtin Enable

    GTIN Enable Enables/Disables the ability to convert UPCE, UPCA, EAN8, and EAN13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the add-on information will be appended to the converted GTIN bar code.

  • Page 269: Gtin Label Id

    GTIN Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.

  • Page 270: Gtin 2-Digit Supplemental Label Id

    GTIN 2-Digit Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and 2-digit supplemental addon bar code labels are converted. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.

  • Page 271: Gtin 5-Digit Supplemental Label Id

    GTIN 5-Digit Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and 5-digit supplemental addon bar code labels are converted. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.

  • Page 272: Gtin Code 128 Supplemental Label Id

    GTIN Code 128 Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and Code 128 supplemental addon bar code labels are converted The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.

  • Page 273: Enable

    RSS-14 Enable Enables/disables the ability of the scanner to decode RSS-14 labels. This value-added feature is a factory-programmed option. Contact your dealer for information about upgrading your system to include this advanced capability. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 274: Check Character Transmission

    RSS-14 Check Character Transmission Enables/disables transmission of the RSS-14 check character. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 275: Rss-14/Ean-128 Emulation

    RSS-14/EAN-128 Emulation Enables/disables the ability of RSS-14 to be transmitted as EAN-128. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 276: Component Enable

    RSS-14 2D Component Enable When this feature is enabled, and the software reads an RSS-14 bar code that has a 2D component associated with it, the RSS-14 bar code will not be reported to the terminal. To set this feature: 1.

  • Page 277: Aim Id

    RSS-14 AIM ID This feature enables/disables transmission of the RSS-14 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 278: Label Id

    RSS-14 Label ID This feature specifies an RSS-14 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 279: Rss Expanded Enable

    RSS Expanded Enable Enables/disables the ability of the scanner to decode RSS-Expanded labels. This value-added feature is a factory-programmed option. Contact your dealer for information about upgrading your system to include this advanced capability. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 280: Rss Expanded Ean-128 Emulation

    RSS Expanded EAN-128 Emulation Enables/disables EAN 128 emulation for RSS Expanded. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 281: Rss Expanded 2D Component Enable

    RSS Expanded 2D Component Enable When this feature is enabled, and the software reads an RSS Expanded bar code that has a 2D component associated with it, the RSS Expanded bar code will not be reported to the terminal. To set this feature: 1.

  • Page 282: Rss Expanded Aim Id

    RSS Expanded AIM ID This feature enables/disables transmission of the RSS Expanded AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 283: Rss Expanded Label Id

    RSS Expanded Label ID This feature specifies an RSS Expanded label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 284: Rss Expanded Length Control

    RSS Expanded Length Control This feature specifies either variable-length or fixed-length decoding for RSS Expanded. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 285: Rss Expanded Maximum Label Length

    RSS Expanded Maximum Label Length This feature specifies the maximum allowable length of an RSS Expanded label. Length in this case includes check and data characters. This applies when RSS Expanded Length Control is set to variable-length decoding. Maximum Label Length should be greater than or equal to Minimum Label NOTE Length.

  • Page 286: Rss Expanded Minimum Label Length

    RSS Expanded Minimum Label Length This feature specifies the minimum allowable length of an RSS Expanded label. Length in this case includes check and data characters. This applies when RSS Expanded Length Control is set to variable-length decoding. Minimum Label Length should be less than or equal to Maximum Label NOTE Length.

  • Page 287: Rss Expanded Fixed Length 1

    RSS Expanded Fixed Length 1 This feature specifies RSS Expanded first fixed length. This applies when RSS Expanded Length Control is set to fixed- length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET RSS EXPANDED FIXED LENGTH 1 below.

  • Page 288: Rss Expanded Fixed Length 2

    RSS Expanded Fixed Length 2 This feature specifies RSS Expanded second fixed length. This applies when RSS Expanded Length Control is set to fixed- length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 289: Code 39 Enable

    Code 39 Enable Enables/disables the ability of the scanner to decode Code 39 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 290: Code 39 Start Stop Character Transmission

    Code 39 Start Stop Character Transmission Enables/disables transmission of Code 39 start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 291: Code 39 Check Character Calculation

    Code 39 Check Character Calculation Enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in label is treated as a data character. If check calculation is disabled, the risk is increased that a misread can occur.

  • Page 292: Code 39 Check Character Transmission

    Code 39 Check Character Transmission Enables/disables transmission of optional Code 39 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 293: Code 39 Full Ascii

    Code 39 Full ASCII Enables/disables the ability of the scanner to translate to Code 39 full ASCII labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 294: Code 39 Aim Id

    Code 39 AIM ID This feature enables/disables transmission of the Code 39 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 295: Code 39 Label Id

    Code 39 Label ID This feature specifies a Code 39 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 296: Code 39 Length Control

    Code 39 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 39. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 297: Code 39 Maximum Label Length

    Code 39 Maximum Label Length This feature specifies the maximum allowable length of a Code 39 label. Length in this case includes check, data and ASCII characters, but does not include start, or stop characters. This feature applies when Code 39 Length Control is set to variable-length decoding.

  • Page 298: Code 39 Minimum Label Length

    Code 39 Minimum Label Length This feature specifies the minimum allowable length of a Code 39 label. Length in this case includes check, data and ASCII characters, but does not include start, or stop characters. This feature applies when Code 39 Length Control is set to variable-length decoding.

  • Page 299: Code 39 Fixed Length 1

    Code 39 Fixed Length 1 This feature specifies Code 39 first fixed length. This applies when Code 39 Length Control is set to fixed-length decoding. The minimum decodable length is four when an optional check character is present. NOTE To set this feature: 1.

  • Page 300: Code 39 Fixed Length 2

    Code 39 Fixed Length 2 This feature specifies Code 39 second fixed length. This applies when Code 39 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00, then Fixed Length 1 will apply NOTE To set this feature: 1.

  • Page 301: Code 39 Stitching

    Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 302: Pharmacode 39 Enable

    Pharmacode 39 Enable Enables/disables the ability of the scanner to decode Italian Pharmacode 39 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 303: Pharmacode 39 Start Stop Character Transmission

    Pharmacode 39 Start Stop Character Transmission Enables/ disables transmission of start and stop characters for Pharmacode This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 304: Pharmacode 39 Check Character Transmission

    Pharmacode 39 Check Character Transmission Enables/disables transmission of Pharmacode 39 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 305: Pharmacode 39 Label Id

    Pharmacode 39 Label ID This feature specifies a Pharmacode 39 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 306: Code 128 Enable

    Code 128 Enable Enables/disables the ability of the scanner to decode Code 128 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 307: Code 128 Transmit Function Characters

    Code 128 Transmit Function Characters Enables/disables transmission of Code 128 function characters 1, 2, 3, and 4. Disabled is the recommended setting for all interfaces. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 308: Convert Code128 To Code 39

    Convert Code128 to Code 39 Enables/disables conversion of Code 128 labels to Code 39. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 309: Code 128 Aim Id

    Code 128 AIM ID This feature enables/disables transmission of the Code 128 AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 310: Code 128 Label Id

    Code 128 Label ID This feature specifies a Code 128 label ID to be added to bar code data.. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 311: Code 128 Length Control

    Code 128 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 128. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 312: Code 128 Maximum Label Length

    Code 128 Maximum Label Length This feature specifies the maximum allowable length of a Code 128 label. Length in this case includes function characteres and data characters, but does not include function code change or check character. This fea- ture applies when Code 128 Length Control is set to variable-length decoding.

  • Page 313: Code 128 Minimum Label Length

    Code 128 Minimum Label Length This feature specifies the minimum allowable length of a Code 128 label. Length in this case includes function characteres and data characters, but does not include function code change or check character. This feature applies when Code 128 Length Control is set to variable-length decoding.

  • Page 314: Code 128 Fixed Length 1

    Code 128 Fixed Length 1 This feature specifies Code 128 first fixed length. This applies when Code 128 Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET CODE 128 FIXED LENGTH 1 below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 315: Code 128 Fixed Length 2

    Code 128 Fixed Length 2 This feature specifies Code 128 second fixed length. This applies when Code 128 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 316: Code 128 Stitching

    Code 128 Stitching Enables/disables stitching for Code 128 labels. When parts of a Code 128 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 317: Enable

    EAN-128 Enable Enables/disables the ability of the scanner to decode EAN-128 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 318: Ean 128 Aim Id

    EAN 128 AIM ID This feature enables/disables transmission of the EAN 128 AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 319: Ean 128 Label Id

    EAN 128 Label ID This feature specifies an EAN 128 label ID to be added to bar code data.. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 320: Interleaved 2 Of 5 (I 2 Of 5) Enable

    Interleaved 2 of 5 (I 2 OF 5) Enable Enables/disables the ability of the scanner to decode Interleaved 2 of 5 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 321: I 2 Of 5 Check Character Calculation

    I 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Interleaved 2 of 5 check character. If check character calculation is disabled, the risk is increased that a mis- read can occur. When disabled, any check characters in a bar code are treated as data characters.

  • Page 322: I 2 Of 5 Check Character Transmission

    I 2 of 5 Check Character Transmission Enables/disables transmission of an optional Interleaved 2 of 5 check char- acter. This feature applies only when I 2 of 5 Check Character Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled.

  • Page 323: I 2 Of 5 Aim Id

    I 2 of 5 AIM ID This feature enables/disables transmission of the I 2 of 5 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 324: I 2 Of 5 Label Id

    I 2 of 5 Label ID This feature specifies an I 2 of 5 label ID to be added to bar code data.. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 325: I 2 Of 5 Length Control

    I 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for I 2 of 5. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 326: I 2 Of 5 Maximum Label Length

    I 2 of 5 Maximum Label Length This feature specifies the maximum allowable length of an I 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when I 2 of 5 Length Control is set to variable-length decoding.

  • Page 327: I 2 Of 5 Minimum Label Length

    I 2 of 5 Minimum Label Length This feature specifies the minimum allowable length of an I 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when I 2 of 5 Length Control is set to variable-length decoding.

  • Page 328: I 2 Of 5 Fixed Length 1

    I 2 of 5 Fixed Length 1 This feature specifies I 2 of 5 first fixed length. This applies when I 2 of 5 Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 329: I 2 Of 5 Fixed Length 2

    I 2 of 5 Fixed Length 2 This feature specifies I 2 of 5 second fixed length. This applies when I 2 of 5 Length Control is set to fixed-length decod- ing. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 330: I 2 Of 5 Stitching

    I 2 of 5 Stitching Enables/disables stitching for I 2 of 5 labels. When parts of an I 2 of 5 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 331: Codabar Enable

    Codabar Enable Enables/disables the ability of the scanner to decode Codabar labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 332: Codabar Start Stop Character Transmission

    Codabar Start Stop Character Transmission Enables/disables transmission of Codabar start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 333: Codabar Start Stop Character Set

    Codabar Start Stop Character Set This feature selects the format of transmitted Codabar start/stop charac- ters. Options are: • ABCD/TN* E • ABCD/ABCD • abcd/tn* e • abcd/abcd To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below or from the following page representing the desired option.
  • Page 334 Codabar Start Stop Character Set — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. CODABAR START STOP CHARACTER = abcd/tn* e CODABAR START STOP CHARACTER = abcd/abcd ®...

  • Page 335: Codabar Start Stop Character Match

    Codabar Start Stop Character Match Enables/disables the requirement that start and stop characters match. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 336: Codabar Check Character Calculation

    Codabar Check Character Calculation Enables/disables calculation and verification of an optional Codabar check character. If check character calculation is disabled, the risk is increased that a mis- read can occur. When disabled, any check characters in a bar code are treated as data characters.

  • Page 337: Codabar Check Character Transmission

    Codabar Check Character Transmission Enables/disables transmission of an optional Codabar check character. Applies only when Codabar Check Character Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 338: Codabar Aim Id

    Codabar AIM ID This feature enables/disables transmission of the Codabar AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 339: Codabar Label Id

    Codabar Label ID This feature specifies a Codabar label ID to e added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 340: Codabar Length Control

    Codabar Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Codabar. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 341: Codabar Maximum Label Length

    Codabar Maximum Label Length This feature specifies the maximum allowable length of a Codabar label. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to variable-length decoding. Maximum label length should be greater than or equal to minimum label NOTE length.

  • Page 342: Codabar Minimum Label Length

    Codabar Minimum Label Length This feature specifies the minimum allowable length of a Codabar label. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to variable-length decoding. Minimum label length should be less than or equal to maximum label NOTE length.

  • Page 343: Codabar Fixed Length 1

    Codabar Fixed Length 1 This feature specifies Codabar first fixed length. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to fixed- length decoding.

  • Page 344: Codabar Fixed Length 2

    Codabar Fixed Length 2 This feature specifies Codabar second fixed length. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to fixed- length decoding.

  • Page 345: Codabar Stitching

    Codabar Stitching Enables/disables stitching for Codabar labels. When parts of a Codabar bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met. To set this feature: 1.

  • Page 346: Code 93 Enable

    Code 93 Enable Enables/disables the ability of the scanner to decode Code 93 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 347: Code 93 Aim Id

    Code 93 AIM ID This feature enables/disables transmission of the Code 93 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 348: Code 93 Label Id

    Code 93 Label ID This feature specifies a Code 93 label ID to be added to bar code data.. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 349: Code 93 Length Control

    Code 93 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 93. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 350: Code 93 Maximum Label Length

    Code 93 Maximum Label Length This feature specifies the maximum allowable length of a Code 93 label. Length in this case includes data characters, but does not include start, stop, full ASCII shift, or check characters. This feature applies when Code 93 Length Control is set to variable-length decoding.

  • Page 351: Code 93 Minimum Label Length

    Code 93 Minimum Label Length This feature specifies the minimum allowable length of a Code 93 label. Length in this case includes data characters, but does not include start, stop, full ASCII shift, or check characters. This feature applies when Code 93 Length Control is set to variable-length decoding.

  • Page 352: Code 93 Fixed Length 1

    Code 93 Fixed Length 1 This feature specifies Code 93 first fixed length. This applies when Code 93 Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET CODE 93 FIXED LENGTH 1 below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 353: Code 93 Fixed Length 2

    Code 93 Fixed Length 2 This feature specifies Code 93 second fixed length. This applies when Code 93 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 354: Code 93 Stitching

    Code 93 Stitching Enables/disables stitching for Code 93 labels. When parts of a Code 93 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 355: Msi/Plessey Enable

    MSI/Plessey Enable Enables/disables the ability of the scanner to decode MSI/Plessey labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 356: Msi/Plessey Check Character Calculation

    MSI/Plessey Check Character Calculation Enables/disables calculation and verification of optional MSI/Plessey check characters. If check character calculation is disabled, the risk is increased that a mis- read can occur. When disabled, any check characters in a bar code are treated as data characters. NOTE To set this feature: 1.

  • Page 357: Msi/Plessey Number Of Check Characters

    MSI/Plessey Number of Check Characters Specifies number of MSI/Plessey check characters to be calculated and verified. Check characters are always modulus 10. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired number of MSI/ Plessey check characters to be calculated and verified.

  • Page 358: Msi/Plessey Check Character Transmission

    MSI/Plessey Check Character Transmission Enables/disables transmission of optional MSI/Plessey check characters. This feature applies only when MSI/Plessey Check Character Calcu- lation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.

  • Page 359: Msi/Plessey Aim Id

    MSI/Plessey AIM ID This feature enables/disables transmission of the MSI/Plessey AIM sym- bology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 360: Msi/Plessey Label Id

    MSI/Plessey Label ID This feature specifies an MSI/Plessey label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is dis- abled.

  • Page 361: Msi/Plessey Length Control

    MSI/Plessey Length Control This feature specifies whether variable-length or fixed-length decoding will be set for MSI/Plessey. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 362: Msi/Plessey Maximum Label Length

    MSI/Plessey Maximum Label Length This feature specifies the maximum allowable length of an MSI/Plessey label. Length in this case includes check and data characters, but does not include start, stop or full ASCII shift characters. This feature applies when MSI/Plessey Length Control is set to variable-length decoding. Maximum label length should be greater than or equal to minimum label NOTE length.

  • Page 363: Msi/Plessey Minimum Label Length

    MSI/Plessey Minimum Label Length This feature specifies the minimum allowable length of an MSI/Plessey label. Length in this case includes check and data characters, but does not include start, stop or full ASCII shift characters. This applies when MSI/ Plessey Length Control is set to variable-length decoding. Minimum label length should be less than or equal to maximum label NOTE length.

  • Page 364: Msi/Plessey Fixed Length 1

    MSI/Plessey Fixed Length 1 This feature specifies MSI/Plessey first fixed length. This applies when MSI/Plessey Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET MSI/PLESSEY FIXED LENGTH 1 below.

  • Page 365: Msi/Plessey Fixed Length 2

    MSI/Plessey Fixed Length 2 This feature specifies MSI/Plessey second fixed length. This applies when MSI/Plessey Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 366: Msi/Plessey Stitching

    MSI/Plessey Stitching Enables/disables stitching for MSI/Plessey labels. When parts of an MSI/ Plessey bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met. To set this feature: 1.

  • Page 367: Standard 2 Of 5 Enable

    Standard 2 of 5 Enable Enables/disables the ability of the scanner to decode Standard 2 of 5 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 368: Standard 2 Of 5 Check Character Calculation

    Standard 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Standard 2 of 5 check character. If check character calculation is disabled, the risk is increased that a mis- read can occur. When disabled, any check character in a bar code is treated as data character.

  • Page 369: Standard 2 Of 5 Check Character Transmission

    Standard 2 of 5 Check Character Transmission Enables/disables transmission of an optional Standard 2 of 5 check charac- ter. This feature applies only when Standard 2 of 5 Check Charac- ter Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled.

  • Page 370: Standard 2 Of 5 Aim Id

    Standard 2 of 5 AIM ID This feature enables/disables transmission of the Standard 2 of 5 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 371: Standard 2 Of 5 Label Id

    Standard 2 of 5 Label ID This feature specifies an Standard 2 of 5 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.

  • Page 372: Standard 2 Of 5 Length Control

    Standard 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for 2 of 5. Standard To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.

  • Page 373: Standard 2 Of 5 Maximum Label Length

    Standard 2 of 5 Maximum Label Length This feature specifies the maximum allowable length of a Standard 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when Standard 2 of 5 Length Control is set to variable-length decoding.

  • Page 374: Standard 2 Of 5 Minimum Label Length

    Standard 2 of 5 Minimum Label Length This feature specifies the minimum allowable length of an Standard 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when Standard 2 of 5 Length Control is set to variable-length decoding.

  • Page 375: Standard 2 Of 5 Fixed Length 1

    Standard 2 of 5 Fixed Length 1 This feature specifies Standard 2 of 5 first fixed length. This applies when Standard 2 of 5 Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.

  • Page 376: Standard 2 Of 5 Fixed Length 2

    Standard 2 of 5 Fixed Length 2 This feature specifies Standard 2 of 5 second fixed length. This applies when Standard 2 of 5 Length Control is set to fixed- length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.

  • Page 377: Standard 2 Of 5 Stitching

    Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 labels. When parts of a Stan- dard 2 of 5 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
  • Page 378 NOTES ® Ω Ω 6-270 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 379: Controls And Indicators

    Appendix A LED/Beeper Indications & Controls Figure A-1 shows the operator’s controls and indicators. The descriptions following identify the use or function of each component. Figure A-1. Scanner and Scale Controls Green LED Yellow LED Volume/Tone Push Button Scale Zero Push Button Controls and Indicators The control panel consists of two indicator LEDs and two push buttons as...

  • Page 380: Indicator Leds

    Indicator LEDs The green LED indicates scanner status, and the yellow LED is primarily used to show scale status as described in Table A-1 below: Table A-1. Green and Yellow LED Functions DURATION COMMENT INDICATION The scale is at rest and reads zero weight. The Yellow LED on steady Scale at Zero scale is ready to weigh.
  • Page 381 Volume/Tone Push Button The Volume/Tone Push Button also performs multiple functions depend- ing upon the duration of time it is pressed: Volume changes made using the Volume/Tone Push Button are lost when the scanner is powered-down and are reset to the factory default setting. If you wish to permanently change the volume, use the special programming labels in Section 6, Programming.
  • Page 382 Table A-2. Volume/Tone Push Button Functions PRESS FUNCTION COMMENT DURATION Alternatively, the scanner can be awakened by: - Moving an object through the scan zone. Momentary (when Wakes scanner from Sleep - A weight change on the scale. scanner is asleep) Mode - Changing the ambient light.

  • Page 383: Scale Zero Push Button

    Scale Zero Push Button The Scale Zero Push Button is used for multiple functions as listed in Table A-3. The Scale Zero Push Button has no function in a “scanner only” model. NOTE Table A-3. Scale Zero Push Button Functions PRESS FUNCTION COMMENT...
  • Page 384 Calibration Switch Seal This seal allows you to secure the Calibration Switch and restrict access to it. If the calibration seal is broken or missing, you may be prohibited from operating the scale without recertification. Check local and state require- ments for specific restrictions.

  • Page 385: General Specifications

    Appendix B Cable Information Introduction The following pages contain pinout information, enabling you to create standard interface cables for use in interconnecting the scanner, scale, external handheld scanner, and POS terminal. General Specifications Wire Requirements • Cable length should not exceed 15 feet. •...

  • Page 386: Connector Hardware

    RS-232 Cable Pinout Scanner Connector Hardware RJ45, 10 Position Cable Pinout Table B-1. RS-232 Cable Pinouts PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup CTS in Clear To Send (input) No Connection RTS out Request To Send (output) RxD in Receive Data (Input) TxD out Transmit Data (output)

  • Page 387: Cable Pinout

    RS-232 Cable Pinout — continued Scale Connector Hardware RJ45, 10 Position Cable Pinout Table B-2. PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup CTS IN Clear To Send (input) No Connection RTS OUT Request To Send (output) RxD IN Receive Data (Input) TxD OUT Transmit Data (output) No Connection...

  • Page 388: Ibm Cable Pinout

    IBM Cable Pinout Scanner and Scale Connector Hardware RJ45, 10 Position Cable Pinout Table B-3 PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup No Connection No Connection Serial I/O B Serial Data - No Connection Serial I/O A Serial Data + No Connection +5V out +5V out...

  • Page 389: Ibm Usb Cable Pinout

    IBM USB Cable Pinout Scanner and Scale Connector Hardware RJ45, 10 Position Cable Pinout Table B-4 PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup No Connection No Connection USB D- USB D- No Connection USB D+ USB D+ No Connection +5V out +5V out Signal Ground...

  • Page 390: External Handheld Input

    Auxiliary Port External Handheld Input Connector Hardware RJ45, 10 Position Cable Pinout Table B-5 PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup CTS in Clear To Send (input) No Connection - Reserved RTS out Request To Send (output) RxD in Receive Data (Input) TxD out Transmit Data (output)

  • Page 391: Scanner And Scale

    EAS Interlock Connector Scanner and Scale Antenna Connections. Connect ONLY using approved cables approved by the manufacturer for this product. NOTE Connector Hardware RJ-4 Cable Pinout Table B-6 PIN # SIGNAL +5V Out EAS Out Speaker Out a. The “Speaker Out” line is an analog signal (5Vpp max), connected to one of the internal speaker termi- nals, intended to connect to an external amplifier to drive an external speaker.

  • Page 392: Power Cable

    Power Cable Connector Hardware 6 pin Molex Cable Pinout Table B-7 PIN # FUNCTION DESCRIPTION EARTH GND Earth Ground SIGNAL GND Signal Ground +5V IN +5V in No Connection No Connection +12V IN +12V in Remote Display Connector Hardware 4 pin SDL Cable Pinout Table B-8 PIN #...
  • Page 393 Appendix C Keypad Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 394 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 395 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 396 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 397 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 398 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 399 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 400 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
  • Page 401 Appendix D Host Commands Accepting Commands from an RS-232 Scanner Host The scanner responds to the following RS-232 commands: COMMAND ASCII COMMENT Enable Scanner 0x45 Disable Scanner 0x44 Reset Scanner 0x52 Not On File Indication 0x46 Long series of beeps Beep Good Read Tone 0x42 Beeps if Good Read Beep is enabled...
  • Page 402 NOTES ® Ω Ω Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 403: Factory Defaults

    Appendix E Factory Defaults The following table provides a listing of the most common factory settings for the interfaces shown. Table 5-1. Factory Default Settings Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable Double Read Timeout (600ms) (600ms) (600ms) (600ms) (600ms) (600ms)
  • Page 404 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable Scale Enforced Zero 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) Return 7 (RS-232 4 (RS-232 4 (RS-232 4 (RS-232 1 (IBM single Scale Interface Type SASI) SASI) SASI) Port 17)
  • Page 405 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable 1 (8 data 1 (8 data 1 (8 data 0 (7 data RS-232 Number of Data bits) bits) bits) bits) Bits 0 (1 stop 0 (1 stop 0 (1 stop 0 (1 stop RS-232 Number of Stop bit) bit)
  • Page 406 Single Cable RS-232 1 (enable) Use ETX Set Single Cable RS- 13 (CR) 232 ETX Character 0 (std Single Cable RS-232 protocol) Datalogic Extensions 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) UPC-A Enable ® Ω...
  • Page 407 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable UPC-A Number Sys- 0 (disable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) tem Character Trans- mission UPC-A Check Charac- 1 (enable) 1 (enable) 1 (enable) 0 (disable) 1 (enable) 1 (enable) ter Transmission Expand UPC-A to EAN-...
  • Page 408 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable UPC-E 128 Supplemen- 4500("E") 4500("E") 4300("C") 4500("E") tal Label ID 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) EAN-13 Enable EAN-13 First Character 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable)
  • Page 409 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable 4646 4646 4646 EAN-8 128 Supplemen- 4200 ("B") ("FF") ("FF") ("FF") tal Label ID 1 (Very 1 (Very 1 (Very 1 (Very 1 (Very 1 (Very Conserva- Conserva- Conserva- Conserva- Conserva- Conserva- EAN-8 Decoding Levels tive)
  • Page 410 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable 5258 5258 5258 RSS Expanded Label 4500 ("E") ("RX") ("RX") ("RX") RSS Expanded Length (variable) (variable) (variable) (variable) (variable) (variable) Control RSS Expanded Maxi- mum Label Length RSS Expanded Mini- mum Label Length RSS Expanded Fixed Length 1 RSS Expanded Fixed...
  • Page 411 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable Code 39 Fixed Length 1 Code 39 Fixed Length 2 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) Code 39 Stitching 1 (enable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable)
  • Page 412 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) Code 128 Stitching 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) EAN-128 Enable 1 (enable) 1 (enable) 0 (disable) EAN 128 AIM ID...
  • Page 413 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable Codabar Start Stop 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) Character Match Codabar Check Char- 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) 0 (disable) acter Calculation Codabar Check Char- 1 (enable)
  • Page 414 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) 1 (enable) Code 93 Stitching 0 (disable) 0 (disable) 0 (disable) 0 (disable) MSI/Plessey Enable MSI/Plessey Check 1 (enable) 1 (enable) 1 (enable) 1 (enable) Character Calculation...
  • Page 415 Wincor- Single RS-232 IBM 17 IBM USB Nixdorf Cable Standard 2 of 5 Label 5300 ("S") 5300 ("S") 5300 ("S") 5300 ("S") 5300 ("S") 5300 ("S") Standard 2 of 5 Length (variable) (variable) (variable) (variable) (variable) (variable) Control Standard 2 of 5 Maxi- mum Label Length Standard 2 of 5 Mini- mum Label Length...
  • Page 416 NOTES ® Ω Ω E-14 Magellan 8100/8100 and 8200 8200 Scanner...

  • Page 417: Handheld Data Format Requirements General

    Maximum label lengths will be enforced for label validation (i.e. labels longer than the maximum label size will not be validated). • Standard Datalogic formats generally use a single prefix character. The specific formats are provided below. Product Reference Guide...

  • Page 418: Datalogic Handheld Data Format Requirements

    Datalogic Handheld Data Format Requirements The following sections describe label transmission formats that are typi- cally observed in factory configurations of Datalogic handheld scanners. RSS-14 • Prefix must be ASCII characters ‘R4’ • Check character must be included in label •...

  • Page 419: Upc-A With 5-Digit Supplemental

    UPC-A with 5-Digit Supplemental • Number system must be included in label data. • Check digit must be included in label data and is assumed to be correct. • Prefix must be an ASCII character 'A' - total length including prefix must be 18.

  • Page 420: Upc-E With 2-Digit Supplemental

    UPC-E with 2-Digit Supplemental • Number system must be included in label data. • Check digit must be included in label data and is assumed to be correct. • Supplemental data is appended to base label. • Prefix must be an ASCII character 'E' - total length including pre- fix must be 11.

  • Page 421: Ean-8

    EAN-8 • Check digit must be included in label data and is assumed to be correct. • Prefix must be an ASCII characters 'FF' - total length including prefix must be 10. • Example: 'FF00210126'. EAN-8 with 2-Digit Supplemental • Check digit must be included in label data and is assumed to be correct.

  • Page 422: With 2-Digit Supplemental

    EAN-13 • Check digit must be included in label data and is assumed to be correct. • Prefix must be an ASCII character 'F'- total length including pre- fix must be 14. • Example: 'F1101234567891'. EAN-13 with 2-Digit Supplemental • Check digit must be included in label data and is assumed to be correct.

  • Page 423: Code 39-Pharmacode

    Code 39 • Check character must be included in label data. • Label length including start, stop and check characters and excluding prefix character must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type.

  • Page 424: Codabar

    Codabar • Check character must be included in label data. • Label length including check character and excluding prefix char- acter must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be an ASCII character '%'.

  • Page 425: Pdf417

    MSI/Plessey • Check character must be included in label data. • Label length including check character and excluding prefix char- acter must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be an ASCII character '@'.

  • Page 426: Aim Formats

    AIM Formats AIM specifies a 3-character string that is attached as a prefix to the label data for transmission. Because AIM specifies one identifier for UPC-A, UPC-E and EAN-13 labels, UPC-A, UPC-E and EAN-13 will be received from the handheld and transmitted by the scanner as EAN-13. The ']' character must be the first character received in the label transmission from the handheld.

  • Page 427: 2-Digit Supplemental

    2-Digit Supplemental • Supplemental data is appended to any EAN base label. • Prefix must be ASCII characters ']E1'. • length of Supplemental data including prefix must be 5. Total required length is 21 for EAN-13 and 16 for EAN-8. •...

  • Page 428: Code 128 Supplemental

    Code 128 Supplemental • Supplemental data is appended to any EAN base label. • Prefix must be ASCII characters ']C0'. • length of Supplemental data including prefix is variable but must be at least 9. • Examples: addon portion is bolded, data is underlined. UPC-A Code 128 addon ']E00060992011187]C08100000951' UPC-E Code 128 addon...

  • Page 429: Codabar

    Codabar • Check character must be included in label data. • Label length including check character and excluding prefix char- acters must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be ASCII characters ']F0'.

  • Page 430: Rss Expanded

    RSS-14 • Prefix must be ASCII characters ']e0'. • Check character must be included in label. • Label length excluding prefix characters must be 14 characters. • Example: ']e001044123456789'. RSS Expanded • Prefix must be ASCII characters ']e0'. • Label length excluding prefix characters must be at least 1 charac- ter.

  • Page 431: Code 128 / Ean128

    Code 128 / EAN128 • Prefix must be either ASCII characters ']C0', ']C1' or ']C2'. • Label length excluding prefix character must meet requirements imposed by the main scanner's fixed or variable label length con- trol for this symbology type. •...
  • Page 432 NOTES ® Ω Ω F-16 Magellan 8100/8100 and 8200 8200 Scanner...
  • Page 433 NOTES Product Reference Guide F-17...
  • Page 434 NOTES ® Ω Ω F-18 Magellan 8100/8100 and 8200 8200 Scanner...
  • Page 435 Codabar Minimum Label Length........6-234 Customizing Your Scanner’s Operation ....... 6-2 Codabar Start Stop Character Match ....... 6-227 Datalogic Handheld Data Format Requirements ....F-2 Codabar Start Stop Character Set........6-225 Decreasing-Load Test............5-12 Codabar Start Stop Character Transmission..... 6-224 Decreasing-Load Test............
  • Page 436 Double Read Timeout ............6-11 Grounding ................2-9 EAN 128 AIM ID............6-210 GTIN 2-Digit Supplemental Label ID......6-162 EAN 128 Label ID............6-211 GTIN 5-Digit Supplemental Label ID......6-163 EAN 13 Label ID............. 6-133 GTIN Code 128 Supplemental Label ID......6-164 EAN 8 Label ID...............
  • Page 437 Minimum Increment ............1-6 Proper Scanning Technique ..........3-2 Motion Test................. 5-3 Proper Weighing Technique ..........3-3 Motor Timeout..............6-15 Rated Weight Capacity ............1-6 MSI/Plessey AIM ID............6-251 Remote Display — Enable/Disable ........6-42 MSI/Plessey Check Character Calculation ....... 6-248 Remote Scale Display Placement/Installation .....
  • Page 438 Shift Test (Metric) ............. 5-14 UPC-E with 2-Digit Supplemental ........F-4 Shift Test ................5-9 UPC-E with 5-Digit Supplemental ........F-4 Single Cable RS-232 Datalogic Extensions....... 6-110 UPC-E with Code 128 Supplemental ........F-4 Single Cable RS-232 Options ..........6-99 UPC-E................F-10 Single Cable RS-232 RTS CTS Selection......
  • Page 439 ASCII Character Set The table on this page shows a set of ASCII characters and their corresponding Hex Values. The Hex Values in this table are needed for setting symbology specific label identifiers, as well as enabling custom prefix and suffix characters. ASCII ASCII ASCII...
  • Page 440 Fax: [39] (0) 39/6859496 Telephone: 44 (0) 1923 809500 Fax: 44 (0) 1923 809 505 www.scanning.datalogic.com Datalogic Scanning, Inc. 959 Terry Street Eugene, OR 97402 Telephone: (541) 683-5700 Fax: (541) 345-7140 ©2004 - 2007 Datalogic Scanning, Inc. R44-2721 (Rev. A) 5/07...

This manual is also suitable for:

Magellan 8100Magellan 8204Magellan 8101Magellan 8201Magellan 8102Magellan 8202 ... Show all

Table of Contents
