Datalogic Magellan 800i Product Reference Manual

On-counter presentation omnidirectional bar code reader
Hide thumbs Also See for Magellan 800i:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Quick Reference Manual

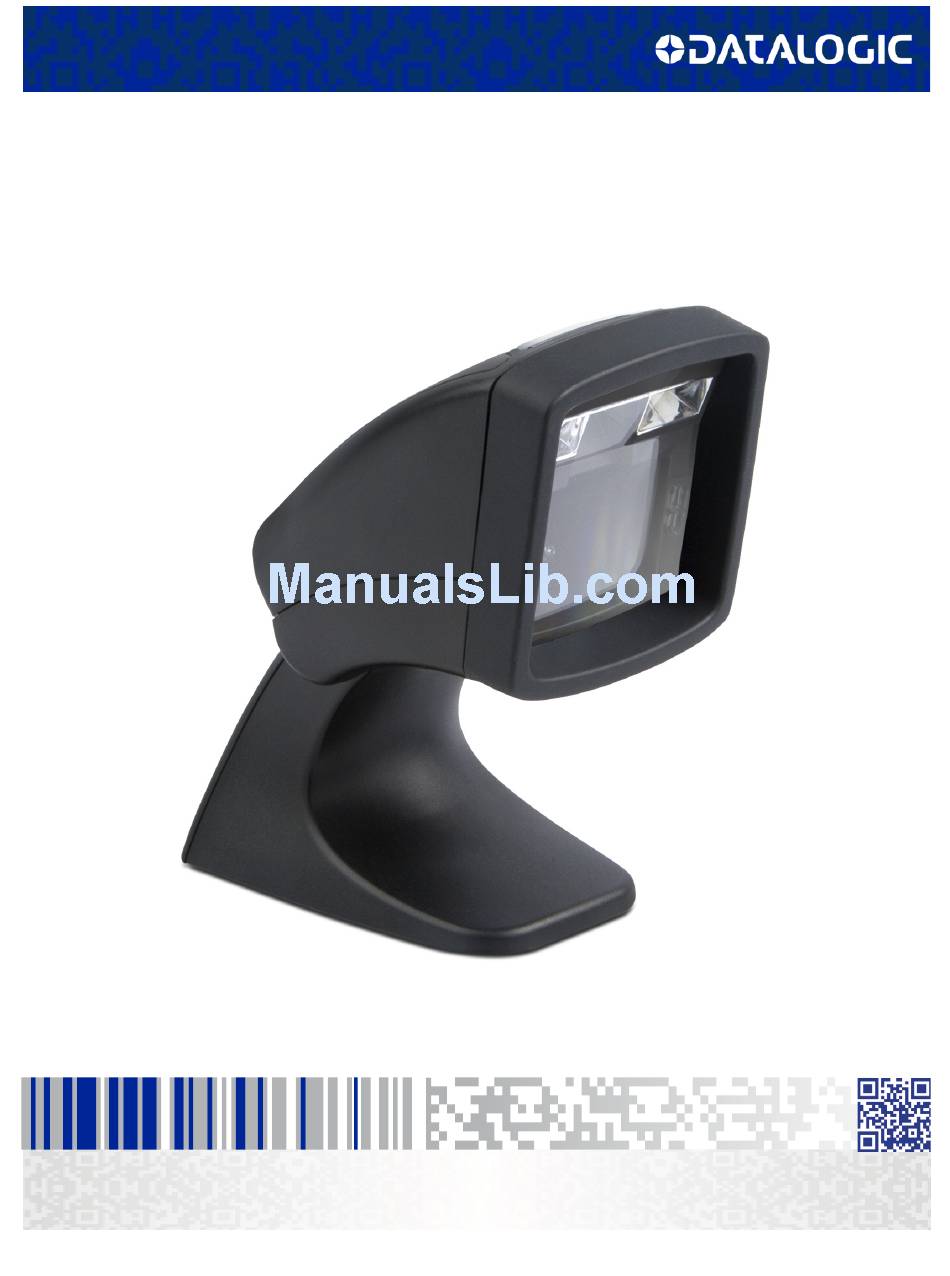

Magellan
800i
TM
On-Counter Presentation Omnidirectional
Bar Code Reader
Product Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Magellan 800i

Summary of Contents for Datalogic Magellan 800i

  • Page 1 Magellan 800i On-Counter Presentation Omnidirectional Bar Code Reader Product Reference Guide...
  • Page 2 Datalogic S.p.A. or its subsidiaries or affiliates ("Datalogic" or “Data- logic USA, Inc.”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1. GETTING STARTED..................................1 About This Manual ................................... 1 Manual Conventions ................................1 Connecting the Scanner ................................... 2 Programming ....................................3 Using the Programming Bar Codes ............................3 Resetting the Standard Product Defaults ............................. 3 LED and Beeper Indicators ................................4 Error Codes ......................................
  • Page 4 NAK Character ................................. 37 Retry on ACK NAK Timeout ............................38 ACK NAK Timeout Value ..............................38 ACK NAK Retry Count ..............................38 ACK NAK Error Handling ................................ 39 Transmission Failure Indication ............................ 39 USB-OEM Interface Features ..............................40 USB-OEM Device usage ..............................40 USB Keyboard ..................................
  • Page 5 5-Digit Addons Minimum Reads ...........................74 GS1 DataBar Omnidirectional ............................... 75 (Stacked Omnidirectional) ..............................75 Disable/Enable GS1 DataBar Omnidirectional ........................75 UCC/EAN 128 Emulation ............................... 75 Minimum Reads ..................................76 GS1 DataBar Expanded / Expanded Stacked ..........................77 Disable/Enable GS1 DataBar Expanded ..........................77 GS1-128 Emulation ................................
  • Page 6 Quiet Zones ................................... 100 Start/Stop Character Type ..............................100 Start/Stop Character Transmission ........................... 101 Start/Stop Character Match ..............................101 Codabar Stitching .................................. 101 Minimum Reads ..................................102 Code 93 ......................................103 Disable/Enable Code 93 ............................... 103 Length Control ..................................103 Code 93 Length 1, Length 2 Programming Instructions ....................
  • Page 7 Micro QR Code ..................................124 Disable/Enable Micro QR Code ........................... 124 Maxicode ....................................125 Disable/Enable Maxicode ............................125 Length Control ................................125 Maxicode Length 1, Length 2 Programming Instructions ..................126 Aztec ...................................... 127 Disable/Enable Aztec ..............................127 Length Control ................................127 Aztec Length 1, Length 2 Programming Instructions ....................
  • Page 8 Appendix G. SAMPLE SYMBOLS................................. 155 NOTES 1D Symbol Samples ..................................155 2D Sample Symbols ..................................156 Composite Sample Symbols ................................ 157 Magellan™ 800i Scanner...

  • Page 9: Chapter 1 Getting Started

    Chapter 1 Getting Started In stores where counter space is at a premium, the Magellan 800i Omni- Directional Imaging Scanner maintains an agressive scan zone that is necessar- ily tight against the scanner’s face. Scanning methods include a mixture of sweep and presentation styles, offering hands-free scanning for small, easily handled items and handheld scanning for bulkier objects.

  • Page 10: Connecting The Scanner

    Connecting the Scanner The scanner kit you ordered to match your interface should provide a compati- ble cable for your installation. Use the appropriate instructions below to con- nect the scanner to the terminal, PC or other host device. Upon completing the connection via the appropriate interface instructions below, proceed to the Interface Related Features section of this manual and...

  • Page 11: Programming

    Programming Programming The scanner is typically factory-configured with a set of default features stan- dard to the interface type you ordered. After scanning the interface bar code from the Interface Related Features section, you can select other options and customize your scanner through use of the instructions and programming bar codes available in that section and also the Data Editing Symbologies...

  • Page 12: Led And Beeper Indicators

    LED and Beeper Indicators The scanner’s beeper sounds and its green LED illuminates to indicate various functions or errors on the scanner. The tables below list these indications. One exception to the behaviors listed in the tables is that the scanner’s functions are programmable, and may or may not be turned on.

  • Page 13: Error Codes

    Error Codes Error Codes Upon startup, if the scanner flashes its indicator LED or sounds an unexpected series of beep tones (other than normal power-up indications), this means the scanner has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode.
  • Page 14 NOTES Magellan™ 800i Scanner...

  • Page 15: Chapter 2. General Features

    Chapter 2 General Features Double Read Timeout for Linear Labels This Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same linear label again (e.g. two identical items in succession). START / END PROGRAMMING BAR CODES 004D0A(CR) 0.1 Second...
  • Page 16 Enter/Exit Programming Mode Double Read Timeout for Linear Labels Double Read Timeout for Linear Labels — cont. 004D32(CR) 0.5 Second 004D3C(CR) 0.6 Second DEFAULT 004D46(CR) 0.7 Second 004D50(CR) 0.8 Second 004D5A(CR) 0.9 Second 004D64(CR) 1 Second Magellan™ 800i Scanner...

  • Page 17: Double Read Queue

    Enter/Exit Programming Mode Double Read Queue This feature controls the number of labels stored within the Double Read Time- out setting. This setting applies to Linear and 2D labels. Setting this feature to ‘one’ may allow the reading of adja- cent bar code labels within the scanner’s field of view.

  • Page 18: Double Read Timeout For 2D Labels

    Enter/Exit Programming Mode Double Read Timeout for 2D Labels Double Read Timeout for 2D Labels This Double Read Timeout feature specifies the minimum allowable time between consecutive good reads of the same PDF 417, Micro PDF 417 Data Matrix, QR Code, Maxicode, Aztec or Composite label. 03DF02(CR) 20 mSec 03DF04(CR)

  • Page 19: Sleep Mode

    Enter/Exit Programming Mode Sleep Mode This feature specifies the amount of time with no bar code reads before the scanner enters sleep mode. 03AF00(CR) Disable Sleep Mode 03AF01(CR) 15 Seconds 03AF02(CR) 30 Seconds 03AF04(CR) 1 Minute 03AF08(CR) 2 Minutes 03AF0C(CR) 3 Minutes 03AF10(CR) 4 Minutes...
  • Page 20 Enter/Exit Programming Mode Sleep Mode Sleep Mode — cont. 03AF1C(CR) 7 Minutes 03AF20(CR) 8 Minutes 03AF24(CR) 9 Minutes 03AF28(CR) 10 Minutes 03AF30(CR) 12 Minutes 03AF3C(CR) 15 Minutes 03AF78(CR) 30 Minutes 03AFF0(CR) 1 Hour Magellan™ 800i Scanner...

  • Page 21: Led And Beeper Indicators

    Enter/Exit Programming Mode LED and Beeper Indicators Power On Alert Disables or enables the indication (a single beep) that the scanner has finished all its power up tests and is now ready for operation. 020700(CR) Disable 020701(CR) Enable DEFAULT ERI Active State High This setting specifies the active-state polarity of the External Read Indicator signal to High;...

  • Page 22: Eri Timeout

    Enter/Exit Programming Mode LED and Beeper Indicators ERI Timeout Specifies the amount of time the External Read Indicator (ERI) signal is held active for a good read. Sets the ERI timeout duration using hex values from 000 to 255 in increments of ten milliseconds (10ms or 0.01 sec- onds).

  • Page 23: Good Read: When To Indicate

    Enter/Exit Programming Mode Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...

  • Page 24: Good Read Beep Control

    Enter/Exit Programming Mode LED and Beeper Indicators Good Read Beep Control This feature enables/disables the scanner’s ability to beep upon a successful decode of a bar code. 006700(CR) Disable 006701(CR) Enable DEFAULT Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high fre- quency, selectable from the list below.

  • Page 25: Good Read Beep Length

    Enter/Exit Programming Mode Good Read Beep Length Specifies the duration of a good read beep. 001603(CR) 30msec 001604(CR) 40msec 001605(CR) 50msec DEFAULT 001606(CR) 60msec 001608(CR) 80msec 00160A(CR) 100msec 00160C(CR) 120msec 00160E(CR) 140msec 001610(CR) 160msec Product Reference Guide...

  • Page 26: Good Read Beep Volume

    Enter/Exit Programming Mode LED and Beeper Indicators Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. 001900(CR) 001901(CR) Medium 001902(CR) High DEFAULT Magellan™ 800i Scanner...

  • Page 27: Scanning Features

    Enter/Exit Programming Mode Scanning Features Wake Up Intensity This feature indicates the percentage of ambient light change which will trigger the scanner to wake up from Sleep Mode. Lower settings provide greater sensi- tivity. The selectable range for this setting is 5% to 80%. 03B805(CR) 03B80A(CR) 03B80F(CR)
  • Page 28 Enter/Exit Programming Mode Scanning Features Wake Up Intensity — cont. 03B832(CR) 03B83C(CR) 03B846(CR) 03B850(CR) Magellan™ 800i Scanner...

  • Page 29: Image Capture

    Enter/Exit Programming Mode Image Capture Image capture requires that the scanner use the Standard RS- 232 or USB COM interface ONLY. The scanner reverts to normal reading mode after image capture NOTE and transfer. How to Capture an Image By default, images are captured as 640 x 480 (VGA) format with a minimum compression ratio, and are displayed via the host application software.

  • Page 30: Image Compression

    Enter/Exit Programming Mode Image Capture Image Compression Specifies the starting image compression factor for JPEG images. A higher num- ber specifies a higher quality image with less compression than a relative lower number for the same image. A value of 100 means minimal compression. A value of 1 means maximum compression at a loss of quality.

  • Page 31: Image Brightness

    Enter/Exit Programming Mode Image Brightness This feature sets the image brightness value. Follow these instructions to con- figure this feature: 1. Scan the START bar code. 2. Scan the Set Image Brightness bar code. 3. Turn to Alphanumeric Pad and scan the two digits (zero-padded) repre- senting the desired brightness in decimal notation.

  • Page 32: Cell Phone Mode

    Enter/Exit Programming Mode Cell Phone Mode Cell Phone Mode Cell phone mode is when the scanner is enabled to read barcodes on a cell phone display. This mode is set as follows: • Disabled - No cell phone mode • Auto - Will automatically go to cell phone mode •...

  • Page 33: Cell Phone Mode Sensitivity

    Enter/Exit Programming Mode Cell Phone Mode Sensitivity When Cell Phone Mode is configured for “Auto” for a scanner, it will go into cell phone mode based on what is seen in its field of view. (The illumination LED’s will “flutter” slightly when entering cell phone mode.) By default, medium sensi- tivity is selected.
  • Page 34 Enter/Exit Programming Mode Cell Phone Mode Cell Phone Mode Sensitivity-cont. 041F3D(CR) 042003(CR) Cell Phone Mode Sensitivity = High Sensitivity SCAN ALL THREE BARCODES 0421C0(CR) Magellan™ 800i Scanner...

  • Page 35: Chapter 3. Interface Related Features

    Chapter 3 Interface Related Features At the time of this writing, the reader supports the interfaces listed in . Select the desired interface type from the table, then reference the page number given for the customizable features section associated with each interface. RS-232 RS-232 Standard RS-232 Wincor-Nixdorf...

  • Page 36: Interface Selection

    Enter/Exit Programming Mode Interface Selection Interface Selection 000105(CR) RS-232 Standard 000112(CR) RS-232 Wincor-Nixdorf 000145(CR) USB-OEM 000135(CR) USB Keyboard 000147(CR) USB COM 00010D(CR) USB TEC Interface-specific settings are only valid for the active interface. NOTE Magellan™ 800i Scanner...

  • Page 37: Interface Features

    Enter/Exit Programming Mode Interface Features Obey/Ignore Host Commands When set to ignore host commands, the scanner will ignore all host commands except for the minimum set necessary to keep the interface active and transmit labels For normal operation of the interface, select Obey Host Commands. 04F400(CR) Obey Host Commands DEFAULT...

  • Page 38: Rs-232 Interface Features

    Enter/Exit Programming Mode Interface Features RS-232 Interface Features 001D04(CR) 1200 Baud 001D03(CR) 2400 Baud 001D02(CR) 4800 Baud 001D01(CR) 9600 Baud DEFAULT 001D00(CR) 19200 Baud 001D06(CR) 38400 Baud 001D07(CR) 57600 Baud 001D08(CR) 115200 Baud Magellan™ 800i Scanner...
  • Page 39 Enter/Exit Programming Mode RS-232 Interface Features - cont 009B00(CR) 7 Data Bits 009B01(CR) 8 Data Bits DEFAULT 002200(CR) 1 Stop Bit DEFAULT 002201(CR) 2 Stop Bits 001F00(CR) Parity = None DEFAULT 001F01(CR) Parity = Even 001F02(CR) Parity = Odd Product Reference Guide...

  • Page 40: Hardware Flow Control

    Enter/Exit Programming Mode Interface Features Hardware Flow Control The scanner transmits to the host regardless of any Disable Hardware Control — activity on the CTS line. The CTS signal controls transmission of data to the Enable CTS Flow Control — host.

  • Page 41: Intercharacter Delay

    Enter/Exit Programming Mode Intercharacter Delay Specifies a delay between the end of one character and the beginning of the next in 10-millisecond increments. This delay is inserted after each data char- acter transmitted. If the transmission speed is too high, the system may not be able to receive all characters.

  • Page 42: Software Flow Control

    Enter/Exit Programming Mode Interface Features Intercharacter Delay — cont. 009C08(CR) Interchar Delay = 80 msec 009C09(CR) Interchar Delay = 90 msec Software Flow Control Disables/Enables software control using XON/XOFF characters. 002100(CR) Disable Software Flow Control DEFAULT 002101(CR) Enable Software Flow Control Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiv- ing an ASCII BEL (07 hex).

  • Page 43: Beep On Not On File

    Enter/Exit Programming Mode Beep on Not on File Enables the scanner to cause beep to be sounded on receiving not-on-file (NOF) command. 045100(CR) Beep on Not On File = Disable 045101(CR) Beep on Not On File = Low Volume DEFAULT 045102(CR) Beep on Not On File = Medium Volume 045103(CR)

  • Page 44: Ack Nak Options

    Enter/Exit Programming Mode Interface Features ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...

  • Page 45: Ack Character

    Enter/Exit Programming Mode ACK Character Setting to previously defined characters such as XON, XOFF, or host commands con- flicts with normal operation of these char- NOTE acters; 8-bit data is not recognized when the Number of Data Bits = 7 ASCII charac- ters or any hex value from 0 to FF.

  • Page 46: Retry On Ack Nak Timeout

    Enter/Exit Programming Mode Interface Features Retry on ACK NAK Timeout Specifies the action the scanner performs after the configurable ACK NAK Tim- eout Value (set in the following feature) has expired. 032100(CR) Disable Retry on ACK NAK Timeout (Transmission failure occurs) 032101(CR) Enable Retry on ACK NAK Timeout DEFAULT...

  • Page 47: Ack Nak Error Handling

    Enter/Exit Programming Mode Interface Features ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrec- ognized host commands and communication errors such as parity or framing errors.

  • Page 48: Usb-Oem Interface Features

    Enter/Exit Programming Mode USB-OEM Interface Features USB-OEM Device usage The USB-OEM protocol allows for the scanner to be identified as one of two dif- ferent types of bar code scanners. Changing this value from the factory setting may be necessary when connecting two of the same scanner type to a POS sys- tem....
  • Page 49 Enter/Exit Programming Mode Interface Features USB Keyboard — cont. 030203(CR) Denmark 030204(CR) France 030205(CR) Germany 030206(CR) Italy 030207(CR) Norway 030208(CR) Portugal 030209(CR) Spain 03020A(CR) Sweden 03020B(CR) Switzerland Magellan™ 800i Scanner...
  • Page 50 Enter/Exit Programming Mode USB Keyboard — cont. 03020C(CR) Japan 106 Key 03020D(CR) Hungary 03020E(CR) Czech Republic 03020F(CR) Slovakia 030210(CR) Romania 030211(CR) Croatia 030212(CR) Poland Product Reference Guide...

  • Page 51: Caps Lock State

    Enter/Exit Programming Mode Interface Features Caps Lock State Choices are: send character data in normal format CAPS LOCK Off — send character data in reverse case. CAPS LOCK ON — send character data in shifted case. This only applies to SHIFT-LOCK MODE —...

  • Page 52: Control Characters

    Enter/Exit Programming Mode Control Characters Affects suffix and prefix characters. When disabled, only ASCII characters between 20H and 127H inclusive (space... delete) plus special characters 0DH (carriage return), 08H (backspace), 27H (ESC), 09H (right tab) and 0BH (left tab) are transmitted. Choices are: •...

  • Page 53: Intercharacter Delay

    Enter/Exit Programming Mode USB COM Interface Set-up Intercharacter Delay • If the transmission speed is too high, the system may not be able to receive all characters. You may need to adjust the delay to make the system work properly. Selectable from 00 to 99....
  • Page 54 NOTES Magellan™ 800i Scanner...

  • Page 55: Chapter 4. Data Editing

    Chapter 4 Data Editing Data Editing Overview These features are not supported by the USB-OEM interface. CAUTION When a bar code is scanned, additional information can be sent to the host computer along with the bar code data. This combination of bar code data and supplementary user-defined data is called a “message string.”...

  • Page 56: Global Prefix/Suffix

    Enter/Exit Programming Mode Global Prefix/Suffix • A prefix or suffix may be applied (reference the Symbologies chapter for these settings) across all symbologies (set via the Global features in this chapter). • You can add any character from the ASCII Character Set on page 159 (from 00-7F) on the inside back cover of this manual as a prefix, suffix or Label •...

  • Page 57: Aim Id

    Enter/Exit Programming Mode AIM ID AIM (Automatic Identification Manufacturers) label identifiers are assigned from a globally standardized list — as opposed to custom label ID characters you select yourself — and can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...

  • Page 58: Label Id

    Enter/Exit Programming Mode Label ID Label ID See the <cross-ref>“Label ID” section on page -135 for more information on setting this feature. 020500(CR) Label ID Transmission: Disable 020501(CR) Label ID Position: Before bar code Data DEFAULT 020502(CR) Label ID Position: After bar code Data 0024(CR) Set UPC-A Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex)
  • Page 59 Enter/Exit Programming Mode Label ID — cont. 002F(CR) Set UPC-E w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) 0030(CR) Set UPC-E w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) 0469(CR) Set UPC-E w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) 0026(CR)
  • Page 60 Enter/Exit Programming Mode Label ID Label ID — cont. 0031(CR) Set EAN-13 w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) 0032(CR) Set EAN-13 w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) 046F(CR) Set EAN-13 w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex)
  • Page 61 Enter/Exit Programming Mode Label ID — cont. 0563(CR) Set GTIN w/C128 addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: G8 (4738 hex) 04DA(CR) Set GS1 Omnidirectional Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: R4 (5234 hex) 04DB(CR) Set GS1 Expanded Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: RX (5258 hex) 0357(CR) Set Code GS1 DataBar Limited Label ID Character(s)
  • Page 62 Enter/Exit Programming Mode Label ID Label ID — cont. 0037(CR) Set Codabar Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: % (25 hex) 0038(CR) Set Code 93 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: & (26 hex) 0347(CR) Set Code 11 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: CE (4345 hex) 00BD(CR) Set MSI/Plessey Label ID Character(s)
  • Page 63 Enter/Exit Programming Mode Label ID — cont. For the 2D symbologies on this page, the Label ID is 4 bytes. The first 3 bytes are characters for the label ID. A 00 (hex) value in the first 3 bytes indicates the end of the label ID characters. The 4th byte is a control byte....

  • Page 64: Case Conversion

    Enter/Exit Programming Mode Case Conversion Label ID — cont. 0365(CR) Set GS1 DataBar Limited 2D Composite Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: RL (524C0000 hex) 0367(CR) Set GS1 DataBar Expanded 2D Composite Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: RX (52340000 hex) Case Conversion This feature can convert scanned bar code data to either all lower case (a...

  • Page 65: Character Conversion

    Enter/Exit Programming Mode Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to.
  • Page 66 Enter/Exit Programming Mode Character Conversion NOTES Magellan™ 800i Scanner...

  • Page 67: Chapter 5. Symbologies

    Chapter 5 Symbologies The scanner supports the following symbologies (bar code types). Options for each symbology are included in this chapter. Code 32 Italian Pharmac- UPC-A UPC-E Code 128 EAN-13 Interleaved 2 of 5 EAN-8/JAN-8 Codabar GS1 DataBar Omnidirectional Code 93 GS1 DataBar Expanded / MSI/Plessey Expanded Stacked...

  • Page 68: Upc-A

    Enter/Exit Programming Mode UPC-A UPC-A Disable/Enable UPC-A When disabled, the scanner will not read UPC-A bar codes. 02D000(CR) Disable UPC-A 02D001(CR) Enable UPC-A DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with UPC-A bar code data. 00B700(CR) Don’t Send Check Digit 00B701(CR)

  • Page 69: Expand Upc-A To Ean-13

    Enter/Exit Programming Mode Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. 004300(CR) Don’t Expand to EAN-13 DEFAULT 004301(CR) Expand to EAN-13 Number System Digit (NSD) Transmission This feature enables/disables transmission of UPC-A System Number.

  • Page 70: Upc-A Minimum Reads

    Enter/Exit Programming Mode UPC-A UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read. 006101(CR) Minimum = 1 Read DEFAULT 006102(CR) Minimum = 2 Reads 006103(CR) Minimum = 3 Reads 006104(CR)

  • Page 71: Upc-E

    Enter/Exit Programming Mode UPC-E The following options apply to the UPC-E symbology. Disable/Enable UPC-E When disabled, the scanner will not read UPC-E bar codes. 02D100(CR) Disable UPC-E 02D101(CR) Enable UPC-E DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with UPC-E bar code data. 004000(CR) Don’t Send Check Digit 004001(CR)

  • Page 72: Number System Digit

    Enter/Exit Programming Mode UPC-E Number System Digit The Number System Digit (NSD) which is always a zero (0) in the leading posi- tion can be optionally included (or not) with scanned bar code data. 024800(CR) Exclude Number System Digit 024801(CR) Include Number System Digit DEFAULT Expand to UPC-E to UPC-A...

  • Page 73: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read. 006201(CR) Minimum = 1 Read 006202(CR) Minimum = 2 Reads DEFAULT 006203(CR) Minimum = 3 Reads 006204(CR) Minimum = 4 Reads GTIN...

  • Page 74: Disable/Enable Ean-13

    Enter/Exit Programming Mode EAN-13 EAN-13 The following options apply to the EAN-13 symbology. Disable/Enable EAN-13 Enables/disables ability of scanner to decode EAN/JAN13 labels. 02D300(CR) Disable EAN-13 02D301(CR) Enable EAN-13 DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with EAN-13 bar code data. 00B900(CR) Don’t Send Check Digit 00B901(CR)

  • Page 75: Isbn

    Enter/Exit Programming Mode ISBN When enabled, this feature truncates the leading three digits from labels that contain ISBN (International Standard Book Number) and appends an ISBN check character to the end of the label. These codes are used for books and maga- zines.

  • Page 76: Ean-8/Jan-8

    Enter/Exit Programming Mode EAN-8/JAN-8 EAN-8/JAN-8 The following options apply to the EAN-8/JAN-8 symbology. Disable/Enable EAN-8/JAN-8 Enables/disables ability of scanner to decode EAN/JAN-8 labels. 02D200(CR) Disable EAN-8 02D201(CR) Enable EAN-8 DEFAULT Check Digit Transmission Enable this option to transmit the check Digit along with EAN-8/JAN-8 bar code data.

  • Page 77: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times an EAN-8 label must be decoded before it is accepted as good read. 006501(CR) Minimum = 1 Read DEFAULT 006502(CR) Minimum = 2 Reads 006503(CR) Minimum = 3 Reads 006504(CR) Minimum = 4 Reads Product Reference Guide...

  • Page 78: Ean Two-Label

    Enter/Exit Programming Mode EAN Two-Label EAN Two-Label Enables/disables the ability of the scanner to decode EAN two-label pairs. 004400(CR) Disable EAN Two-Label 004401(CR) Enable EAN Two-Label EAN Two-Label Combined Transmission Enables/disables the transmitting of an EAN two label pair as one label. 02E200(CR) EAN Two-Label Combined Transmission = Disable DEFAULT...

  • Page 79: Price Weight Check Digit

    Enter/Exit Programming Mode Price Weight Check Digit Enables/disables calculation and verification of price/weight check digits. Applies to all UPC-A labels with a number system digit of 2 and EAN/JAN 13 labels with a Flag1 digit of 2 NOTE Here are the available options for this feature: •...

  • Page 80: Add-Ons

    Enter/Exit Programming Mode Add-ons Add-ons Add-ons (or supplemental characters) are commonly added to the end of UPC/ EAN bar codes. The scanner will read the add-ons if they are enabled and in the field of view. Three add-on types are supported: 2-digit, 5-digit and Code 128 add-ons.

  • Page 81: 2-Digit Addons Minimum Reads

    Enter/Exit Programming Mode Add Ons- cont. 051101(CR) Enable Optional 5-Digit Add-ons 051200(CR) Disable Optional Code 128 Add-ons DEFAULT 051201(CR) Enable Optional Code 128 Add-ons If a UPC/EAN base label and a P2 addon are both decoded, the scanner will transmit the base label and add-on.

  • Page 82: Magellan™ 800I Scanner

    Enter/Exit Programming Mode Add-ons 5-Digit Addons Minimum Reads This setting configures the minimum number of times a 5-digit addon must decode before it is marked valid. 007D01(CR) Minimum = 1 Read DEFAULT 007D02(CR) Minimum = 2 Reads 007D03(CR) Minimum = 3 Reads 007D04(CR) Minimum = 4 Reads Magellan™...

  • Page 83: Gs1 Databar Omnidirectional

    Enter/Exit Programming Mode GS1 DataBar Omnidirectional (Stacked Omnidirectional) The following options apply to the GS1 DataBar Omnidirectional symbology and are only functional if the value-added feature for GS1 is activated. Disable/Enable GS1 DataBar Omnidirectional When this feature is disabled, the scanner will not read GS1 DataBar Omnidirec- tional bar codes.

  • Page 84: Minimum Reads

    Enter/Exit Programming Mode GS1 DataBar Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Omnidirectional label must be decoded before it is accepted as good read. 04D201(CR) Minimum = 1 Read DEFAULT 04D202(CR) Minimum = 2 Reads 04D203(CR) Minimum = 3 Reads 04D204(CR)

  • Page 85: Gs1 Databar Expanded / Expanded Stacked

    Enter/Exit Programming Mode GS1 DataBar Expanded / Expanded Stacked The following options apply to the GS1 DataBar Expanded symbology and are only functional if the value-added feature for GS1 is activated. Disable/Enable GS1 DataBar Expanded When this feature is disabled, the scanner will not read GS1 DataBar Expanded bar codes.

  • Page 86: Length Control

    Enter/Exit Programming Mode GS1 DataBar Expanded / Expanded Stacked Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 87: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Expanded label must be decoded before it is accepted as good read. 04D301(CR) Minimum = 1 Read DEFAULT 04D302(CR) Minimum = 2 Reads 04D303(CR) Minimum = 3 Reads 04D304(CR)

  • Page 88: Coupon Read Control

    Enter/Exit Programming Mode GS1 DataBar Expanded / Expanded Stacked Coupon Read Control This feature controls coupon reading. UPCA labels that start with a ' 5 ' are defined as cou- pon labels. EAN13 labels that start with ' 9 9' are defined as NOTE coupon labels.

  • Page 89: Gs1 Databar Limited

    Enter/Exit Programming Mode GS1 DataBar Limited The following options apply to the GS1 DataBar Limited symbology. Disable/Enable GS1 DataBar Limited When this feature is disabled, the scanner will not read GS1 DataBar Limited bar codes. 035400(CR) Disable GS1 DataBar Limited DEFAULT 035401(CR) Enable GS1 DataBar Limited...

  • Page 90: Minimum Reads

    Enter/Exit Programming Mode GS1 DataBar Limited Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Limited label must be decoded before it is accepted as good read. 035501(CR) Minimum = 1 Read DEFAULT 035502(CR) Minimum = 2 Reads 035503(CR) Minimum = 3 Reads 035504(CR)

  • Page 91: Code 39

    Enter/Exit Programming Mode Code 39 The following options apply to the Code 39 symbology. Disable/Enable Code 39 When this feature is disabled, the scanner will not read Code 39 bar codes. 008E00(CR) Disable Code 39 008E01(CR) Enable Code 39 DEFAULT Check Character Calculation When enabled, the scanner will calculate the check character of the labels.

  • Page 92: Check Character Transmit

    Enter/Exit Programming Mode Code 39 Check Character Transmit Enable this option to transmit the check character with scanned bar code data. 008A00(CR) Disable Check Char Transmission 008A01(CR) Enable Check Char Transmission DEFAULT Start/Stop Characters Enables/disables transmission of Code 39 start and stop characters. 022400(CR) Don’t Transmit Start/Stop Characters DEFAULT...

  • Page 93: Code 39 Full Ascii

    Enter/Exit Programming Mode Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters 022F00(CR) Disable Code 39 Full ASCII DEFAULT 022F01(CR) Enable Code 39 Full ASCII Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding —...

  • Page 94: Code 39 Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode Code 39 Code 39 Length 1, Length 2 Programming Instructions See page 136for detailed instructions on setting this feature. For Code 39 bar codes, all check, data and full ASCII shift characters are included in the length calculations. Start/Stop characters are NOTE not included.

  • Page 95: Code 39 Stitching

    Enter/Exit Programming Mode Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 96: Code 32 Italian Pharmacode

    Enter/Exit Programming Mode Code 32 Italian Pharmacode Code 32 Italian Pharmacode The following options apply to the Code 32 Italian Pharmacode symbology. The feature, Disable/Enable Code 39 on page 5-83, must also be enabled for the scanner to read Pharmacode 39 labels. Disable/Enable Code 32 Italian Pharmacode When this feature is disabled, the scanner will not read Code 32 Italian Pharma- code bar codes.

  • Page 97: Check Character Transmit

    Enter/Exit Programming Mode Check Character Transmit Enable this option to transmit the check character with scanned bar code data. 00EF00(CR) Disable Check Char Transmission DEFAULT 00EF01(CR) Enable Check Char Transmission Code 128 The following options apply to the Code 128 symbology. Disable/Enable Code 128 When this feature is disabled, the scanner will not read Code 128 bar codes.

  • Page 98: Disable/Enable Ean 128

    Enter/Exit Programming Mode Code 128 Disable/Enable EAN 128 Enables/disables ability of scanner to translate EAN128 labels to the EAN128 data format. 02D800(CR) Transmit EAN128 labels in Code128 data format 02D801(CR) Transmit EAN128 labels in EAN128 data format DEFAULT Transmit Function Characters Enables/disables transmission of Code128 function characters 1, 2, 3, and 4....

  • Page 99: Length Control

    Enter/Exit Programming Mode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 100: Code 128 Conversion To Code 39

    Enter/Exit Programming Mode Code 128 Code 128 Conversion to Code 39 Enables/disables expansion of Code 128 labels to Code 39. When enabled, the label identifier for a Code128 label shall be set to Code 39 and all Code 39 for- matting control shall be applied to the label.

  • Page 101: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. 006F01(CR) Minimum = 1 Read DEFAULT 006F02(CR) Minimum = 2 Reads 006F03(CR) Minimum = 3 Reads 006F04(CR) Minimum = 4 Reads...

  • Page 102: Interleaved 2 Of 5

    Enter/Exit Programming Mode Interleaved 2 of 5 Interleaved 2 of 5 The following options apply to the Interleaved 2 of 5 (I 2 of 5) symbology. Disable/Enable Interleaved 2 of 5 When this feature is disabled, the scanner will not read Interleaved 2 of 5 bar codes.

  • Page 103: Check Digit Transmit

    Enter/Exit Programming Mode Check Digit Transmit Enable this option to transmit the check digit with scanned bar code data. Applies when the feature Check Digit Calculation on page 5-94 is enabled. 008B00(CR) Disable Check Digit Calculation 008B01(CR) Enable Check Digit Calculation DEFAULT Length Control When fixed length decoding is enabled, the scanner...

  • Page 104: Interleaved 2 Of 5 Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode Interleaved 2 of 5 Interleaved 2 of 5 Length 1, Length 2 Programming Instructions See page 136for detailed instructions on setting this feature For Interleaved 2 of 5 bar codes, lengths must be an even number. Additionally, all check and data charac- ters are included in the length calcula- NOTE tions.

  • Page 105: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times an Interleaved 2 of 5 label must be decoded before it is accepted as good read. 006D01(CR) Minimum = 1 Read DEFAULT 006D02(CR) Minimum = 2 Reads 006D03(CR) Minimum = 3 Reads 006D04(CR)

  • Page 106: Check Character Verification

    Enter/Exit Programming Mode Codabar Check Character Verification When enabled, the scanner will verify the check character of the labels. When disabled, any check characters in a label are treated as data characters 007100(CR) Disable Check Char Verification DEFAULT 007101(CR) Enable Check Char Verification Check Character Transmit Enable this option to transmit the check character with scanned bar code data.

  • Page 107: Length Control

    Enter/Exit Programming Mode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 108: Quiet Zones

    Enter/Exit Programming Mode Codabar Quiet Zones This feature enable/disables the requirement that quiet zones must be present for Codabar bar codes. 068D00(CR) Don’t require Quiet Zones DEFAULT 068D01(CR) Require Quiet Zones Start/Stop Character Type Codabar has four pairs of Start/Stop patterns. Select one pair to match your application.

  • Page 109: Start/Stop Character Transmission

    Enter/Exit Programming Mode Start/Stop Character Transmission The transmission of start and end characters of Codabar is selected below. 009300(CR) Disable Start/Stop Char Transmission 009301(CR) Enable Start/Stop Char Transmission DEFAULT Start/Stop Character Match This feature enables/disables the requirement that start and stop characters match 023200(CR) Disable Start/Stop Char Match...

  • Page 110: Minimum Reads

    Enter/Exit Programming Mode Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as a good read. 006C01(CR) Minimum = 1 Read DEFAULT 006C02(CR) Minimum = 2 Reads 006C03(CR) Minimum = 3 Reads 006C04(CR)

  • Page 111: Code 93

    Enter/Exit Programming Mode Code 93 The following options apply to the Code 93 symbology. Disable/Enable Code 93 When this feature is disabled, the scanner will not read Code 93 bar codes. 009100(CR) Disable Code 93 DEFAULT 009101(CR) Enable Code 93 Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding —...

  • Page 112: Code 93 Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode Code 93 Code 93 Length 1, Length 2 Programming Instructions See page 136for detailed instructions on setting this feature. For Code 93 bar codes, only the data characters are included in the length calculations. NOTE 0685(CR) Set Length 1 DEFAULT SETTING FOR THIS FEATURE: 01 0686(CR) Set Length 2...

  • Page 113: Minimum Reads

    Enter/Exit Programming Mode Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as a good read. 006E01(CR) Minimum = 1 Read DEFAULT 006E02(CR) Minimum = 2 Reads 006E03(CR) Minimum = 3 Reads 006E04(CR)

  • Page 114: Check Digit Verification

    Enter/Exit Programming Mode MSI/Plessey Check Digit Verification This feature specifies whether one or two check digits are to be calculated and verified. When disabled, any check characters in a label are treated as data characters. 021600(CR) Disable Check Digit Verification 021601(CR) Enable Check Digit Verification DEFAULT...

  • Page 115: Length Control

    Enter/Exit Programming Mode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 116: Msi/Plessey Stitching

    Enter/Exit Programming Mode MSI/Plessey MSI/Plessey Stitching Enables/disables stitching for MSI/Plessey bar codes. When parts of an MSI/ Plessey label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 117: Standard 2 Of 5

    Enter/Exit Programming Mode Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Disable/Enable Standard 2 of 5 When this feature is disabled, the scanner will not read Standard 2 of 5 bar codes. 049400(CR) Disable Std 2 of 5 DEFAULT 049401(CR)

  • Page 118: Length Control

    Enter/Exit Programming Mode Standard 2 of 5 Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 119: Standard 2 Of 5 Stitching

    Enter/Exit Programming Mode Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 bar codes. When parts of a Stan- dard 2 of 5 label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 120: Code 11

    Enter/Exit Programming Mode Code 11 Code 11 The following options apply to the Code 11 symbology. Disable/Enable Code 11 Enables/disables ability of scanner to decode Code 11 labels. 034200(CR) Disable Code 11 DEFAULT 034201(CR) Enable EAN-8 Check Character Transmission Enables/disables transmission of Code 11 check characters. 034100(CR) Don’t Send Check Digit DEFAULT...

  • Page 121: Length Control

    Enter/Exit Programming Mode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 122: Minimum Reads

    Enter/Exit Programming Mode Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read. 034301(CR) Minimum = 1 Read DEFAULT 034302(CR) Minimum = 2 Reads 034303(CR) Minimum = 3 Reads 034304(CR)

  • Page 123: Chapter 6. 2D Symbologies

    Chapter 6 2D Symbologies The features in this section are available ONLY for models with 2D features activated. NOTE 2D Symbologies The scanner supports the 2D symbologies (bar code types) listed below. Avail- able options for each 2D symbology are included in this chapter. PDF 417 QR Code Micro PDF 417...

  • Page 124: Pdf 417

    Enter/Exit Programming Mode 2D Symbologies PDF 417 Disable/Enable PDF 417 When disabled, the scanner will not read PDF 417 bar codes. 05A100(CR) Disable PDF 417 05A101(CR) Enable PDF 417 DEFAULT Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding —...

  • Page 125: Pdf 417 Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 05A300(CR) Variable Length Decoding DEFAULT 05A301(CR) Fixed Length Decoding PDF 417 Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Alphanumeric Pad and scan the four digits (zero-padded) repre- senting the length.

  • Page 126: Micro Pdf 417

    Enter/Exit Programming Mode 2D Symbologies Micro PDF 417 Disable/Enable Micro PDF 417 When disabled, the scanner will not read Micro PDF 417 bar codes. 034E00(CR) Disable Micro PDF 417 DEFAULT 034E01(CR) Enable Micro PDF 417 Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding —...

  • Page 127: Micro Pdf 417 Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 5. Set Length 2 to the maximum length by following the Micro PDF 417 Length 1, Length 2 Programming Instructions below. 035B00(CR) Variable Length Decoding DEFAULT 035B01(CR) Fixed Length Decoding Micro PDF 417 Length 1, Length 2 Programming Instructions 1.

  • Page 128: Datamatrix

    Enter/Exit Programming Mode 2D Symbologies Datamatrix Disable/Enable Datamatrix When disabled, the scanner will not read Datamatrix bar codes. 010000(CR) Disable Datamatrix DEFAULT 010001(CR) Enable Datamatrix Dot Matrix Datamatrix Labels When enabled, the scanner will read Datamatrix labels ink printed with ROUND, dot matrix modules.
  • Page 129 Enter/Exit Programming Mode Configuring Fixed Length Decoding: 1. Scan the START bar code. 2. Scan the Fixed Length Decoding bar code. 3. Scan the END bar code. 4. Set Length 1 to the first fixed length by following the Length 1, Length 2 Programming Instructions below.

  • Page 130: Datamatrix Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 2D Symbologies Datamatrix Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Alphanumeric Pad and scan the three digits (zero-padded) repre- senting the length.

  • Page 131: Length Control

    Enter/Exit Programming Mode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...

  • Page 132: Qr Code Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 2D Symbologies QR Code Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Alphanumeric Pad and scan the four digits (zero-padded) repre- senting the length.

  • Page 133: Maxicode

    Enter/Exit Programming Mode Maxicode Disable/Enable Maxicode When disabled, the scanner will not read Maxicode labels. 03D000(CR) Disable Maxicode DEFAULT 03D001(CR) Enable Maxicode Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths.

  • Page 134: Maxicode Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 2D Symbologies 03D200(CR) Variable Length Decoding DEFAULT 03D201(CR) Fixed Length Decoding Maxicode Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3.

  • Page 135: Aztec

    Enter/Exit Programming Mode Aztec Disable/Enable Aztec When disabled, the scanner will not read Aztec labels. 043000(CR) Disable Aztec DEFAULT 043001(CR) Enable Aztec Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths.

  • Page 136: Aztec Length 1, Length 2 Programming Instructions

    Enter/Exit Programming Mode 2D Symbologies 043200(CR) Variable Length Decoding DEFAULT 043201(CR) Fixed Length Decoding Aztec Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3.

  • Page 137: Composite Labels

    Enter/Exit Programming Mode Composite Labels Disable/Enable GS1 DataBar Omnidirectional 2D Component When enabled, if a GS1 DataBar Omnidirectional label is decoded which has the 2D linkage flag set, the 2D component must also be decoded or the base label will be discarded. When disabled, only the GS1 DataBar Omnidirectional base label will be decoded and transmitted regardless of the state of the linkage flag.

  • Page 138: Disable/Enable Gs1 Databar Limited 2D Component

    Enter/Exit Programming Mode 2D Symbologies Disable/Enable GS1 DataBar Limited 2D Component When enabled, if a GS1 DataBar Limited label is decoded which has the 2D link- age flag set, the 2D component must also be decoded or the base label will be discarded.

  • Page 139: Chapter 7. Advanced Decoding Features

    Chapter 7 Advanced Decoding Features Pharmacy Patterns Enables/disables using the pharmacy patterns. START / END PROGRAMMING BAR CODES 03C600(CR) Pharmacy Patterns = Disable DEFAULT 03C601(CR) Pharmacy Patterns = Enable Pharmacy patterns are VSL (1D) patterns that are almost exclusively in the fence orientation. This loses almost all omni capability, but gains a much denser fence pattern and gives a much better ability to read highly truncated NOTE...

  • Page 140: Inverse Label Reading

    Enter/Exit Programming Mode Inverse Label Reading Inverse Label Reading This controls the method of reading inverse labels (white label on black back- ground). This feature is only available for GS1 DataBar and 2D symbolo- gies. NOTE 040C00(CR) 2D Read Mode = Reads only normal labels DEFAULT 040C01(CR) 2D Read Mode = Reads both normal and inverse labels...

  • Page 141: Chapter 8. References

    Chapter 8 References This section contains explanations and examples of selected bar code features. See the programming sections for the actual bar code labels used to configure the reader. Product Reference Guide...

  • Page 142: Global Prefix/Suffix

    Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indi- cated in Figure 3. Figure 3. Prefix and Suffix Positions OR...

  • Page 143: Label Id

    Label ID Label ID A Label ID is used to identify a bar code (symbology) type. See Appendix D, Default Settings, for a listing for common symbologies. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.

  • Page 144: Length Control

    Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding — ner will decode a bar code if the label length falls in the range of the configu- rable minimum and maximum length.

  • Page 145: Appendix A. Product Specifications

    Appendix A Product Specifications Optical and Read Performance Parameters Parameter Specification Scan Volume 60 cubic inches Scan Pattern 140 Scan Lines Scan Rate ~1456 scan lines/second Minimum Resolution 5 mil 0 - 5.5” Depth of Field (100% UPC Labels) Minimum Print Contrast Ratio Skew (Yaw) ±...

  • Page 146: Scanner Dimensions

    Scanner Dimensions 76mm 151mm 98.4mm 71.3mm 48.7mm 35.4mm 109.1mm Magellan™ 800i Scanner...

  • Page 147: Physical Properties

    Physical Properties Physical Properties Parameter Specification Dimensions (Scanner w/ 76mm x 151mm x 109.1mm Base Station): Weight 10.5 oz. Electrical Parameters Parameter Specification Operating Voltage Input voltage 4.5 to 5.5 VDC Input Current Operating (idle) <350mA Operating (label read) <400 mA Environmental Parameters Parameter Specification...
  • Page 148 NOTES Magellan™ 800i Scanner...

  • Page 149: Appendix B Cable Pinouts

    Appendix B Cable Pinouts Standard Cable Pinouts (Primary Interface Cables) RS-232 1 2 CTS 10 Position RJ 3 4 RTS 5 RXD 6 TXD (Scanner End) Pin 1 7 8 VCC IN (5V ONLY) 9 GND Product Reference Guide...

  • Page 150: Usb-Oem, Usb Keyboard, Usb Com & Usb Tec

    USB-OEM, USB Keyboard , USB COM & USB TEC 1 D+ 2  10 Position RJ 3 D- 4  5 6  (Scanner End) Pin 1 7 8 VBUS_VIN 9 GND External Read Indicator (ERI) This feature is available only through use of a special cable.

  • Page 151: Appendix C Alphanumeric Pad

    Appendix C Alphanumeric Pad Product Reference Guide...
  • Page 152 For numeric entry sequences, the scan- ner will announce the number of digits remaining to be entered after each label read. NOTE Magellan™ 800i Scanner...

  • Page 153: Alphanumeric Pad

    Alphanumeric Pad Product Reference Guide...
  • Page 154 NOTES Magellan™ 800i Scanner...

  • Page 155: Appendix D Default Settings

    Appendix D Default Settings Defaults by Symbology The following is a partial list of key settings for each symbology type. Checksum Checksum Read Label Code Type Verification Transmission Enable Enable Enable UPC-A UPC-E EAN-13 EAN-8 GS1 DataBar Omnidirectional GS1 Expanded Code 39 PharmaCode 39 Code 128...
  • Page 156 Checksum Checksum Read Label Code Type Verification Transmission Enable Enable Enable QR Code Maxicode Aztec GS1 DataBar Omnidirectional 2D Com- posite GS1 DataBar Expanded 2D Composite GS1 DataBar Limited 2D Composite Magellan™ 800i Scanner...

  • Page 157: Interface Default Exceptions

    Interface Default Exceptions Interface Default Exceptions The factory default settings indicated in the programming sections (in bold text) reflect factory configuration for the RS-232 standard interface. The fol- lowing tables list default exceptions by interface for the remaining available interfaces. RS-232 Wincor/Nixdorf Parameter Default Setting...
  • Page 158 NOTES Magellan™ 800i Scanner...

  • Page 159: Appendix E. Usb Keyboard Function Key Mappings

    Appendix E USB Keyboard Function Key Mappings USB Function Key Usage Map Modifier/ ASCII Key value Usage Name Scancode ALT right Make 40h 00h ALT right Break 00h 00h 00h 44h 00h 45h GUI right Make 80h 00h GUI right Break 00h 00h CTRL right Make 10h 00h...
  • Page 160 NOTES Magellan™ 800i Scanner...

  • Page 161: Appendix F Host Commands

    Appendix F Host Commands Host Commands Supported by RS-232 and USB COM Interfaces The scanner responds to the following host commands: COMMAND ASCII COMMENT Enable Scanner 0x45 “Normal operating mode” Disable “Illumination disabled and 0x44 Scanner Green LED Flashing” Reset Scanner 0x52 “Scanner resets and emits a single beep.”...
  • Page 162 COMMAND ASCII COMMENT C is an ASCII “C” character ‘C’ 0x43 Image Capture <P><\x04><p><S><B><C> Where: ASCII <P>: Host Command Preamble Charac- ‘P’ 0x50 0x04: Byte Count. (Fixed Value). 0x04 <p>: Image Capture Command Charac- ‘p’ 0x70 <S>: Size (640x480 only) ‘S’...

  • Page 163: Appendix G Sample Symbols

    Appendix G Sample Symbols 1D Symbol Samples Interleaved 2 of 5 UPC-A 0 1234567890 1234567890 Code 128 Code 128 EAN-13 9 780330 290951 Code 39 BC321 Codabar A13579B Code 93 123456-9$ Product Reference Guide...

  • Page 164: 2D Sample Symbols

    2D Sample Symbols Standard 2 of 5 GS1 DataBar Omnidirectional (01)00123456789012 GS1 DataBar Expanded 0100123456789050 GS1 DataBar Limited (01)16543210987654 Magellan™ 800i Scanner...

  • Page 165: Composite Sample Symbols

    Composite Sample Symbols Composite Sample Symbols PDF 417 A12B3C Micro PDF 417 BV17453 Datamatrix 1314H17LL QR Code 35900G9 Maxicode 111TUVCCIUL7-1 Aztec This is an Aztec Code Product Reference Guide...
  • Page 166 GS1 DataBar Limited Composite GS1 DataBar Truncated Composite Magellan™ 800i Scanner...
  • Page 167 ASCII Character Set The table on this page shows a set of ASCII characters and their corresponding Hex Values. The Hex Values in this table are needed for setting symbology specific label identifiers, as well as enabling custom prefix and suffix characters. ASCII ASCII ASCII...
