ï Rapid charging with the BC-119N+AD-103
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-103 charger adapter
• An AC adapter (not supplied with BC-119N depending on
version) or the DC cable (OPC-515L/CP-17L)
BP-224
AC adapter
(Not supplied with
some versions.)
OPC-515L (for 13.8 V power source) or
CP-17L (for 12 V cigarette lighter socket)
should be purchased separately
IC-M31
AD-103 charger
adapter is installed
in BC-119N.
BATTERY CHARGING

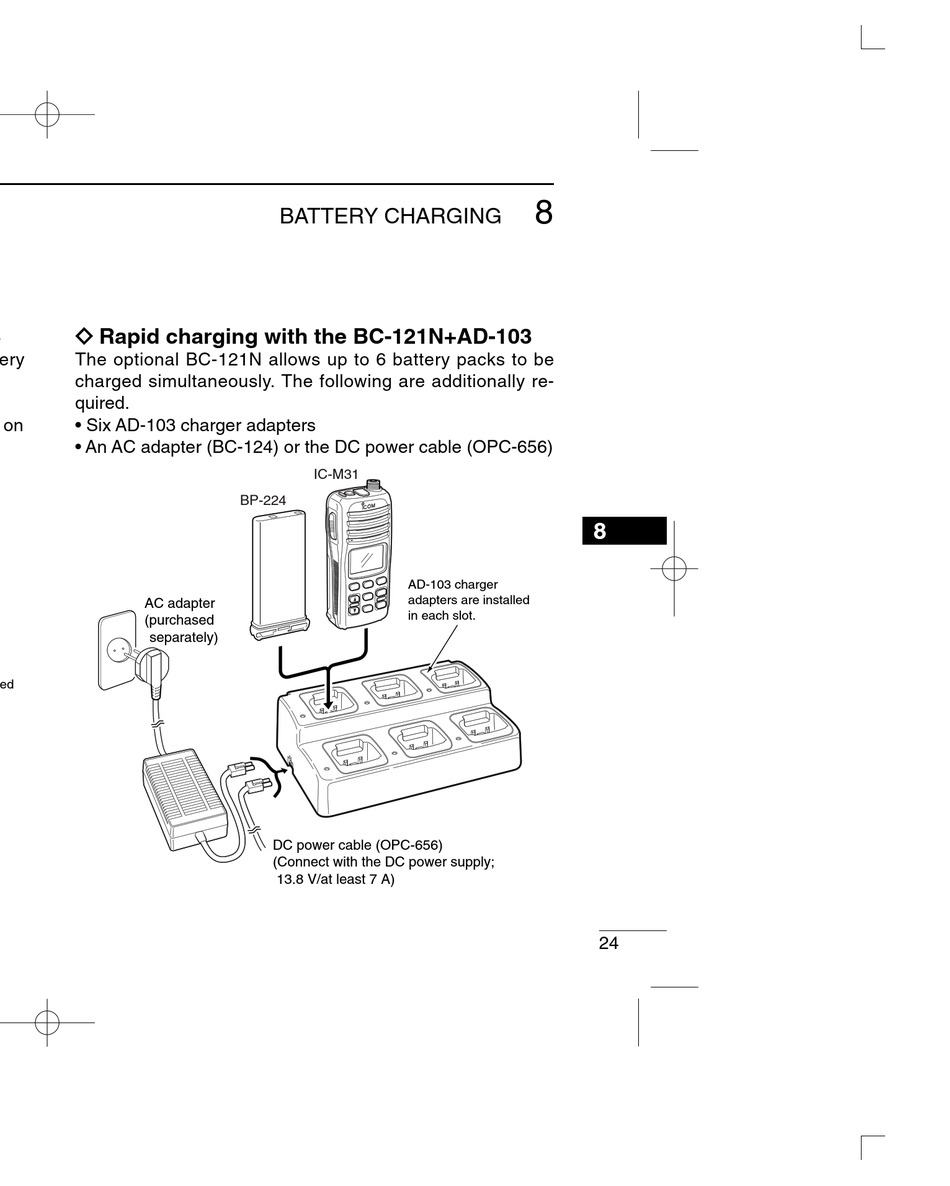

ï Rapid charging with the BC-121N+AD-103
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-103 charger adapters
• An AC adapter (BC-124) or the DC power cable (OPC-656)
BP-224
AC adapter
(purchased
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
8
IC-M31
AD-103 charger
adapters are installed
in each slot.
8
24
