Generac Power Systems Guardian 004188-1 Owner's Manual page 45

ITEM PART NO. QTY.
1 074100 1
076009A 1
2 072566 4
3 080882 4
4 074978 1
5 047822 1
6 075476 2
7 083264 1
8 022985 4
9 022264 4
10 051787 2
11 079847 1
Guardian Liquid-cooled 15 kW, 20 kW and 25 kW Generators

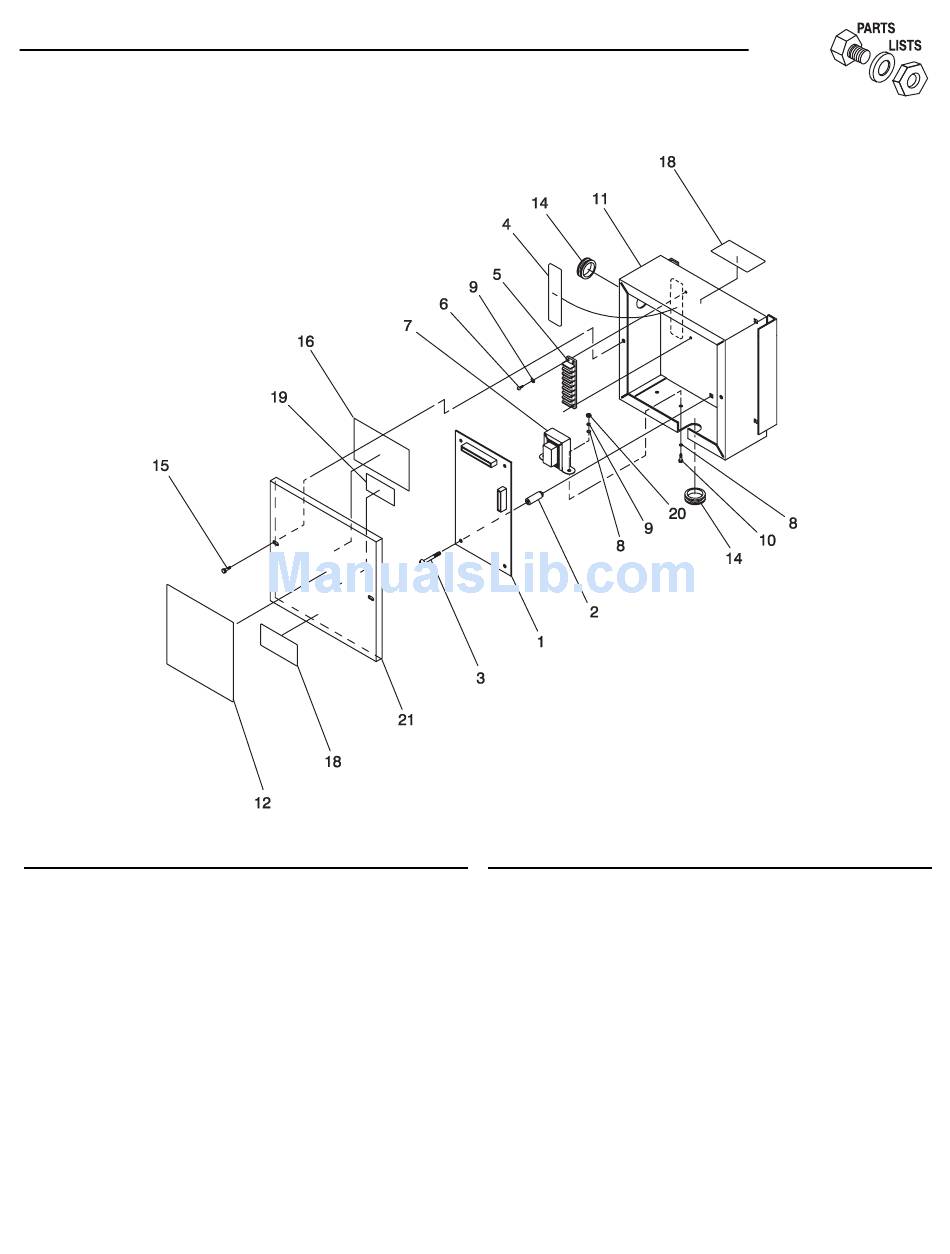

Exploded View – CMA Assembly — Drawing No. 081086-D
DESCRIPTION
ASSY HOME STDBY LOGIC
(MODELS 921, 863, 865)
PP LOGIC ASM 50/60HZ
(MODEL 9428)
NUT SPACER .250 PCB
SCREW PPH TAPPING #6X5/8 SS
DECAL TERMINAL STRIP
BLOCK TERM 20A 7 X 6 X 1100V
SCREW PPHM M4-0.7 X 16
TRANSFORMER ASM CMA 240/12V
WASHER FLAT #6 ZINC
WASHER LOCK M4
SCREW HHC M4-0.7 X 16 G8.8
BOX CMA
Section 8 - Exploded Views and Parts
ITEM PART NO. QTY.
12 0A8504 1
0A8504A 1
13* 022661V .083'
14 038057 2
15 058443 2
16 081224 1
17* 079682 1
18 086093 2
19 083736 1
20 051715 2
21 077401 1
* NOT SHOWN
Generac
DESCRIPTION
DECAL, CMA LABEL
DECAL, CMA LABEL
TUBING SHRINK 19"ID RED
GROMMET 7/8 X 1/16 X 3/4
SCREW CRIMPTITE 1/4-20 X 5/8
DECAL MFG NAMEPLATE
HARNESS CMA WIRE
DECAL CMA WARNING
DECAL CSA GTS
NUT HEX M4-0.7 G8 YEL CHR
COVER SILKSCREEN CMA
Power Systems, Inc. 43
®
