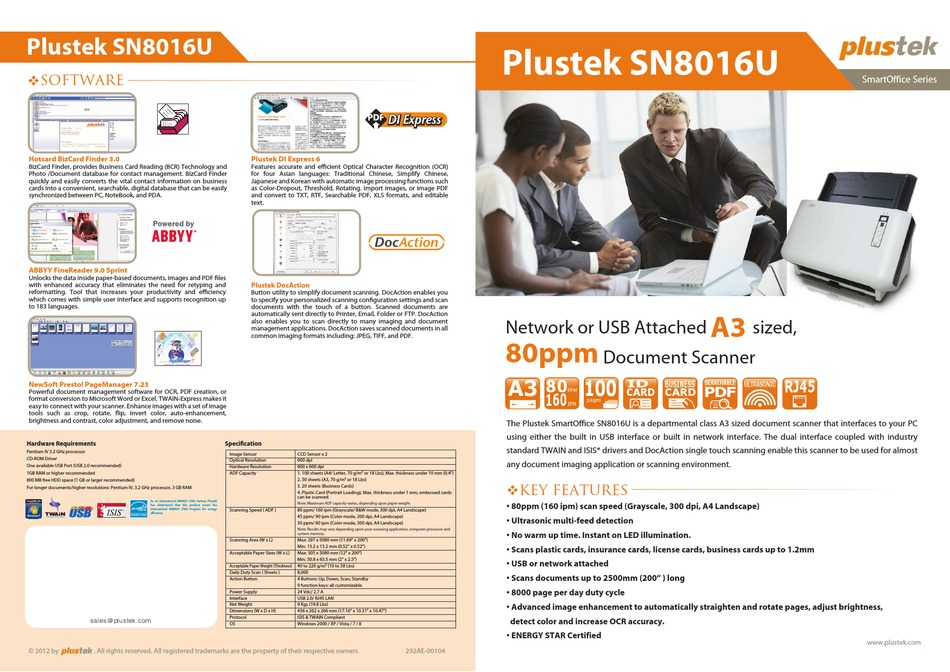

Plustek SmartO ffice SN8016U Quick Manual

Plustek SN8016U
SOFTWARE
Hotcard BizCard Finder 3.0
BizCard Finder, provides Business Card Reading (BCR) Technology and
Photo /Document database for contact management. BizCard Finder
quickly and easily converts the vital contact information on business
cards into a convenient, searchable, digital database that can be easily
synchronized between PC, NoteBook, and PDA.
ABBYY FineReader 9.0 Sprint
Unlocks the data inside paper-based documents, images and PDF les
with enhanced accuracy that eliminates the need for retyping and
reformatting. Tool that increases your productivity and e ciency
which comes with simple user interface and supports recognition up
to 183 languages.
NewSoft Presto! PageManager 7.23
Powerful document management software for OCR, PDF creation, or
format conversion to Microsoft Word or Excel. TWAIN-Express makes it
easy to connect with your scanner. Enhance images with a set of image
tools such as crop, rotate, ip, invert color, auto-enhancement,
brightness and contrast, color adjustment, and remove noise.
Hardware Requirements
Pentium IV 3.2 GHz processor
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
For longer documents/higher resolutions: Pentium IV, 3.2 GHz processor, 3 GB RAM
As an international ENERGY STAR Partner, Plustek
has determined that this product meets the
international ENERGY STAR Program for energy
efficiency.
E N E R G Y S T A R
sales@plustek.com
© 2012 by . All rights reserved. All registered trademarks are the property of their respective owners.
Plustek DI Express 6
Features accurate and e cient Optical Character Recognition (OCR)
for four Asian languages: Traditional Chinese, Simplify Chinese,
Japanese and Korean with automatic image processing functions such
as Color-Dropout, Threshold, Rotating. Import images, or image PDF
and convert to TXT, RTF, Searchable PDF, XLS formats, and editable
text.
Plustek DocAction
Button utility to simplify document scanning. DocAction enables you
to specify your personalized scanning con guration settings and scan
documents with the touch of a button. Scanned documents are
automatically sent directly to Printer, Email, Folder or FTP. DocAction
also enables you to scan directly to many imaging and document
management applications. DocAction saves scanned documents in all
common imaging formats including: JPEG, TIFF, and PDF.
Speci cation
Image Sensor CCD Sensor x 2
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/m² or 18 Lbs), Max. thickness under 10 mm (0.4")
2. 50 sheets (A3, 70 g/m² or 18 Lbs)
3. 20 sheets (Business Cards)
4. Plastic Card (Portrait Loading), Max. thickness under 1 mm, embossed cards
can be scanned.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4 Landscape)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Landscape)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Landscape)
Note: Results may vary depending upon your scanning application, computer processor and
system memory.
Scanning Area (W x L) Max: 297 x 5080 mm (11.69" x 200")
Min: 13.2 x 13.2 mm (0.52" x 0.52")
Acceptable Paper Sizes (W x L) Max: 305 x 5080 mm (12" x 200")
Min: 50.8 x 63.5 mm (2" x 2.5")
Acceptable Paper Weight (Thickness) 40 to 220 g/m² (10 to 58 Lbs)
Daily Duty Scan ( Sheets ) 8,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys: all customizable.
Power Supply 24 Vdc/ 2.7 A
Interface USB 2.0/ RJ45 LAN
Net Weight 9 Kgs (19.8 Lbs)
Dimensions (W x D x H) 436 x 262 x 266 mm (17.16" x 10.31" x 10.47")
Protocol ISIS & TWAIN Compliant
OS Windows 2000 / XP / Vista / 7 / 8
Plustek SN8016U
Network or USB Attached
80ppm
100
A3
80
PPM
160
IPM
The Plustek SmartO ce SN8016U is a departmental class A3 sized document scanner that interfaces to your PC
using either the built in USB interface or built in network interface. The dual interface coupled with industry
standard TWAIN and ISIS* drivers and DocAction single touch scanning enable this scanner to be used for almost
any document imaging application or scanning environment.
KEY FEATURES
• 80ppm (160 ipm) scan speed (Grayscale, 300 dpi, A4 Landscape)
• Ultrasonic multi-feed detection
• No warm up time. Instant on LED illumination.
• Scans plastic cards, insurance cards, license cards, business cards up to 1.2mm
• USB or network attached
• Scans documents up to 2500mm (200" ) long
• 8000 page per day duty cycle
• Advanced image enhancement to automatically straighten and rotate pages, adjust brightness,
detect color and increase OCR accuracy.
• ENERGY STAR Certified
292AE-00104
A3
sized,
Document Scanner
ID BUSINESS
SEARCHABLE ULTRASONIC
CARD CARD
pages
SmartOffice Series
RJ45
www.plustek.com
