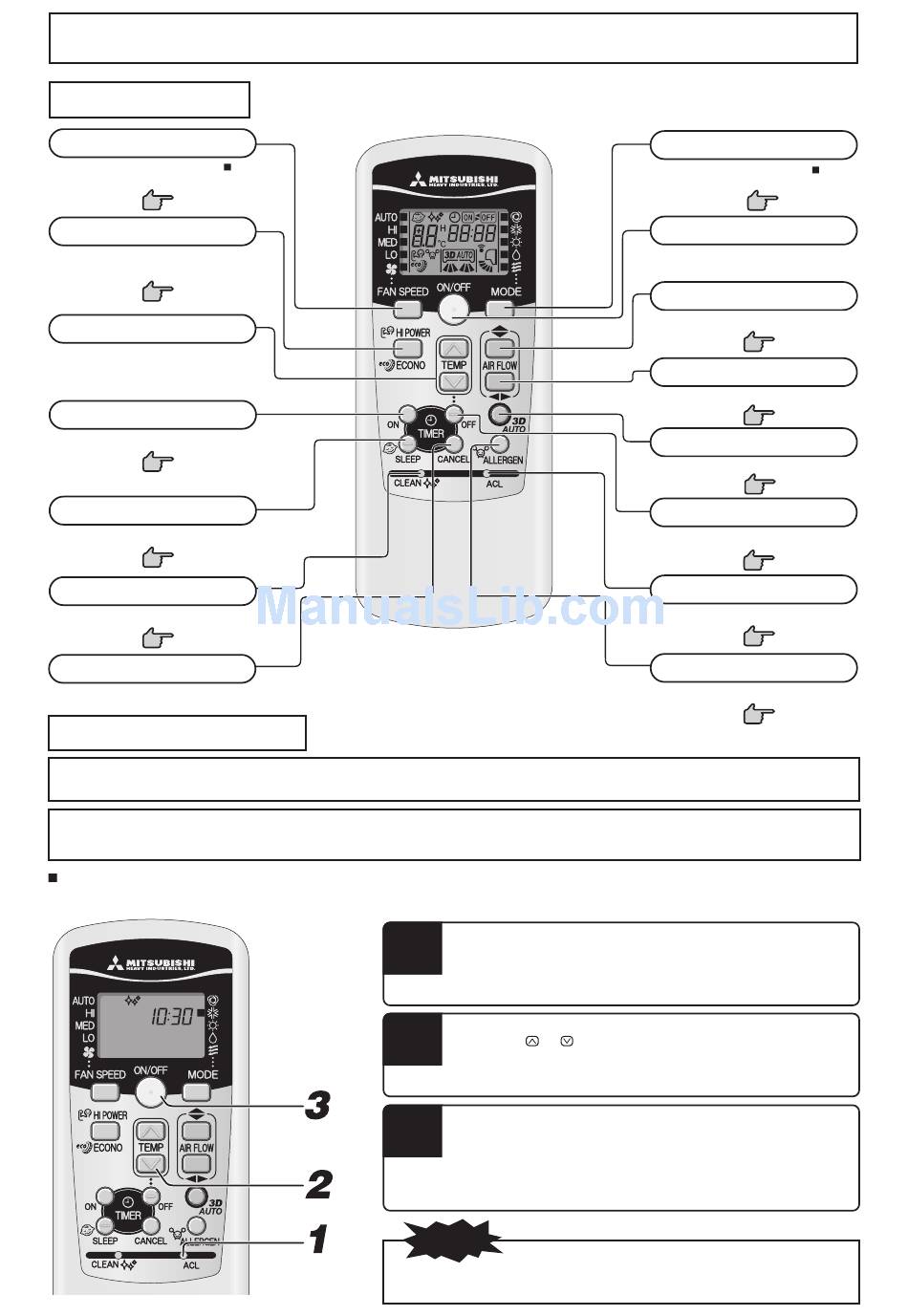

Operation and display section for remote control

Operation section
FAN SPEED button
Each time the button is pressed, the
display is switched over in turn.
Page 8
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 14
TEMPERATURE button
These buttons set the room temperature.
(These buttons are used for setting the
current time and timer function as well.)
ON TIMER button
This button selects ON TIMER operation.
Page 12
SLEEP button
This button selects SLEEP operation.
Page 11
CLEAN switch
This switch selects the CLEAN mode.
Page 15
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
Transmission procedure
When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.

Current time setting

When inserting the batteries, the current time is automatically set to time setting mode.
13:00 is displayed as the current time. Set the clock to the right time.
• The above illustration shows all controls, but in practice
only the relevant parts are shown.
Example: Set to 10:30.
1
Press the ACL switch.
Press with the tip of a ballpoint pen, etc.
The time display blinks and can be set to the current time.
2
Press the "
(Set to 10:30)
3
Press the ON/OFF button.
The display changes from blinking to steady lighting and the setting is complete.
Make sure to press the button within 60 seconds from the last operation in step 2,
otherwise the time is not set.
NOTE
• The timer operation works based on the time clock, so please set it correctly.
• The remote control data is reset when the present time is set.
– 7 –
OPERATION MODE select button
Each time the button pressed, the
display is switched over in turn.
ON/OFF (luminous) button
Press to start operation, press again to
stop.
AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down)
direction.
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/right)
direction.
3D AUTO button
This button sets 3D AUTO operation.
OFF TIMER button
This button selects OFF TIMER operation.
This switch is for resetting microcomputer
and setting time.
ALLERGEN CLEAR button
This button selects ALLERGEN CLEAR
operation.
or " button.
Page 8, 9
Page 10
Page 10
Page 10
Page 11
ACL switch
Page 6
Page 13
