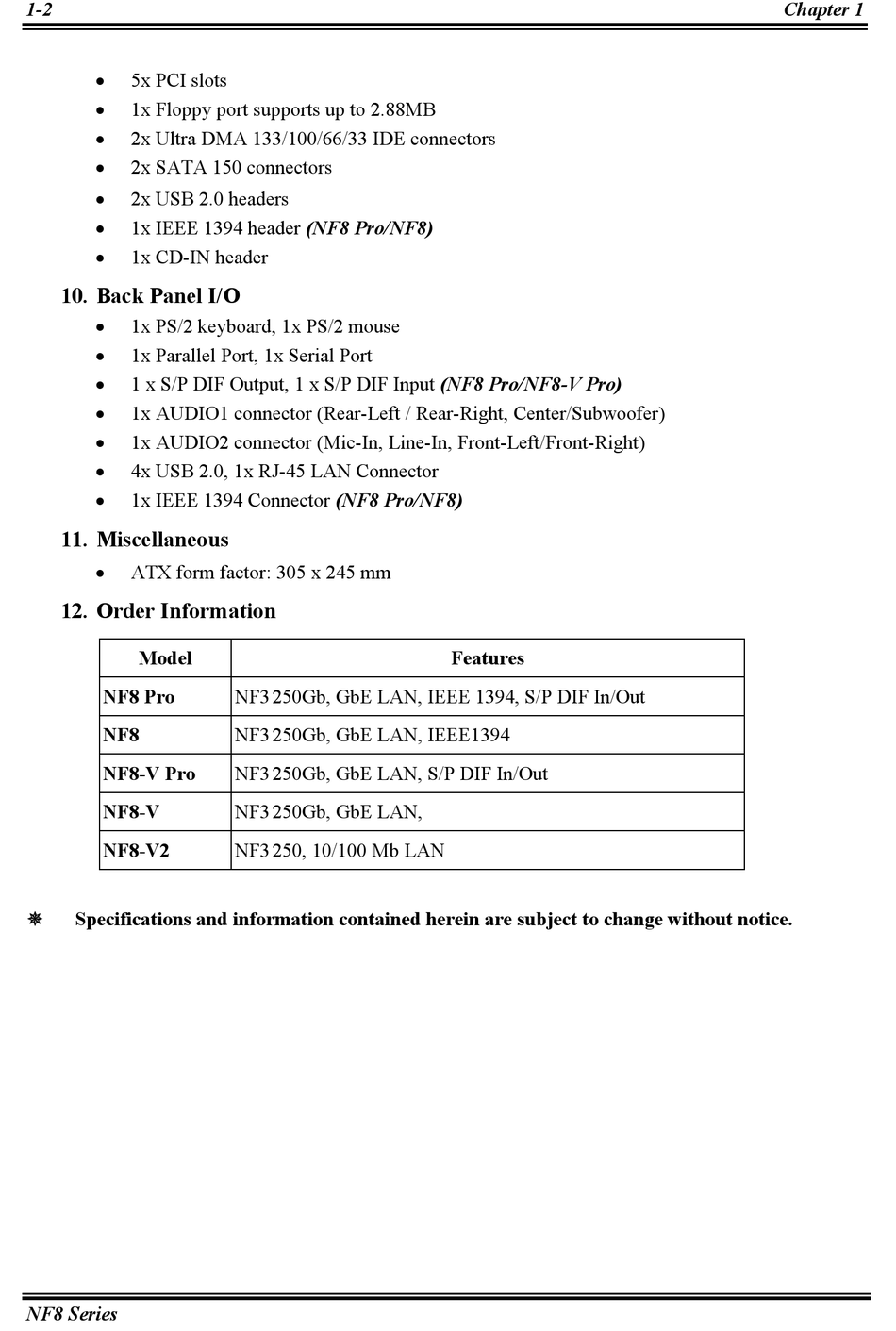

Abit NF8 Pro User Manual page 6

1-2
•
5x PCI slots
•
1x Floppy port supports up to 2.88MB
•
2x Ultra DMA 133/100/66/33 IDE connectors
•
2x SATA 150 connectors
•
2x USB 2.0 headers
•
1x IEEE 1394 header (NF8 Pro/NF8)
•
1x CD-IN header
10. Back Panel I/O
•
1x PS/2 keyboard, 1x PS/2 mouse
•
1x Parallel Port, 1x Serial Port
•
1 x S/P DIF Output, 1 x S/P DIF Input (NF8 Pro/NF8-V Pro)
•
1x AUDIO1 connector (Rear-Left / Rear-Right, Center/Subwoofer)
•
1x AUDIO2 connector (Mic-In, Line-In, Front-Left/Front-Right)
•
4x USB 2.0, 1x RJ-45 LAN Connector
•
1x IEEE 1394 Connector (NF8 Pro/NF8)
11. Miscellaneous
•
ATX form factor: 305 x 245 mm
12. Order Information
Model
NF8 Pro
NF8
NF8-V Pro
NF8-V
NF8-V2
! Specifications and information contained herein are subject to change without notice.
NF8 Series
NF3 250Gb, GbE LAN, IEEE 1394, S/P DIF In/Out
NF3 250Gb, GbE LAN, IEEE1394
NF3 250Gb, GbE LAN, S/P DIF In/Out
NF3 250Gb, GbE LAN,
NF3 250, 10/100 Mb LAN
Features
Chapter 1
