2-18

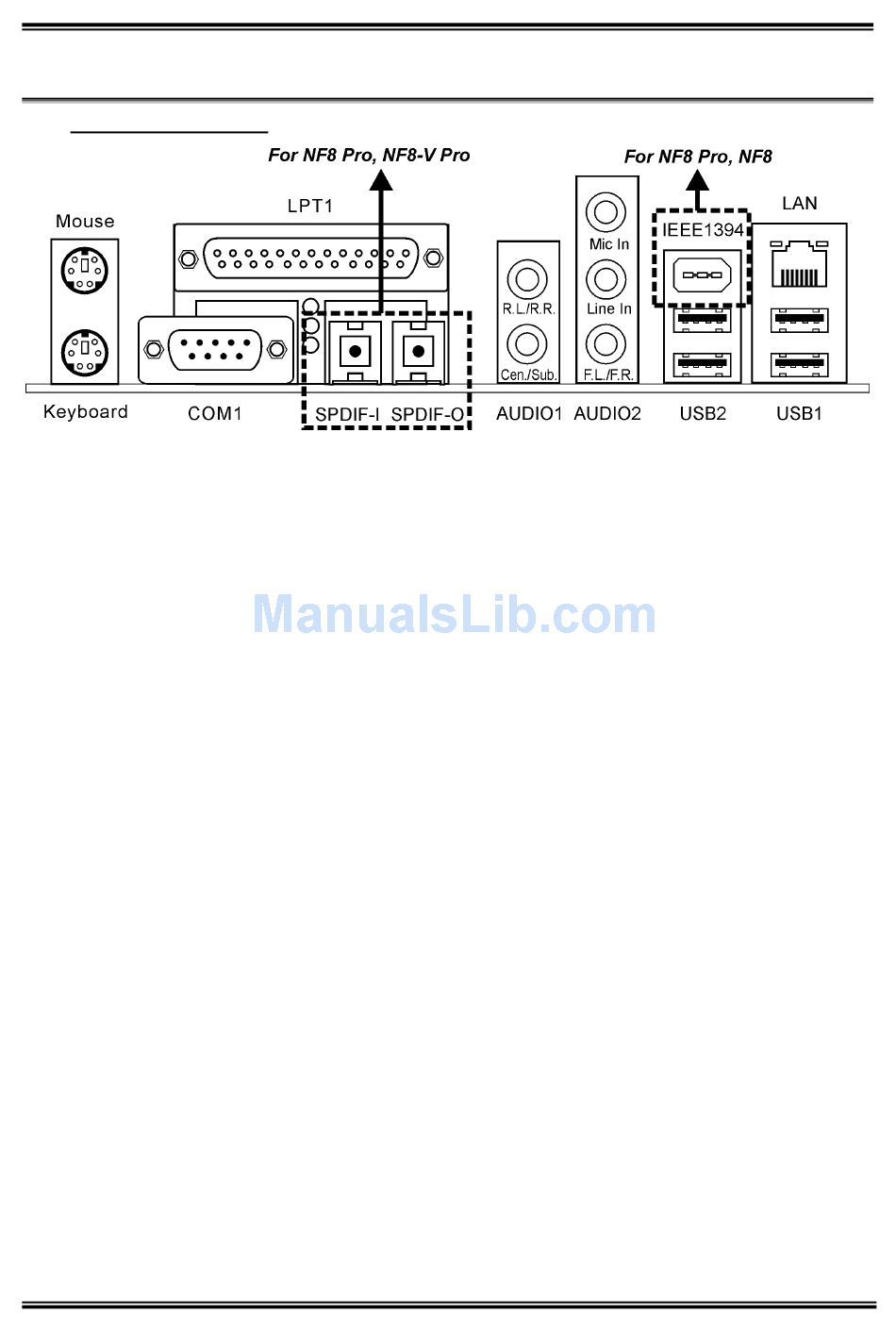

(14). Back Panel Connectors

•
Mouse: Connects to PS/2 mouse.
•
Keyboard: Connects to PS/2 keyboard.
•
LPT1: Connects to printer or other devices that support this communication protocol.
•
COM1: Connects to external modem, mouse or other devices that support this communication
protocol.
•
SPDIF-I: This connector provides an S/PDIF-In connection through optical fiber to digital
multimedia devices. (NF8 Pro, NF8-V Pro)
•
SPDIF-O: This connector provides an S/PDIF-Out connection through optical fiber to digital
multimedia devices. (NF8 Pro, NF8-V Pro)
•
AUDIO1:
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 5.1
channel audio system.
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel in the 5.1
channel audio system.
•
AUDIO2:
Mic In: Connects to the plug from external microphone.
Line In: Connects to the line out from external audio sources.
F.L./F.R. (Front Left / Front Right): Connects to the front left and front right channel in the
5.1-channel or regular 2-channel audio system.
•
IEEE1394: Connects to devices of IEEE1394 protocol. (NF8 Pro, NF8)
•
LAN: Connects to Local Area Network.
•
USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
NF8 Series
Chapter 2
