Geemarc CL400 User Manual

Multifunction telephone
Hide thumbs
Table of Contents

Advertisement

Quick Links

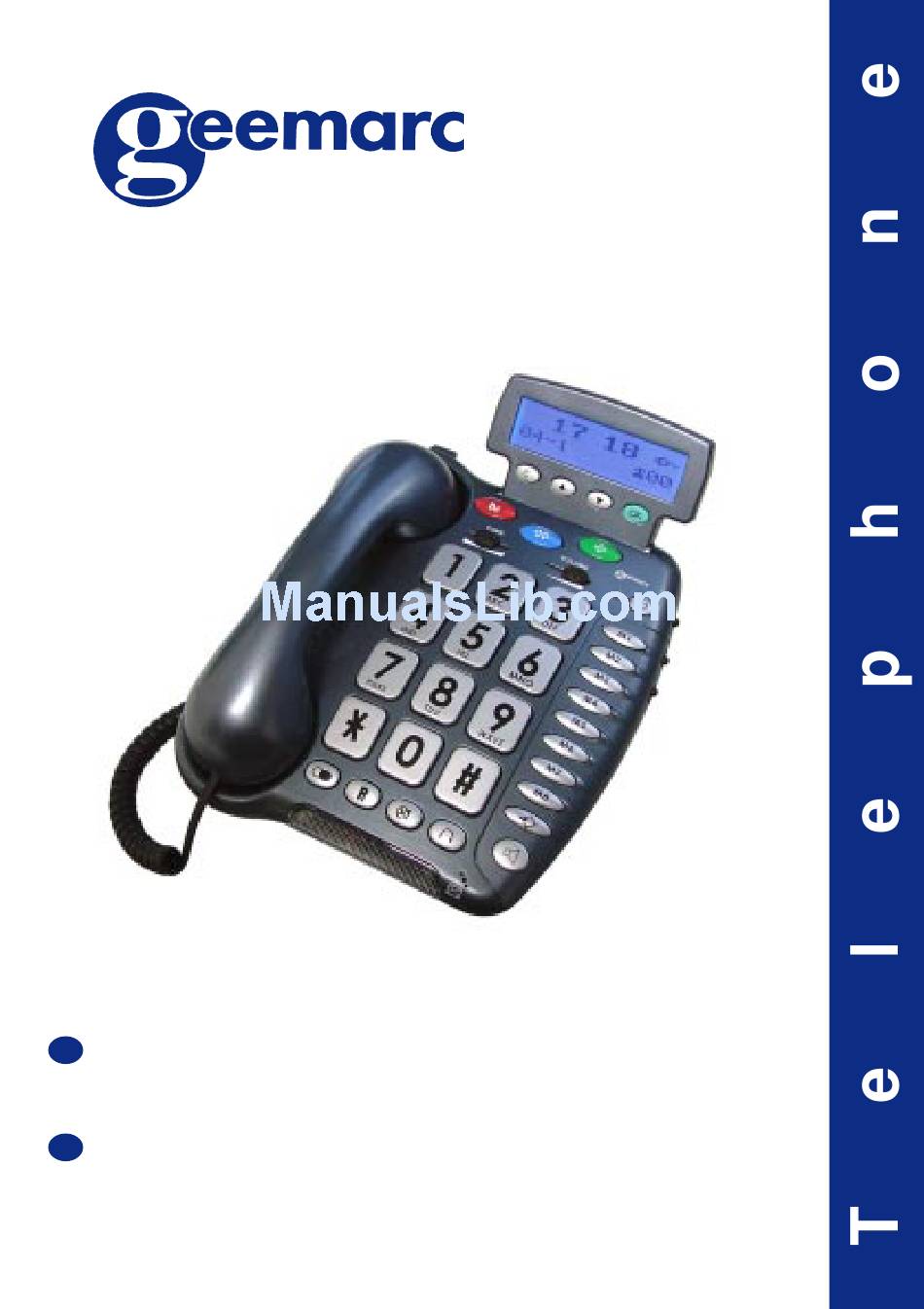

MULTIFUNCTION TELEPHONE
TELEPHONE MULTIFONCTIONS
GB
CAUTION
:THIS TELEPHONE PRODUCT IS SPECIFICALLY DESIGNED FOR PEOPLE WITH HEARING DIFFICULTIES
AND IS PROVIDED WITH A HANDSET EARPIECE VOLUME CONTROL FOR INDIVIDUAL REQUIREMENTS. DUE CARE
MUST BE TAKEN BY ALL USERS THAT THE HANDSET EARPIECE VOLUME CONTROL IS SET TO THE LOWEST LEVEL
ACCEPTABLE BY EACH RESPECTIVE USER. CARE SHOULD THEREFORE BE EXERCISED TO ENSURE THAT ANY NEW
USERS ARE FAMILIAR WITH THIS REQUIREMENT.
F
ATTENTION:
CE TELEPHONE PEUT ETRE DESTINE AUX PERSONNES AYANT DES PROBLEMES D'AUDITION. IL
POSSEDE UN ECOUTEUR A VOLUME VARIABLE. A LA PREMIERE UTILISATION, ASSUREZ VOUS QUE LE BOUTON
DE REGLAGE DU VOLUME SOIT POSITIONNE SUR LA POSITION VOLUME MINIMUM. LES PERSONNES
MALENTENDANTES POURRONT PAR LA SUITE AUGMENTER LE VOLUME POUR L'ADAPTER A LEUR AUDITION.
User guide :p2
Notice d'utilisation p 48
C
L400

Advertisement

Table of Contents
loading

Related Manuals for Geemarc CL400

Summary of Contents for Geemarc CL400

  • Page 1 USERS ARE FAMILIAR WITH THIS REQUIREMENT. ATTENTION: CE TELEPHONE PEUT ETRE DESTINE AUX PERSONNES AYANT DES PROBLEMES D’AUDITION. IL POSSEDE UN ECOUTEUR A VOLUME VARIABLE. A LA PREMIERE UTILISATION, ASSUREZ VOUS QUE LE BOUTON DE REGLAGE DU VOLUME SOIT POSITIONNE SUR LA POSITION VOLUME MINIMUM. LES PERSONNES MALENTENDANTES POURRONT PAR LA SUITE AUGMENTER LE VOLUME POUR L’ADAPTER A LEUR AUDITION.

  • Page 2: Table Of Contents

    DESCRIPTION - General description - LCD screen - Screen display INSTALLATION - Connecting - Wall mounting SETTINGS - Ringer settings - Alarm and ringer settings - Dialling mode (P/T) - New call indicator & Hotel message switch - Choose the date / hour format - Date and hour settings - Set the language - Screen contrast adjustment...
  • Page 3 - Recall one of the last 30 number dialled - Delete one of the last 30 numbers dialled - Mute button - R, * and # keys - Store a telephone number in memory - Dialling stored numbers - Use the headset (option) - Use the neckloop (option)
  • Page 4 - Delete all records from the CID list - Call waiting - Message waiting GUARANTEE For product support and help visit our website at www.geemarc.com telephone 01707 384438 or fax 01707 372529 INDEX...

  • Page 5: Description

    DESCRIPTION 1- GENERAL DESCRIPTION Priority memory Tone reception adjustment Last number redial Time break recall button Flashing incoming call indicator (strobe light) Priority memory Message waiting /new call Mute Priority memory Key to activate tone and volume adjustment function Volume reception adjustment Direct memory Memory storing key...
  • Page 6 DESCRIPTION Clip to return for wall mount Tone and volume adjustment automatically activated each time you hang-up the phone Ringer/shaker /strobe select mode Speaker volume adjustment Ringer level adjustment Additional amplifier button Speaker Handset cord Sending volume adjustment...

  • Page 7: Lcd Screen

    DESCRIPTION 2 - LCD SCREEN Screen example (On hook position) Power network icon Minutes Hours Month Cancel key Validation key Up/down keys - OK key is used to confirm action or a choice on the screen. keys are used to scroll through the menu. - In general, the C key is used to cancel an action/ entry, it can also be used to confirm a choice (for example to cancel a stored number).

  • Page 8: Screen Display

    DESCRIPTION 3 - SCREEN DISPLAY Your CL400 has a screen with different icons which help you to use the telephone. The telephone is supplied by battery + battery indicator The telephone is supplied by adaptor Memory storing is required. Screen contrast level.

  • Page 9: Installation

    Only Geemarc reference (*) Classified TNV-3 according to EN60950 standard. (**) Classified “hazardous voltage” according to EN60950 standard. Important: Only Shaker, Neckloop, Headset and Adaptor with Geemarc reference can be connected to the sockets. - Connect the handset. - Open the battery compartment.
  • Page 10 INSTALLATION - Connect the adaptator plug to the adaptor socket located on the back of the telephone then connect it to the wall socket (**). Please choose an adaptor wall socket near your line plug to enable you to unplug the adaptor quickly in case of a problem.

  • Page 11: Wall Mounting

    INSTALLATION INSTALLATION 2 - WALL MOUNTING To wall-mount your telephone,slide out the clip, turn around and slide back into the wall mounting position.This will ensure that the handset stays firmly in position. Make 2 holes in the wall 80mm apart (use the wall mount template), insert the wall plugs and the wall mounting screws.

  • Page 12: Settings

    1 - RINGER SETTINGS A switch located on right side allows the ringer to be switched HI,LOW,OFF: : Off : Low : Hi Your phone comes with the ringer switched to «High». If you don’t like the ringer melody,you can choose a new one by changing the settings between four settings as follow: In on hook position,...

  • Page 13: Alarm And Ringer Settings

    3 - DIALLING MODE (T/P) The Tone/Pulse switch is factory pre-set to Tone position (T). In the UK, all telephone exchanges now use Tone dialling.If your phone does not dial out, it is probably being used from an older private switch- board (PBX).

  • Page 14: New Call Indicator & Hotel Message Switch

    SETTINGS 4 - NEW CALL INDICATOR & HOTEL MESSAGE WAITING SWITCH Hotel message waiting is used with the new services provided on hotel network. The New call indicator is used to indicate a new incoming call. A switch located on the base of your phone allows to set ON/OFF the hotel message waiting or new call light functions.
  • Page 15 - Press the OK key to confirm. - Select «DATE FORMAT». - Press the OK key to confirm. - Select «DAY-MONTH» or «MONTH-DAY». - Press the OK key to confirm. - Press the C key twice to exit. Hour format You can choose between two formats: 12 hours or 24 hours.

  • Page 16: Date And Hour Settings

    SETTINGS 6 - DATE AND HOUR SETTING In on hook position, - Press the key. - Use the keys to select «SET TIME». - Press the OK key to confirm. - Use the keys to select the desired digit. - Press the OK key to confirm and pass to the next digit.

  • Page 17: Screen Contrast Adjustment

    To change the language, follow the settings as below: In on hook position, - Press the - Use the - Press the OK key to confirm. - Select «SET LANGUAGE». - Press the OK key to confirm. - Select «FRENCH» (for example). - Press the OK key to confirm.

  • Page 18: Auto-On Hook

    SETTINGS - Press the OK key to confirm. - Select «LCD CONTRAST». - Press the OK key to confirm. - Use the keys to adjust the contrast level. - Press the C or the OK keys to exit. 9 - AUTO- ON HOOK This function cancels the line after 8 seconds if the line is busy.

  • Page 19: Dim:x

    SETTINGS 10 - DIM:X---->x If the auto-screen sizing is activated, the screen can display up to 18 digits of the number you dial, otherwise only 8 digits will be displayed on the screen. In on hook position, - Press the key.

  • Page 20: Time Break Recall Setting "R" Function

    SETTINGS 11 - TIME BREAK RECALL SETTING “R” FUNCTION Your phone works with a time break recall for Uni- ted Kingdom (R=100ms). If you wish to change this value, follow instruc- tions below: In on hook position, - Press the key.

  • Page 21: Using The Phone

    USING THE PHONE Your CL400 allows you to speak hands free, surrounding people can also hear the conversation. 1 - ANSWER A CALL During an incoming call, your phone will ring and then the Number or/and the Name of the caller is displayed on the screen, if you have subscribed to the CID service.

  • Page 22: Make A Call

    USING THE PHONE 2 - MAKE A CALL 1st solution - Lift the handset. - Await the dial tone and dial required number( the number is displayed on the screen). - On completion of the call,carefully replace the handset in the cradle to clear the line. 2nd solution (Pre-dialling) - Dial the required number in the on hook position.
  • Page 23 - When the person answers you, simply speak into the microphone located on the base. You can adjust the speaker level with the slide button located on the left side of your telephone. - On completion of the call, simply press the to clear the line.

  • Page 24: Use The Amplifier

    - Press the key. - Adjust the sound level with the VOLUME slide button located on the left side of your telephone. During a call, if you wish to use the «hands free» function: - Press and hold the key and replace the handset on the cradle at the same time.

  • Page 25: Recall One Of The Last 30 Number Dialled

    USING THE PHONE 5 - RECALL ONE OF THE LAST 30 NUMBERS DIALLED You can call back the last 30 numbers dialled. To call back one of them, follow instructions below: In on hook position, - Press the OK key. Screen will display “DIALLED”,the last number dialled, the total of numbers, the date and the hour of records.

  • Page 26: Mute Button

    USING THE PHONE menu and select the number you wish to delete. - Press the C key. The screen will display “DEL ?”. - Press again the C key to confirm . - Press the OK key to exit. 7 - MUTE FUNCTION If you wish, you can speak privately to someone else in the room without your caller overhearing.

  • Page 27: Store A Telephone Number In Memory

    USING THE PHONE 9 - STORE A TELEPHONE NUMBER IN MEMORY Your phone can store 8 direct memories including 3 priorities numbers (30 digits maximum for each memory). For example, the 3 priority P1, P2, P3 memories allow you to store the 3 numbers below:...

  • Page 28: Dialling Stored Numbers

    USING THE PHONE 10 - DIALLING STORED NUMBERS - Lift the handset or press dial tone. - Press appropriate button M1, M2, ..., or M8 or one of the 3 priority P1, P2, P3 numbers, the stored number will be dialled automatically.To register your stored phone numbers,use the index card located under the base.Use this table below to prepare the phone book.

  • Page 29: Use The Headset (Option)

    11 - USE THE HEADSET WITH MICROPHONE (OPTION) Headset: If you wish to answer or make call by using a Geemarc headset ref: HEADSCL_BLK, connect the headset plug in the headset socket located behind your phone. - Press the key to get the dial tone.

  • Page 30: Use The Shaker (Option)

    USING THE PHONE You have three possibilities to use: 1st solution: Press the to activate the neckloop and headset, speak into the headset microphone. 2 nd solution: Press the to activate the neckloop and the amplifier, speak into the microphone located on the base.

  • Page 31: Sending Level Settings

    Note: This option must be set in the ALARM AND RINGER OPTIONS item (page 12) to be activated. Important: For your security, only connect the Geemarc SHAKCL_WH model, any other sha- ker model can damage your telephone. 1 - SENDING LEVEL ADJUSTMENT...

  • Page 32: Receiving Tone And Volume Settings

    RECEIVING TONE AND VOLUME 1-VOLUME TONE RECEIVING ADJUSTMENT You can increase the volume and adjust the receiving tone according to your own hearing requirements.The button allows extra- receiving and tone functions to be activated during the conversation. When the function is activated, the red light of extra-receiving and tone function located near the button is lit.
  • Page 33 RECEIVING TONE AND VOLUME Bass +10db max Note: When the tone (treble), earpiece volume and sending levels are set to the maximum, whistling may appear. If whistling occurs the sending level settings should be decreased (sending level switch located on the right side). When the switch located behind the phone is ON, the extra-receiving and tone functions are automatically activated each time you use the phone.When the switch...

  • Page 34: Phone Book

    PHONE BOOK 1 - CREATE A PHONE BOOK ENTRY You can store 99 entries into the phone book with the name and phone numbers of your correspon- dant. In on hook position, - Press the key. - Use the keys to select «PHONE BOOK». - Press the OK key to confirm.
  • Page 35 PHONE BOOK Characters ? - " ' < A B C a b c 2 EO D E F d e f 3 G H I g h i 4 J K L j k l 5 - To insert a «space», press on the OK key twice. - If the next letter is the same as the previous letter (or located on the same key), press first on the OK key to move and select the desired letter.

  • Page 36: Create An Entry From The Incoming Call List

    PHONE BOOK 2 - CREATE AN ENTRY FROM THE INCOMING CALL LIST If you have subscribed to a caller idendification service (CID feature), you have the possibility to create an entry from the incoming call list because each call is stored into the phone book as a CID entry.

  • Page 37: Delete A Phone Book Entry

    PHONE BOOK 3 - DELETE A PHONE BOOK ENTRY In on hook position, - Press the - Use the BOOK» then «REVIEW». - Use the wish to delete. - Press the C key, screen display «DEL?» - Press the C key to confirm. - Press the OK key to exit.

  • Page 38: Make A Call From A Phone Book Entry

    PHONE BOOK - Press the C key to modify the number and insert new number. - Press the OK key. - You can now modify the name. - Press the C key to delete a letter. - For help see the «CREATE A PHONE BOOK ENTRY»...

  • Page 39: Cid Feature

    CID FEATURES Note : You can review the incoming call list during a call by pressing the OK key, then use the keys to move through the phone book list. 1 - USE THE INCOMING CALL LIST Associated with the CID feature, the call list allows you to store the incoming calls.
  • Page 40 CID FEATURES If the number is unknown from the telephone center (international incoming call for example), the screen will display OUT OF AREA: 9:52 When the same caller calls several times, only the last call will be stored into the incoming call list and the screen will display +.

  • Page 41: Recall A Number From The Cid List

    CID FEATURES To review the new calls, use the 16 : 53 16-6 screen will come back to idle state after a few seconds.The total number of incoming call entries on the incoming call list will still be displayed on the screen.

  • Page 42: Delete A Record From The Cid List

    CID FEATURES - Lift the handset or press the or the keys. - The number will be dialled automatically. Lift the handset, - Use the keys to move into the list and select the required number to dial. - Press the OK key. - The number will be dialled automatically.

  • Page 43: Delete All Records From The Cid List

    CID FEATURES - Press the OK key to exit. 4 - DELETE ALL RECORDS FROM THE CID LIST In on hook position, - Press the keys. - Press and hold the C key until the screen displays «ALL DEL?». - Press the C key to confirm. 5 - CALL WAITING With this service, you are made aware that a new call is coming through when you are in...
  • Page 44 «ON». - Press the OK key and then C twice to exit. Note : When the call waiting function is activated on your telephone and if you wish to deactivate it simply select «OFF» in the menu «CALL WAITING».
  • Page 45 Note : If you don’t answer call N°2, the call will be recorded into the incoming call list. Then you will be able to call them later. For product support and help visit our website at www.geemarc.com telephone 01707 384438 or fax 01707 372529...

  • Page 46: Message Waiting

    CID FEATURES 6 - MESSAGE WAITING This system provides the capability of the caller to leave a message. You will be informed of an incoming call by the incoming call list that you have a message. This call is distinguished from other calls and screen displays «MSG WAITING», the message waiting LED is activated.

  • Page 47: Guarantee

    GUARANTEE GUARANTEE From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of one year. During this time, all repairs or replacements (at our discretion) are free of charge.Should you experience a problem then contact our helpline or visit our website at www.geemarc.com.The guarantee does not cover accidents,...
