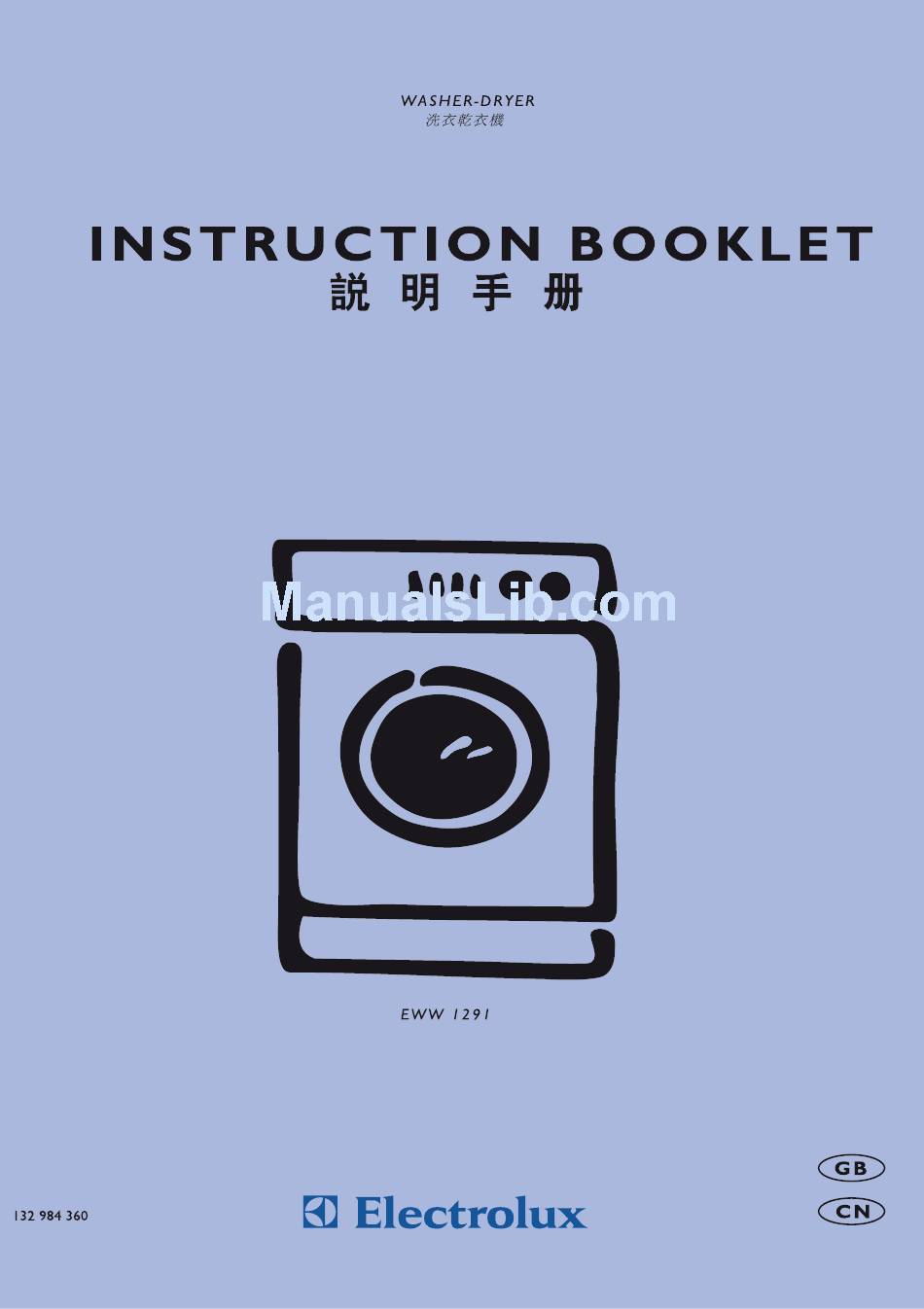

- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Operating sequence 18-21 Warnings Washing programmes Timed dryings Disposal International wash code symbols Tips for environmental protection 5 Maintenance Technical specifications Door seal Bodywork Installation Detergent dispenser drawer Unpacking Drain pump 25-26 Positioning Water inlet filter Water inlet Emergency emptying out Water drainage Frost precautions Electrical connection... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • If you use a liquid detergent with a dispenser which Installation has to be placed directly in the drum, remember to •... -
Page 5: Disposal
To disable this device and restore the possibility of Child safety closing the door, rotate the button anti-clockwise • Children are often not aware of how dangerous until the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 61 cm WASHING DRYING MAXIMUM LOAD Cotton 7 kg 5 kg Synthetics 3 kg 2 kg Delicates 3 kg Woollens/Handwash 2 kg Silk 1 kg SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 110 V/60 Hz TOTAL POWER ABSORBED... -
Page 7: Installation
Installation 7. Set the machine upright and remove the Unpacking remaining rear screw. Slide out the relevant pin. All transit bolts and packing must be 8. Plug all the holes with the plugs which you will removed before using the appliance. find in the envelope containing the instruction booklet. -
Page 8: Water Drainage
The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks. Electrical connection This machine is designed to operate on a 110 V, single-phase, 60 Hz supply. -
Page 9: Your New Washer-Dryer
Your new washer-dryer This new machine, which is fitted with the New Jet System, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel Maximum temperatures are 60°C for cotton and for 1 ON/OFF button synthetic fabrics, 40°C for delicate fabrics, wool and Press this button to switch the machine on. The fabrics to be hand-washed and silk. display (9) will show three blinking dashes or a Position COLD corresponds to a COLD WASH. -
Page 11: Electronic Drying Button
the desired programme. If you wish to drain or spin 6 OPTIONS button press the RESET button until the led of the desired Press this button to select one of these following function illuminates. options: You can change the spin speed by means of button •... - Page 12 • Duration of washing programme in hours and The delay time is displayed for 3 seconds, then the minutes, after you have selected a programme. duration of the selected programme reappears. While the programme is running (after you have After you have pressed the START/PAUSE button, pressed the START/PAUSE button), the displayed the countdown begins, and the delay time value time value decreases by one unit every minute.
- Page 13 Example: 10 START/PAUSE button In this case, both the This button has two functions: drain and the spin (at the • Start: after you have selected the desired speed provided for the programme and options, press this button to start selected type of fabric) the machine.
-
Page 14: Delay Start Button
12 DELAY START button 13 Programme phase indicator lights This button makes it possible to delay the starting of the programme selected from 30 min - 60 min - 90 When you select a programme, the lights relevant to min, 2 hours and then by 1 hour up to a maximum of the phases that form the programme light up. -
Page 15: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens... -
Page 16: Detergents And Additives
residual marks with bleach. Quantity of detergent to be used Ink: depending on the type of ink, moisten the fabric The type and quantity of detergent will depend on first with acetone (*), then with acetic acid; treat any the type of fabric, load size, degree of soiling and residual marks on white fabrics with bleach and then hardness of the water used. -
Page 17: Drying Hints
Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle. -
Page 18: Operating Sequence
4. Switch the machine on Operating sequence Press the ON/OFF button to switch the machine on. The display will show three blinking dashes or a Washing only blinking zero. The light above the button will light up. Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 19: Select The Temperature
6. Select the temperature 9. Select the DELAY TIME Press the TEMPERATURE button if you wish to Before you start the programme, if you wish the select a temperature value different from the one starting to be delayed, press the DELAY button proposed by the machine or the COLD WASH. -
Page 20: At The End Of The Programme
After approximately 3 minutes, you can open the 11. How to change an option or a door. programme during its cycle Pay attention to the level and temperature of the water in the machine! Before you make any change, you must pause the When you close the door and press the ON/OFF machine by pressing the START/PAUSE button. -
Page 21: Drying 3 Kg Of Cotton
4. Press the START/PAUSE button to start the Drying 3 kg of cotton programme. You have for example just machine-washed and spun at 1200 rpm 6 kg of laundry. They are cotton fabrics of medium weight which you want to put away without ironing as soon as they are dry. -
Page 22: Washing Programmes
Programme table Washing programmes Type of Consumption* laundry and Max. Programme/ Description of Available options symbols on load temperature programme Energy Water Time labels litres h/min. 7 kg Cottons Wash at 2.26 SPIN SPEED White cotton: 60°-50°C 60°-50°C NO SPIN e.g. -
Page 23: Timed Dryings
Programme table Timed drying Degree of Drying time Type of fabric Max. load Spin speed drying mins 1200 5 kg Extra dry Cotton and linen Ideal for (bathrobes, bath towelling towels, etc.) materials 1.5 kg 1200 1200 5 kg Cotton and linen (towels, T-shirts, bathrobes) Store dry... -
Page 24: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 25: Maintenance
Maintenance Detergent can also accumulate inside the drawer 1. Door seal recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 26: Water Inlet Filter
• Remove any objects from the pump impeller by 6. Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 27: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display and some acoustic signals can be heard: - E10 : problem with the water supply - E20 : problem with water draining - E40 : door open Once the problem has been eliminated, press the START/PAUSE button... - Page 28 Problem Possible cause • The electronic unbalance detection device has cut • Spinning starts late or the in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
