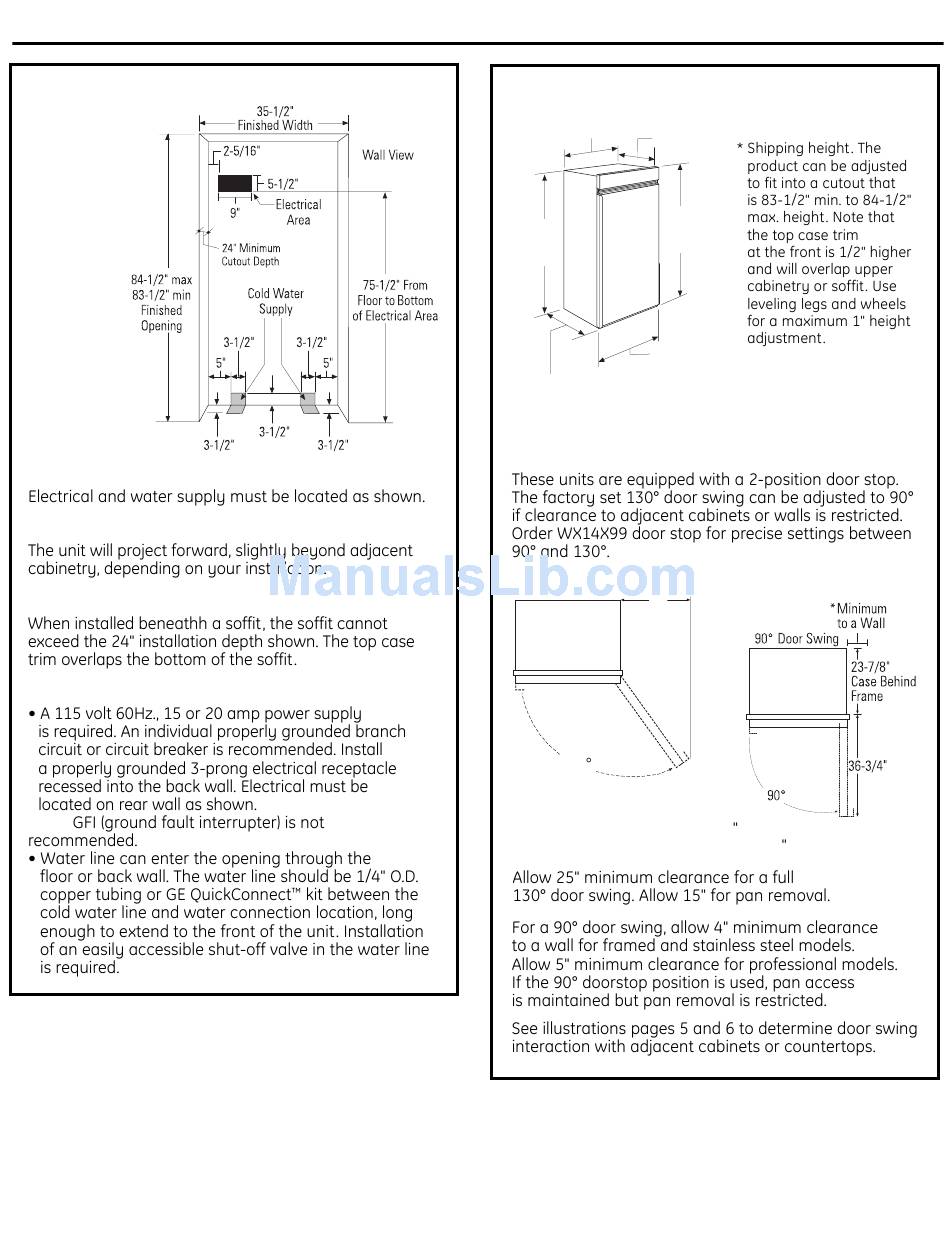

THE INSTALLATION SPACE
The finished
cutout width
must be
35-1/2".
Water And Electrical Locations
The Cutout Depth Must Be 24" Minimum
Cutout Depth Beneath a Soffit:
Additional Specifications
Note:
Design Guide
DIMENSIONS AND CLEARANCES
*83-1/2"
at
Rear
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
28-11/16" Professional Models
Product Clearances
130° Door Swing
3
25-3/8" Framed Models
35"
25-3/4" Stainless Steel Models
Case Width
Case Depth
*84" From
Floor to
Top Frame
36" Frame to
Frame Width
25"
Minimum
to Wall
130
*
4 stainless and trimmed models.
90° Door Swing
5 Pro models.
