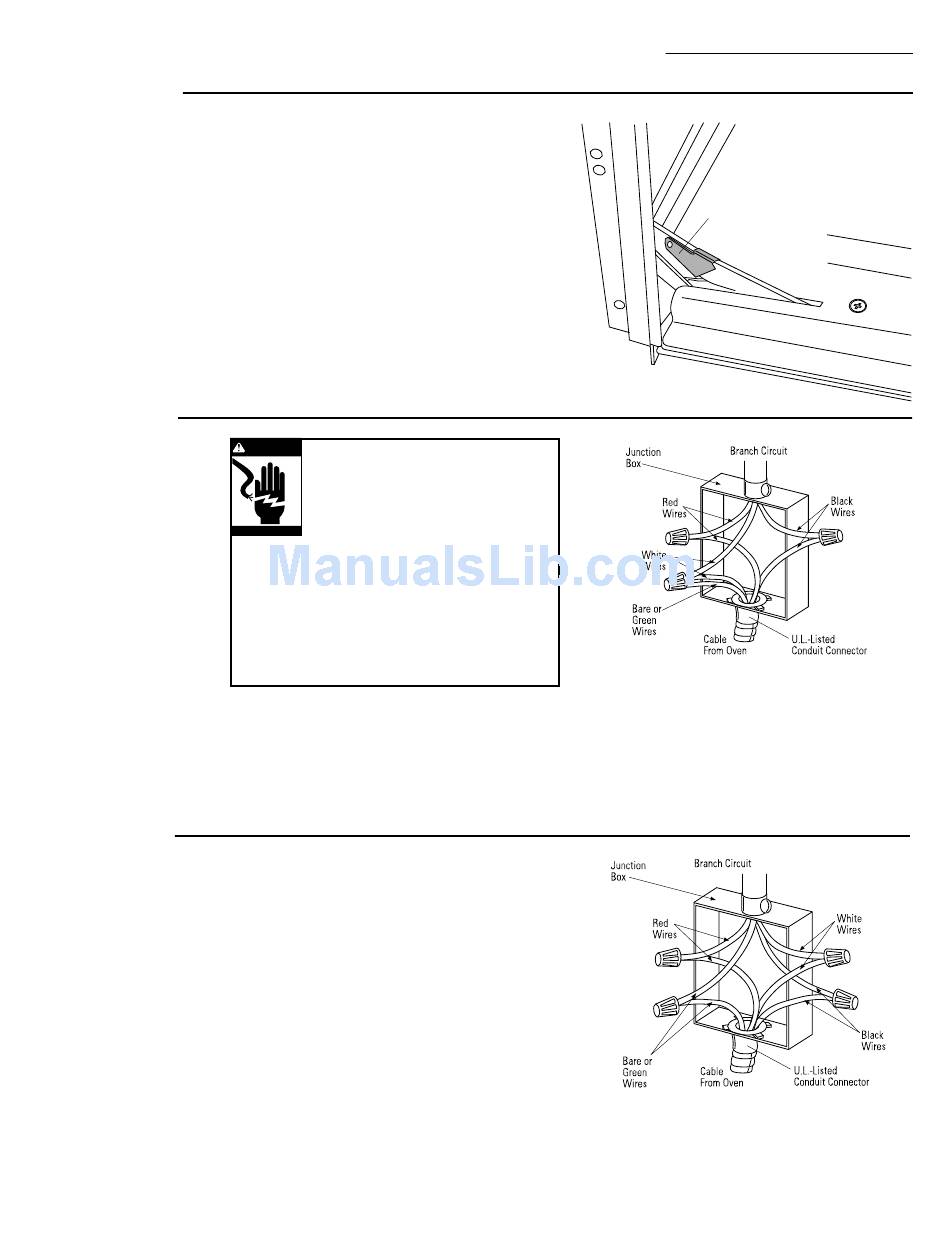

Step 6: Replace The Oven Door; Step 7: Connect Electrical - GE Monogram ZET837BYBB Installation Instructions Manual

Step 6
• Grasp door firmly on both sides.
Replace the
• Slide the hinge slots in the bottom of the door over
oven door
• Push the door all the way in against oven.
• Open the door fully and push hinge latches down,
• Close the door and open slowly to be sure it moves
Step 7
Connect
electrical
• When connecting to a 3-conductor branch circuit:
• When connecting to a 4-conductor branch circuit:
the hinges.
as illustrated, on both sides to secure.
smoothly.
CAUTION
WARNING
Electrical Shock Hazard
• Electrical ground is required on this
appliance.
• Do Not connect to the electrical
supply until appliance is
permanently grounded.
• Disconnect power to the junction box before
making the electrical connection.
• This appliance must be connected to a grounded,
metallic, permanent wiring system, or a grounding
connector should be connected to the grounding
terminal or wire lead on the appliance.
Failure to do so could result in a fire, personal
injury or electrical shock.
– Connect oven red lead to branch circuit red lead.
– Connect oven black lead to branch circuit black
lead.
– Connect oven bare copper conductor and white
lead to branch circuit neutral lead (white or gray).
– Connect oven red lead to branch circuit red lead.
– Connect oven black lead to branch circuit black
lead.
– Break connection between oven white lead and
oven bare copper conductor.
– Connect oven white lead to branch circuit neutral
lead (white or gray).
– Connect oven bare copper conductor to branch
circuit ground lead (green or bare copper).
Note:
Installation
Use copper wire only.
