Installation
Instructions

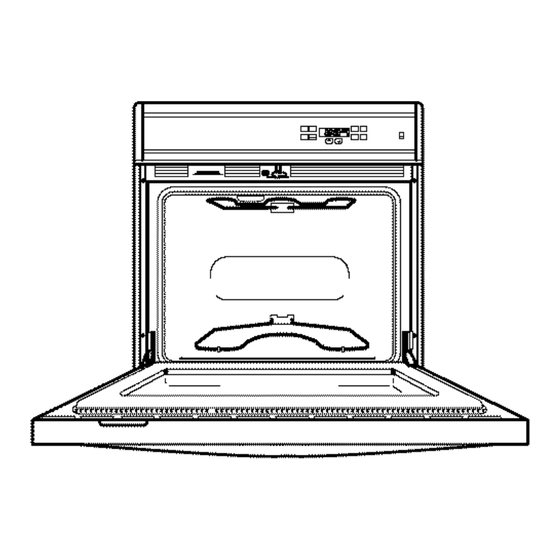

30" Built-In Wall Oven
JTP20, JTP25, JTP28, JTP48, JTPh0, JT912,
JT915, JT952, JT955, ZET938,
ZET958
If you have questions, call 1.800.GE.CARES or visit our website at:
www.GEAppliances.com
Before You Begin
Read these instructions carefully and completely.
• IMPORTANT-save
these
instructions
for local inspector's
use.
• IMPORTANT-observe a,
governing
codes and ordinances.
• Note to Installer--Be
sure to leave these
instructions
with the consumer.
• Note to ConsumermKeep
these
instructions
for future reference,
• Proper installation
is the responsibility
of the installer
and product
failure due
to improper
installation
is NOT covered
under warranty.
• NOTE--This
appliance
must be properly
grounded.
• ATTENTION INSTALLER
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle
is NOT permitted
on these products.
Parts Included
Screws For
Installation
Metal
Bottom Trim
Plastic
Bottom Trim
Optional
Metal Bottom
Trim Assembly
(on some models)
Materials Needed
__
@
Wireaunts
Strain Relief Clamp
Junction
for 1/2" conduit
Box
€_
_
36" of String
Tools Needed
1/8" Drill Bit and
Electric or Hand Drill
Phillips
Screwdriver
229c4053P505-5
31-10524-5
o6-o4JR
Advertisement
Table of Contents
Related Manuals for GE JTP20
Summary of Contents for GE JTP20
- Page 1 30" Built-In Wall Oven Instructions JTP20, JTP25, JTP28, JTP48, JTPh0, JT912, JT915, JT952, JT955, ZET938, ZET958 If you have questions, call 1.800.GE.CARES or visit our website at: www.GEAppliances.com Before You Begin • Proper installation is the responsibility of the installer...
- Page 2 Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Electrical For Your Safety Requirements • Be sure your oven is installed properly a qualified installer or service technician. This appliance must be supplied with the • Be sure the oven is securely installed in a proper voltage and frequency, and connected cabinet that is firmly attached to the house...
-
Page 3: Pre-Lnstallation Checklist
Installation Instructions Pre-lnstallation Checklist ALL INSTALLATION INFORMATION Door removal is not a requirement for ON THE FOLLOWING PAGES IS TO installation of the product, but is an BE USED FOR SINGLE AND DOUBLE added convenience. To remove the door: OVEN INSTALLATION! Open the oven door as far as it will go. - Page 4 Installation Instructions [_ Pre-lnstallation Checklistcont. Remove the bottom trim from the top lace the oven on a table or platform of the oven. It will be installed at the even with the cutout opening. (Platform must support 150 Ibs. single, end of the installation process.
-
Page 5: Cutout For Single Built-In Oven
Installation Instructions Cutout for Single Built-In Oven Cutout Cabinet Width 30" Width __28 1/2" Min. Recommended 28 5/8" Minimum Cutout Location Junction Box F Location from Floor 32 112" ¢, 23 112" Min. Allow 11/16" for --_._ Cutout Depth overlap of oven _F"... -
Page 6: Cutout For Double Built-In Oven
Installation Instructions Cutout for Double Built-In Oven Cutout Cabinet Width 30" Width _ .5" 28 1/2" Min. Recommended "<'-28 5/8" Max. -'_ Minimum Cutout Location Junction Box Location from Floor 12" Cutout Depth 23 1/2" Min, Allow 11/16" for -_ overlap of oven over side edges Cutout Width... -
Page 7: Cutout For Single Built-In Oven Under Counter
Installation Instructions Cutout for Single Built-In Oven Under Counter Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of oven for Gas and electrical connections approved cooktop models. 30"... -
Page 8: Electrical Connections
Installation Instructions Electrical Connections Turn off the circuit breaker or remove ATTENTION INSTALLER fuses to the oven branch circuit. All electric wall ovens must be hard wired With the oven supported on a table or (direct wired) into an approved junction platform in front of the cabinet opening,... - Page 9 Installation Instructions IBI Electrical Connections cont New Construction and Three-Conductor Branch Four-Conductor Branch Circuit Connection Circuit Connection When connecting to a three-conductor branch circuit, if local codes permit: • When installing in new construction, a. Connect the bare oven ground conductor •...
-
Page 10: Securing The Oven In The Opening
Installation Instructions Securing the Oven in the Opening Sliding the Oven Into the Drilling the Pilot Holes and Opening Mounting the Oven a. Loop (do not tie) a 36" string around the conduit before the oven is slid into place. NOTE: Before drilling the pilot holes, This will keep the conduit from falling make sure the oven is pushed as far... - Page 11 Installation Instructions To install a single metal bottom trim assembly (on some models), use sections C3 and C4. To install a metal bottom trim with a plastic bottom trim (on some models), use sections C3-C5. Preparing for the Bottom Installing the Plastic Bottom Trim Installation Trim (on some models)
- Page 12 Installation Instructions 151 Replacing the Oven Door _'-_ Open the oven door as far as it NOTE: The oven door is heavy. You will open. may need help lifting the door high enough to slide it into the hinge slots. _"_ Push the hinge locks up against the Do not lift the door by the handle.
-
Page 13: Pre-Test Checklist
Installation Instructions Pre-Test Checklist Remove all protective film, if present, heck that the bottom trim is installed properly (see page 11). and any stickers. Check to be sure that all wiring is heck to be sure the mounting screws are installed and flush with the side trim secure and not pinched or in contact with moving parts. - Page 14 NOTES...
